panda audio midiBeam v2

Wireless MIDI Interface Set

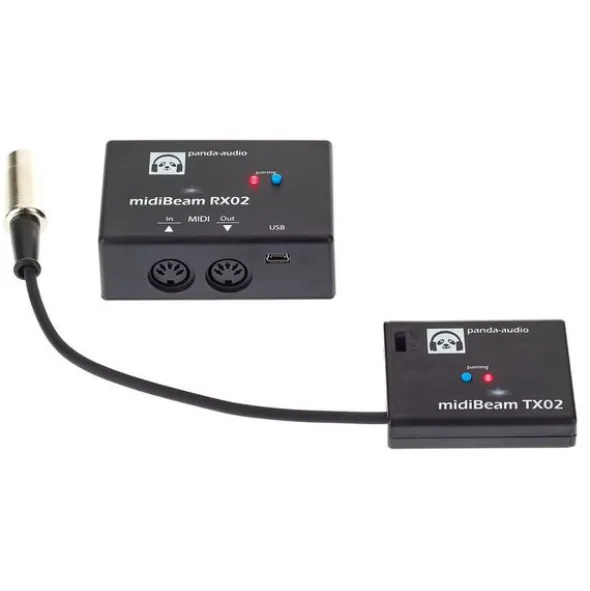

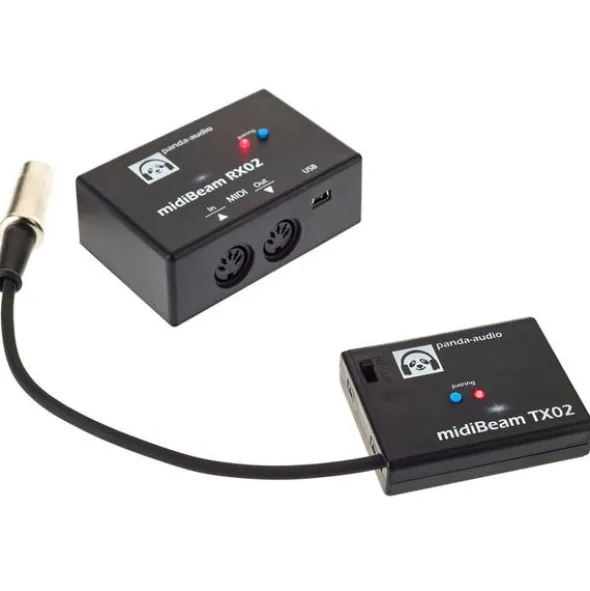

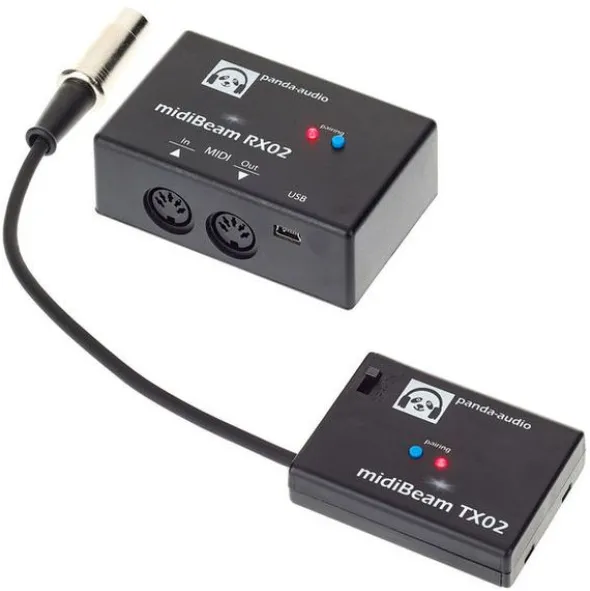

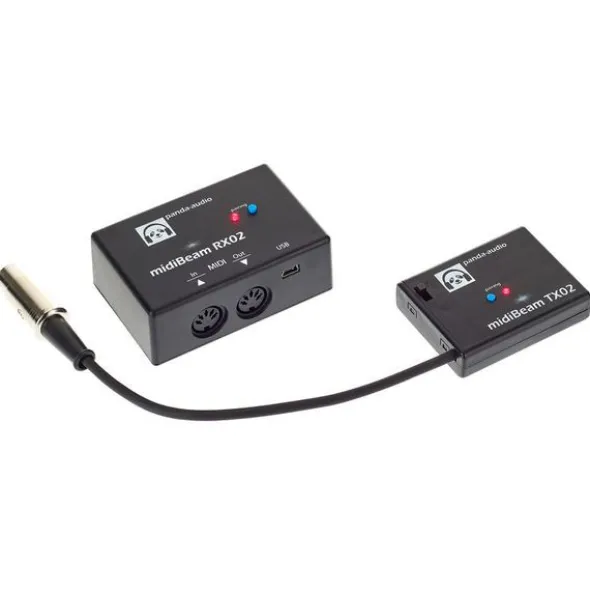

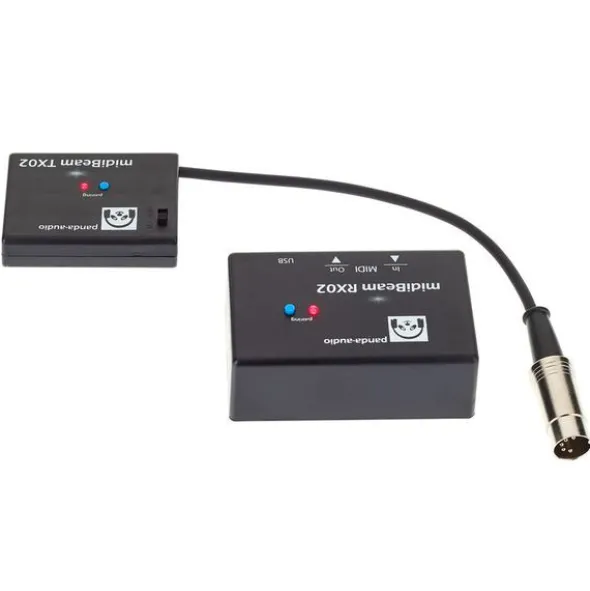

• Consists of TX02 transmitter and RX02 receiver
• Wireless transmission of MIDI signals
• Maximum range in open terrain: up to 250 m
• Automatic connection/pairing of transmitter and receiver at the touch of a button
• 4 levels of transmission power
• Battery life of up to 66 hours (depending on power setting and ambient conditions)
• Warning when battery charge level reaches 10%
• Frequency band: 2.4 GHz / 76 channels
• Latency: 0.38 ms

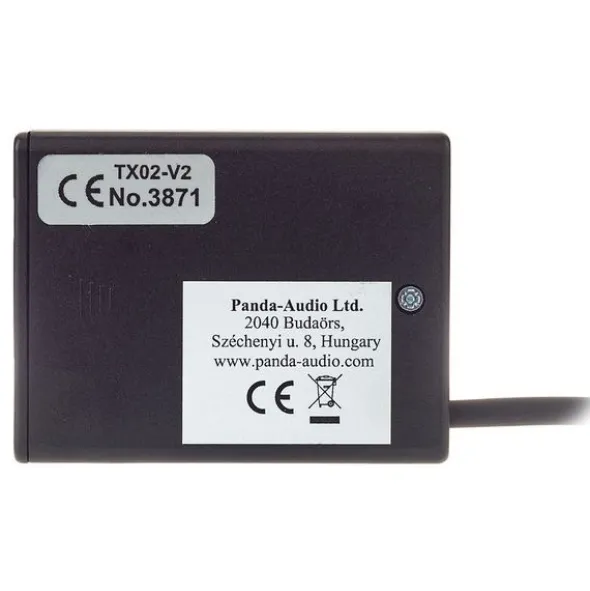

TX02 Transmitter:

• Battery-operated (requires 2 AAA batteries, not included)
• 1 x 5-pin DIN MIDI connector
• Dimensions (W x D x H): 63 x 48 x 15 mm
• Weight with batteries: 59 g

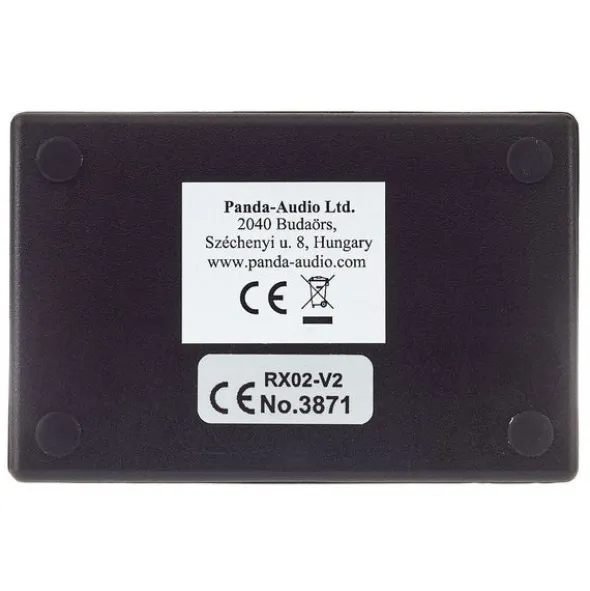

RX02 Receiver:

• USB Mini-B port for use with a computer (data transfer and power supply)
• Input and output: 5-pin DIN MIDI sockets
• The RX02 can also be used as a standalone USB MIDI interface
• MIDI merge function
• Running status compatibility can be switched on and off
• Configurable operating parameters and firmware updates via a web-based utility
• Dimensions (W x D x H): 83 x 54 x 31 mm
• Weight: 58 g

Note: When used without a computer, a USB power supply is required for the RX02 receiver (not included)
