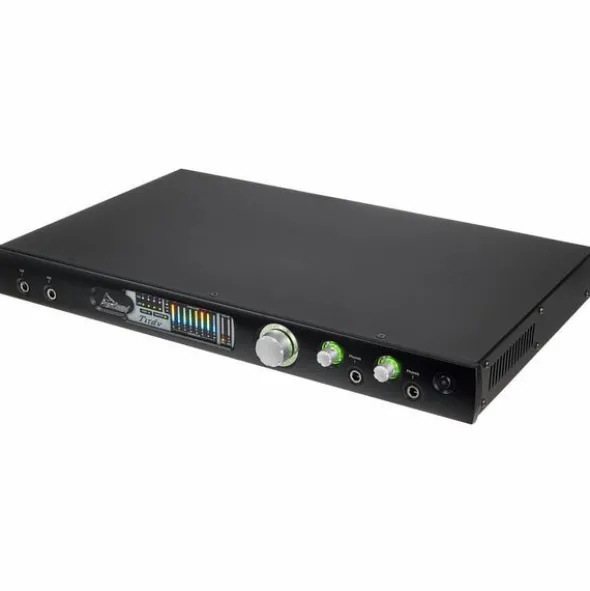

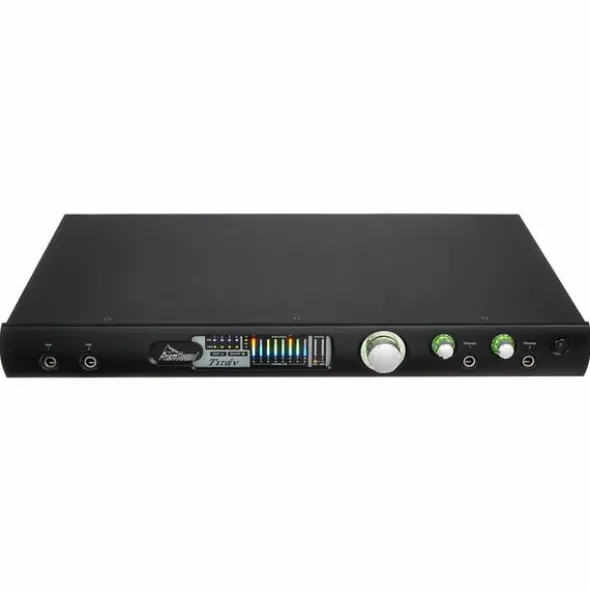

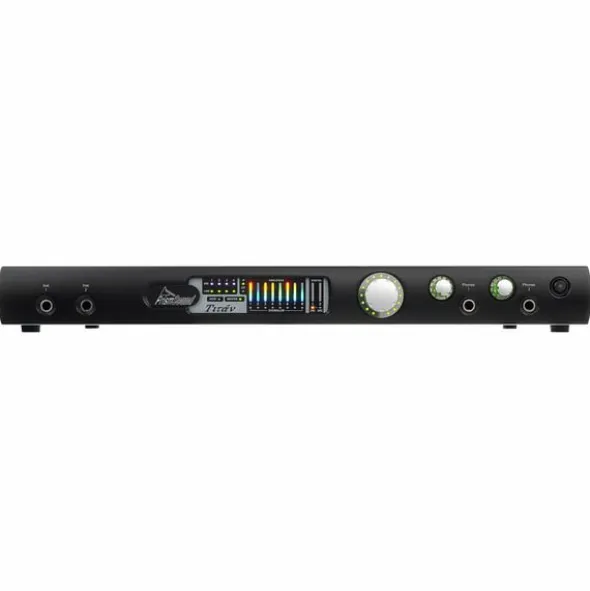

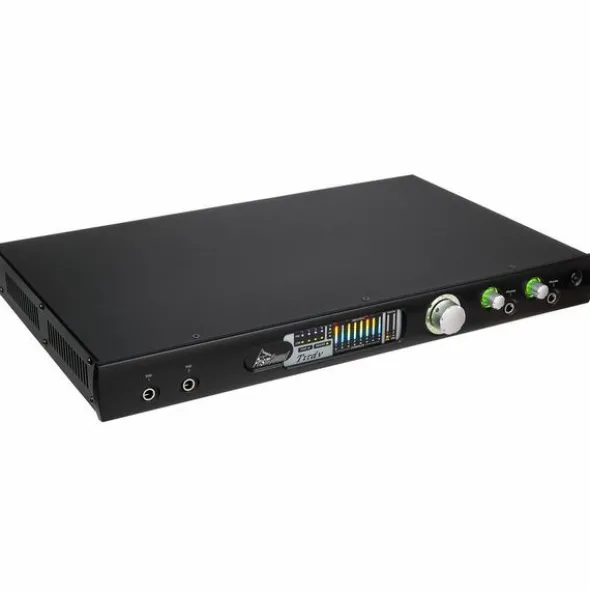

Prism Sound Titan

USB 2.0 audio interface 24-bit / 192 kHz

• 4 x Mic / Line combo inputs XLR / jack
• 4 x line input 6.3 mm jack
• 2 x Hi-Z instrument input 6.3 mm jack front
• 8 x Line output 6.3 mm jack
• Digital I / O optical S / PDIF / ADAT and coaxial S / PDIF
• Word Clock I / O
• Ethernet port
• USB 2.0
• 2 x Stereo headphone output 6.3 mm jack front
• Expansion module connection
• Internal power supply

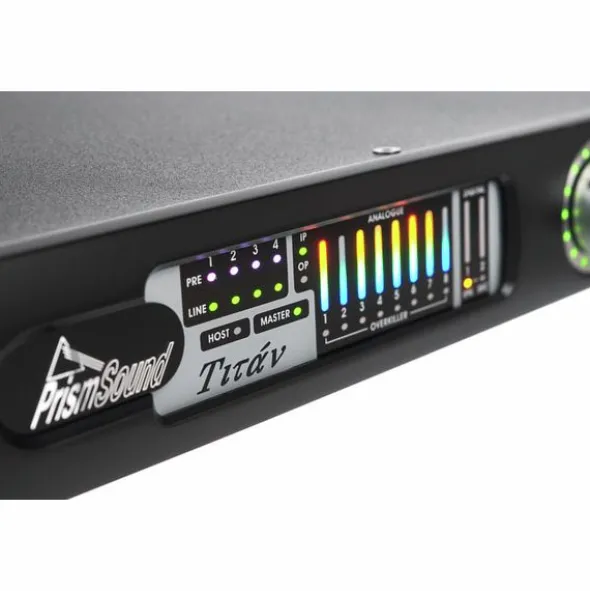

• LED Meter
• For Windows Vista / 7/8 and Mac OSX 10.4 or higher
• Includes feet and 19″ rack ears
• Dimensions: 440 x 290 x 50 mm (W x D x H) with feet
• Weight: 3.7 kg

Disponível desdeJaneiro 2014

número de artigo330361

unidade de venda1peça(s)

Recording / Playback Channels18×18

Number of Mic Inputs4

Number of Line Inputs8

Instrument Inputs2

Number of Line Outs8

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors1

Number of ADAT Connectors1

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceNo

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width440 mm

Depth290 mm

Height50 mm

Connection FormatUSB port Type B

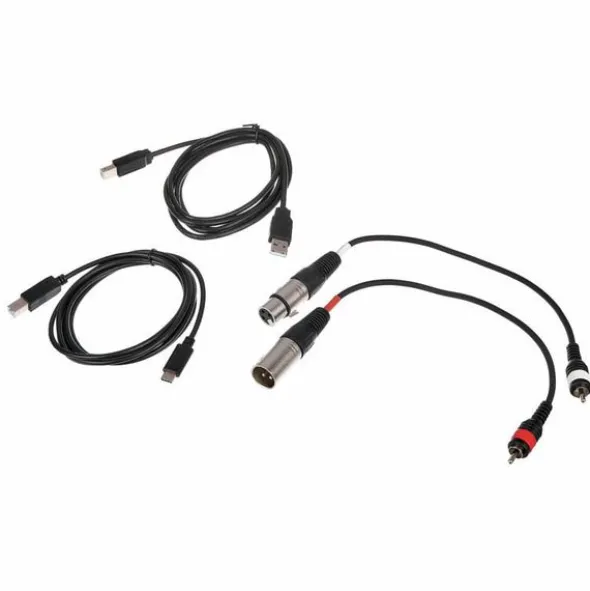

Included in deliveryPower Cable, USB-A to USB-B Cable, USB-B to USB-C Cable, Rack Mount Accessories

Zero latency monitoringYes
