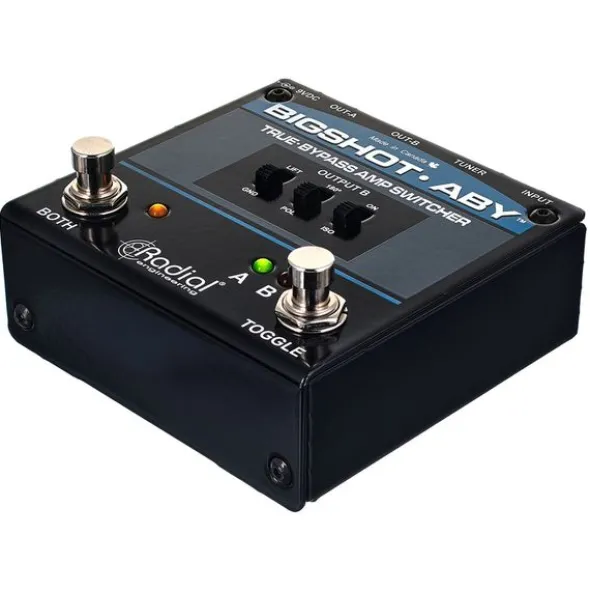

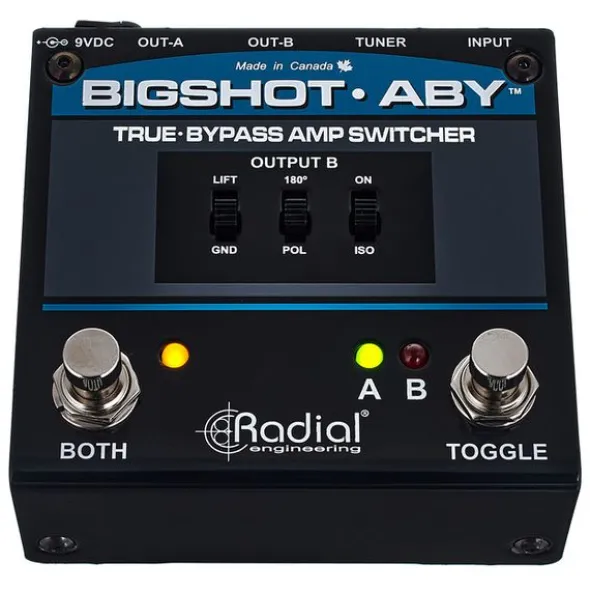

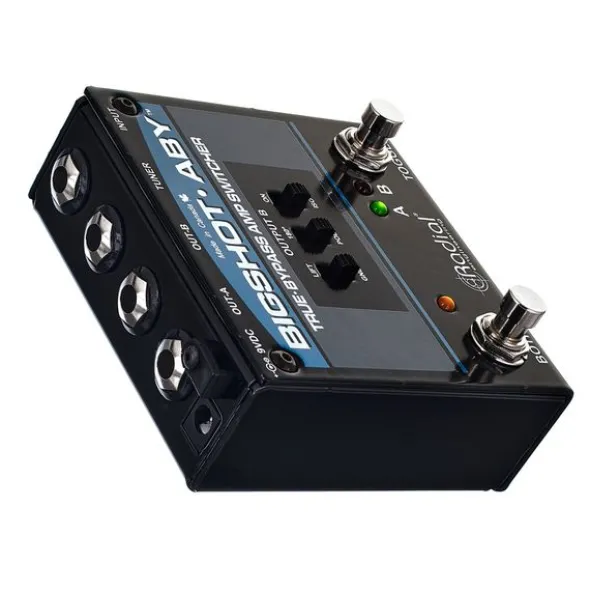

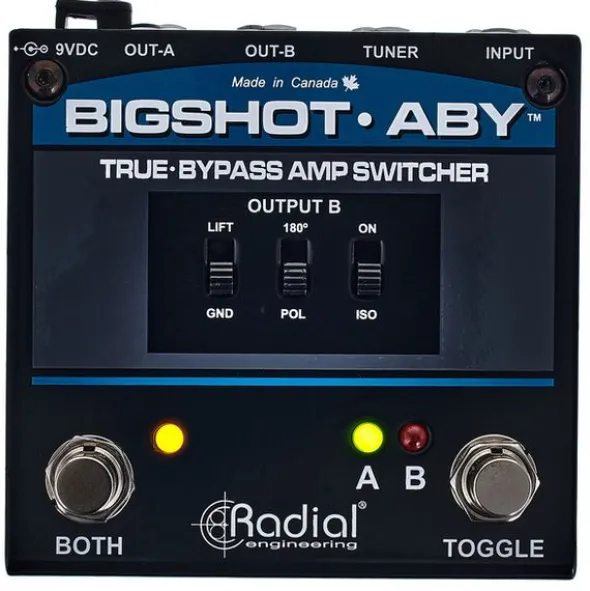

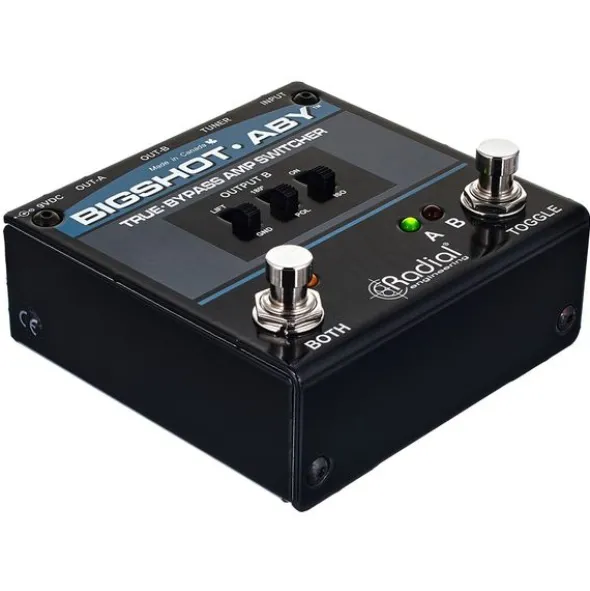

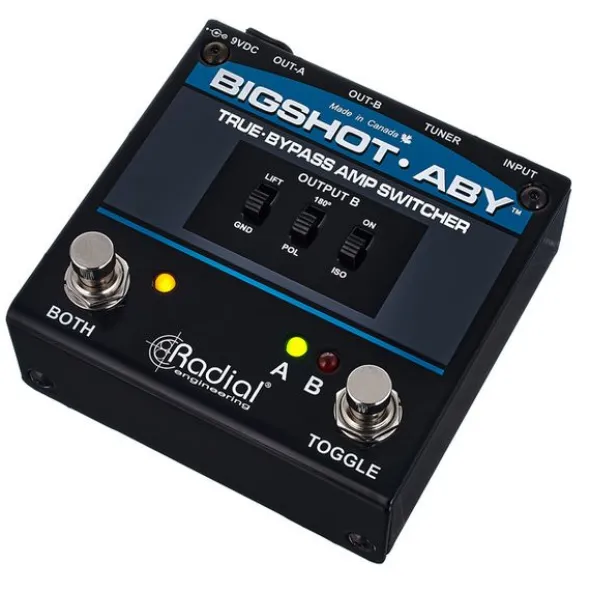

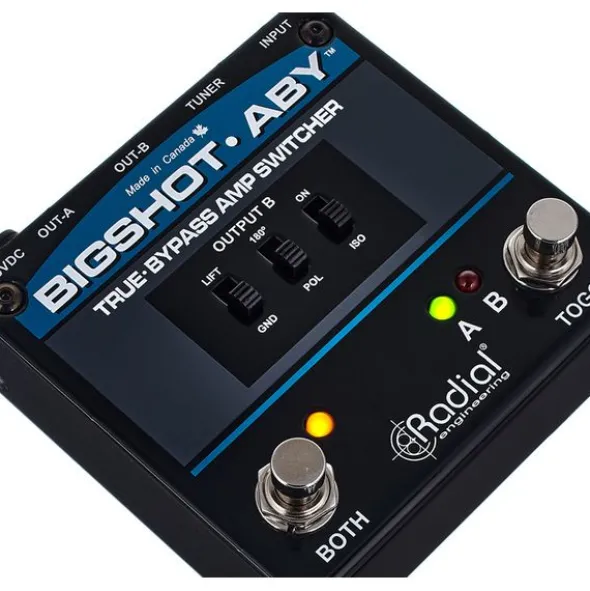

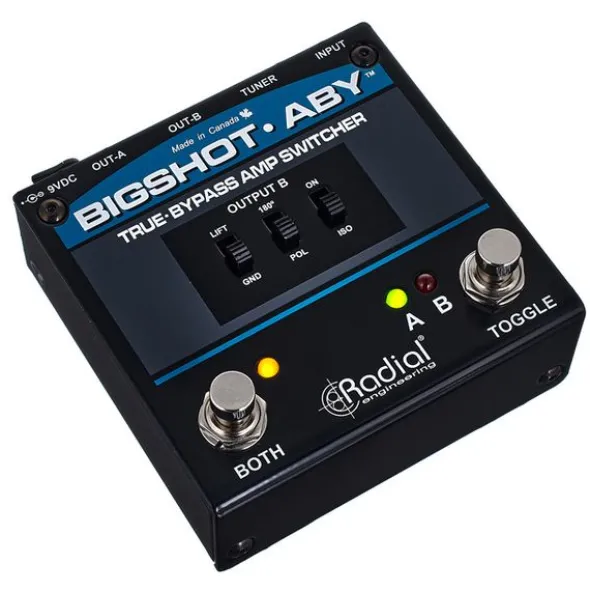

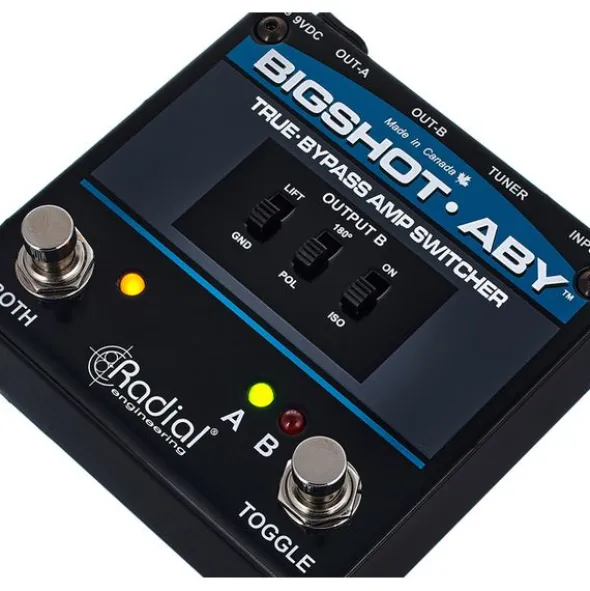

Radial Engineering Tonebone Bigshot ABY/Y MKII

ABY Amplifier Selector

• Passive operation – no power supply required
• True Bypass
• Ground lift switch for output B
• Phase reversing switches to match the phase orientation of the amplifiers
• Switch for internal transformer isolation to eliminate hum
• Toggle A / B foot switch
• Both foot switch

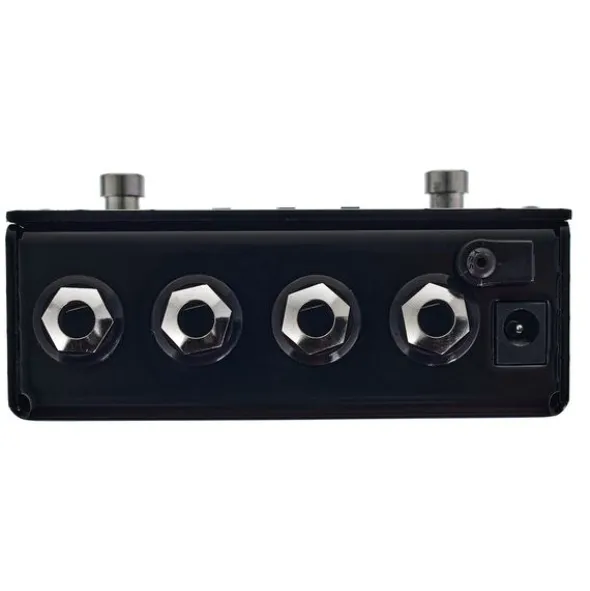

• 6.3 mm mono jack input
• 6.3 mm mono jack tuner output
• 2 x 6.3 mm mono jack outputs
• Power supply via 9 V DC power supply with min. 120 mA, centre negative (not included)
• Status LEDs
• Metal housing
• Power supply only required for status LEDs
• Dimensions (L x W x H): 96 x 92 x 52 mm
• Weight: 560 g
• Made in Canada
