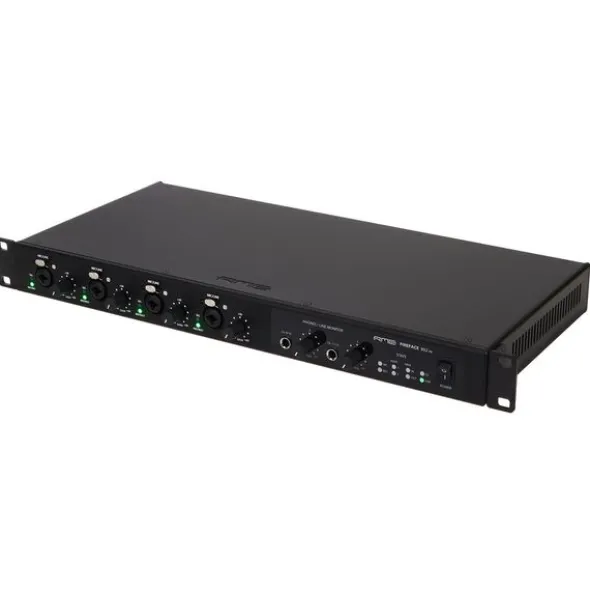

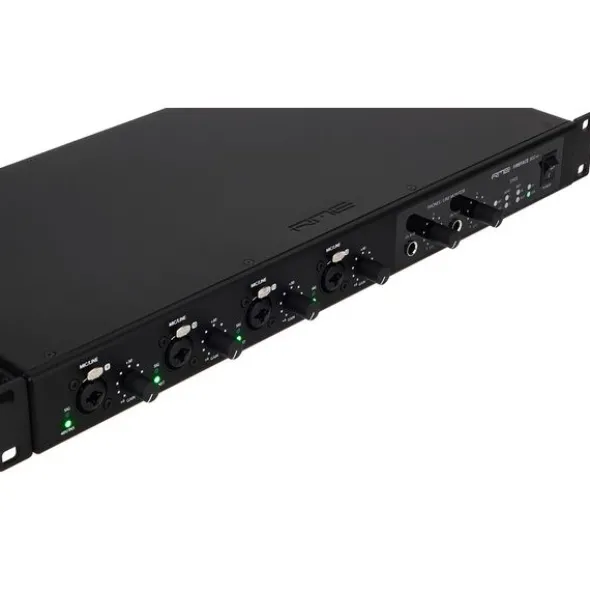

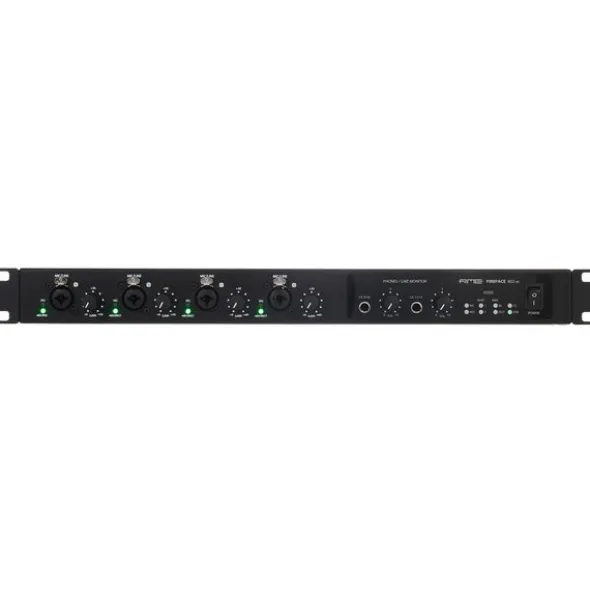

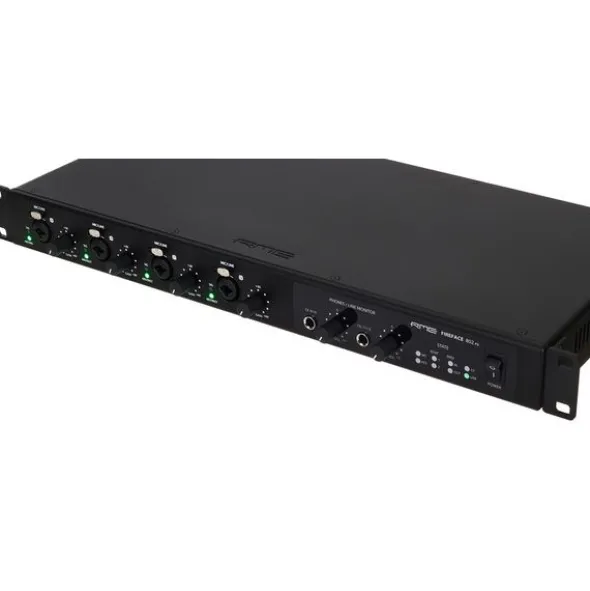

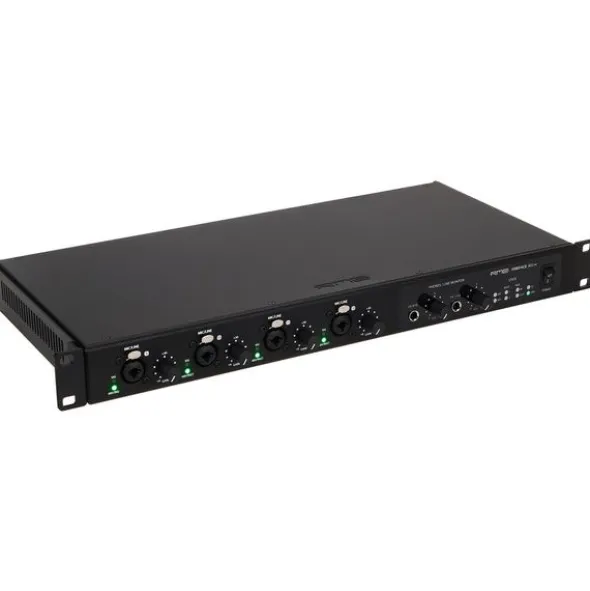

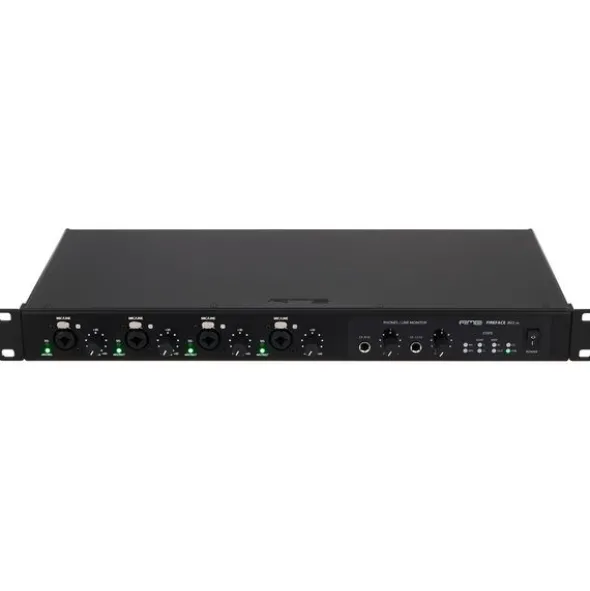

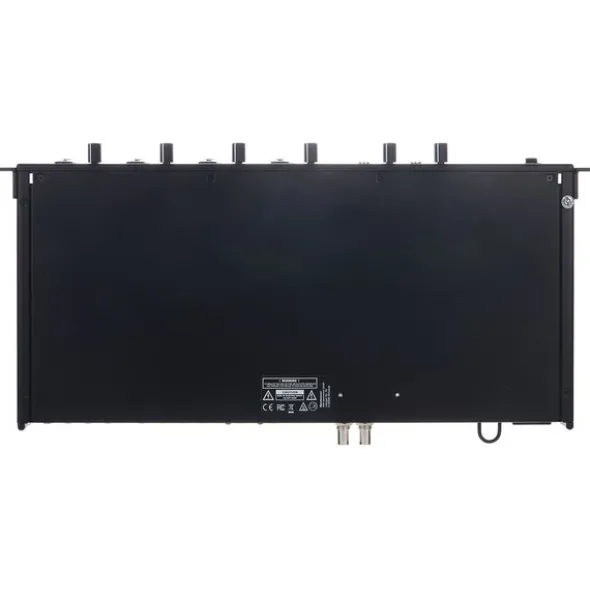

RME Fireface 802 FS AE

USB Audio Interface

• Special edition
• 60 Channel USB 2.0
• 24 Bit / 192 kHz
• Built-in DSP mixer with effects section: EQ, dynamics and reverb
• 4 Analogue microphone preamps with gain control
• Inputs can be controlled remotely via software
• TotalMix Remote
• TotalMix FX mixing / routing
• DigiCheck software
• DC-coupled outputs – CV/Gate Voltage Control
• Stand-alone operation with setup recall
• ICC – Intelligent Clock Control
• SteadyClock FS
• +48 V phantom power
• Class compliant
• Built-in switched-mode power supply: 100 – 240 V AC, 30 Watts
• Format: 19″/ 1U
• Dimensions (W x H x D): 438 x 44 x 242 mm
• Weight: 2.8 kg
• Includes rack brackets

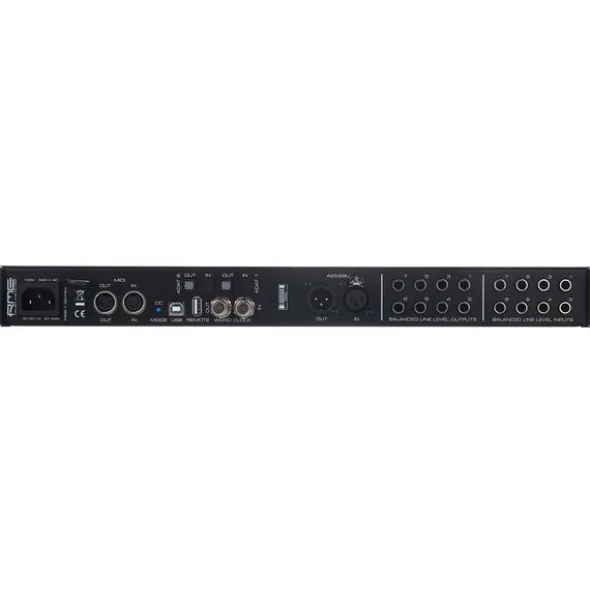

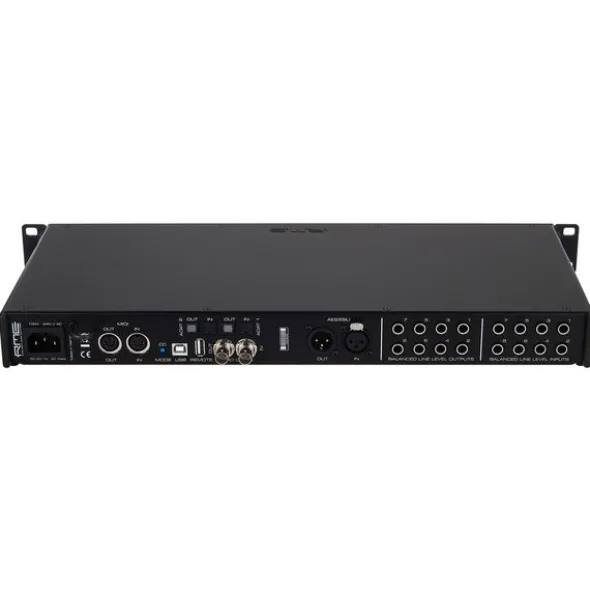

Connections:

• 4 x Mic / Instrument / Line input XLR / jack 6.3 mm combo
• 8 x Line input 6.3 mm jack balanced
• 8 x Line output 6.3 mm jack balanced
• AES / EBU input and output XLR
• Word Clock input and output BNC
• 2 ADAT / S/PDIF optical input and output
• 2 Stereo headphone outputs 6.3 mm jack
• MIDI input and output
• USB
• Remote connection for optional ARC USB (not included)

Disponível desdeOutubro 2024

número de artigo601644

unidade de venda1peça(s)

Recording / Playback Channels30×30

Number of Mic Inputs4

Number of Line Inputs12

Instrument Inputs4

Number of Line Outs8

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors2

Number of ADAT Connectors2

Numer of AES/EBU Connectors1

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceYes

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width483 mm

Depth242 mm

Height44 mm

Connection FormatUSB port Type B

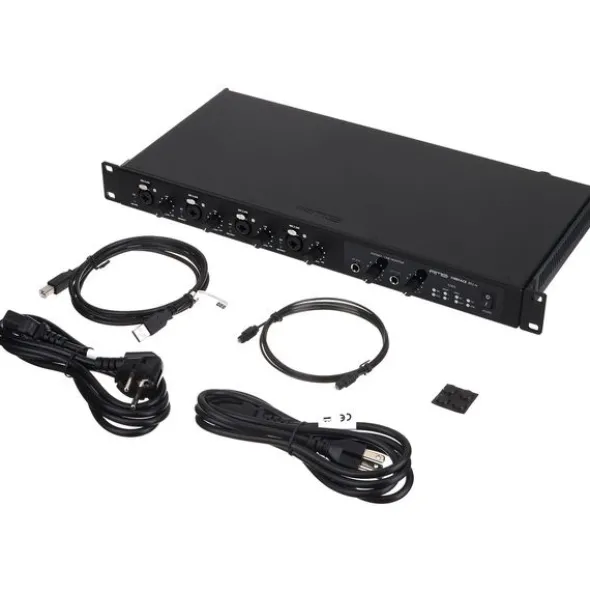

Included in deliveryPower Cable, USB-A to USB-B Cable, TOSlink Cable

Zero latency monitoringYes
