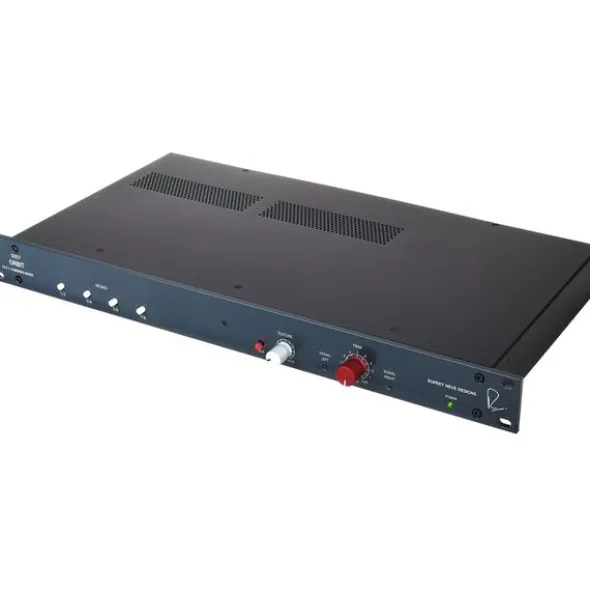

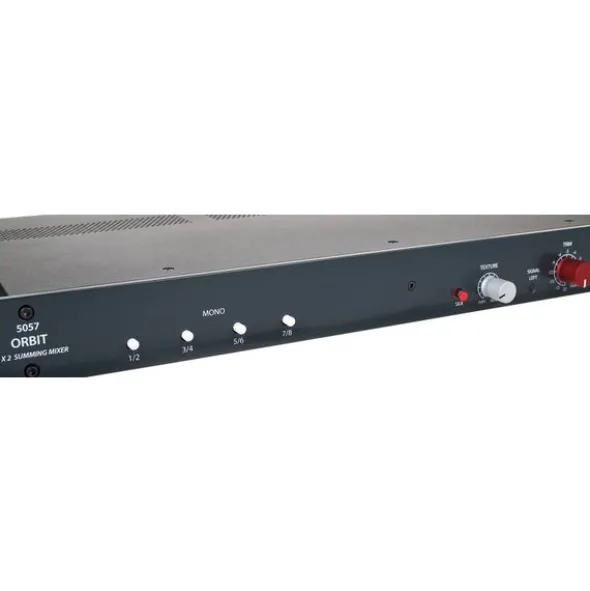

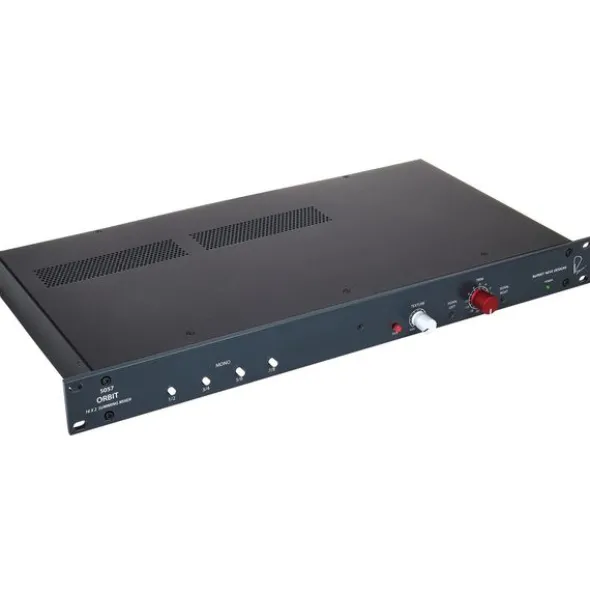

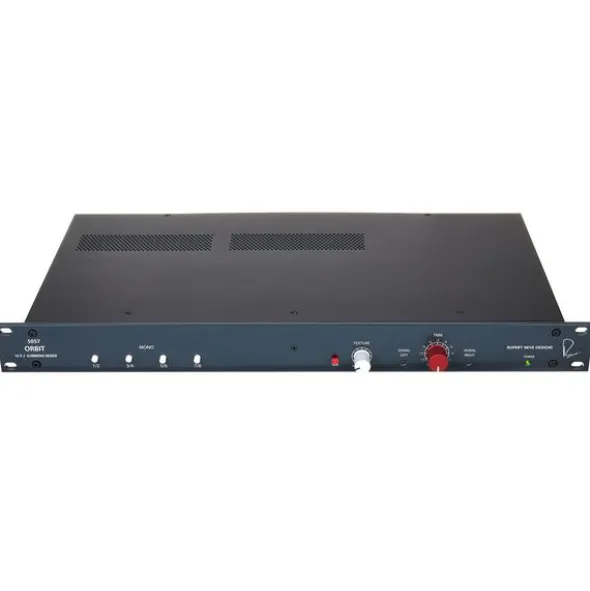

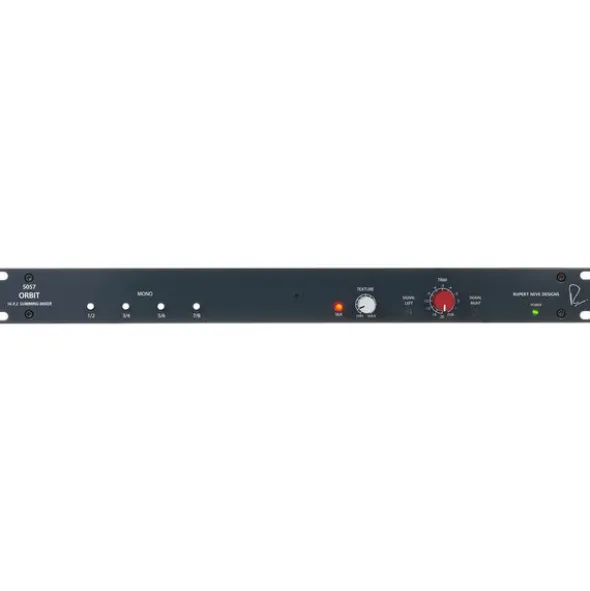

Rupert Neve Designs 5057 Orbit

16×2 Summing Mixer

• 16 Channel Class-A mix bus

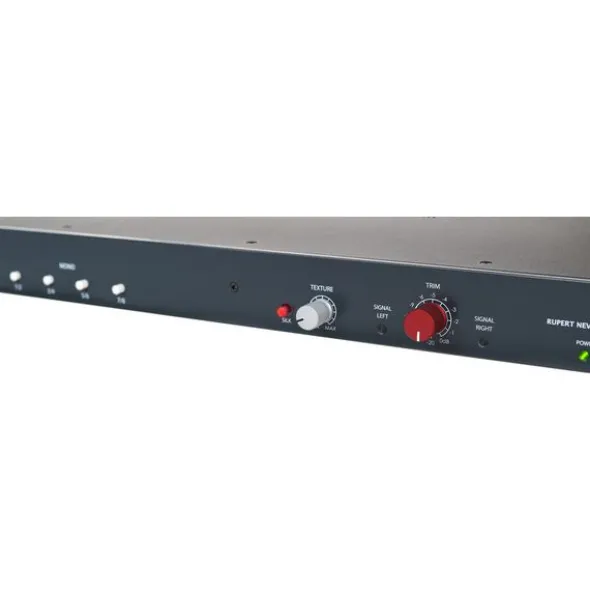

• Silk Red & Blue modes with texture controls for precise control of sound characteristics
• Very low crosstalk for a wide stereo image and a sonic depth
• Cascadable via bus link with multiple 5057 units
• Input impedance: 16 K Ohm
• Frequency response: 10 to 50000 Hz: +/- 0.1 dB
• Max. input level at 1 kHz: +26 dBu
• Max. output level at 1 kHz: +26 dBu
• Distortion factor (from 22 Hz – 22 kHz): 0 dBu at 1 kHz: 0.003%, +20 dBu at 1 kHz: 0.0006%

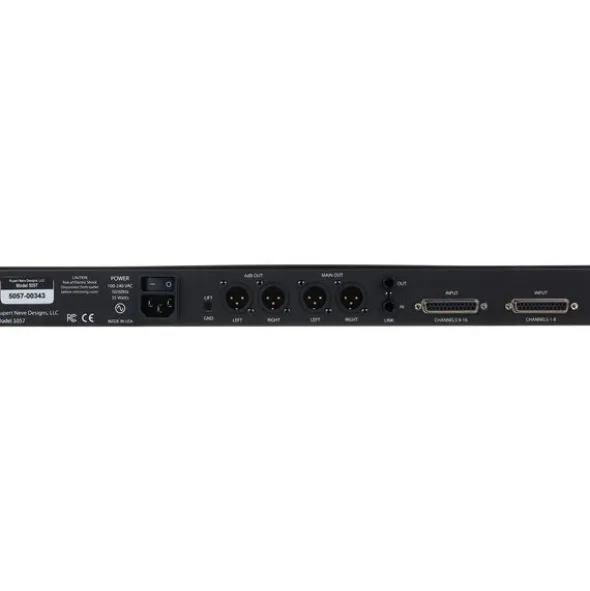

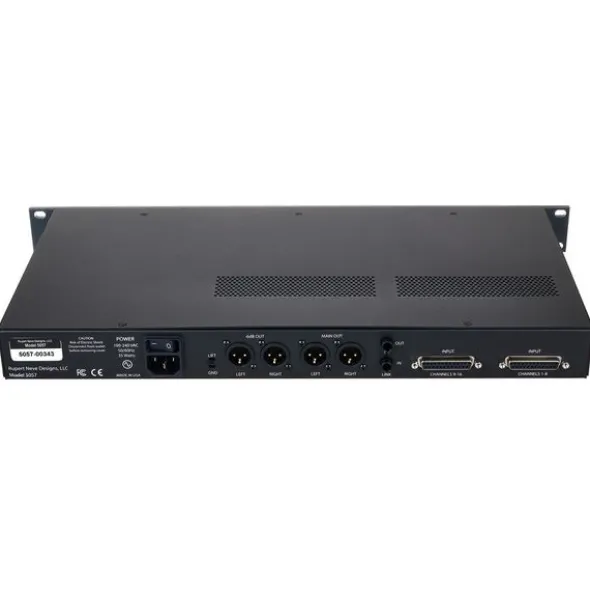

• 2 x DB25 inputs (TASCAM standard) and XLR outputs
• Can be combined with other Rupert Neve Designs summing units via Buss Link
• Dimensions (W x D x H): 483 x 229 x 44 mm
• Weight: approx. 4 kg
