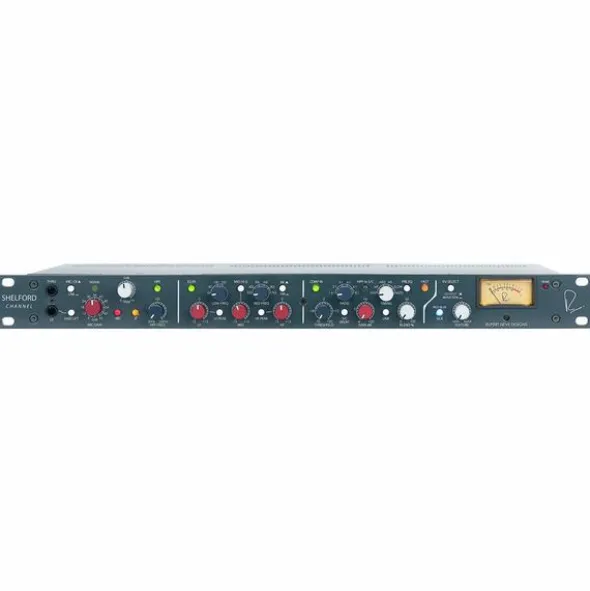

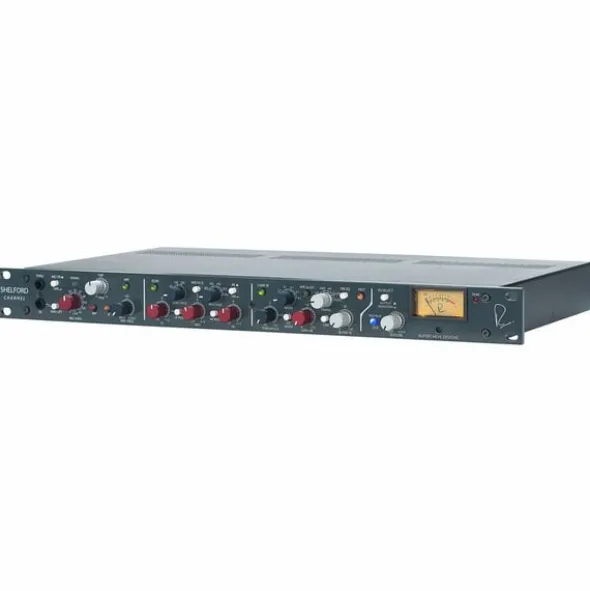

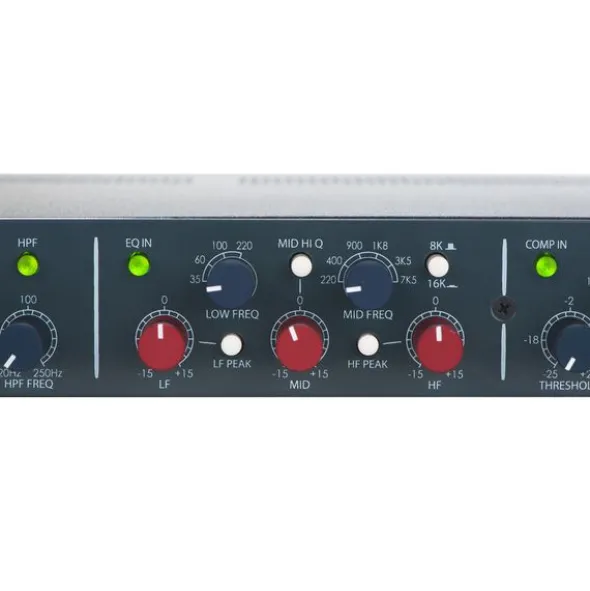

Rupert Neve Designs Shelford Channel

Channel strip

• With transformer gain preamp, DI, inductor EQ and diode bridge compressor

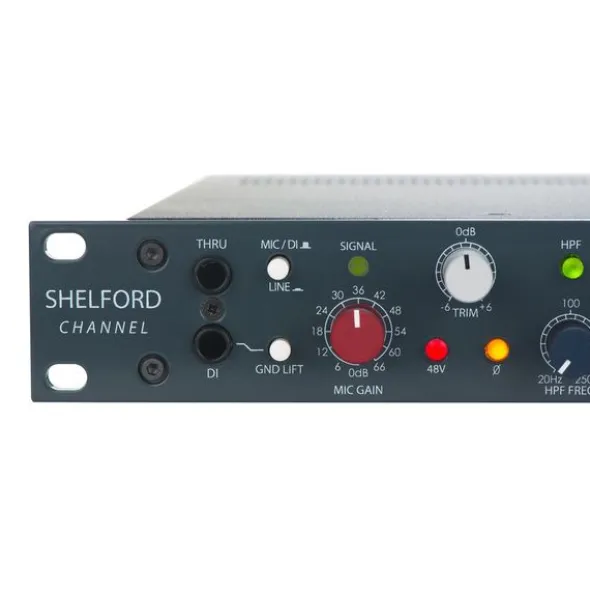

• Mic gain and mic trim
• 48V phantom power and polarity switchable
• Tunable low-cut from 20 – 250 Hz
• DI-In and -Thru
• 3-band EQ with parametric depths (35, 60, 100, 220 Hz), parametric centers (220, 400, 900, 1800, 3500, 7500 Hz) and switchable Q factor, treble (8, 16 kHz)

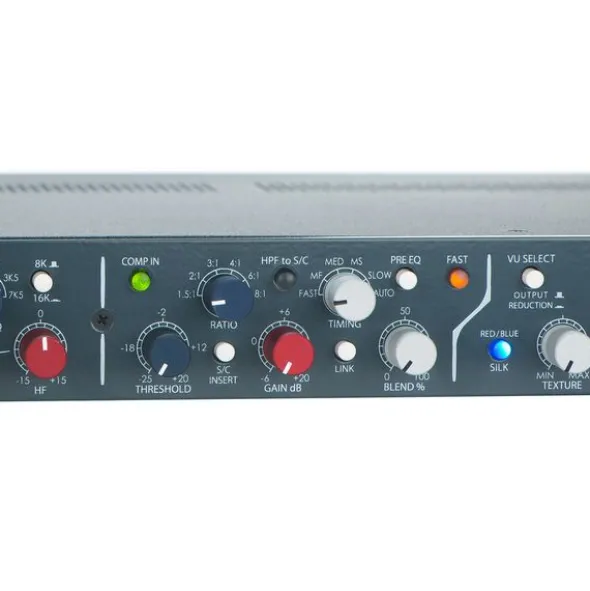

• Diode bridge compressor with adjustable threshold (-25 to +20), ratio (1.5: 1, 2: 1, 3: 1, 4: 1, 8: 1), gain (-6 to +20 dB) and timing (Fast , MF, Medium, MS, Slow, Car)
• Blend for parallel compression
• HPF (from preamp section) to sidechain
• Compressor link option
• Pre-EQ option
• Silk function (Red, Blue), infinitely variable

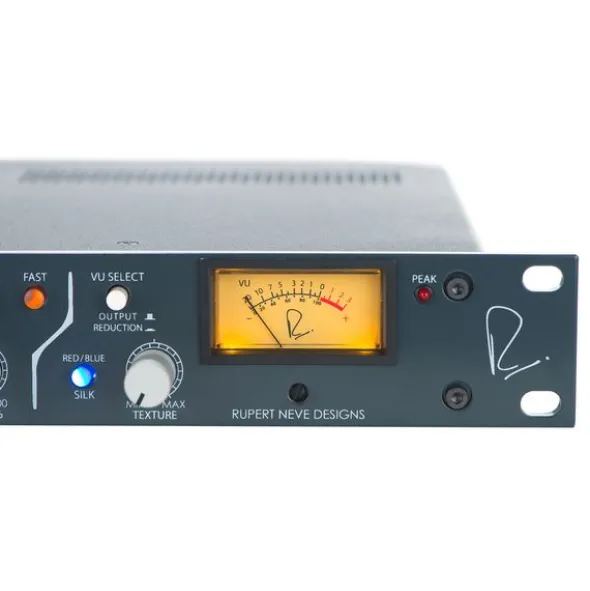

• VU meter (output level / level reduction)
• Internal power supply, automatically switches from 100 to 240V AC, 50-60 Hz if necessary
• Format: 19 “/ 1U

Disponível desdeOutubro 2016

número de artigo400991

unidade de venda1peça(s)

Channels1

Number of microphone inputs1

Instrument inputYes

TubesNo

Compressor/LimiterYes

EqualizerYes

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsYes

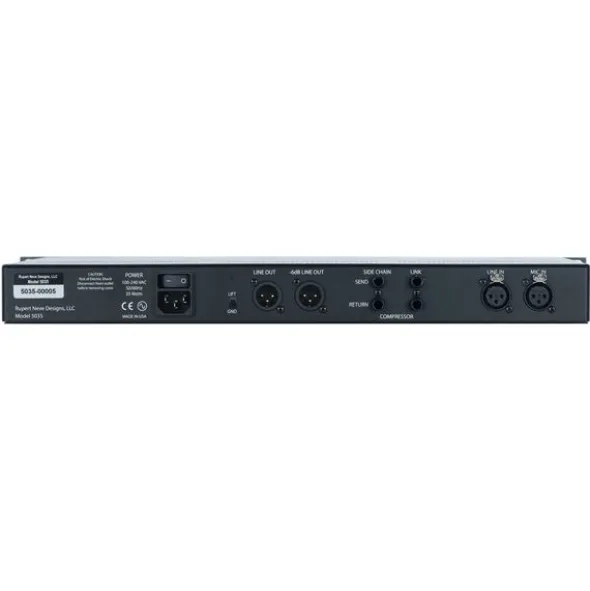

Analogue OutputsXLR

Digitale Outputs–

Headphone connectionNo

Level MeterYes

Design19″
