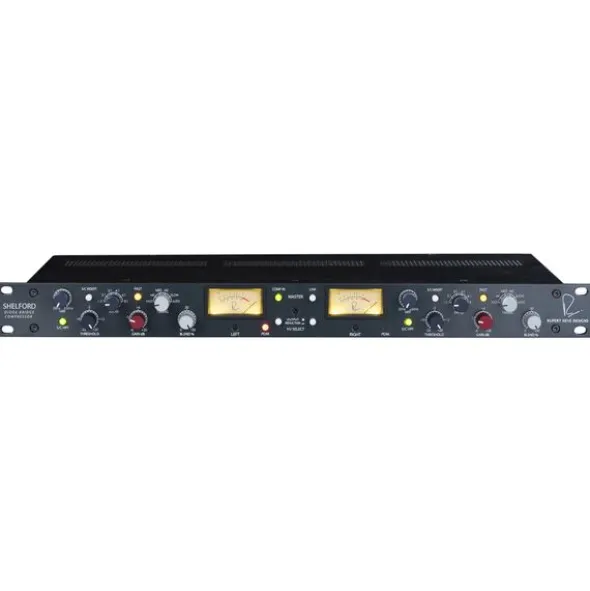

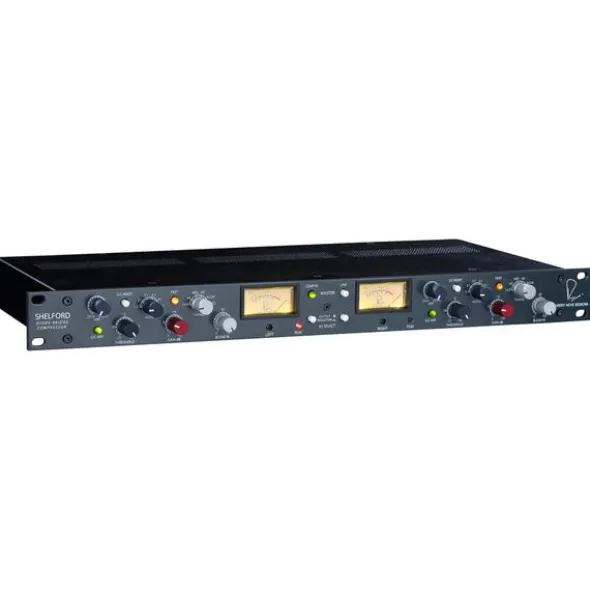

Rupert Neve Designs Shelford Diode Bridge Comp

2-Channel Diode Bridge Compressor

• Custom transformer and class A line amplifier
• Stereolink or 2x mono
• Integrated parallel compression
• Input impedance: 10 kOhm
• Output impedance: 40 ohm
• Maximum input level (+4 dBu selected): +26.7 dBu
• Maximum output level: +26.7 dBu
• Noise floor: (22 Hz – 22 kHz BW): -104 dBu
• Frequency response (10 Hz to 120 kHz): +/- 0.25 dB
• THD+N @1 kHz @ maximum level (22 Hz – 22 kHz BW): 0.0008%
• Compressor Noise specifications: Noise at 0dB make-up gain (22 Hz – 22 kHz BW): -84.5 dBu, noise at +20dB make-up gain (22 Hz – 22 kHz BW): -64.5 dBu
• Detented control with 31 steps

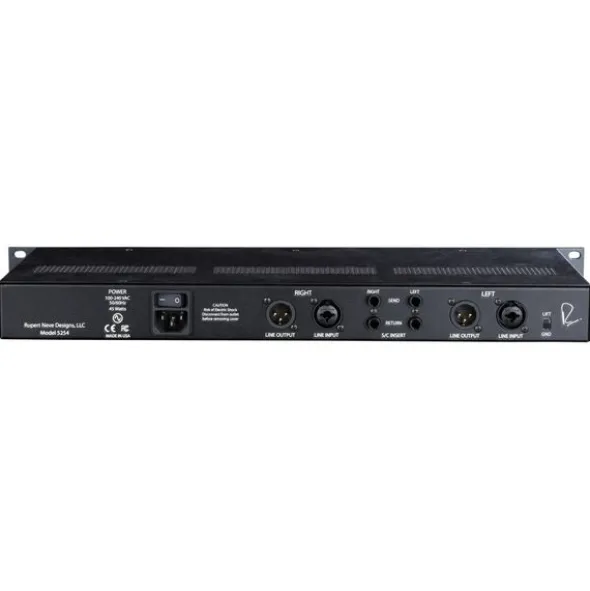

• Input/output connectors: XLR
• Sidechain send/return: 6.3 mm jack
• Groundlift switch
• Format: 19″/ 1 U
• Weight: Approx. 4 kg
