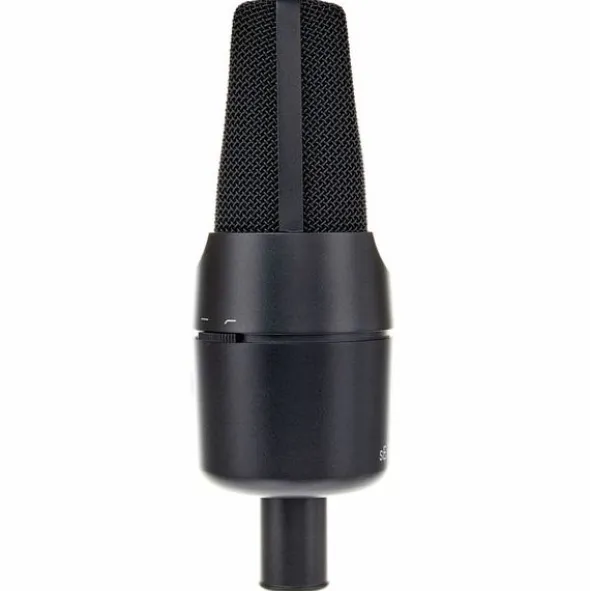

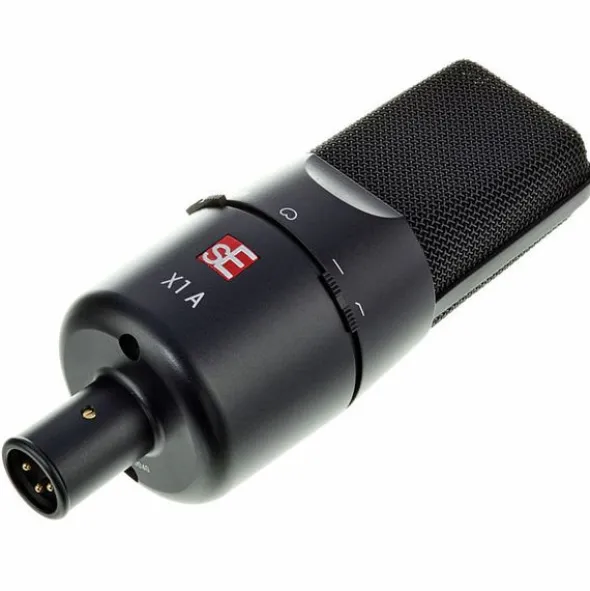

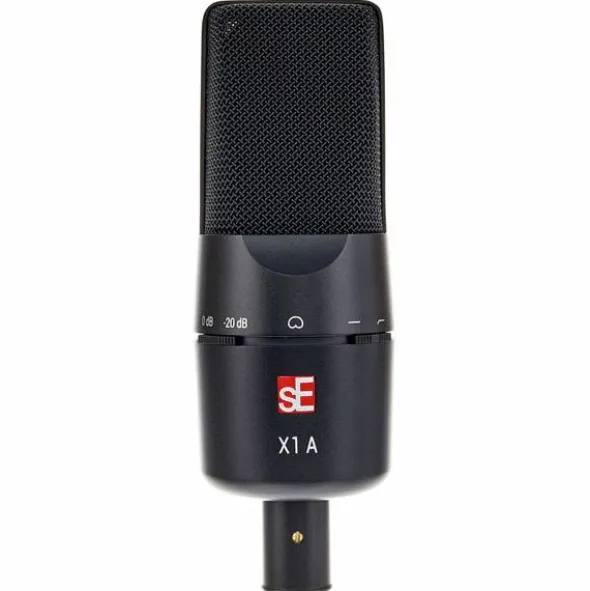

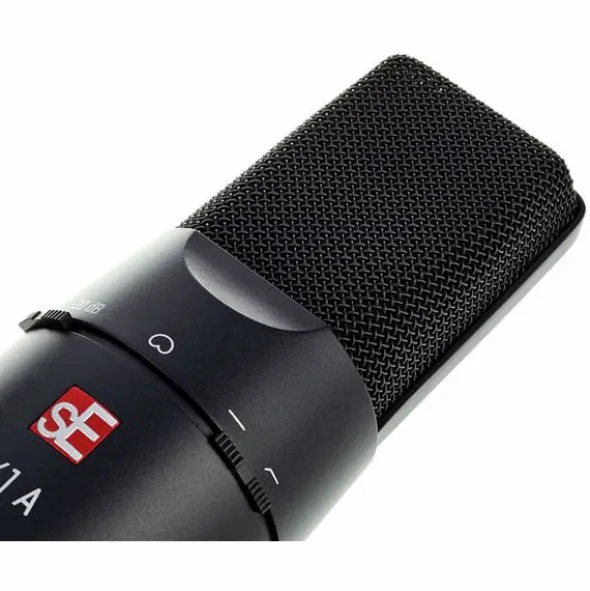

SE Electronics X1A

Condenser Microphone

• With 2/3″ capsule
• Polar pattern: Cardioid
• Frequency range: 20 – 20000 Hz
• Impedance: <50 Ohm
• Sensitivity: 20 mV / Pa (-34 dB)
• Signal-to-noise ratio: 78 dB (A)
• Equivalent Noise level: 16 dB (A)
• Dynamic range: 114/134 dB (0/20 dB pad)
• Low Cut Filter: 100 Hz, 6 dB / Oct, switchable
• Attenuation: 20 dB, switchable

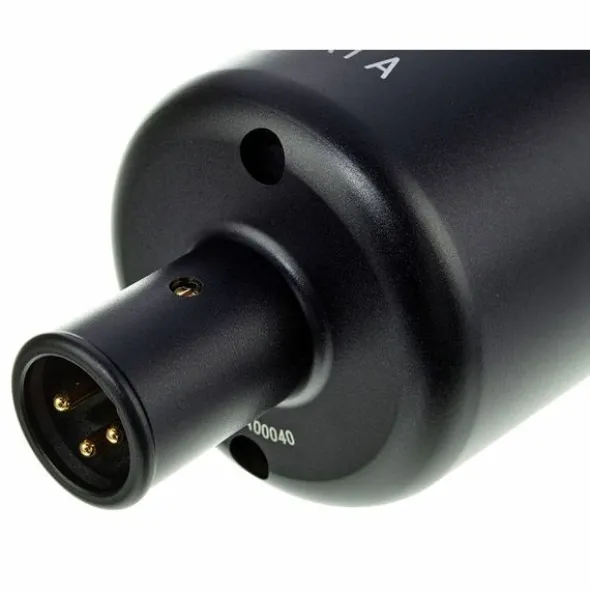

• Connectivity: 3-Pin XLR connector
• Power requirement: 48 V phantom according to IEC 61938
• Recommended load impedance:> 1K Ohm
• Power Consumption: 4.0 mA
• Diameter: 58 mm
• Length: 169 mm
• Weight: 390 g

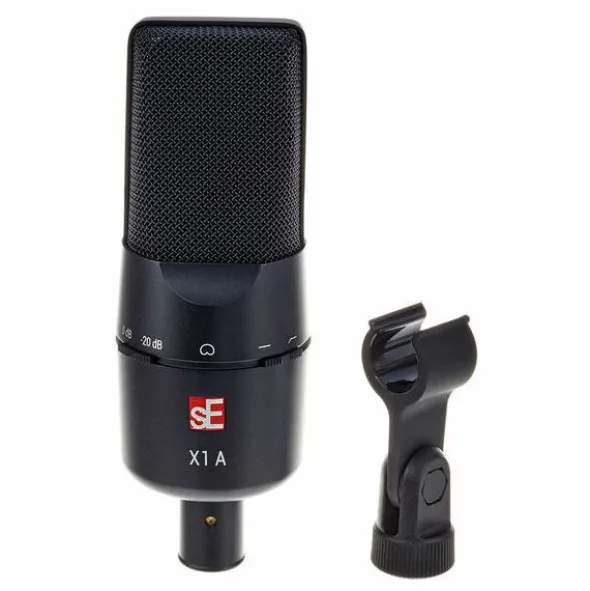

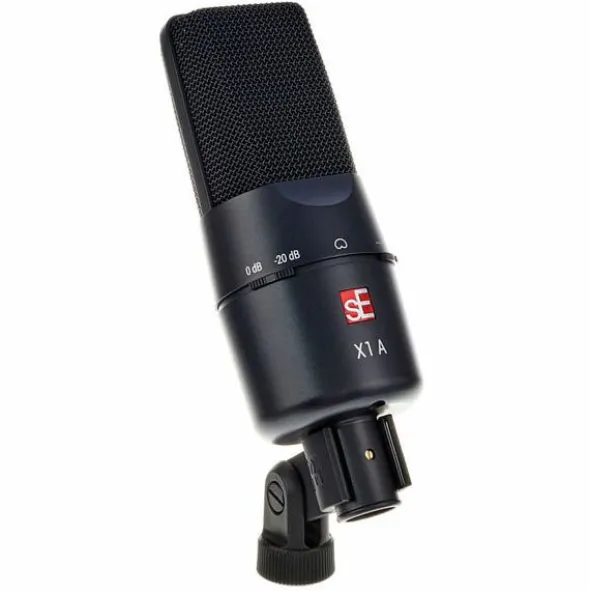

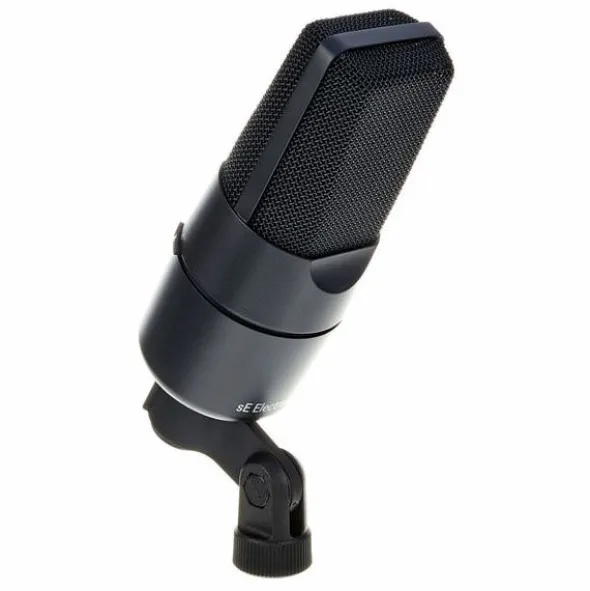

• Includes microphone holder and thread adapter
