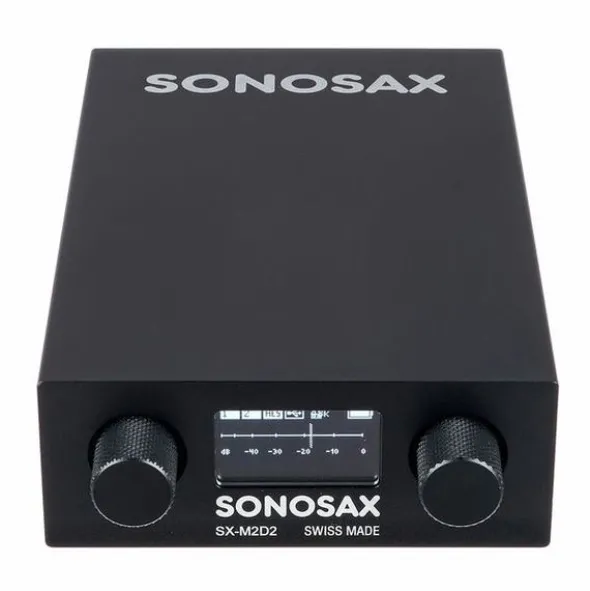

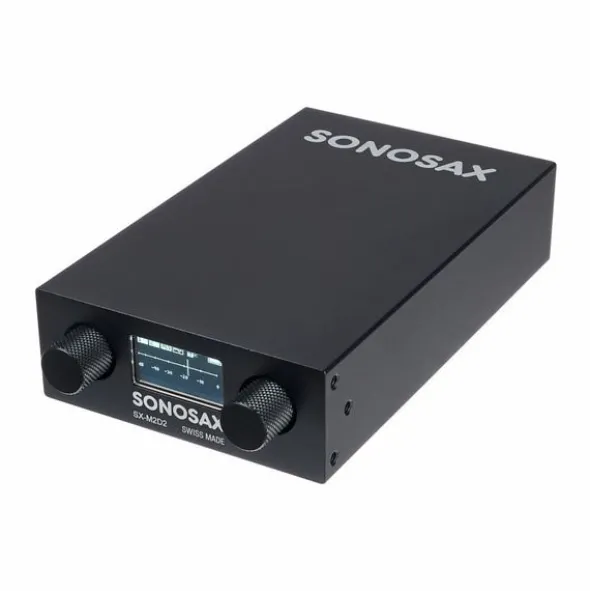

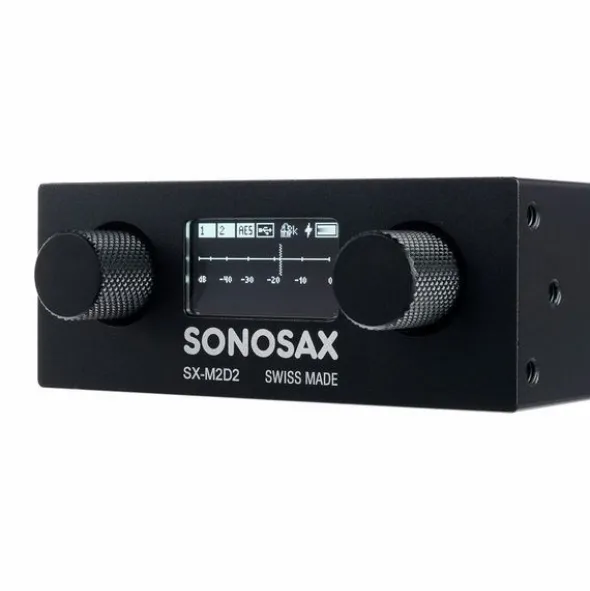

Sonosax SX-M2D2

Portable 2-channel microphone preamplifier and USB audio interface

• 2 Balanced inputs for microphone and line signals
• Per input: max. +72 dB gain
• Switchable + 20dB pre-gain
• Switchable phantom power: +48 V
• Switchable high pass filter (60 – 300 Hz) and phase rotation
• Dynamic range: 135 dB (A-weighted)
• THD (20 Hz – 20 kHz): <0.001%
• Frequency range: 20 – 80,000 Hz
• Internal 6-channel mixer for analog inputs, AES inputs and USB audio
• 2-Channel compressor / limiter with 4 memory locations
• Free routing of all inputs and outputs for flexible adaptation to every listening and recording situation (6 user presets can be saved)
• Integrated test tone generator
• Class-Compiant USB 2.0 audio interface
• 2 x 24 bit dual ADC per channel
• Sampling rate: 44.1 kHz – 192 kHz

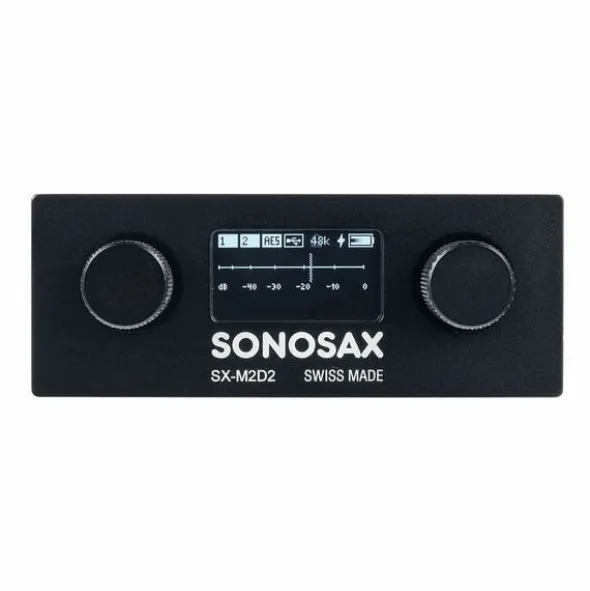

• Level display of all inputs and outputs via OLED display
• Operation via two push encoders

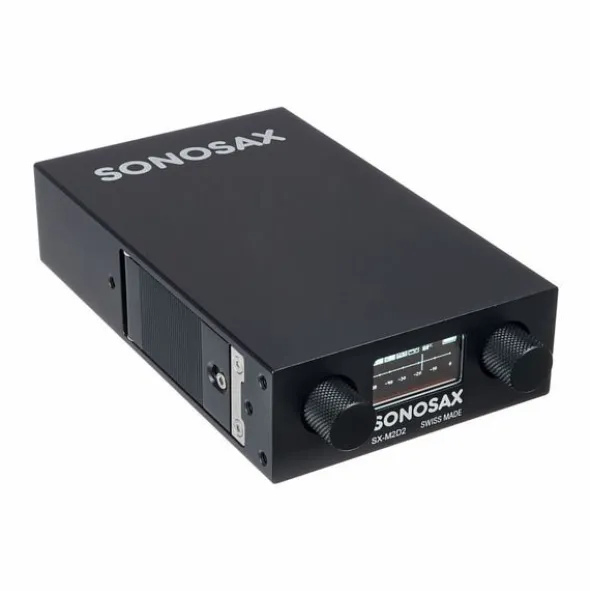

• Power supply via 4-pin Hirose connector, USB C or exchangeable Li-Ion battery (3.6V, 65mm, type 18650)
• Battery can be charged in the device via Hirose or USB power supply

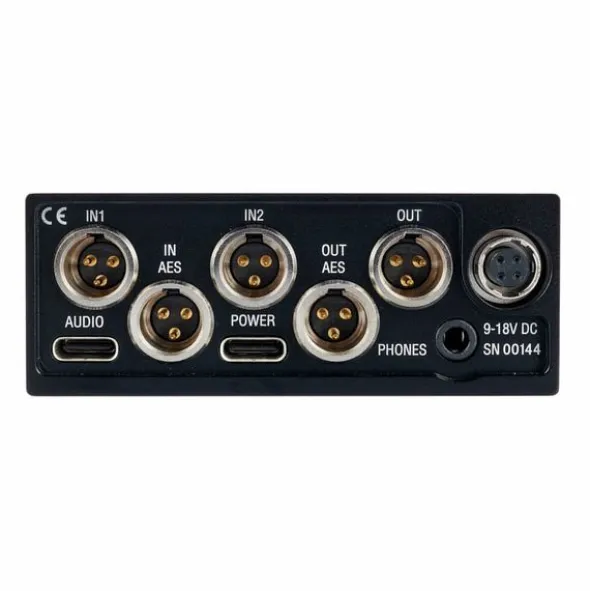

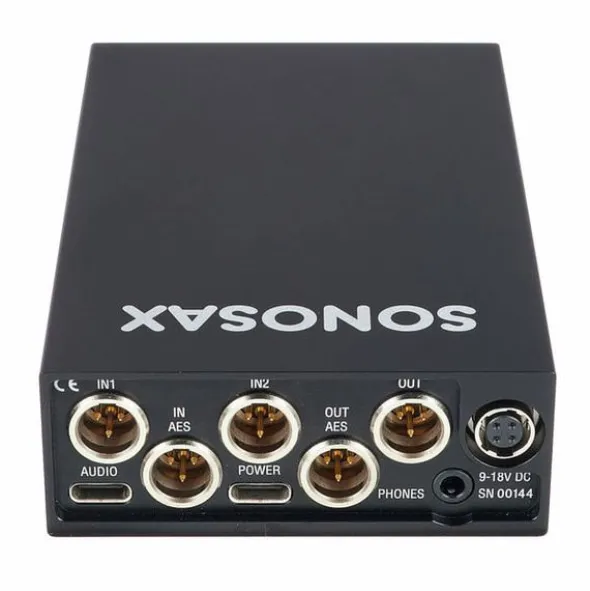

• 2 Mic / line inputs: TA-3M
• AES input: TA-3M
• AES output: TA-3M
• Stereo line output: TA-3M
• Stereo headphone output: 3.5mm TRS
• 9-18V DC input: 4-pin Hirose
• USB Power (USB C) and USB Audio (USB C)
• Solid aluminium housing
• Dimensions (W x H x D): 74 x 28.5 x 130 mm
• Weight (including battery): 336 g

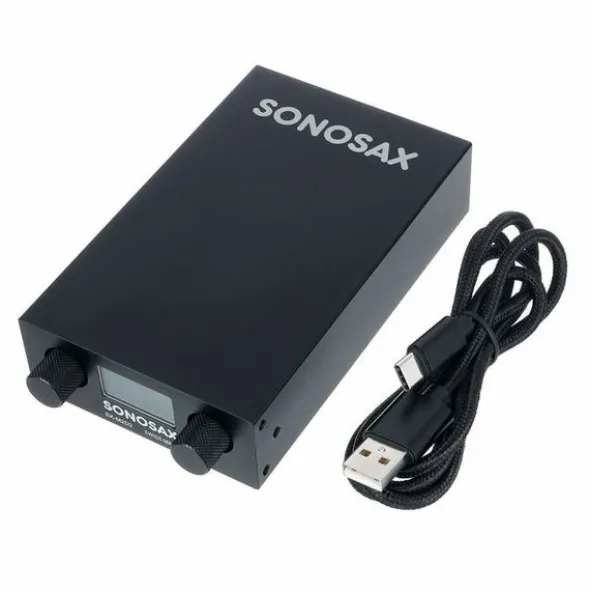

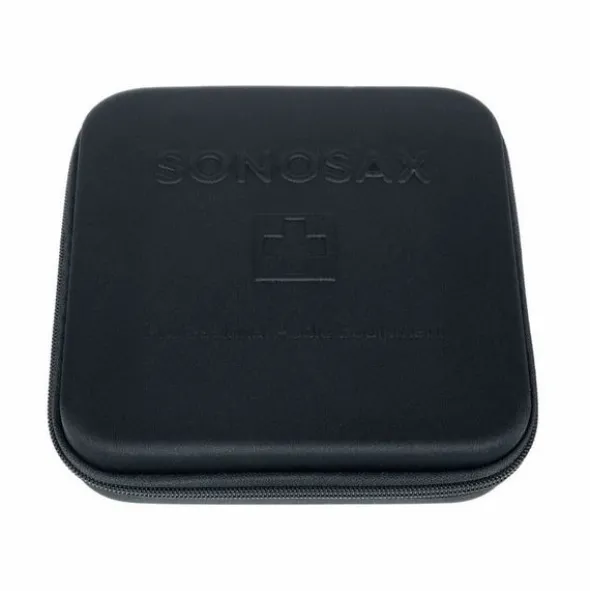

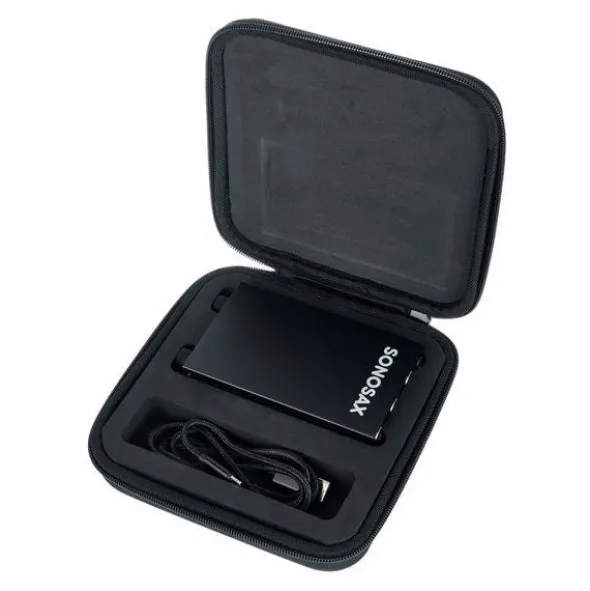

• Includes USB C cable, Li-Ion battery and transport case
• Suitable bag: Art.485319 (not included in delivery)

Suitable accessories (not included in the scope of delivery):

• Mic / line input cable: Art.277557
• Stereo line output cable: Art.493820

Disponível desdeMaio 2020

número de artigo488473

unidade de venda1peça(s)

Recording / Playback Channels2×2

Number of Mic Inputs2

Number of Line Inputs2

Instrument Inputs0

Number of Line Outs2

Headphone Outs1

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors1

Number of MADI Connectors0

Ethernet0

Other ConnectorsUSB

MIDI interfaceNo

Word ClockNo

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredYes

Incl. power supplyNo

USB Version2.0

Width74 mm

Depth130 mm

Height28,5 mm

Connection Format2x USB port Type C

Amount Of Channels2

Channels2

AD ConversionYes

Number of microphone inputs2

DA ConversionYes

Compressor/LimiterYes

AES/EBU ConnectorYes

Phantom powerYes

Phase ReverseYes

Number of analog inputs2

Number of Analog Outputs2

Headphone connectionYes

Analogue OutputsTA-3 (Mini-XLR)

Digitale OutputsAES

Special FeaturesBattery Powered

Level MeterYes

DesignHandheld

Included in deliveryUSB-A to USB-C Cable, Gigbag

Zero latency monitoringYes
