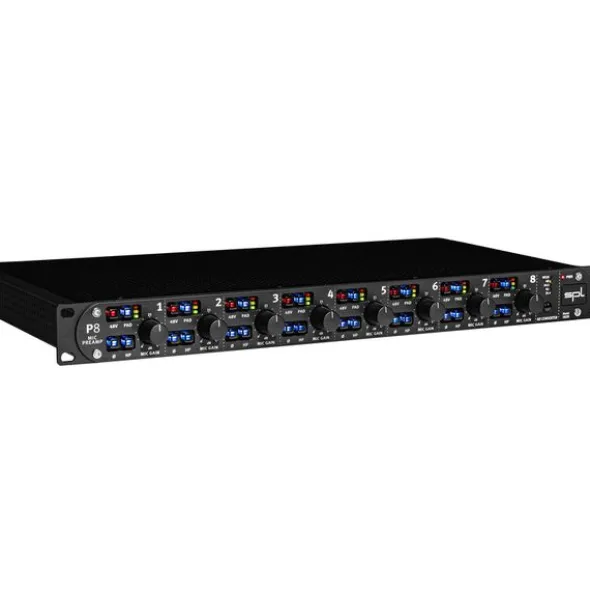

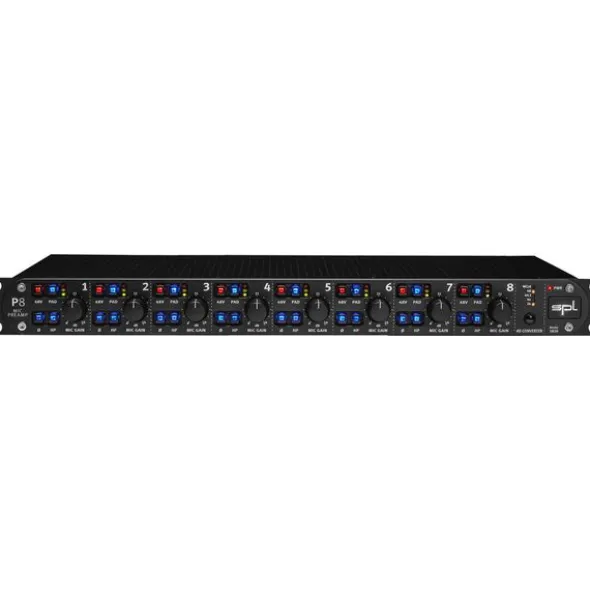

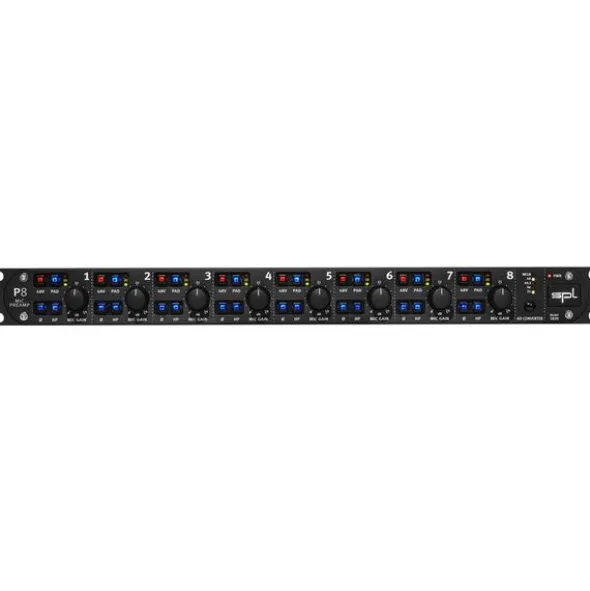

SPL P8 + ADC8

8-Channel Microphone Preamplifier and A/D Converter

• Discrete Microphone Preamplifier
• Per channel: individually switchable phantom power (48 V)
• PAD-Schalter: -20 dB
• Phase inversion function and a switchable analogue high-pass filter (6 dB per octave at 80 HZ)
• Frequency range: 15 Hz – 200,000 Hz
• Equivalent input noise: -124 dBu
• Noise (A-weighted, mic preamp, 150 O, 30 dB gain): -94 dB
• Conversion: 192 kHz / 24 bit

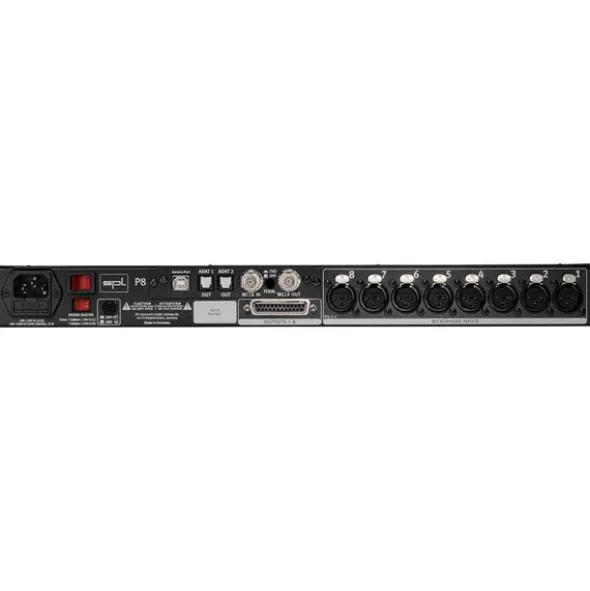

• 8 XLR microphone input
• 1 Sub-D25 line output
• 2 ADAT output
• Word Clock input and output
• Dimensions: 482 x 44 x 237 mm
• Weight: 4.15 kg

Disponível desdeNovembro 2024

número de artigo601911

unidade de venda1peça(s)

Channels8

Number of microphone inputs8

Instrument inputNo

TubesNo

Compressor/LimiterNo

EqualizerNo

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsNo

Analogue OutputsSub-D 25-pol

Headphone connectionNo

Level MeterYes

Design19″ / 1U
