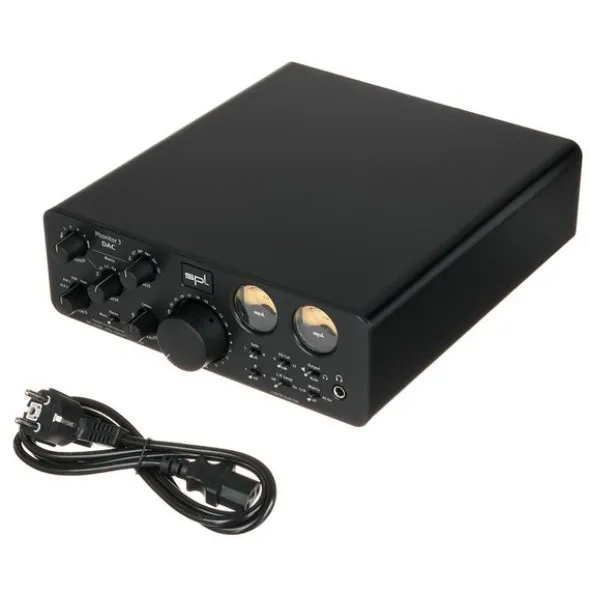

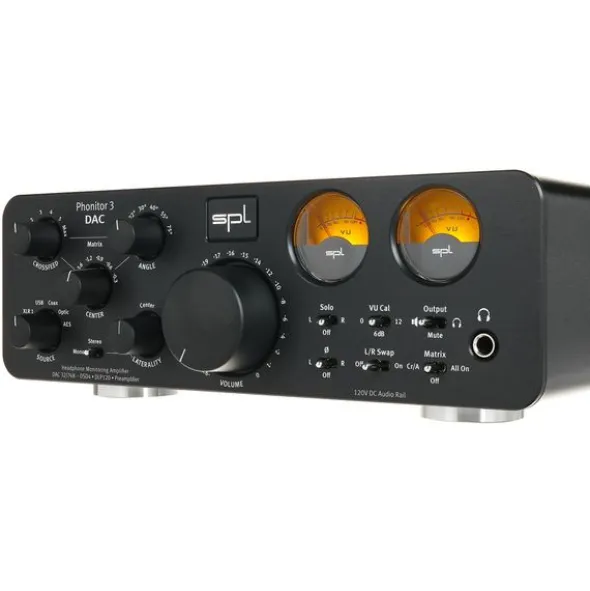

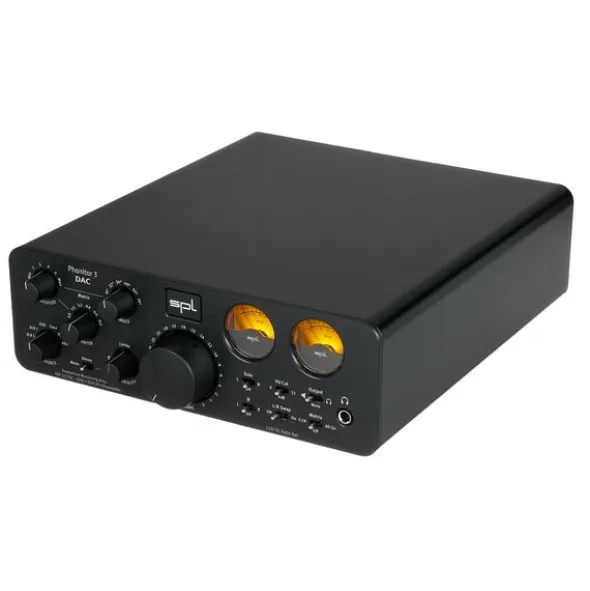

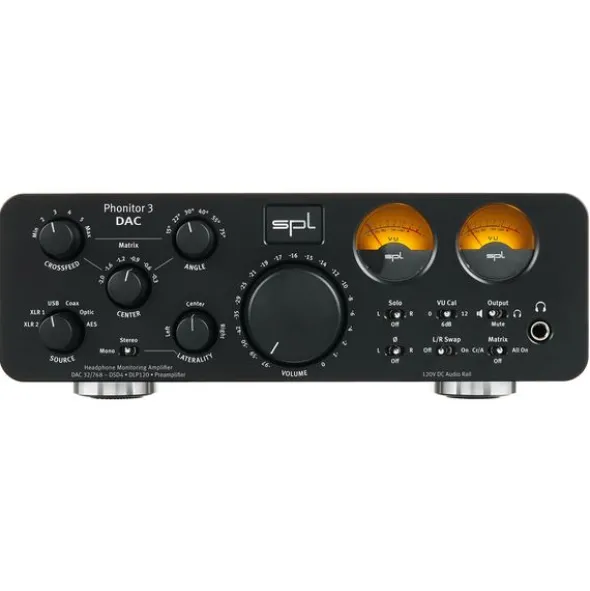

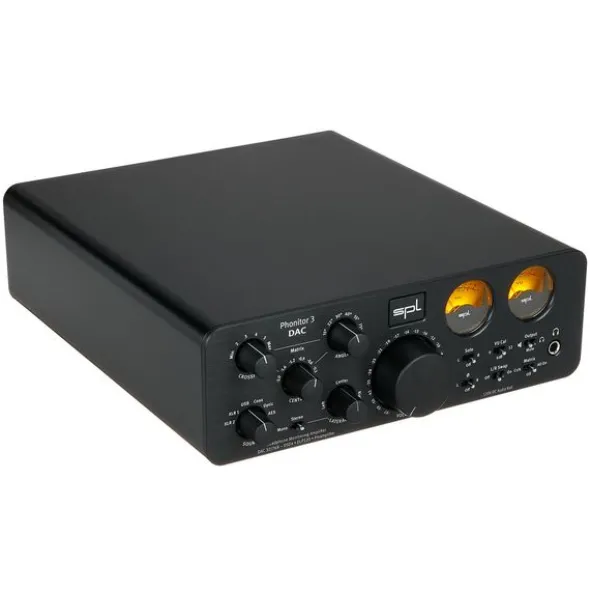

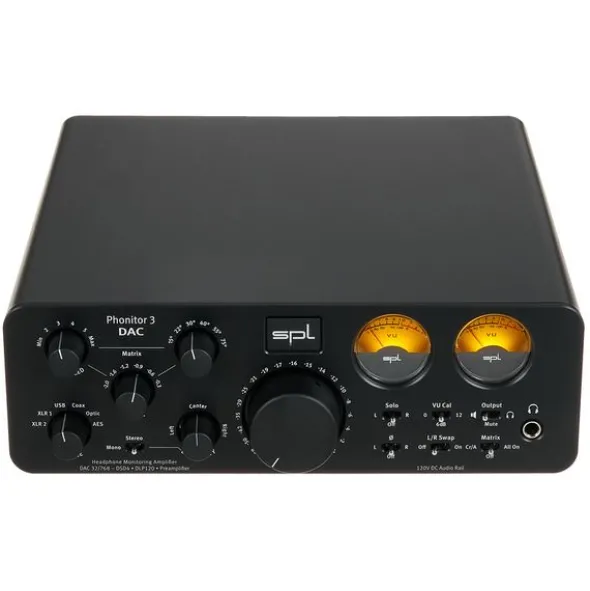

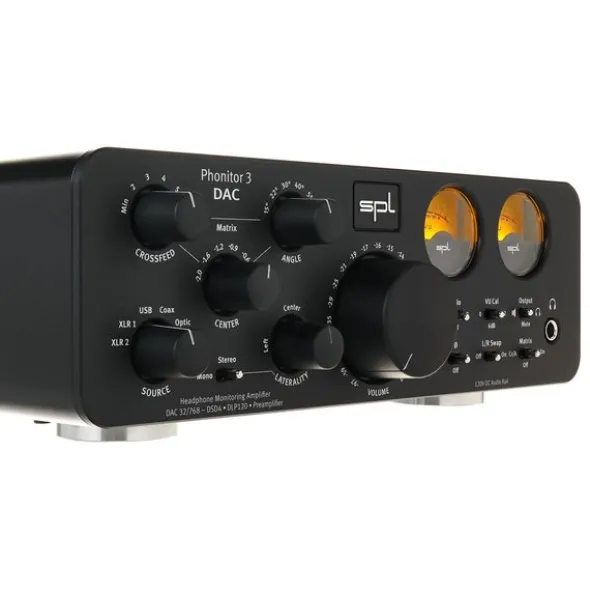

SPL Phonitor 3 DAC

Headphone Amplifier, Monitor Controller and DAC with 120V Technology

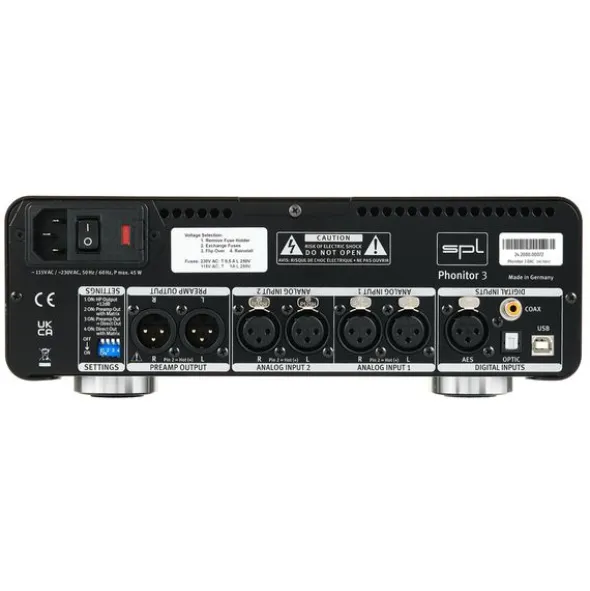

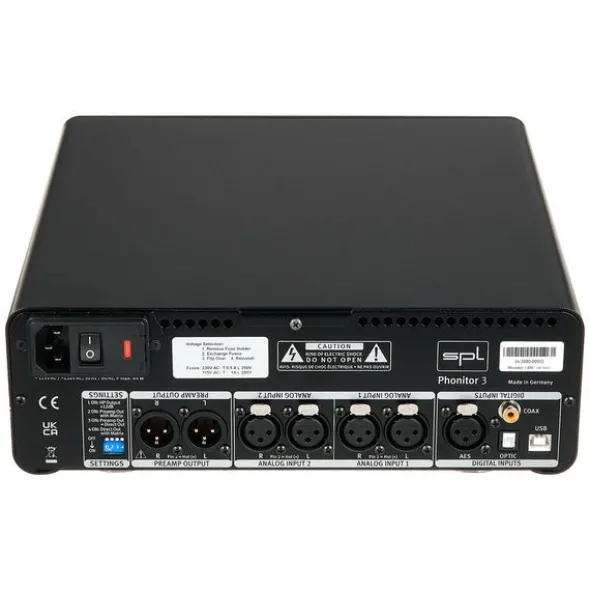

• 6 Digital & analogue stereo inputs: 2x XLR stereo, USB, S/PDIF (coaxial), S/PDIF (optical) and ES/EBU (XLR)
• Output switch for easy switching from headphone to speaker playback, plus mute function in the centre position
• DAC converter: 32 bit, up to 768 kHz
• Support for DSD files up to DSD256
• Phonitor matrix with crossfeed speaker Angle and Centre Level
• Mono/stereo
• Laterality control: shifts the stereo image to the left or right to centre the stereo on the monitor side
• Solo L/R
• Phase inversion for L and R
• L/R swap
• 120V technology
• Headphone output can be boosted by 12 dB via DIP switch on the rear panel
• Phonitor matrix can be output to preamp out
• Fully-fledged monitor controller
• Output power headphone output (1 kHz, 1% THD, 250 O): 2x 5 W
• Frequency range: 10 – 100,000 Hz
• Dynamic range: 134.5 dB
• Dimensions (W x H x D): 278 x 100 x 300 mm
• Weight: 4.15 kg

Disponível desdeMaio 2023

número de artigo565267

unidade de venda1peça(s)

Number Of Monitoring Outputs (Stereo)1

Headphone connection1

Talkback FunctionNo

Built-in AD / DA converterYes

Incl. Remote controlNo

Level MeterYes

Number of 2 track inputs6

Summing FunctionNo

SurroundNo

DesignDesktop

Number of stereo channels1

Output Level Adjustment Per ChannelYes

Amount Of Inputs6

Dimensions278 x 100 x 300
