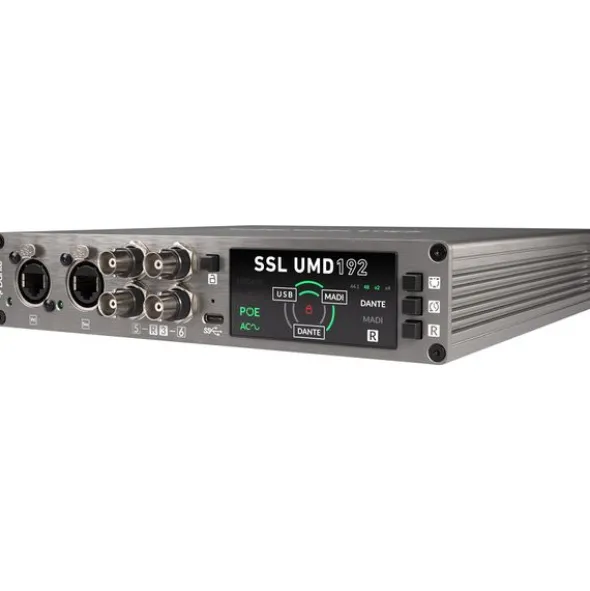

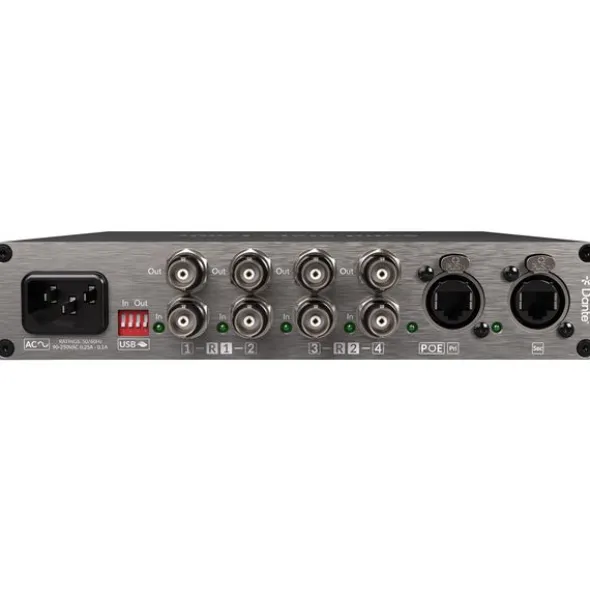

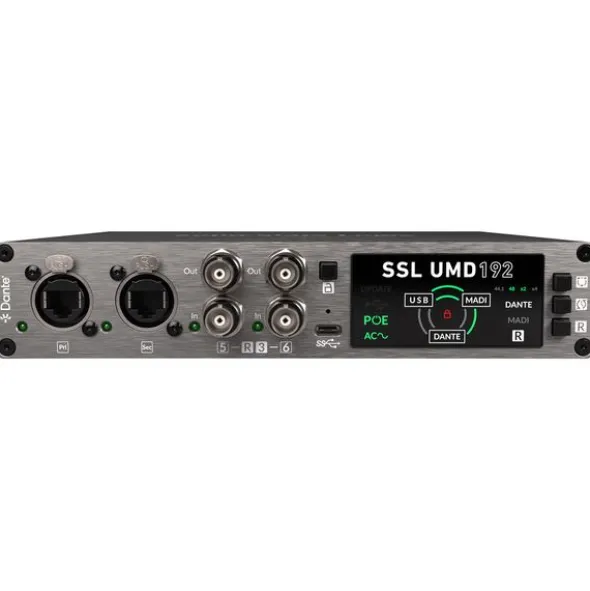

SSL UMD192

USB 3.0 Dante MADI Audio Interface

• 192 channels at 48/44.1 kHz
• 192 channels at 96/88.2 kHz
• 128 channels at 192/176.4 kHz
• Dante AoIP with support for AES67 and ST 2110 (with DDM)
• Extremely low Dante latency (only 0.25 ms)
• Flexible clocking via MADI or Dante
• Power supply via AC, PoE (Power over Ethernet) or USB – with redundancy support
• Built-in power supply
• Compatible with Mac OS
• Windows support via SSL driver
• Connections: Six MADI BNC pairs with redundancy mode (3 x redundant MADI connections), 4 x RJ45 and USB-C
• Format: 9.5″ / 1 U

Disponível desdeFevereiro 2026

número de artigo634431

unidade de venda1peça(s)

Recording / Playback Channels192×192

Number of Mic Inputs0

Number of Line Inputs0

Instrument Inputs0

Number of Line Outs0

Headphone Outs0

Phantom PowerNo

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors6

Ethernet4

Other ConnectorsNone

MIDI interfaceNo

Word ClockNo

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width241 mm

Height44 mm

Connection FormatUSB port Type C

Included in deliveryPower Cable, USB-C Cable, USB-A to USB-C Adaptor

Zero latency monitoringYes

Mostrar mais
