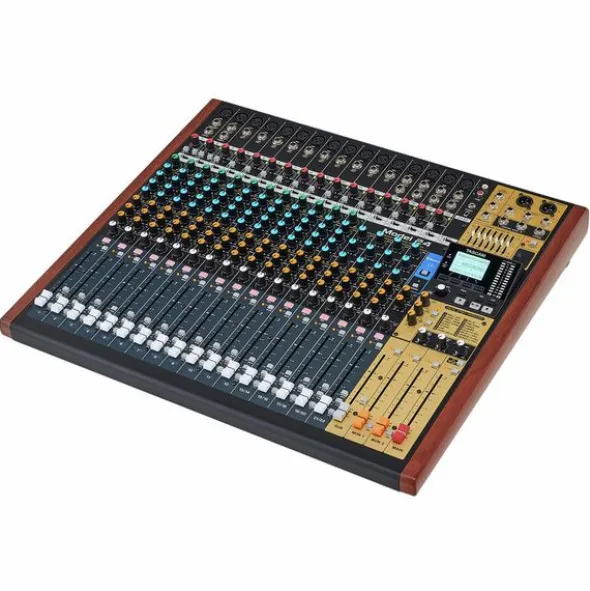

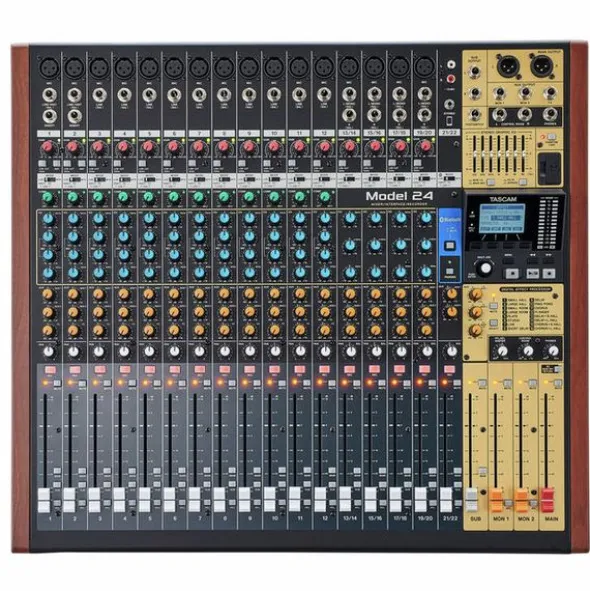

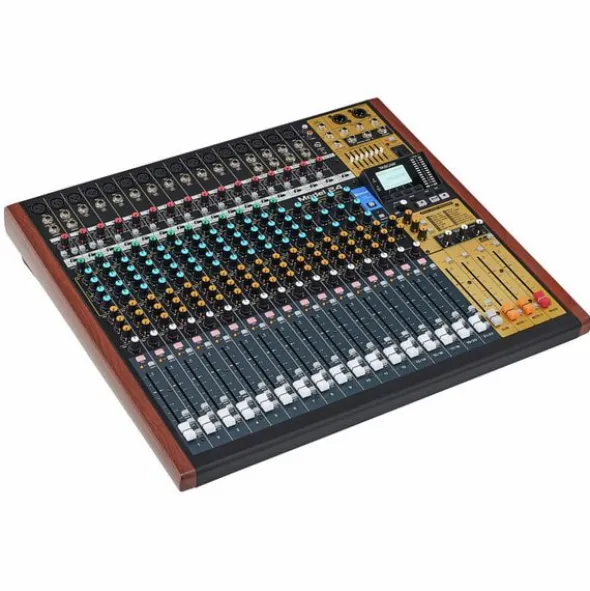

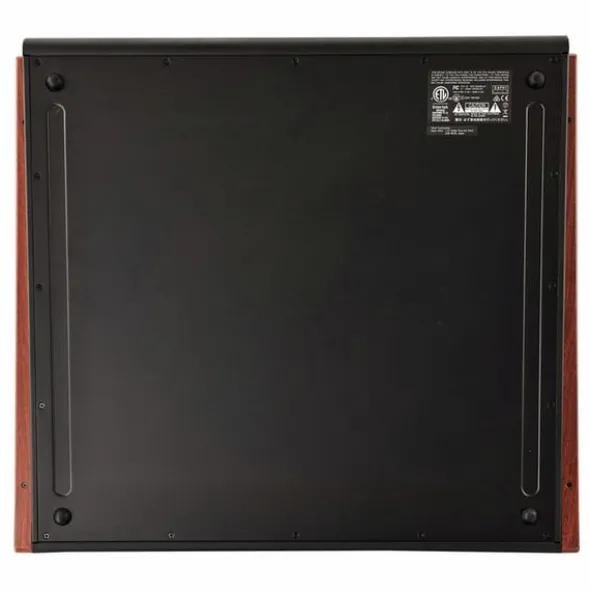

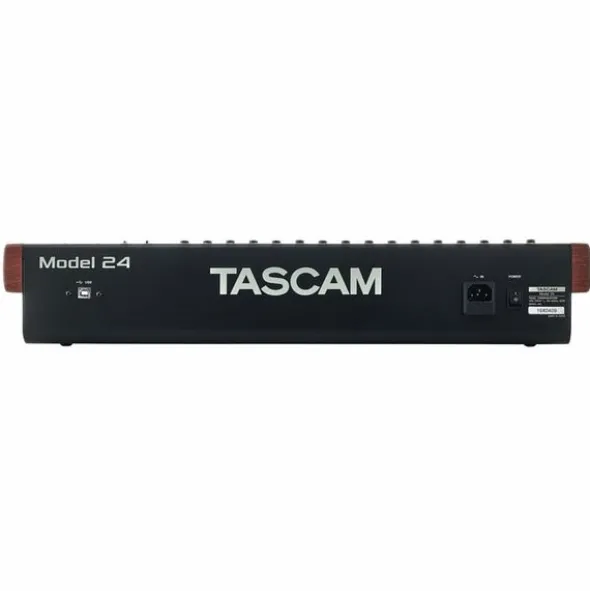

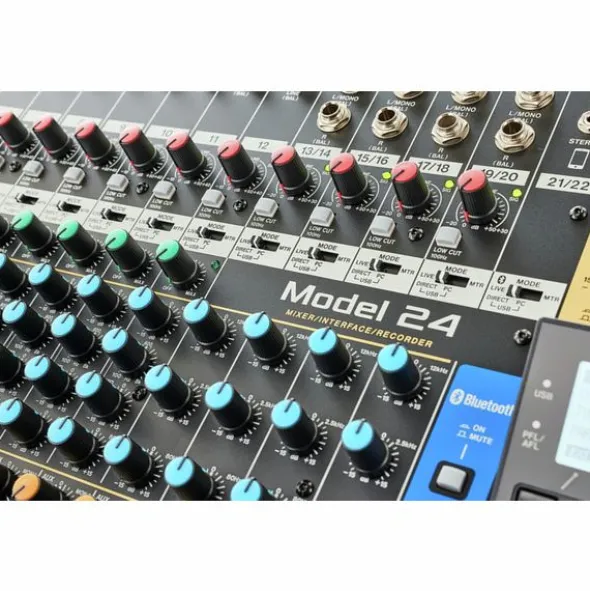

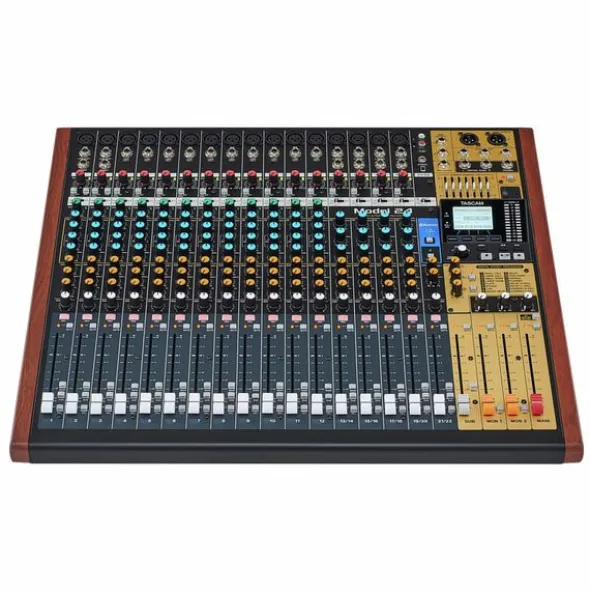

Tascam Model 24

22-Channel Analogue Mixer with Recorder

• 22 Channels – 12x mono and 5x stereo
• Integrated 24 track recorder
• Recording on SD card with maximum 24 Bit / 48 kHz
• Simultaneous playback of 22 tracks possible
• Function as 24 channel USB audio interface
• 3-Band EQ for Channels 1 – 20
• Compressor for channels 1 – 12

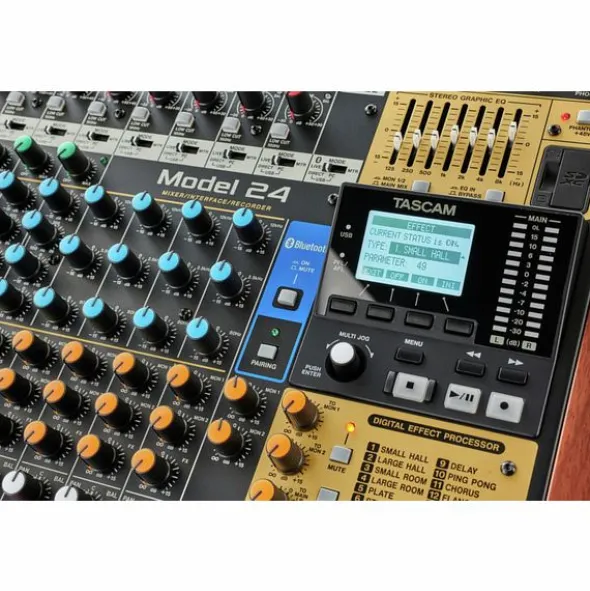

• Integrated effect processor
• 3 Aux ways
• 7-Band graphic EQ for master or aux/monitor
• Bluetooth receiver for wireless stereo sources
• 100 mm Fader

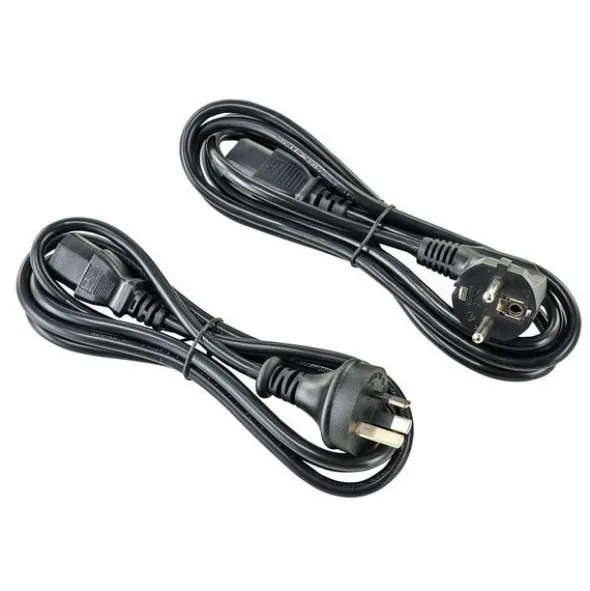

• Integrated power supply
• Dimensions: 577 x 529 x 106 mm
• Weight: 10.4 kg
• Matching foot switch : Art.457077 (not included in delivery)
• Matching cover: Art.484169 (not included in delivery)
• Matching case: Art.458447 (not included in delivery)

Connections:

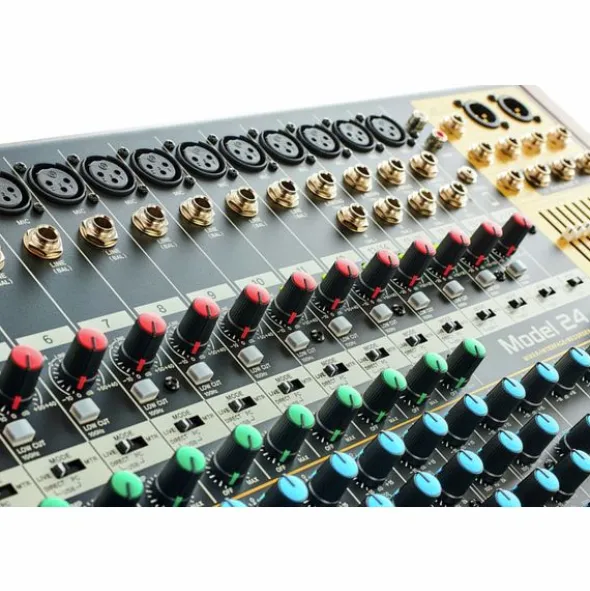

• 16 XLR Microphone inputs with +48 V phantom power
• 22 6.3 mm TRS line inputs
• XLR Stereo main output
• 6.3 mm TRS Stereo sub output
• 6.3 mm TRS Stereo control room output
• 6.3 mm Stereo headphone output

Disponível desdeDezembro 2018

número de artigo448627

unidade de venda1peça(s)

Simultaneous channels22

Mic-In16

Mono Line-in16

Stereo-In5

Hi-Z Input2

Phantom Power48 V

Master OutXLR

Aux Ways3

max. Pre Aux Channels2

PC InterfaceUSB-B

Audio Interface Input24

Audio Interface Output22

Multitrack-RecordingYes

USB/SD Direct RecordSD

Rec Out (Analog)No

Low CutYes

InsertsYes

Direct OutNo

ParametricYes

CompressorYes

PanoramaYes

PFLYes

FX Processor1

USB PlaybackNo

Bluetooth PlaybackYes

Lamp connectionNo

FootswitchButton

MatrixmixerNo

BagNo

Zones0

19″ RackmountNo

Width577 mm

Depth529 mm

Height106 mm

Weight10 kg

Parallel usable Channels22

Mic Ins16

Mono Line Ins16

Stereo Ins5

Number of Pre Aux max.2

Multitrack RecordingYes

InsertYes

Effect Processor1

USB PlayNo

Bluetooth PlayYes

Lamp ConnectorNo

Foot SwitchButton

RackmountNo
