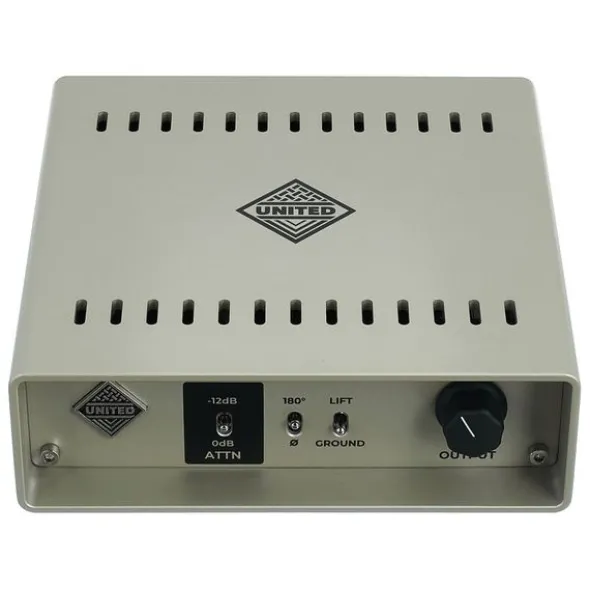

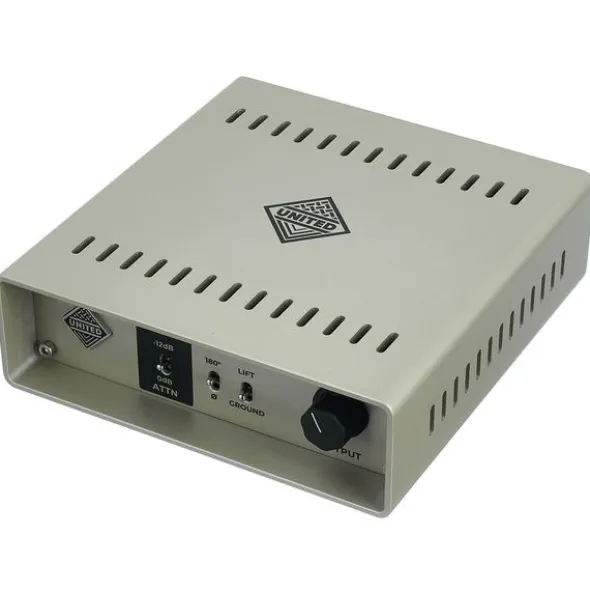

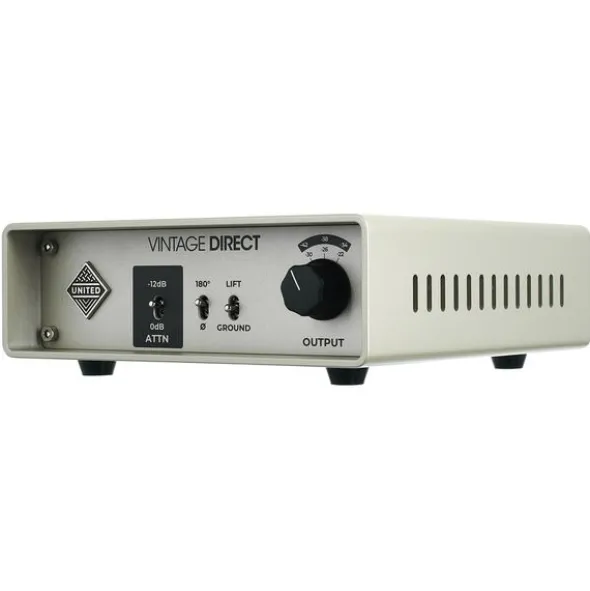

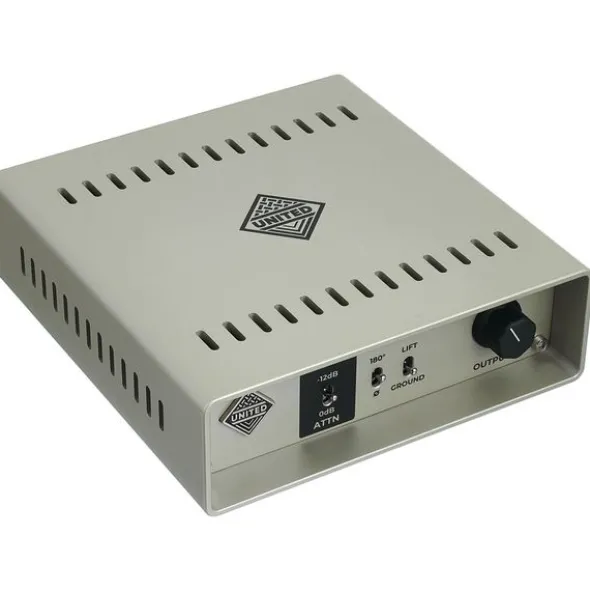

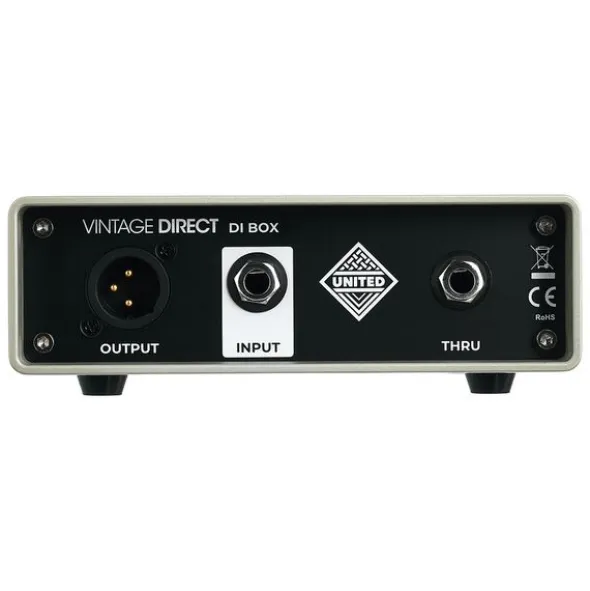

United Studio Technologies Vintage Direct

Passive DI Box in Vintage Style

• With generously dimensioned transformer
• Rich sound with sufficient headroom
• Unadulterated and low-noise signal with a wide frequency range
• 5078 transformer from United

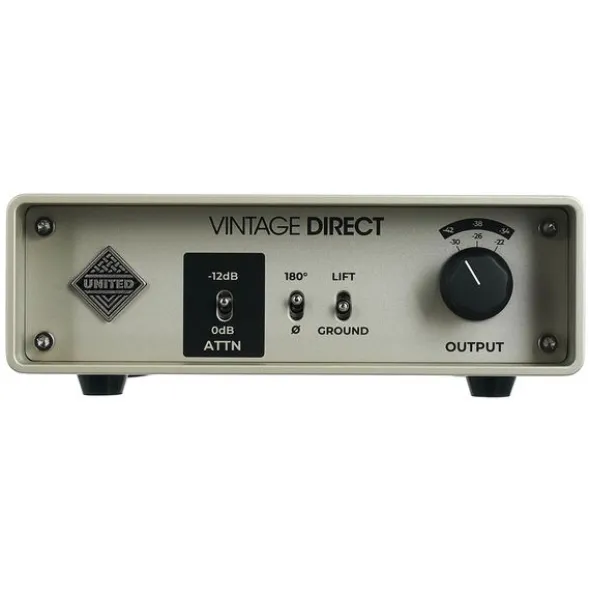

• Attenuation switch: 0 dB, -12 dB
• Ground lift and phase reversal switch
• Output gain level: -42, -38, -34, -30, -26, -22 dB
• Max. input level: +10 dB
• Frequency range: 20 – 20,000 Hz (+/-0.5 dB)
• Input impedance: 80 kOhm
• Output impedance: 50 – 250 Ohm (depending on setting)

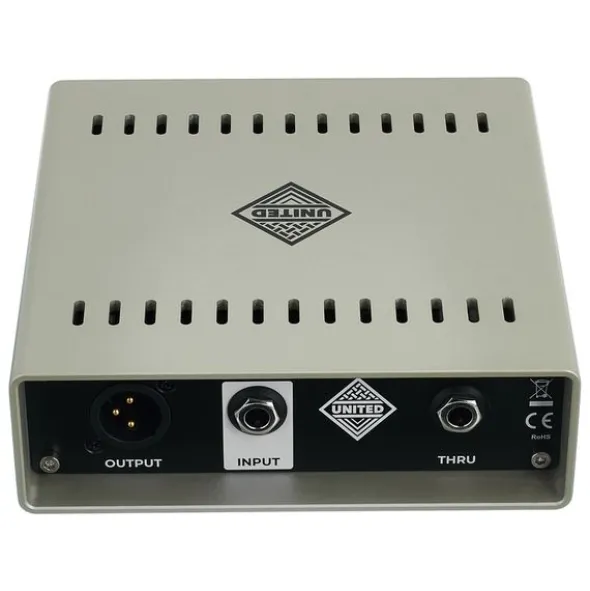

• 1 Instrument/line input: 6.3 mm jack, unbalanced
• 1 Passive Thru socket: 6.3 mm jack
• 1 Instrument/line output: 3-pin XLR, balanced

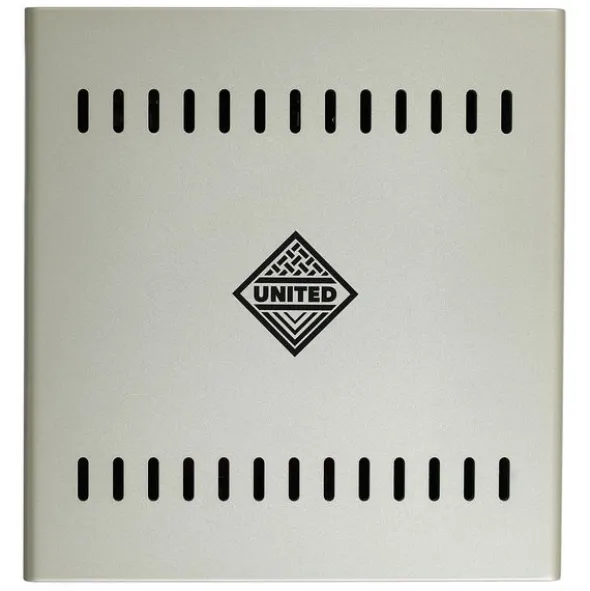

• Aluminium housing suitable for stage use
• Dimensions (W x H x D): 149 x 52 x 155 mm
• Weight: 950 g
