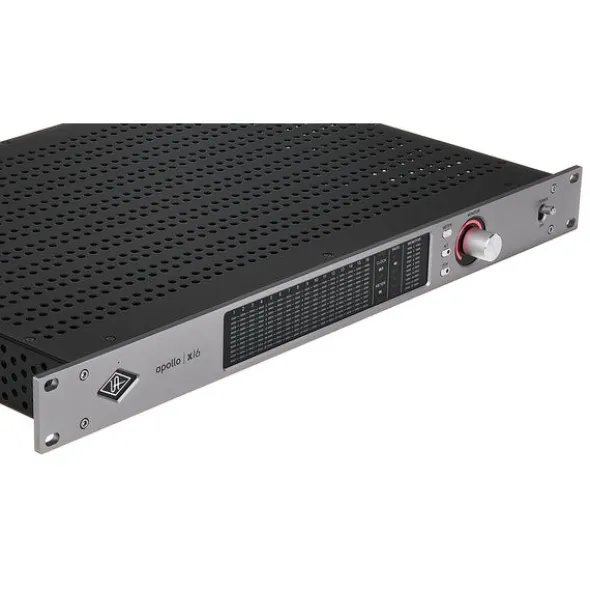

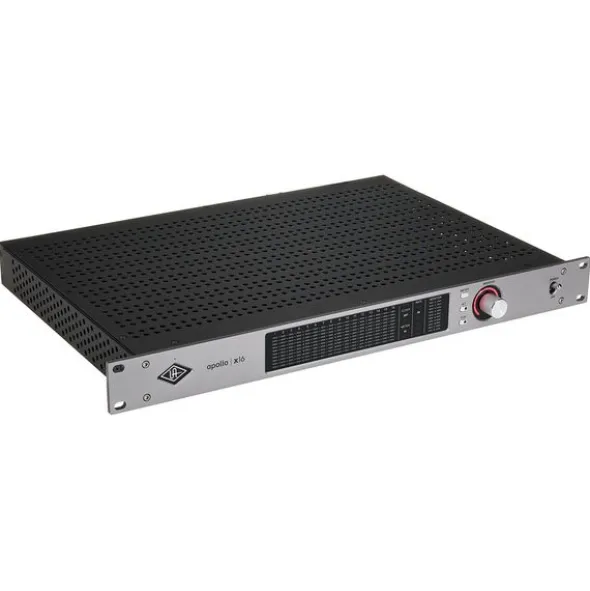

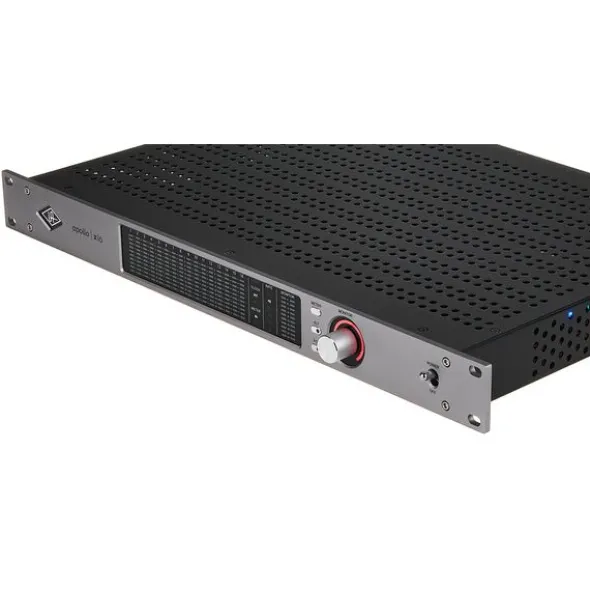

Universal Audio Apollo x16 Gen2 Complete

18 x 20 Thunderbolt 3 Audio Interface

• 24 Bit / 192 kHz
• 6-Core SHARC DSP for internal UAD real-time processing
• Auto Gain function
• Switch for monitor switching
• Dim or mono assignable function button
• LED meter
• Built-in talkback microphone
• Support of surround formats up to 7.1 with speaker calibration and downmix
• Dual Crystal Clocking for low-jitter environment and pure, artifact-free recordings as well as stable stereo imaging

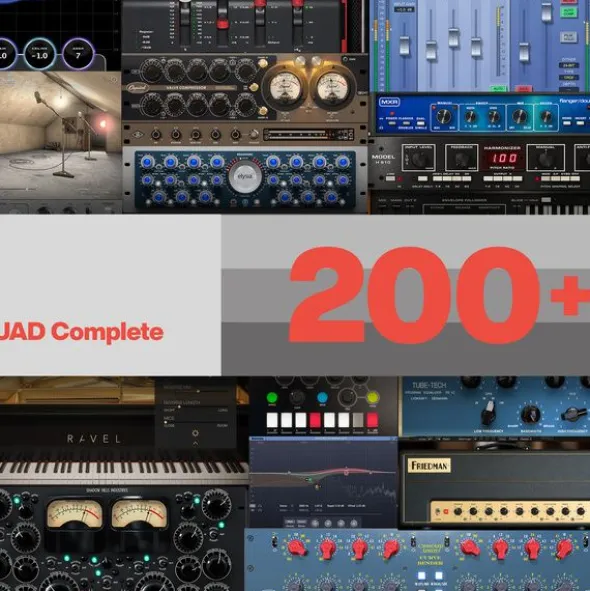

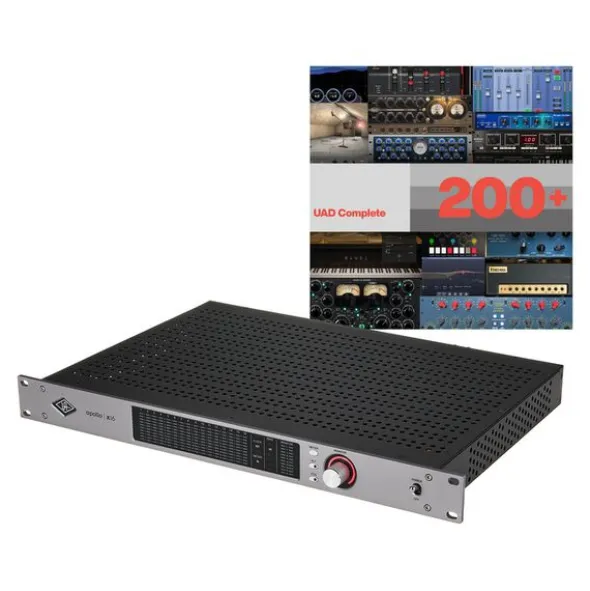

• Includes UAD Complete Plug-in Bundle for Mac/Windows
• Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)
• Up to 4 Apollos cascadable with Thunderbolt connection
• Format: 19″/ 1U

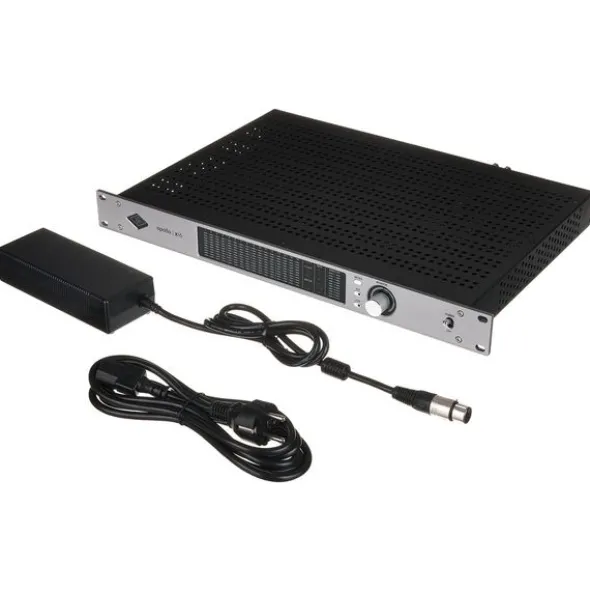

• Includes external power supply

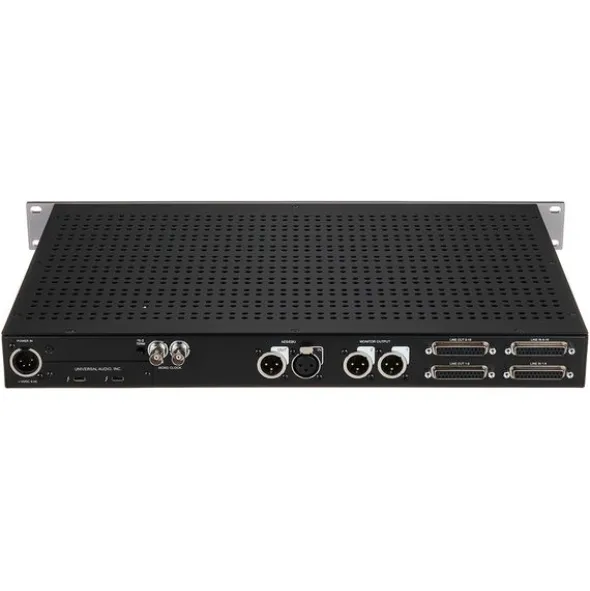

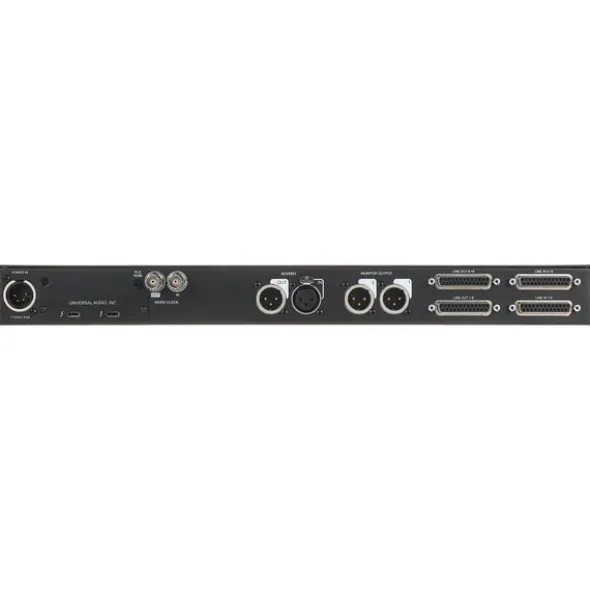

Connectors:

• 16 Line inputs Sub-D25
• 2 Monitor outputs XLR
• 16 Line outputs Sub-D25
• AES/EBU input and output
• Word Clock input and output BNC
• 2 Thunderbolt 3

Disponível desdeOutubro 2024

número de artigo600540

unidade de venda1peça(s)

Recording / Playback Channels18×20

Number of Mic Inputs0

Number of Line Inputs16

Number of Instrument Inputs0

Number of Line Outputs18

Headphone Outs0

Phantom PowerNo

Number of S/PDIF Connectors0

Number of ADAT Connectors0

AES/EBU Connectors1

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI ConnectorsNo

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

Bus-PoweredNo

Incl. Power SupplyYes

Windows Thunderbolt driverYes

Thunderbolt Version3

Width in mm483 mm

Depth in mm308 mm

Height in mm44 mm
