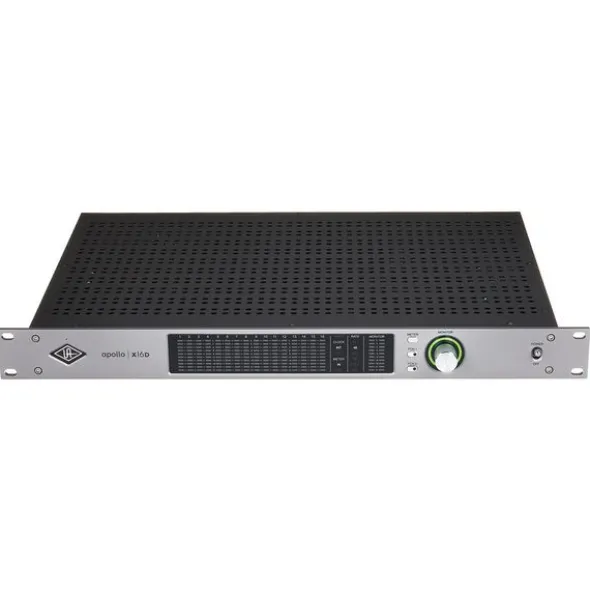

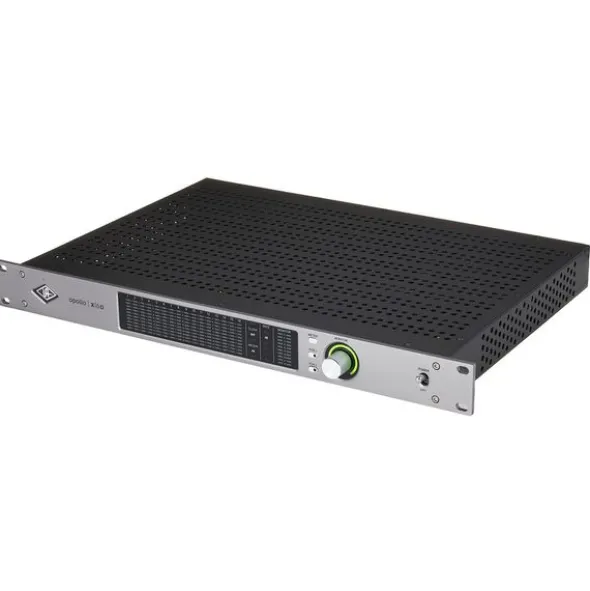

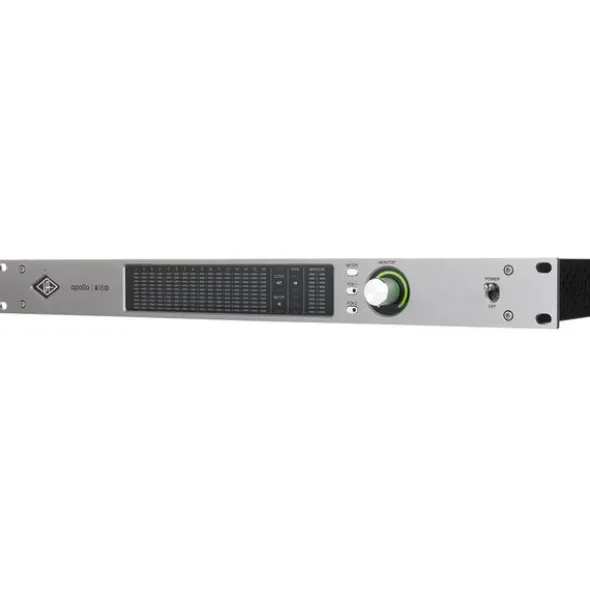

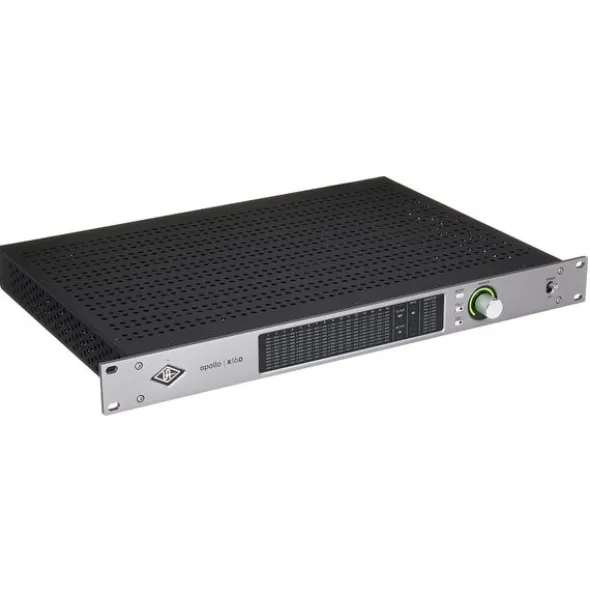

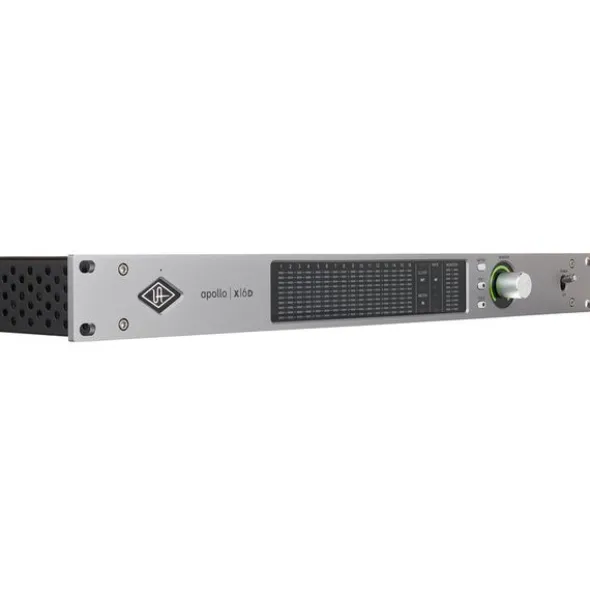

Universal Audio Apollo x16D Gen2 AC

16 x 16 Thunderbolt 3 Audio Interface with Dante

• 24-bit / 192 kHz
• 6-Core SHARC DSP for internal UAD real-time processing
• 16 Channel immersive audio mixes for Dolby Atmos, Auro-3D, Sony 360 Reality Audio and others

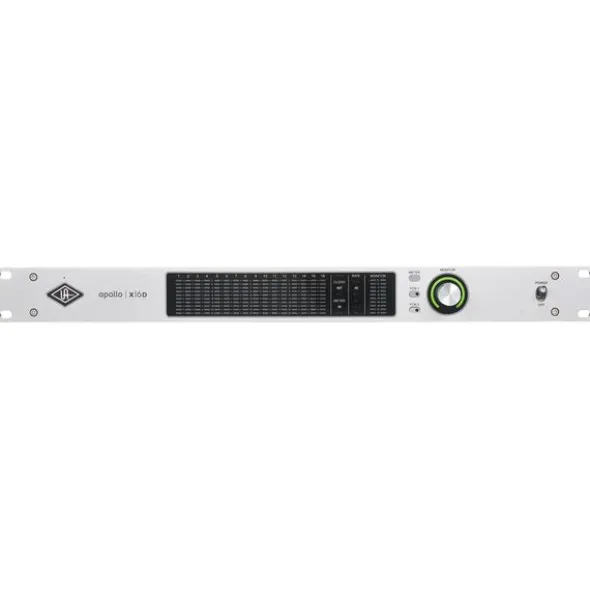

• LED meter
• 2 Function buttons
• Format: 19″/ 1 U

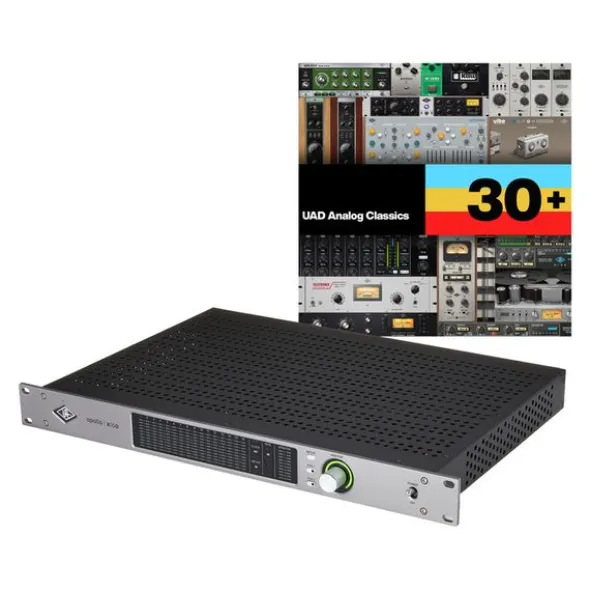

• Includes UAD Analog Classics plug-in bundle

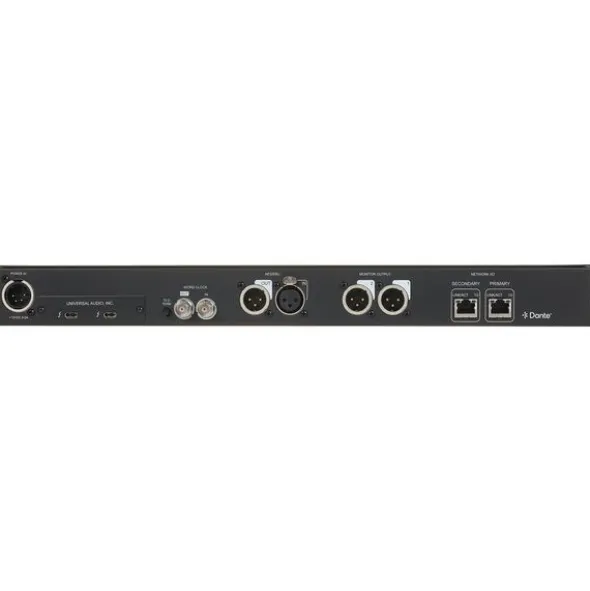

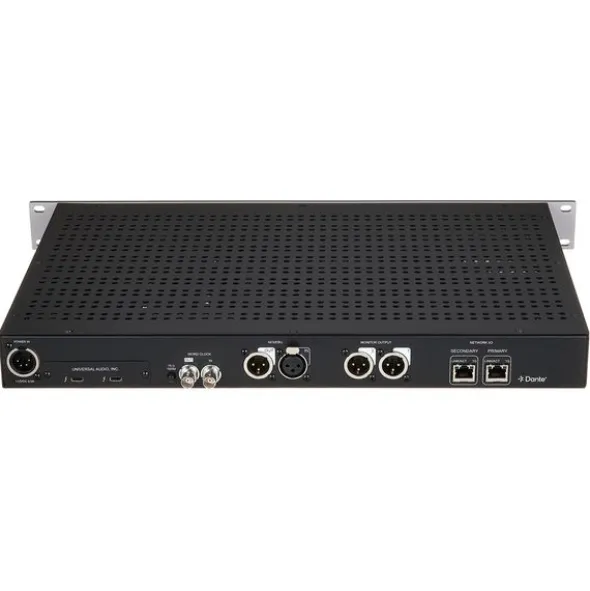

Connections:

• 2x Monitor output: XLR
• 2x RJ45 for DANTE
• AES/EBU input and output: XLR
• Word clock input and output: BNC
• 2 x Thunderbolt 3
• Input for external power supply

Disponível desdeJulho 2024

número de artigo593916

unidade de venda1peça(s)

Recording / Playback Channels16×16

Number of Mic Inputs0

Number of Line Inputs0

Number of Instrument Inputs0

Number of Line Outputs2

Headphone Outs0

Phantom PowerNo

Number of S/PDIF Connectors0

Number of ADAT Connectors0

AES/EBU Connectors2

Number of MADI Connectors0

Ethernet2

Other ConnectorsTB 3 (Article 430801)

MIDI ConnectorsNo

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

Bus-PoweredNo

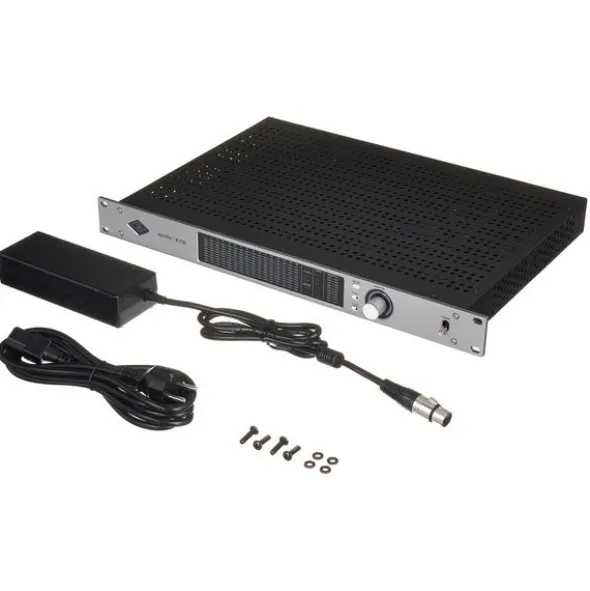

Incl. Power SupplyYes

Windows Thunderbolt driverYes

Thunderbolt Version3

Width in mm483 mm

Depth in mm308 mm

Height in mm44 mm
