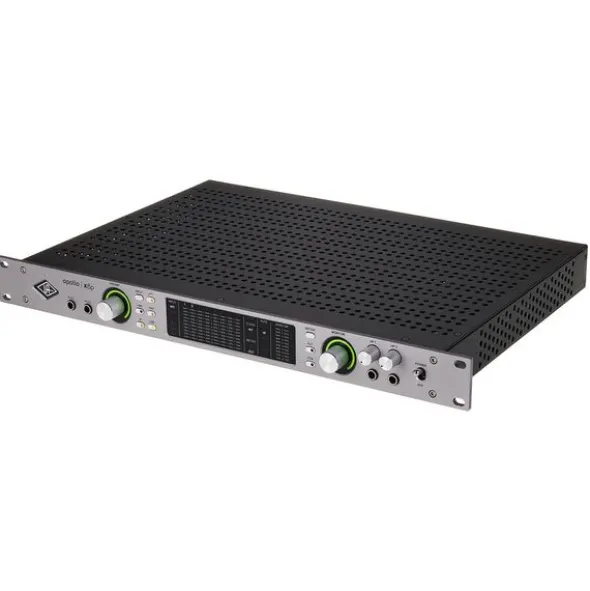

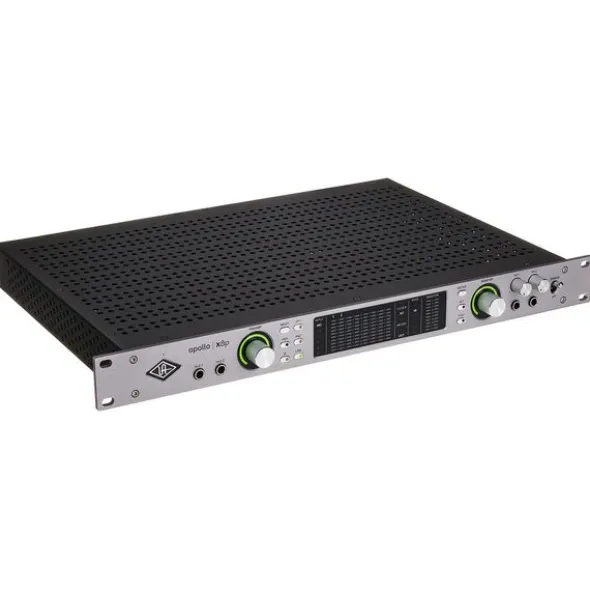

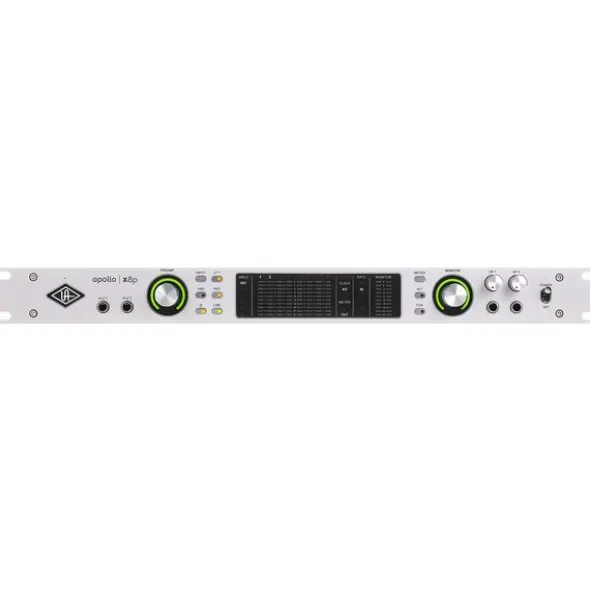

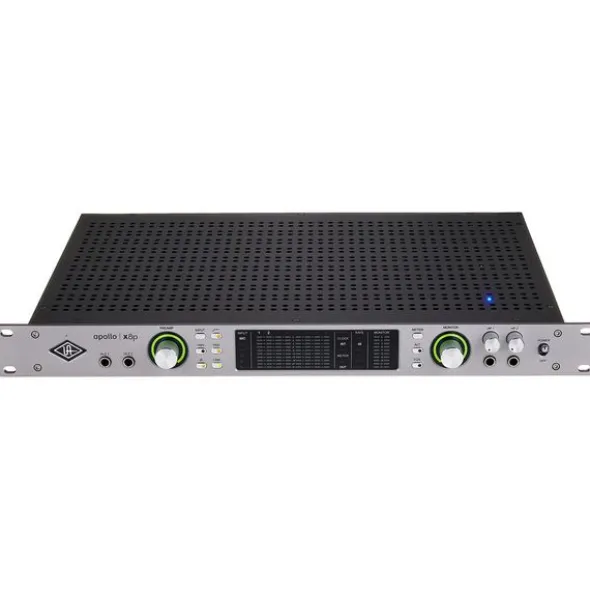

Universal Audio Apollo x8p Gen2 AC

16 x 22 Thunderbolt 3 Audio Interface

• 24 Bit / 192 kHz
• 6-Core SHARC DSP for internal UAD real-time processing
• 8 Unison microphone preamps
• Auto Gain function
• +48 V phantom power
• Pad
• Low-cut
• Phase reverse
• Switch for monitor switching
• Dim or mono assignable function button
• LED meter
• Built-in talkback microphone
• Support of surround formats up to 7.1 with speaker calibration and downmix
• Dual Crystal Clocking for low-jitter environment and pure, artifact-free recordings as well as stable stereo imaging
• For Mac and Windows
• Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)
• Up to 4 Apollos cascadable with Thunderbolt connection
• Format: 19″ / 1U

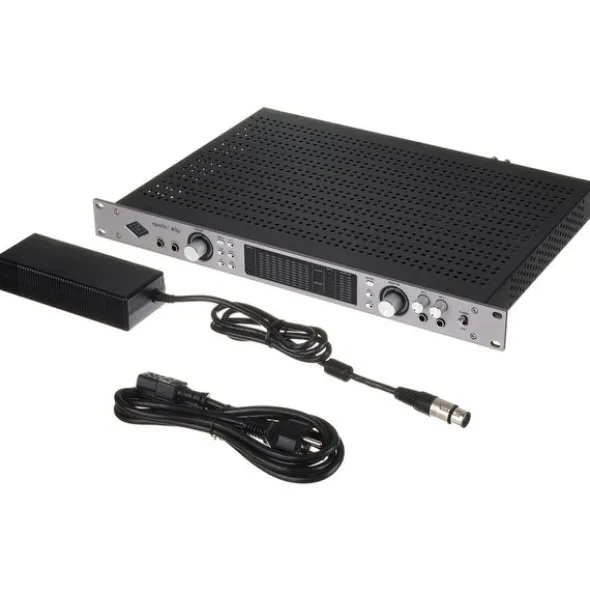

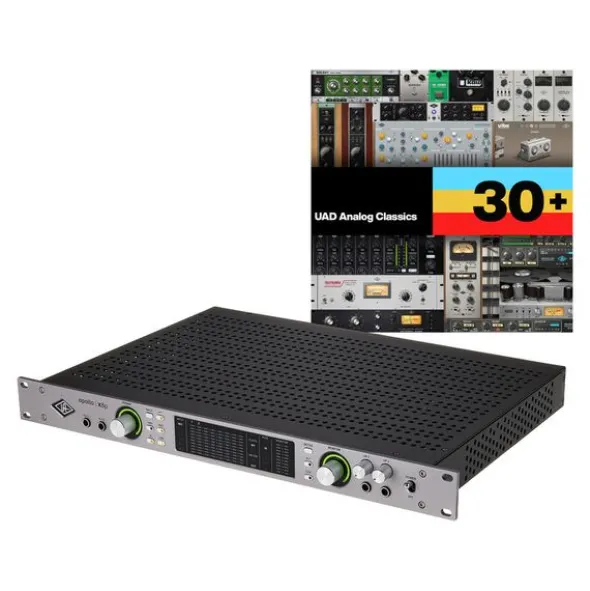

• Includes UAD Analog Classics plug-in bundle and external power supply

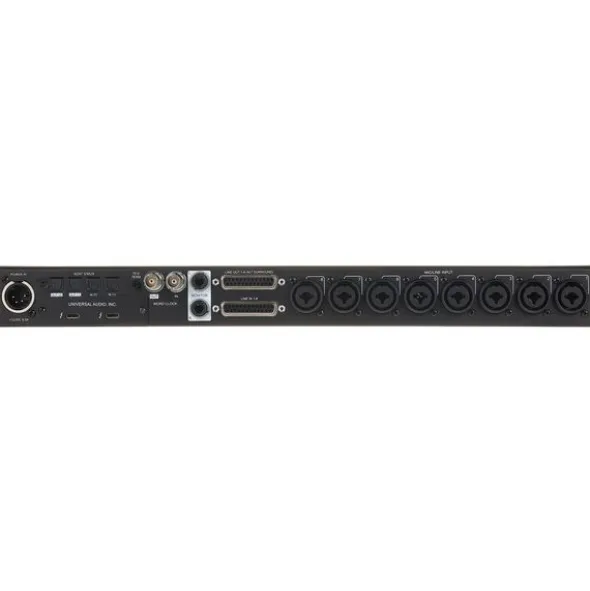

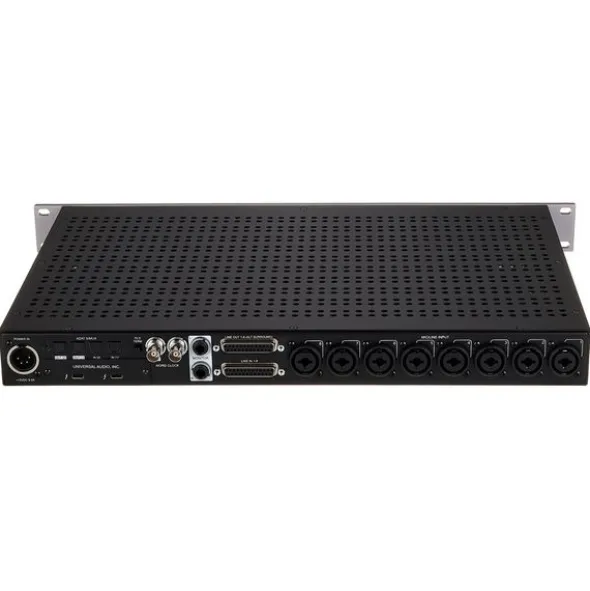

Connectors:

• Microphone / line combo inputs: 8 x XLR / 6.3 mm jack
• Hi-Z inputs: 2 x 6.3 mm jack
• Line inputs: 8 x Sub-D25
• Monitor outputs: 2 x 6.3 mm jack
• Line outputs: 8 x Sub-D25
• 2 x ADAT inputs and outputs
• BNC Word clock input and output
• Stereo headphone connections: 2 x 6.3 mm jack
• 2 x Thunderbolt 3 sockets

Disponível desdeOutubro 2024

número de artigo600529

unidade de venda1peça(s)

Recording / Playback Channels16×22

Number of Mic Inputs8

Number of Line Inputs8

Number of Instrument Inputs2

Number of Line Outputs10

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors2

AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI ConnectorsNo

Word Clock1xIn, 1xOut

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

Bus-PoweredNo

Incl. Power SupplyYes

Windows Thunderbolt driverYes

Thunderbolt Version3

Width in mm483 mm

Depth in mm308 mm

Height in mm44 mm
