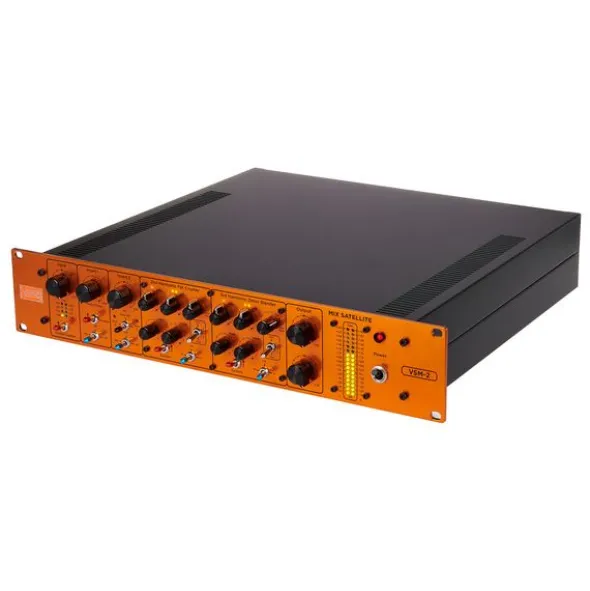

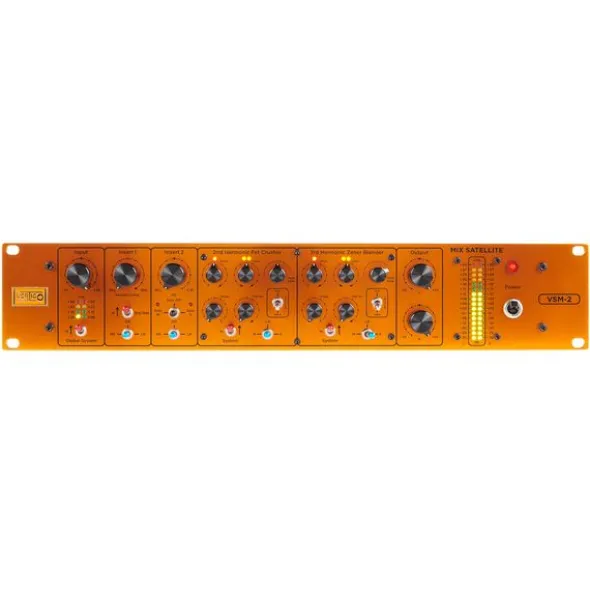

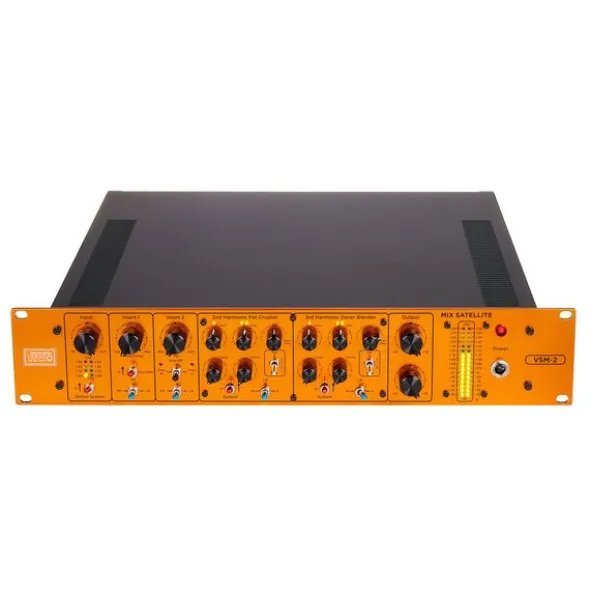

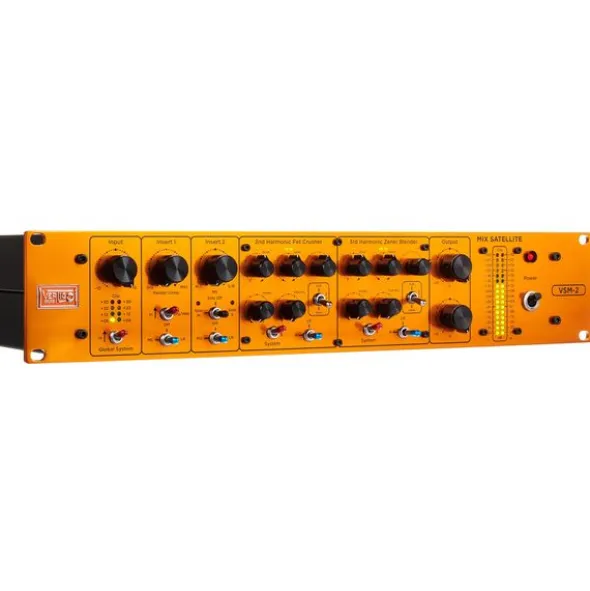

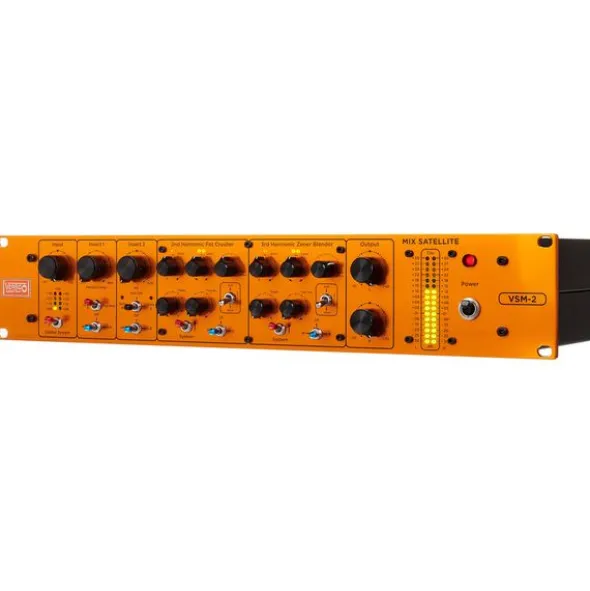

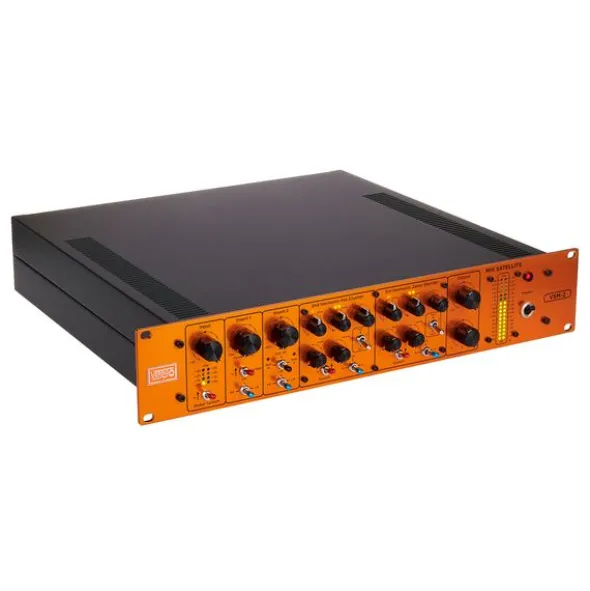

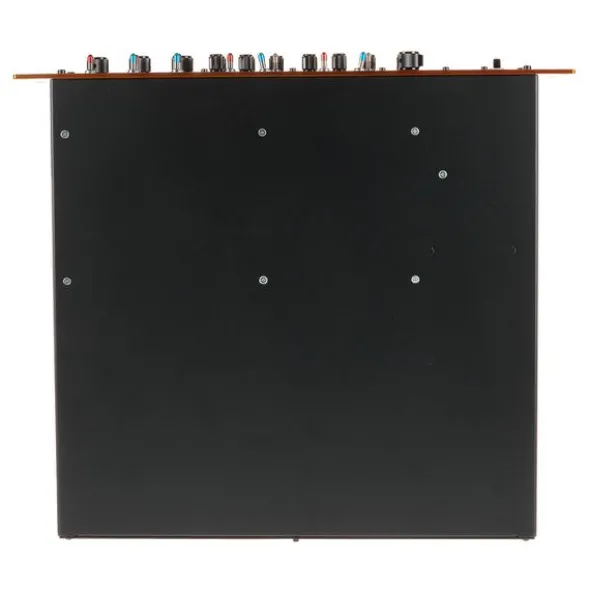

Vertigo Sound VSM-2 Full Version

Stereo Mixdown and Mastering Processor

• Input section with gain control (range: -10dB to +10dB)
• Level meter and bypass switch
• Insert 1 with Dry/Wet control for parallel compression and selectable M/S or L/R stereo mode
• Insert 2 with M/S stereo base width or stereo balance control and selectable M/S or L/R stereo mode
• Two independent saturation stages to create even and odd harmonics
• Each saturation stage with controls for Drive, Level, Shape, THD Mix
• Selectable input filter
• Soft/hard clipping switch
• selectable M/S or L/R stereo mode and bypass switch
• Stereo output stage with gain control per channel (range: -20dB to +10dB) and high-resolution level display
• Frequency range: 10 – 70,000 Hz
• Dynamic range: 128 dB
• Max. output level: +30 dBu

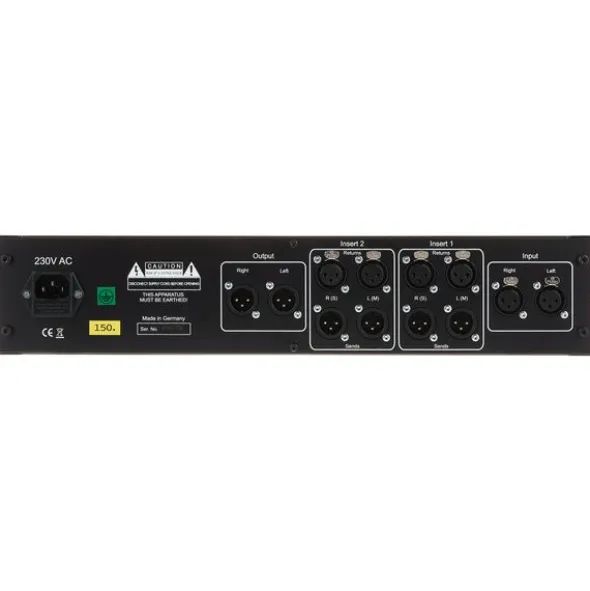

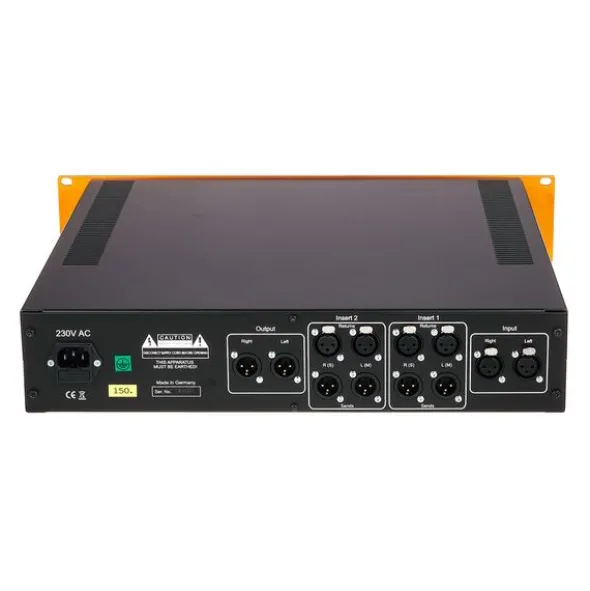

• Connections: Stereo input (2 x XLRf)
• Stereo output (2 x XLRm)
• 2x Stereo insert (each with 2 x XLR input/output)
• Dimensions: 19″ / 2U
