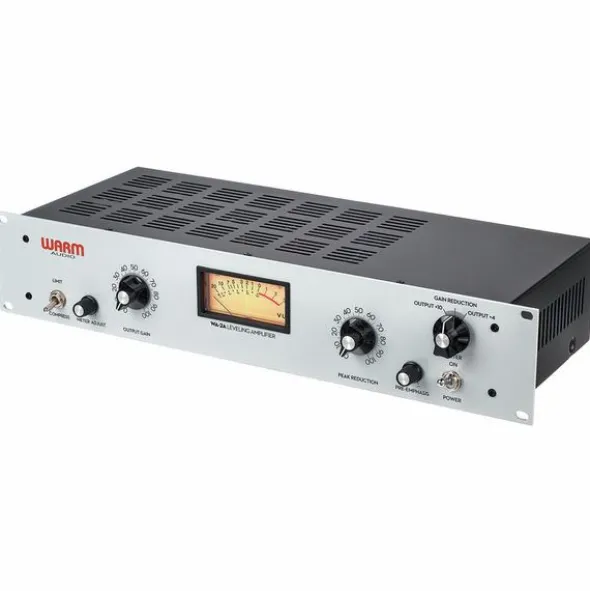

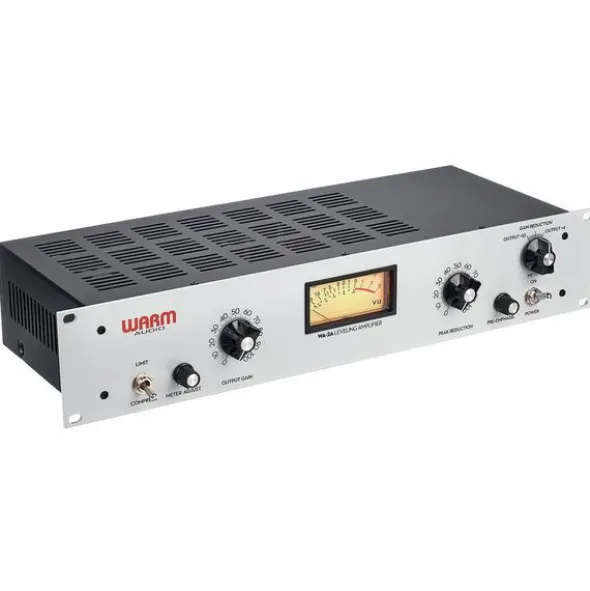

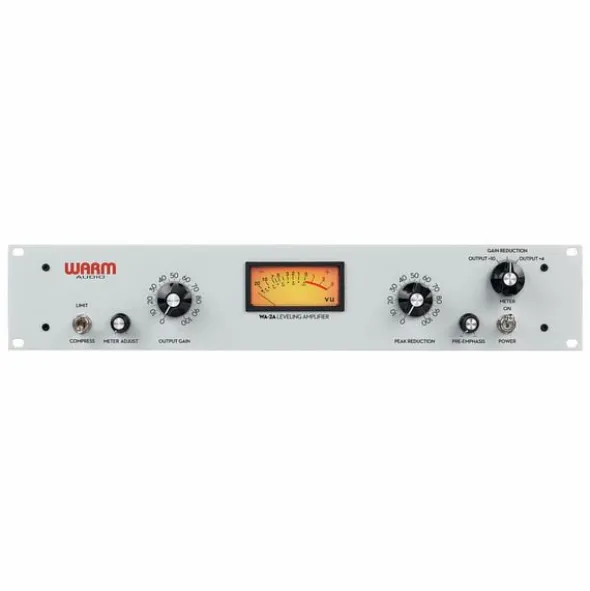

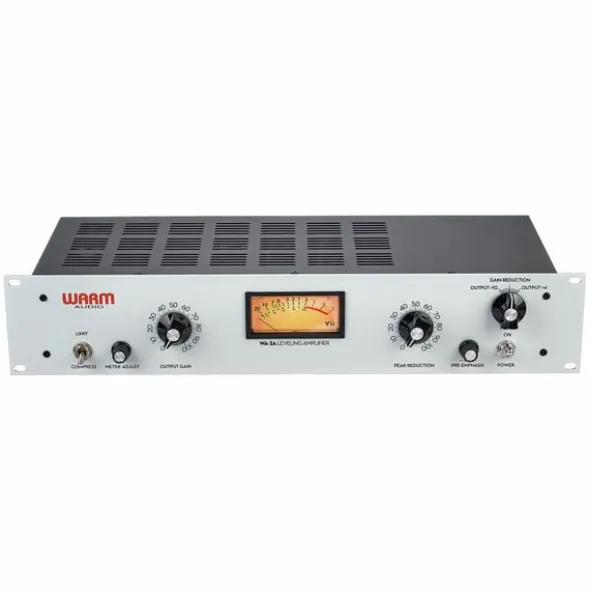

Warm Audio WA-2A

1-Channel tube opto-compressor / limiter

• 100% discrete signal path
• CineMag input transformer
• CineMag output transformer
• 4 Premium TungSol and Electro-Harmonix tubes: 2x 12AX7, 1x 12BH7, 1x 6AQ5 (or the 6P1 – can be interchanged)
• Kenetek opto attenuator
• Integrated power adapter

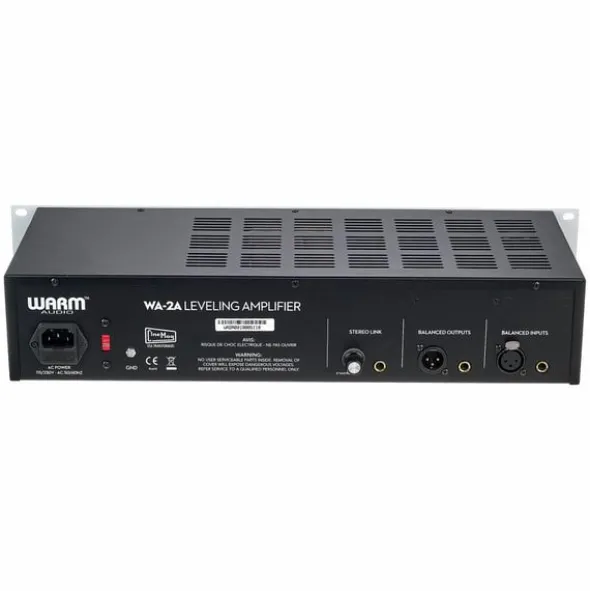

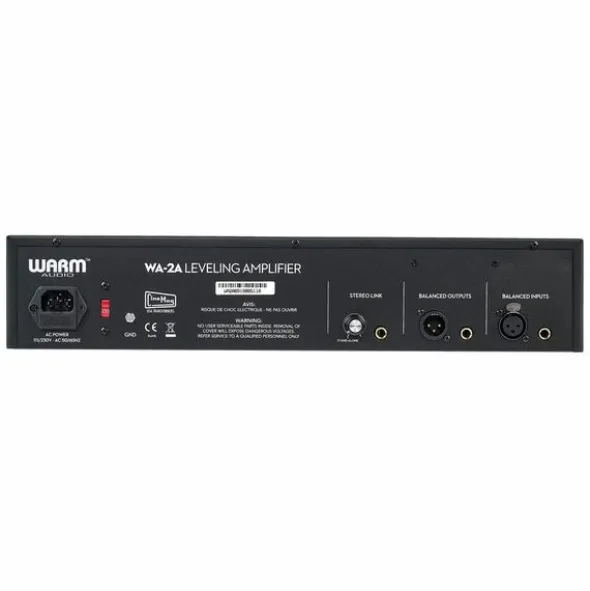

• Stereo-link capability
• Balanced XLR and jack inputs – 600 ohm impedance
• Balanced XLR and jack outputs – 600 ohm impedance
• Frequency response: +/- 1 dB, 15 – 20,000 Hz
• Gain: 40 dB +/-1 dB
• Input level: +16 dB maximum
• Output level: +10 dB nominal, +16 dB maximum
• Distortion: less than 0.1% THD at +/-10 dBm
• Attack time: 10 milliseconds
• Release time: 0.06 seconds for 50% release, 0.5 up to 5 seconds for complete release

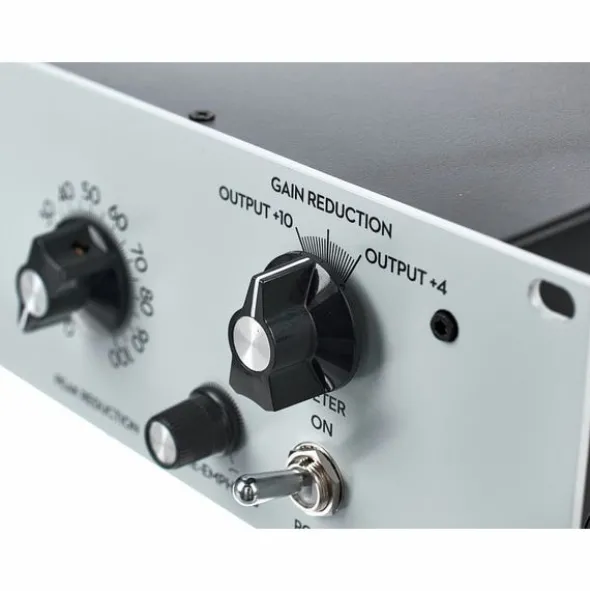

• Meter for gain reduction and output
• Dimensions 483 x 178 x 89 mm
• Weight: 5.44 kg
