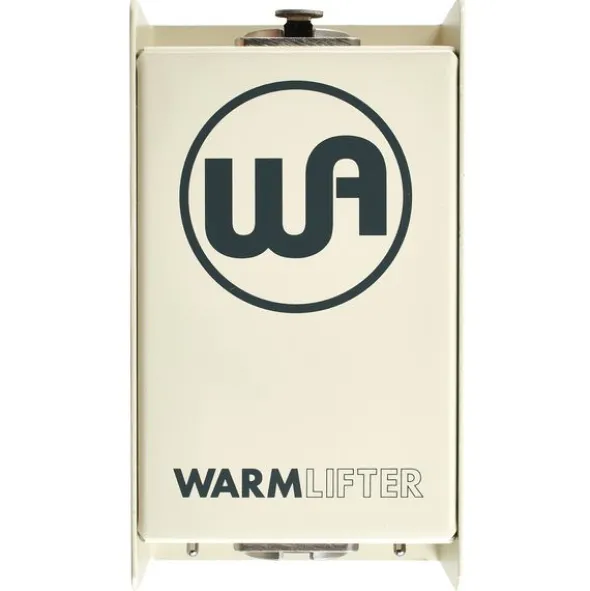

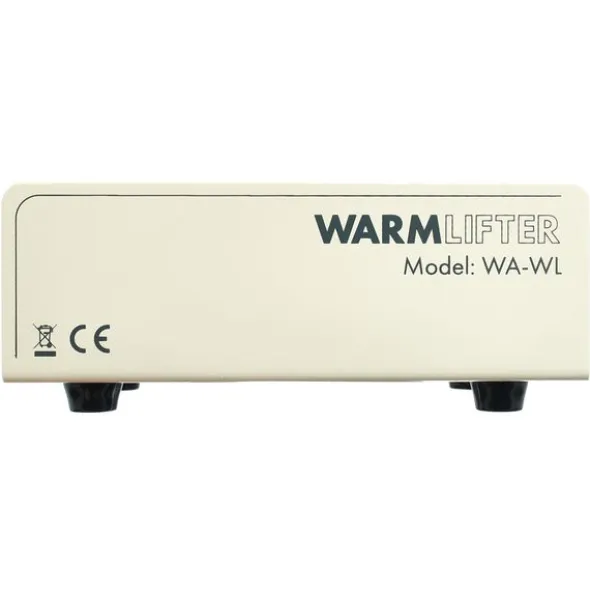

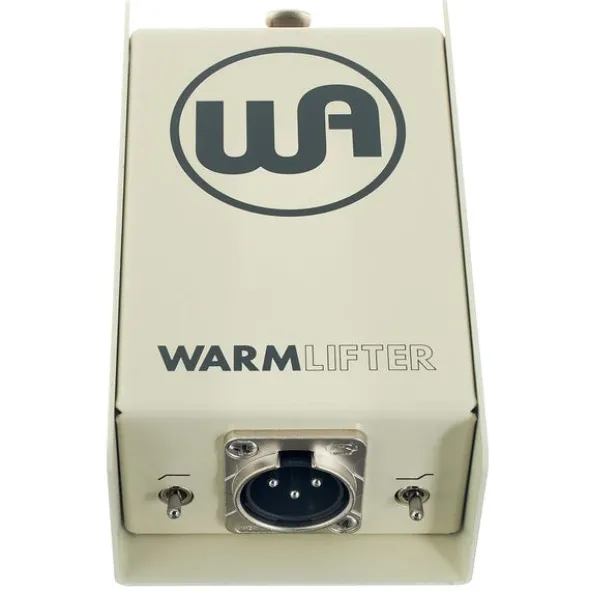

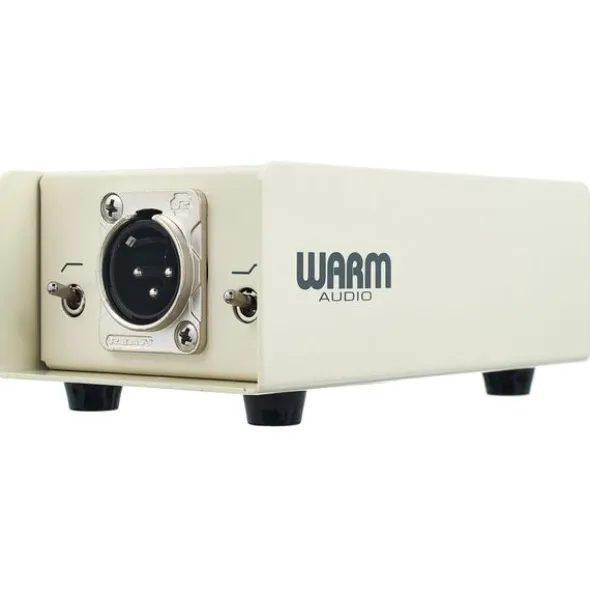

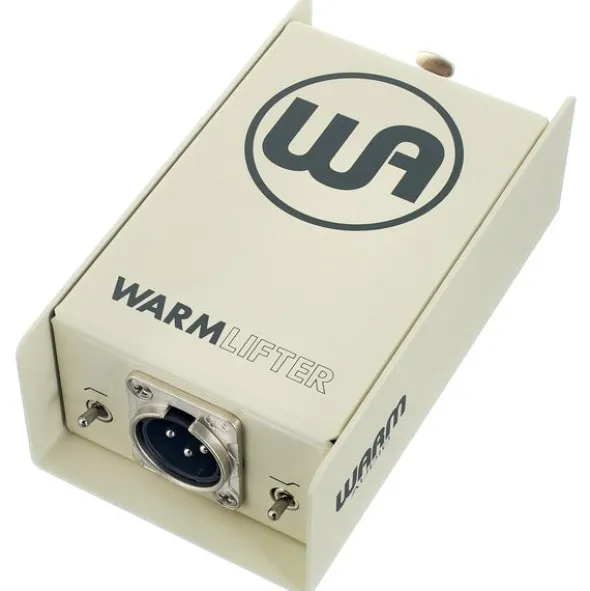

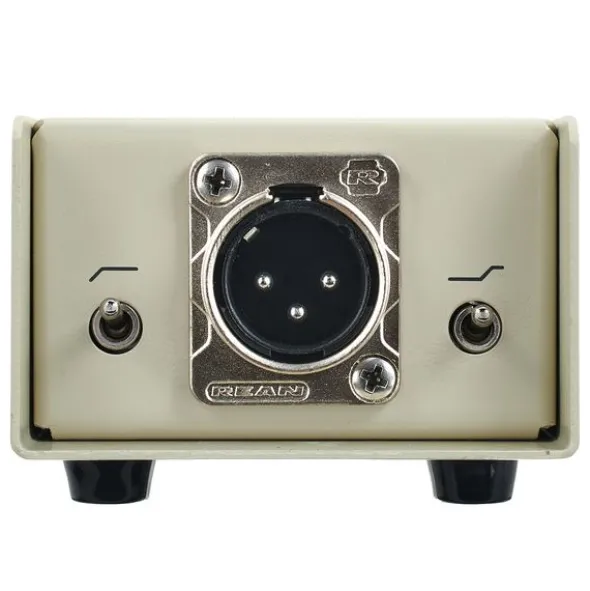

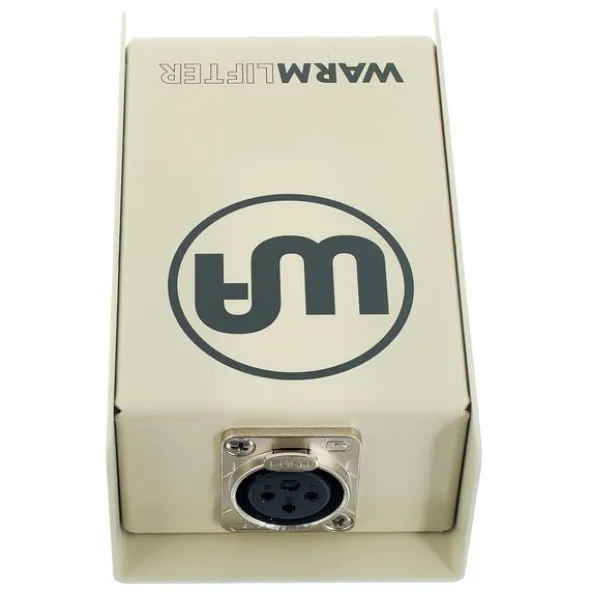

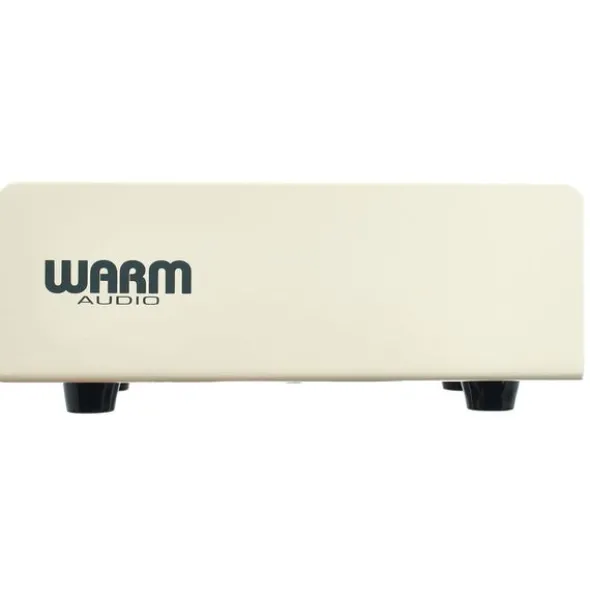

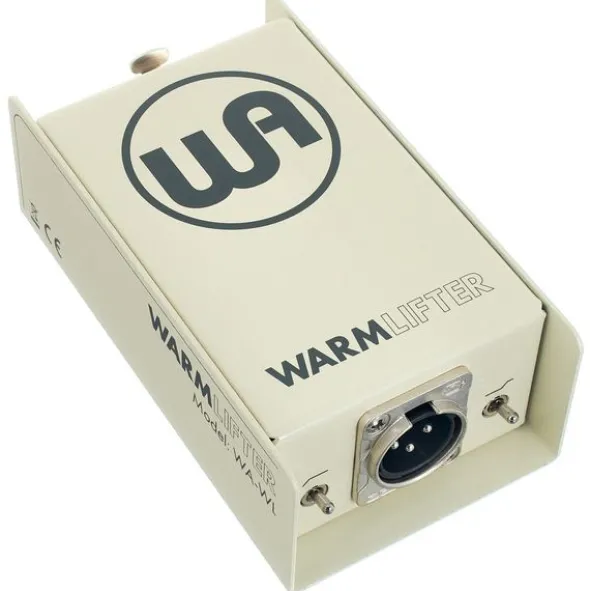

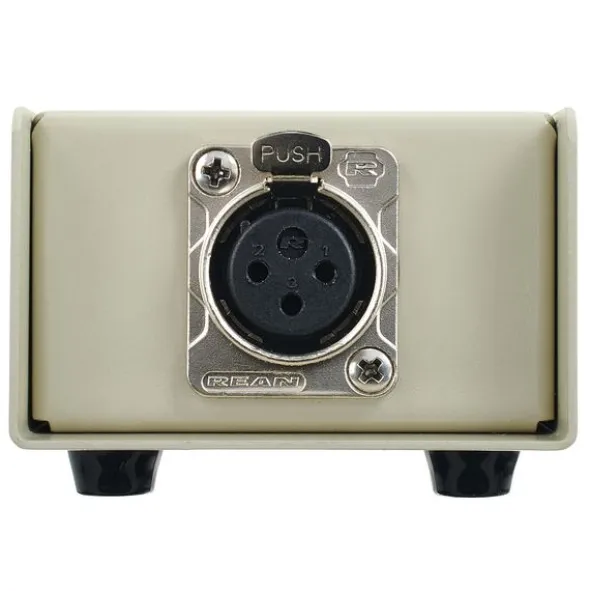

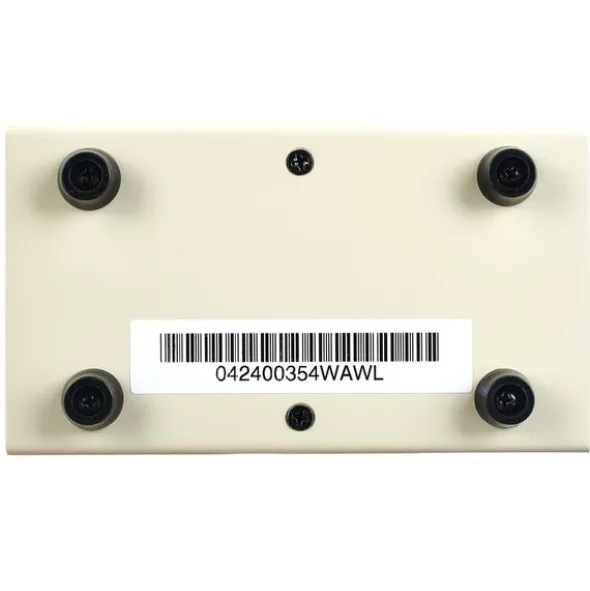

Warm Audio WA-WL

Active Inline Microphone Preamplifier

• Ultra-low noise JFET input
• Balanced signal path (in/out)
• 26 dB gain
• Switchable 100 Hz (12 dB) high-pass filter
• Switchable 3 kHz (2.5 dB) high-shelf boost
• Input impedance: 2.4 kOhm
• Output impedance: 150 ohm
• Max-Input: -11 dBu (218mV rms)
• Max-output: 15 dBu (4.36V rms) THD+N @ 15dBu: -100dB (0.001%)
• Output noise: 7.75 uV (A-weighted), at 150 Ohm input
• Frequency range: 10-100,000 Hz +/- 0.2 dB
• Requires 48V phantom power with 4.7 mA power consumption
• Dimensions: 69 x 41 x 119 mm
• Weight: 0.34 kg

Disponível desdeJunho 2024

número de artigo590472

unidade de venda1peça(s)

Channels1

Number of microphone inputs1

Instrument inputNo

TubesNo

Compressor/LimiterNo

EqualizerYes

De-EsserNo

Phantom powerNo

Phase ReverseNo

External effect loopsNo

Analogue OutputsXLR

Digitale OutputsNone

Headphone connectionNo

Level MeterNo

DesignAdaptor
