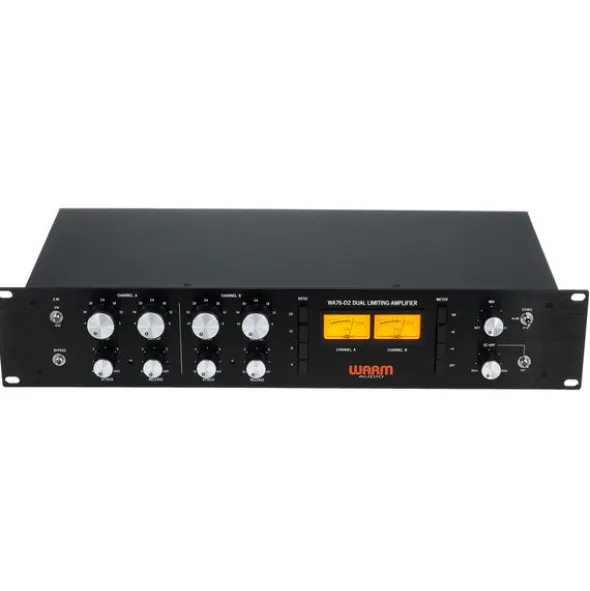

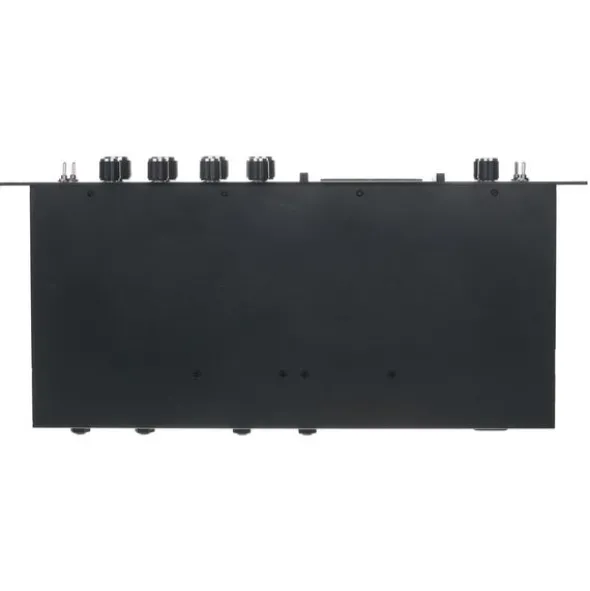

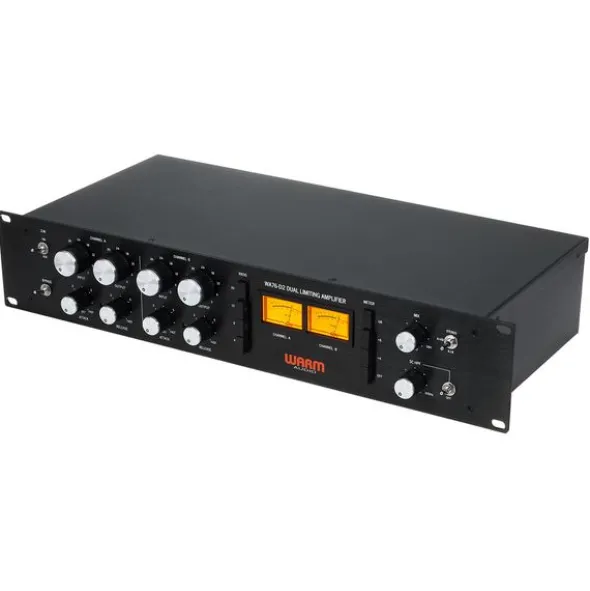

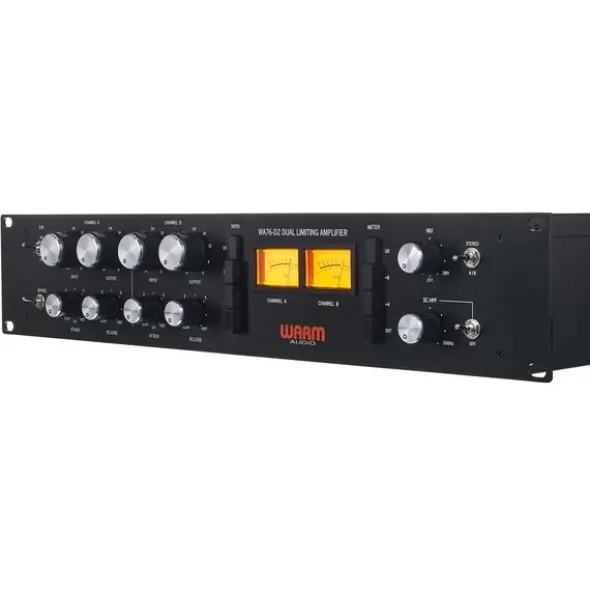

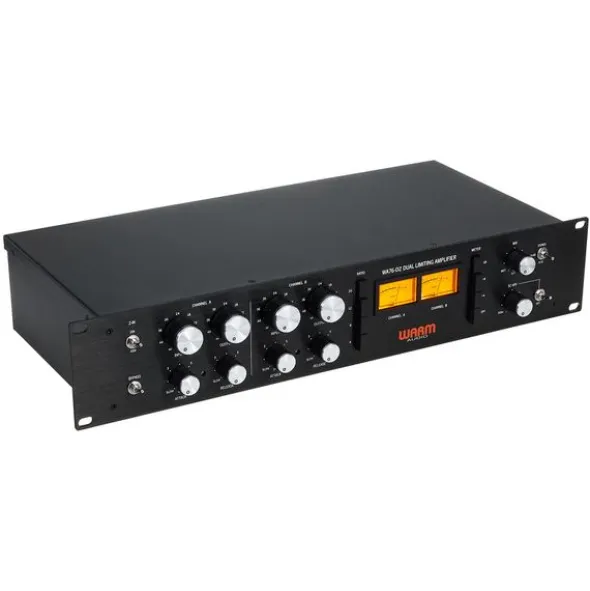

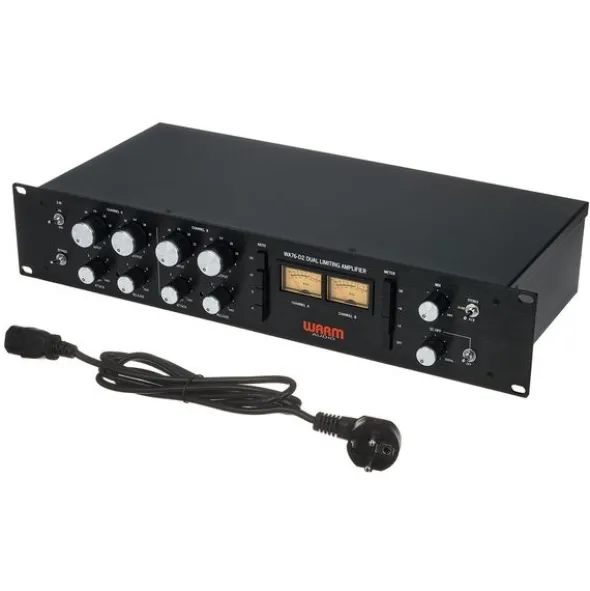

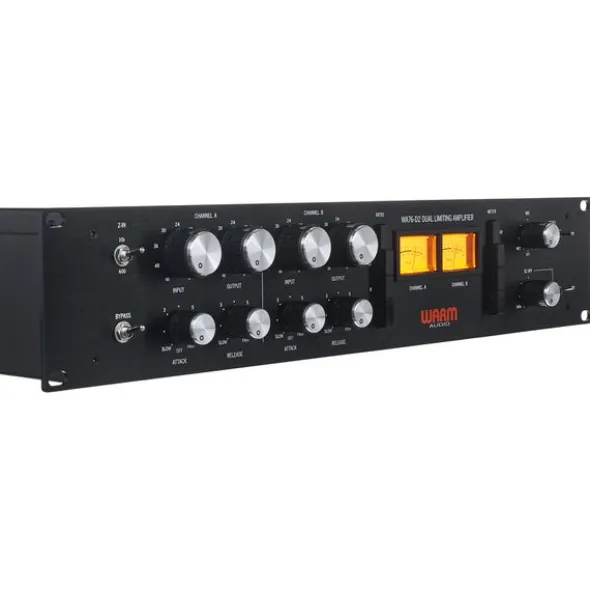

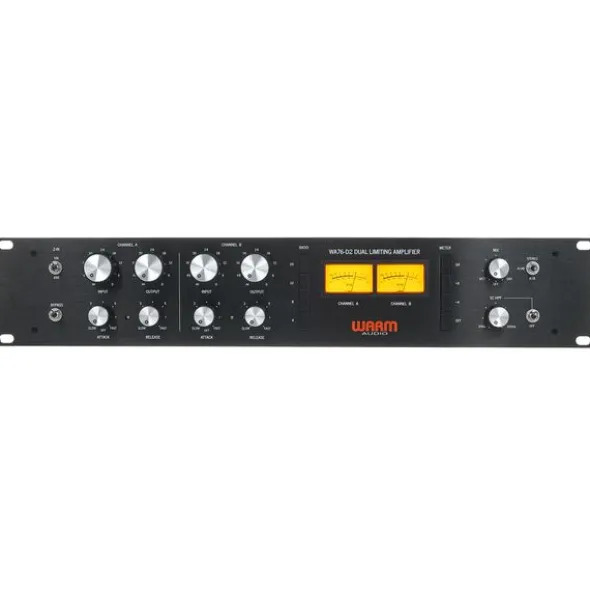

Warm Audio WA76-D2

2-Channel FET Compressor

• Analogue, discrete 2-channel FET compressor
• Faithful reproduction of the ‘Rev D’ FET compressor with additional features
• Premium O-12 input and 5002 output transformers from CineMag USA
• 2-Channel operating modes: Stereo Linked, Primary:Secondary, Dual-Mono
• VU metre options: Gain Reduction, +8 dB or +4 dB
• Class-A line-level output amplifier
• Input impedance switchable between 600 Ohm and 10 kOhm
• Dry/wet control for parallel compression
• Variable sidechain high-pass filter: 30 – 300 Hz, 12dB/octave
• Active bypass for operation as a line amplifier and true bypass option for A/B comparisons
• Stereo link and external sidechain input
• Attack: 20 µS – 0.8 mS
• Release: 50 mS – 1.1 seconds
• “All-Buttons-In” setting for experimental and hard limiter tones
• Frequency response: ± 1 dB 20 Hz – 20.000 Hz
• Signal-to-noise ratio (SNR): 86 dB
• Total harmonic distortion (THD): -64 dB (at -8 dBu)

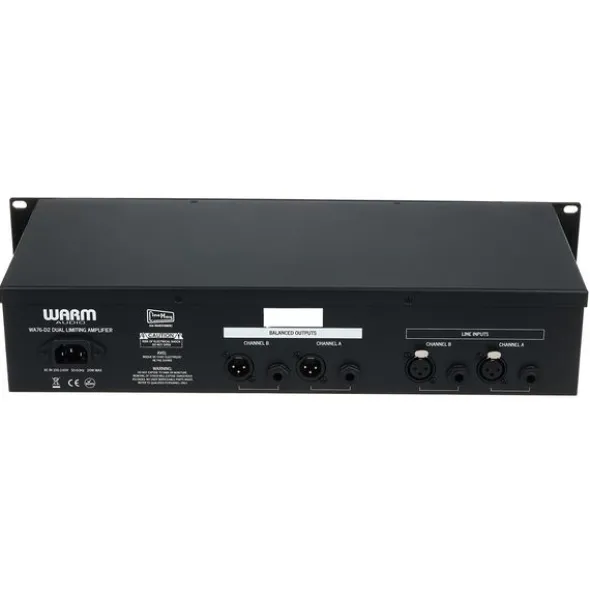

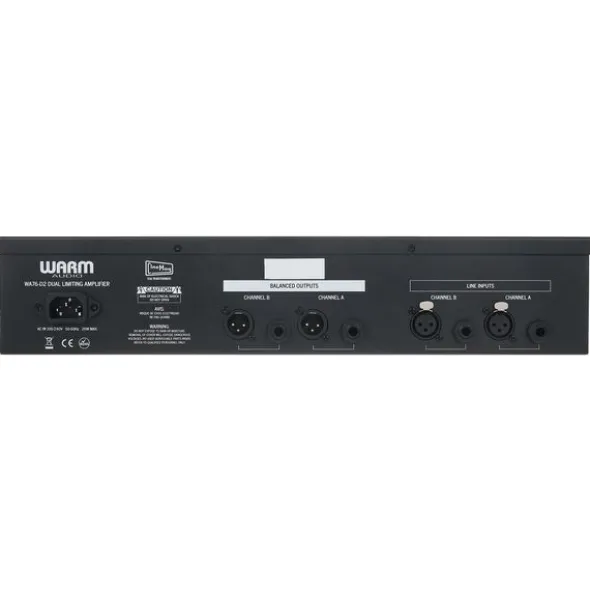

• Balanced XLR and TRS inputs and outputs
• Dimensions: 483 x 90 x 159 mm
• Weight: 4.8 kg
