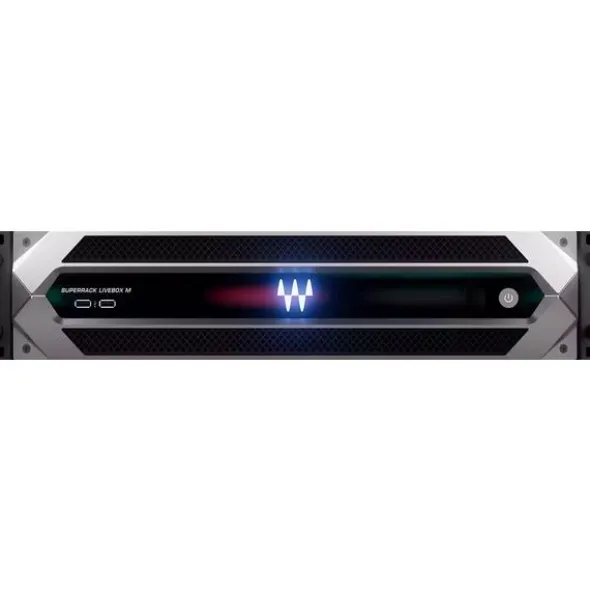

Waves SuperRack LiveBox Madi

SoundGrid Server

• RAM: 32 GB
• CPU: Intel Core i7-14700
• HDD: 512 GB
• Installation height: 2 U
• Enables the use of Waves plug-ins for live applications via the Multirack system
• Dimensions (W x H x D): 482 x 88 x 392 mm
• Weight: 7.0 kg
• Including Waves Live Bundle with over 50 plug-ins for live mixing

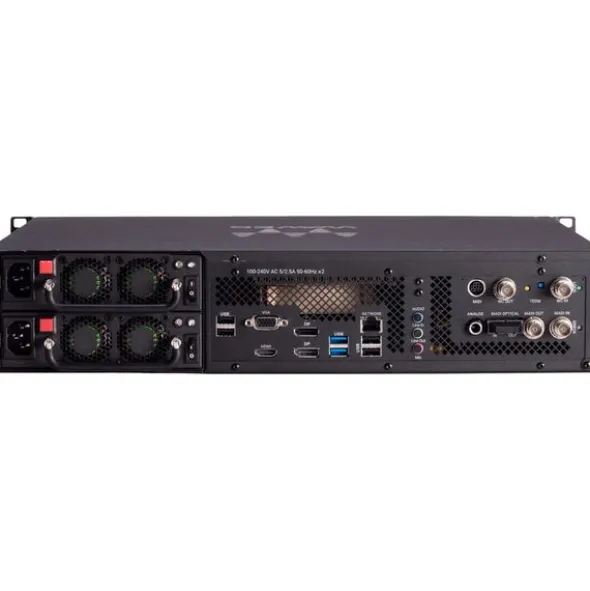

Connectors:

• 2 Front Panel USB 2.0 ports
• 4 Back Panel USB 2.0 ports
• 2 Back Panel USB 3.0 ports
• 1 RJ45 network
• 1 VGA
• 1 HDMI
• 2 x Display port
• PC Audio: Line In, Line Out, Mic In
• Madi I/O: 128 channels
• 64 Coaxial and 64 optical at 48 kHz
• 32 Coaxial and 32 optical at 96 kHz
• Madi status LEDs
• Redundant PSU
• 19″ Rack compatible
