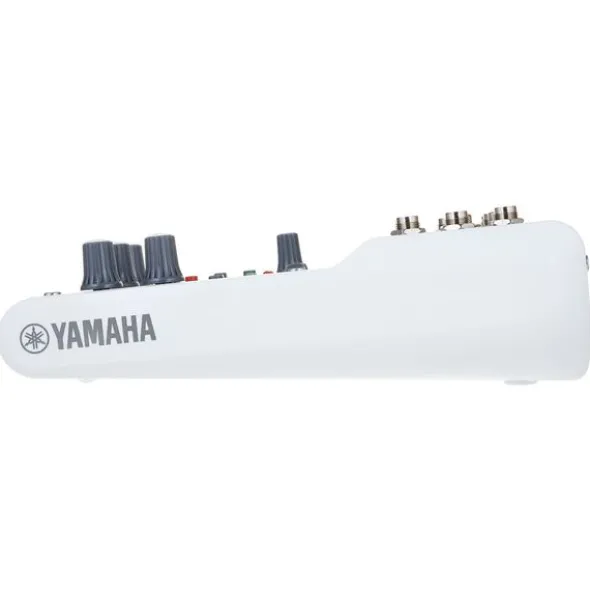

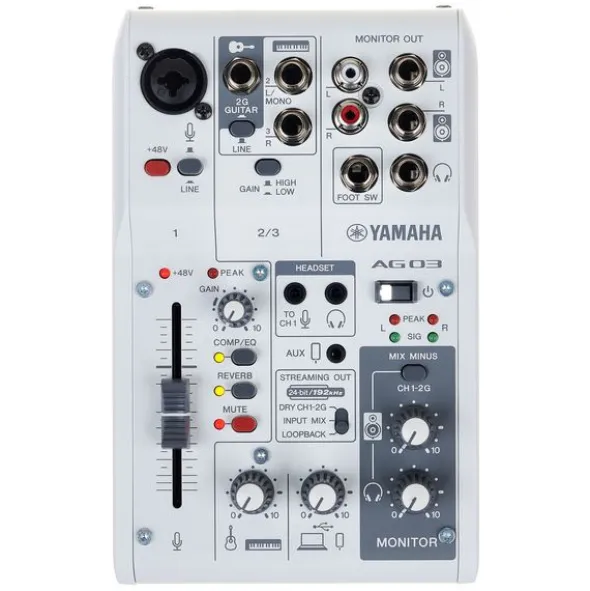

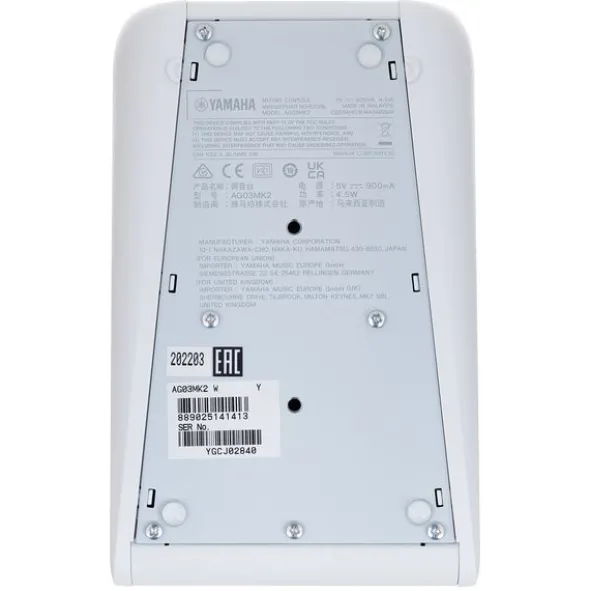

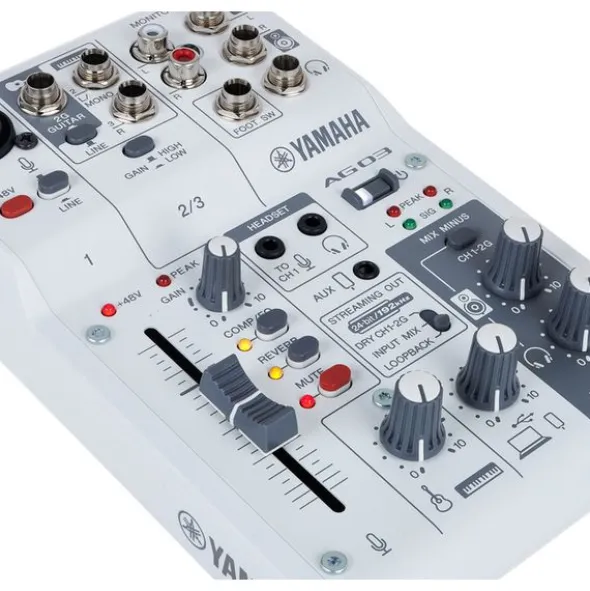

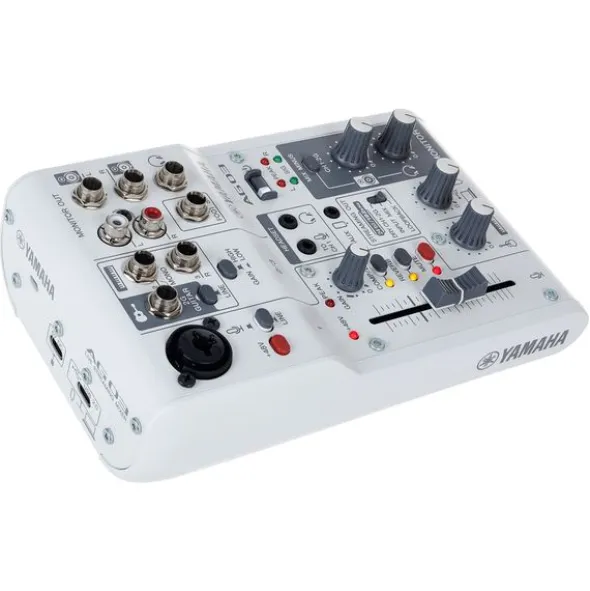

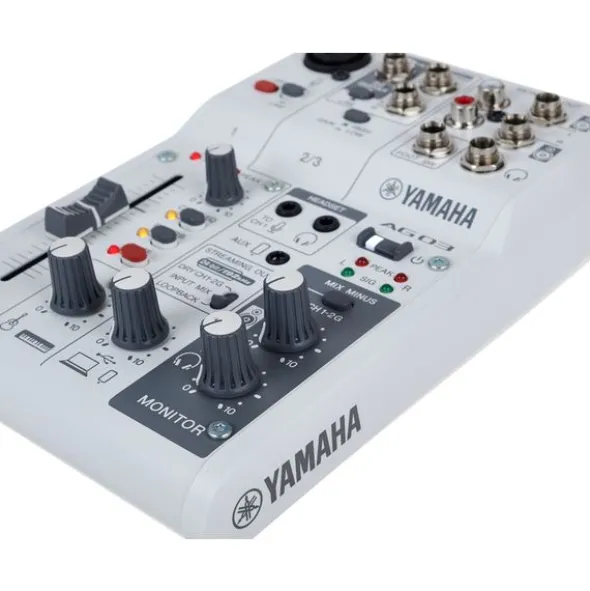

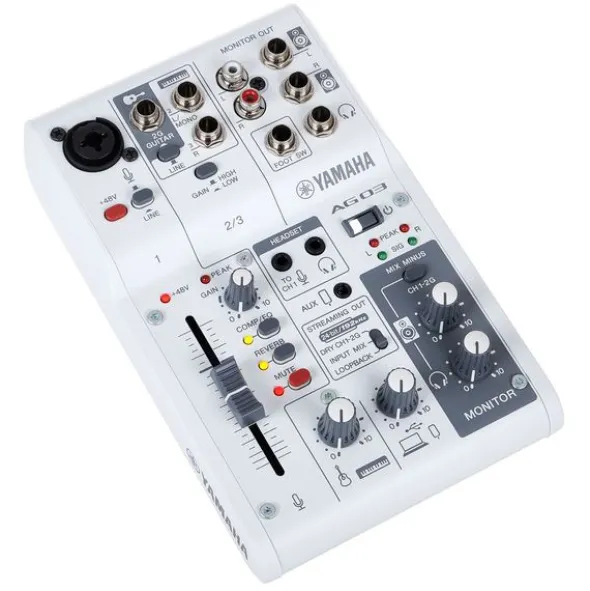

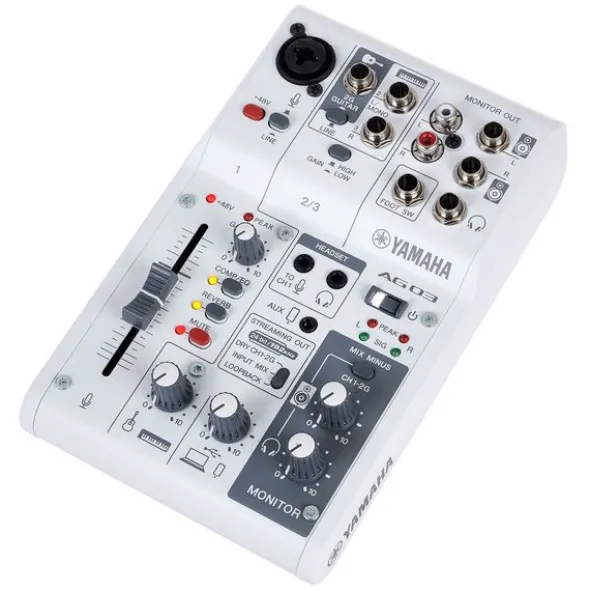

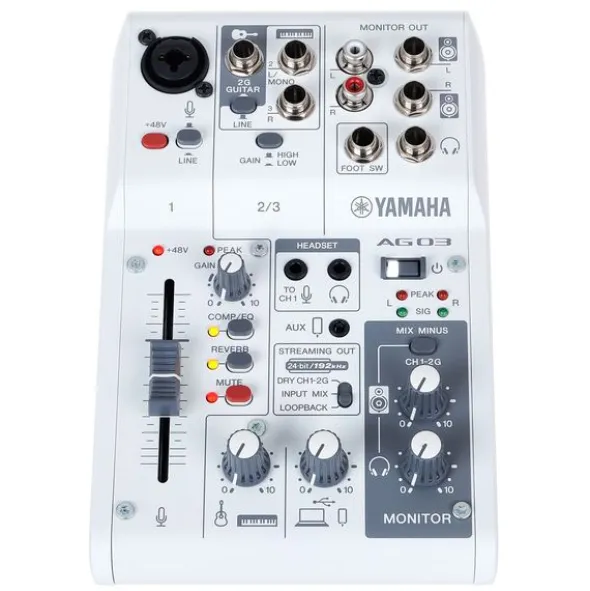

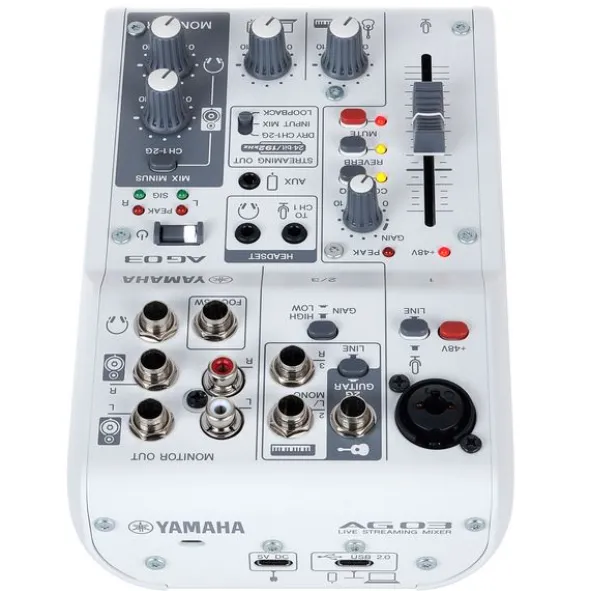

Yamaha AG03 MK2 WH

Combined USB 2.0 audio interface and mixing console

• 24 bit / 192 kHz
• +48 V phantom power switchable
• Pad switch
• DSP effects such as compressor, equaliser and reverb
• 60 mm fader
• FX bypass (via optional footswitch)
• iPad compatible with optional Camera Connection Kit (not included)
• 1 Mic/line input: XLR/jack combo connector
• 1 Hi-Z instrument input
• 2 Line inputs: 6.3 mm jack (input 2 switchable between Hi-Z and line)
• 2 Line outputs: 6.3 mm jack
• 2 Line outputs: RCA
• Stereo headphone output: 6.3 mm jack
• Footswitch connection
• Headset connection: 2x 3.5 mm mini-jack (earphone and microphone)
• AUX input: 3.5 mm mini-jack stereo

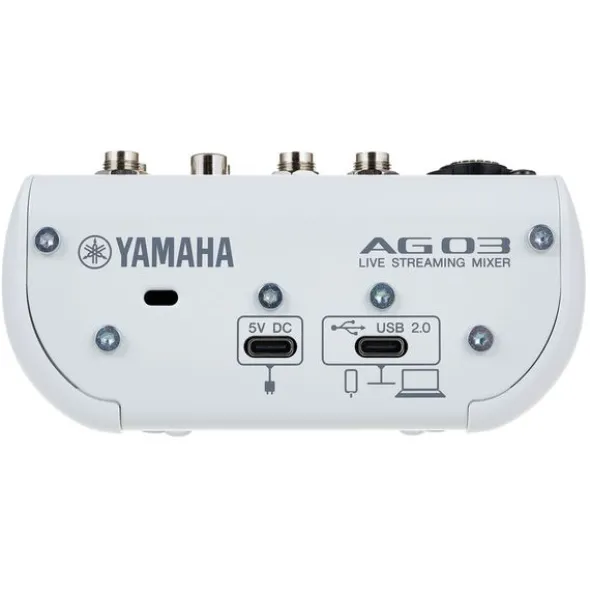

• USB-C connection
• Power supply via USB (5V, 500mA)
• Dimensions: 129 x 63 x 202 mm
• Weight: 0.8 kg
• Colour: White
• Includes Steinberg Cubase AI

Disponível desdeMaio 2022

número de artigo544554

unidade de venda1peça(s)

Recording / Playback Channels2×2

Number of Mic Inputs1

Number of Line Inputs4

Instrument Inputs1

Number of Line Outs4

Headphone Outs1

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceNo

Word ClockNo

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredYes

Incl. power supplyNo

USB Version2.0

Width129 mm

Depth202 mm

Height63 mm

Connection Format2x USB port Type C

Weight0,8 kg

Parallel usable Channels2

Simultaneous channels2

Mic-In1

Mic Ins1

Mono Line Ins2

Mono Line-in2

Stereo-In1

Stereo Ins1

Hi-Z Input1

Master Out6,3 mm bal.

Aux Ways0

max. Pre Aux Channels0

Number of Pre Aux max.0

PC InterfaceUSB-B

Audio Interface Input2

Audio Interface Output2

USB/SD Direct RecordNo

CompressorYes

FX Processor1

Effect Processor1

USB PlayNo

Bluetooth PlayNo

Lamp ConnectorNo

Lamp connectionNo

Foot SwitchButton

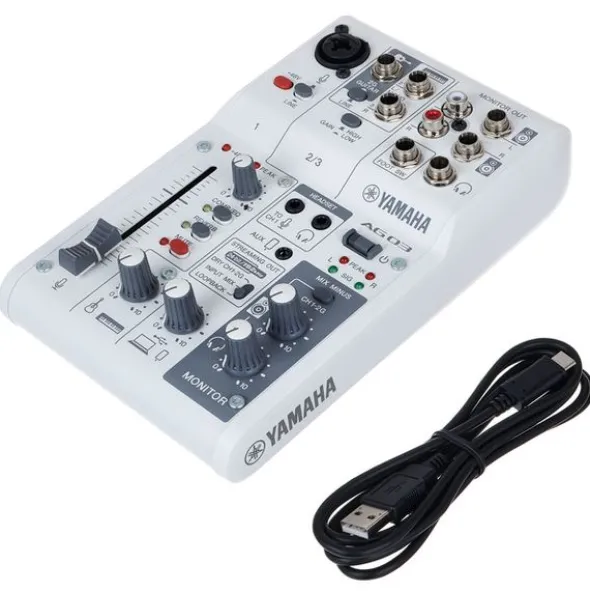

Included in deliveryUSB-A to USB-C Cable

FootswitchButton

Bag203410

Zones0

Zero latency monitoringYes

19″ RackmountNo

RackmountNo
