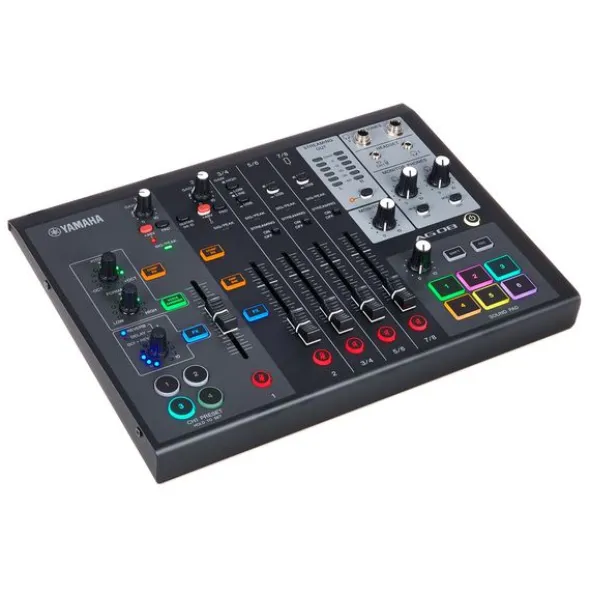

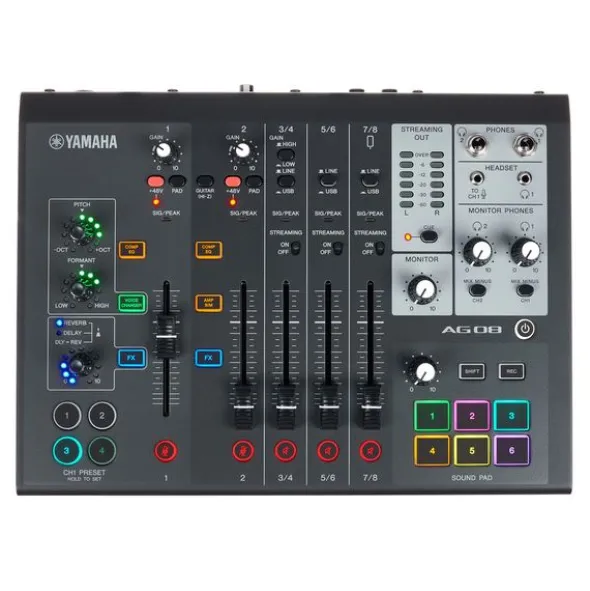

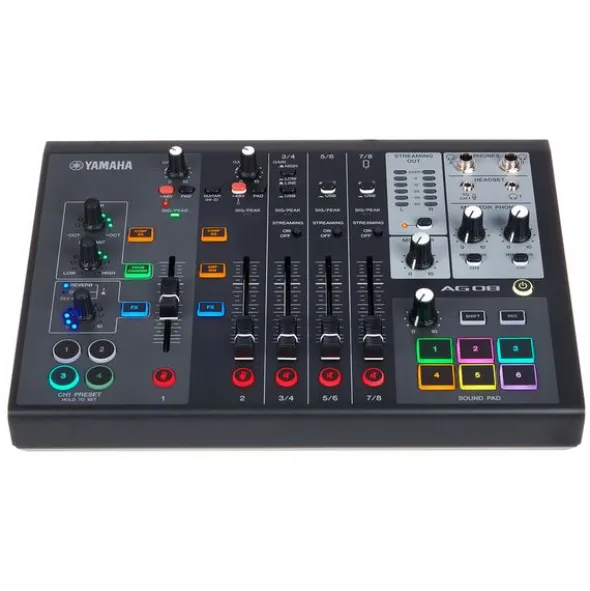

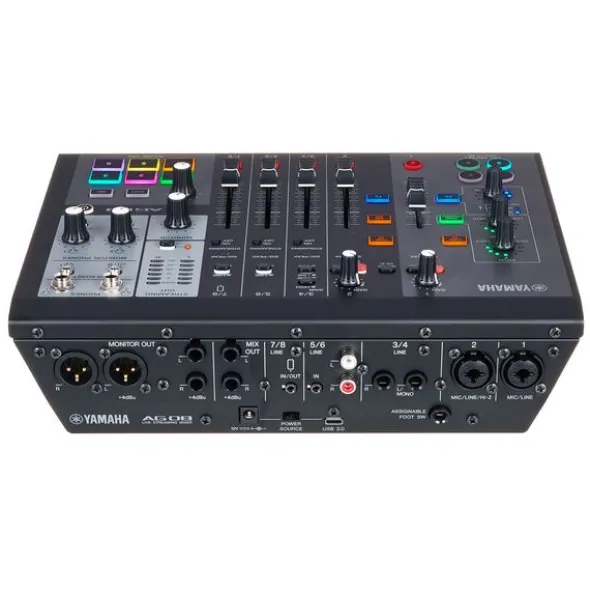

Yamaha AG08 BL

8-Channel Live Streaming Mixer / USB Audio Interface

• 24-bit/48 kHz converter
• 5 DSP effects

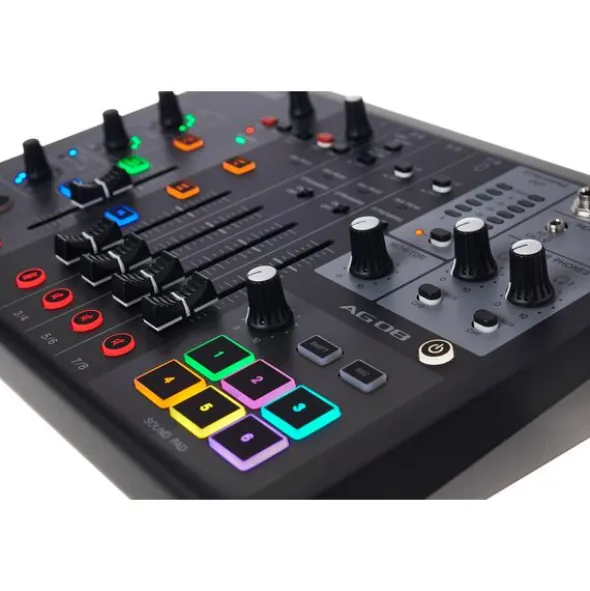

• 6 Buttons for playing samples

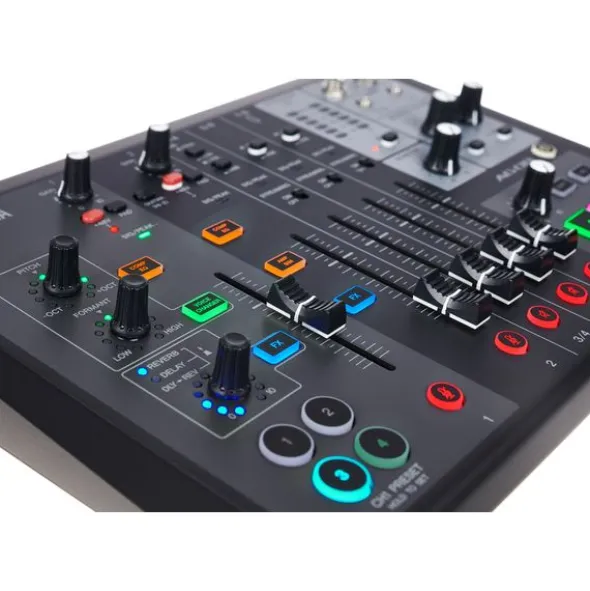

• 4 Effect buttons for channel 1 and 2
• +48V phantom power for channel 1 and 2
• 5 Faders 60 mm each
• Mute buttons for each input
• LED meter

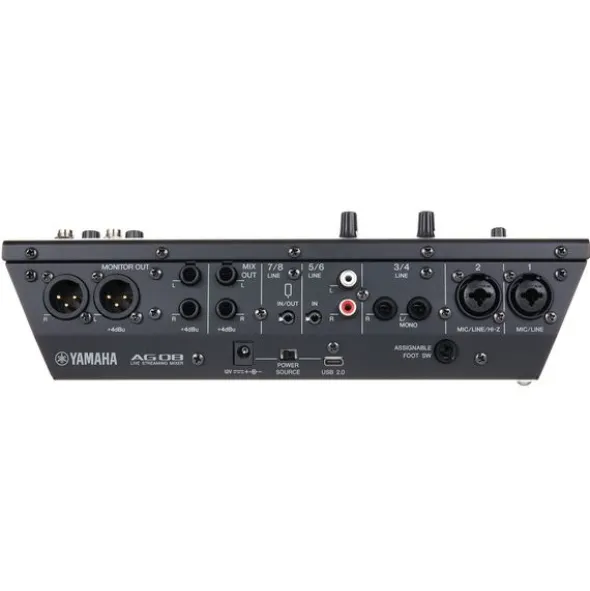

• 2 Line/mic combo inputs: XLR/jack 6.3 mm (input 2 additionally usable as Hi-Z for guitar)
• 2 Line inputs: 6.3 mm jack
• 2 Line inputs: cinch / 3.5 mm mini jack
• 2 Monitor outputs: XLR and jack 6.3 mm
• 2 Mix outputs: 6.3 mm jack
• Line input and output: 3.5 mm mini jack
• Foot switch connection: 6.3 mm jack
• 2 Stereo headphone outputs: 6.3 mm jack
• 1 Headset connection (microphone input / headphone output): 3.5 mm mini jack
• USB-C connection
• Power supply via external power supply unit or USB 2.0
• Dimensions (W x H x D): 290 x 88 x 222 mm
• Weight: 2.2 kg
• Colour: Black

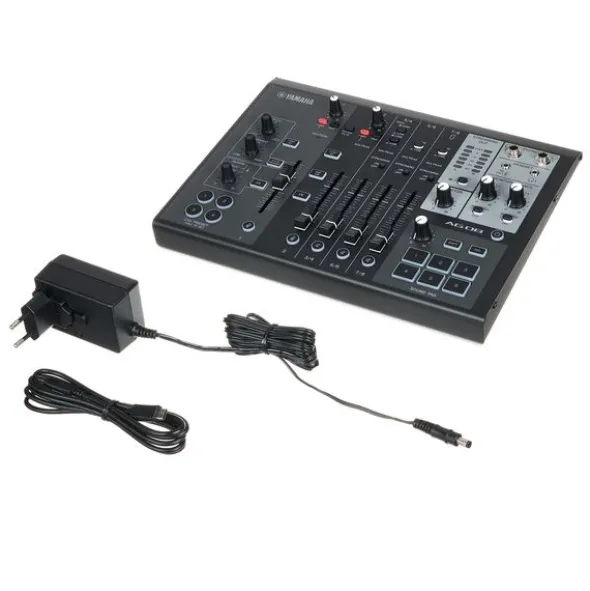

• Incl. Cubase Al, WaveLab Cast, Cubasis LE (download versions), power supply PA-150B and USB 2.0 cable 1.5 m

Disponível desdeFevereiro 2023

número de artigo559762

unidade de venda1peça(s)

Recording / Playback Channels8×6

Number of Mic Inputs2

Number of Line Inputs8

Instrument Inputs1

Number of Line Outs4

Headphone Outs2

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsUSB-C

MIDI interfaceNo

Word ClockNo

Max. Sampling Rate in kHz48 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredYes

Incl. power supplyYes

USB Version2.0

Width20 mm

Depth222 mm

Height88 mm

Connection Format2x USB port Type C

Max.number of input channels8

Microphone Inputs2

Analog Line Inputs8

Analog Line Outputs6

Digital Inputs0

Digital Outputs0

Computer interfaceUSB

Special FeaturesAudio Steaming

Included in deliveryPower Supply, USB-C Cable

Zero latency monitoringYes
