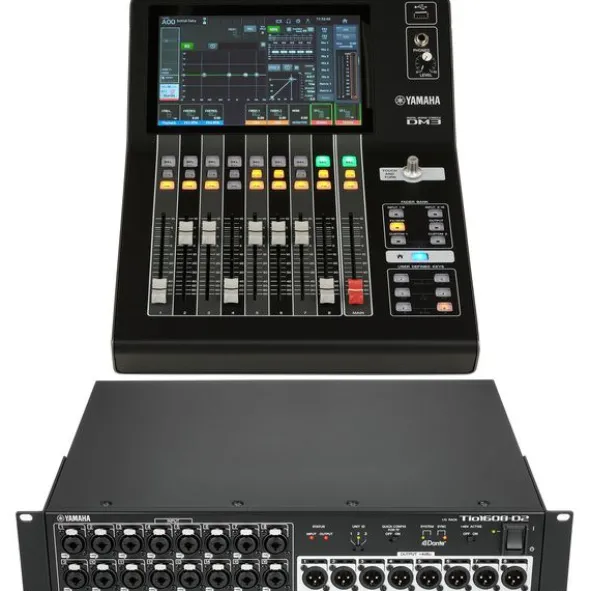

Yamaha DM3 TIO1608-D2 Bundle

Bundle offer comprising

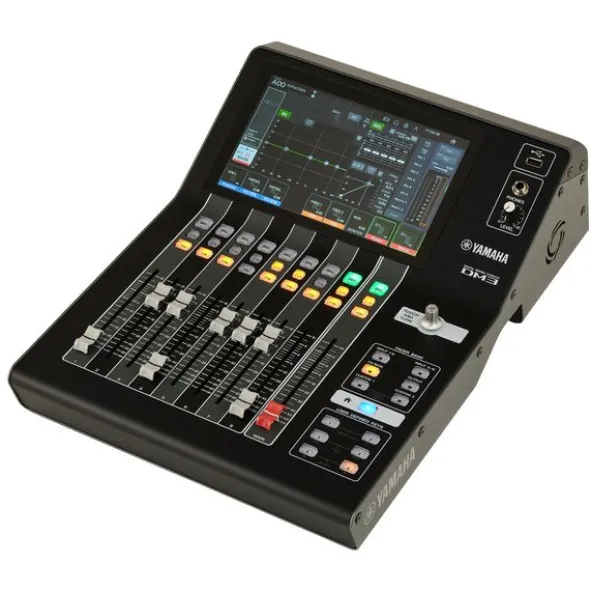

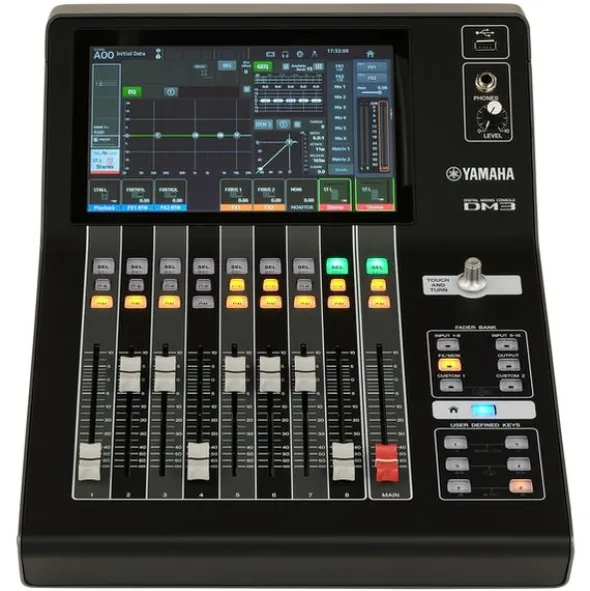

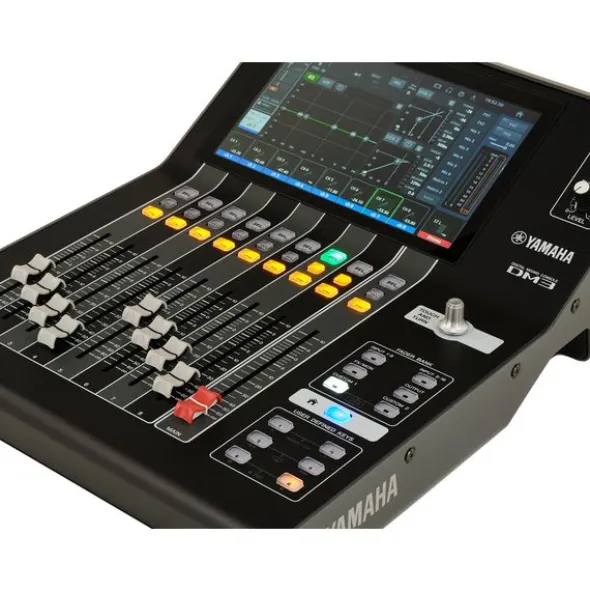

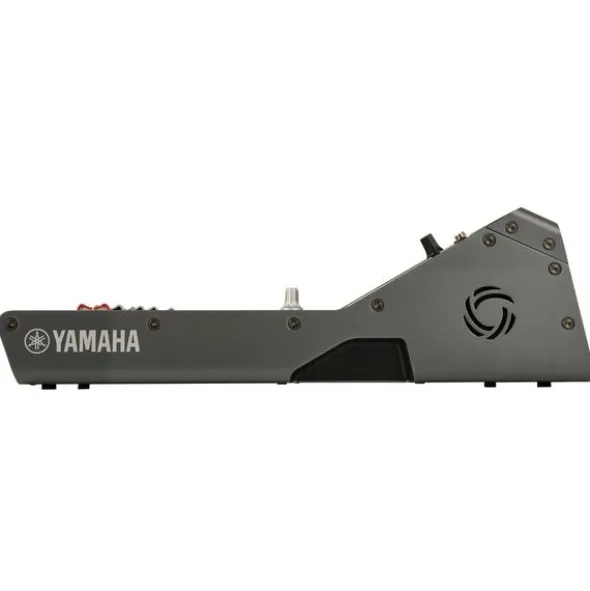

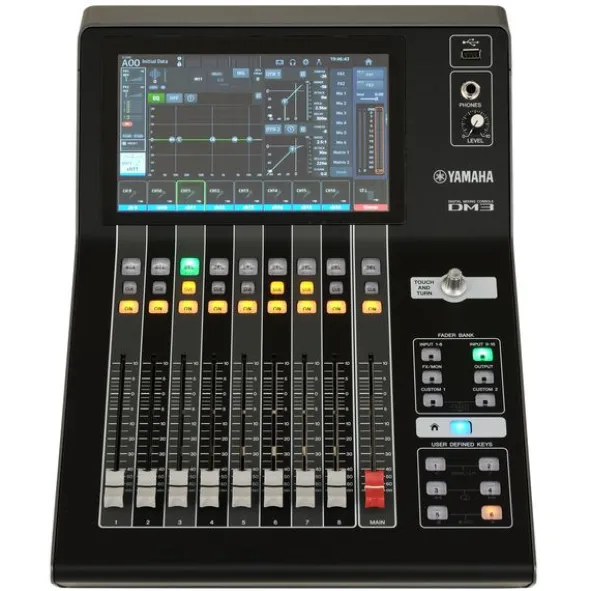

Yamaha DM3

16-Channel Mixer

• For studio, streaming and live applications

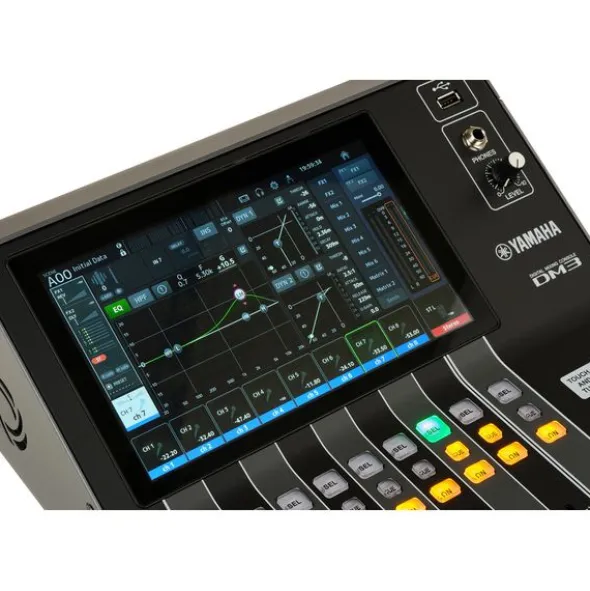

• 9″ multi-touch touchscreen

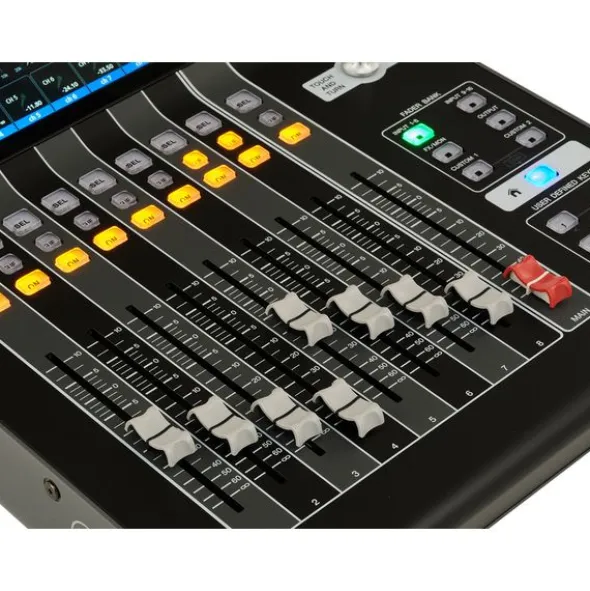

• 9 motorised faders
• “Turn & Touch” control
• 18 x 18 USB 2.0 audio interface 48 kHz / 96 kHz
• 16 mono inputs + 1 stereo + 2 FX Return
• 8 outputs
• Buses: 1 stereo, 6 mix, 2 FX, 2 matrix (supports input to matrix)
• DAW Remote Feature (HUI)
• OSC support for installations
• Editor app available for tablet (tablet not included)
• 16 x 16 DANTE interface with 16 inputs and outputs
• 6 freely assignable buttons
• 2 x 2 channel recording/playback via USB port
• 18 selectable effects + GEQ on Mix 1-6 and Stereo Bus
• 8 groups with DCA roll-out
• Dimensions (W x H x D): 320 x 140 x 455 mm
• Weight: 6.5 kg
• Includes Steinberg Cubase AI and VST Rack Elements

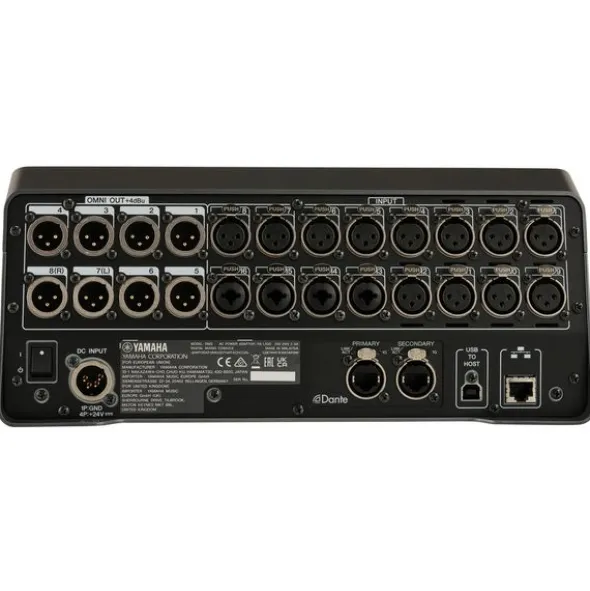

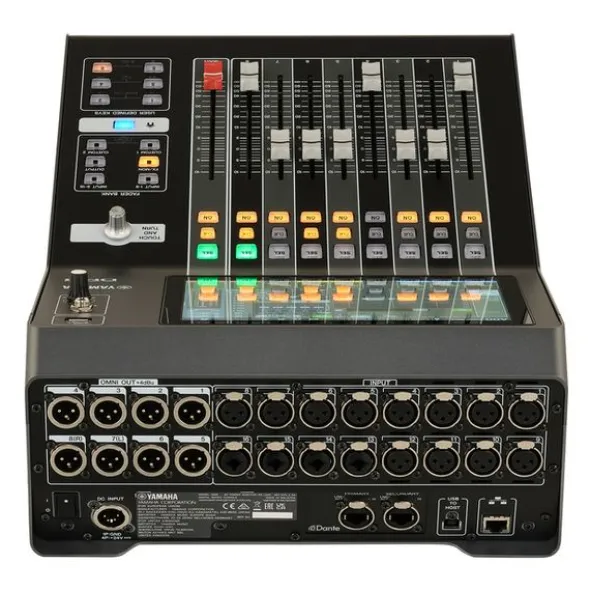

Connections

• 16 mic/line inputs: 12x XLR, 4x combo XLR/jack 6.3 mm
• 8 line outputs: XLR
• 2 x Dante input (RJ45)
• Stereo headphone output: 6.3 mm jack
• USB to Host
• USB to Device
• Ethernet RJ45

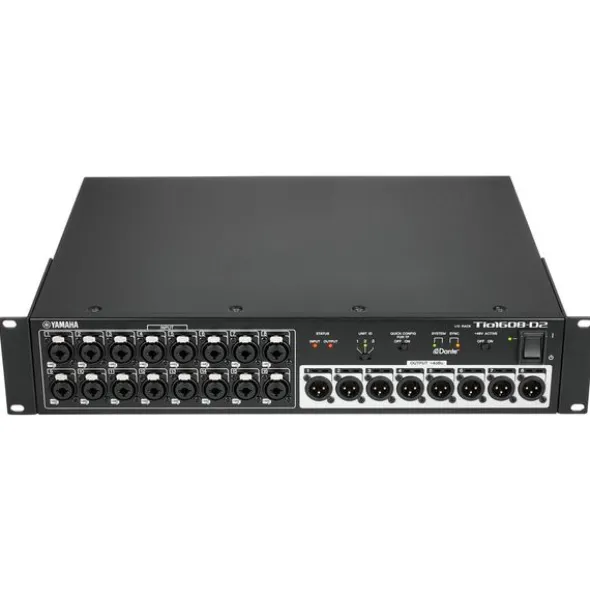

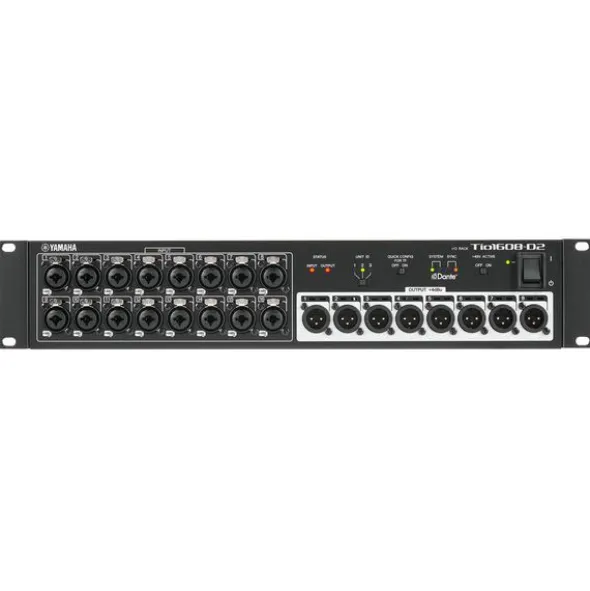

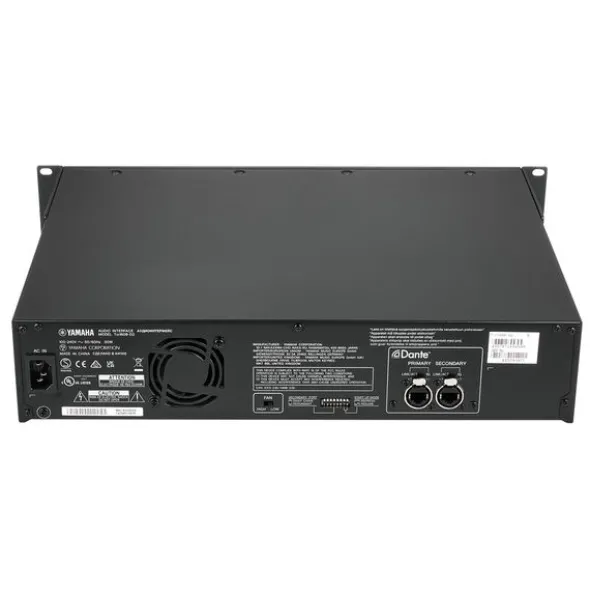

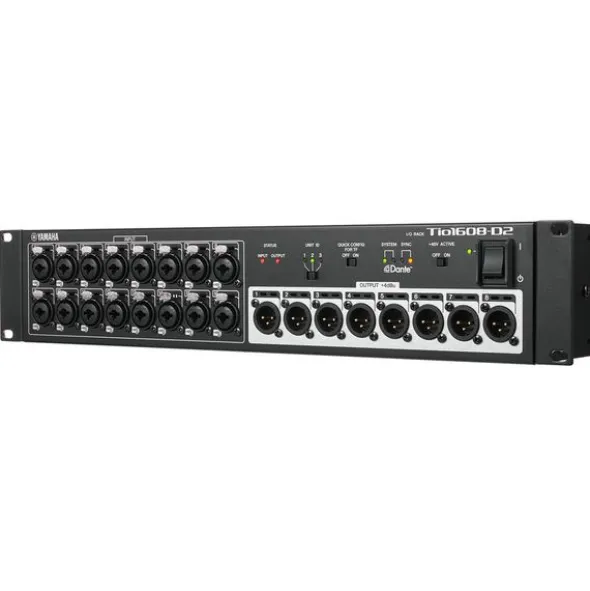

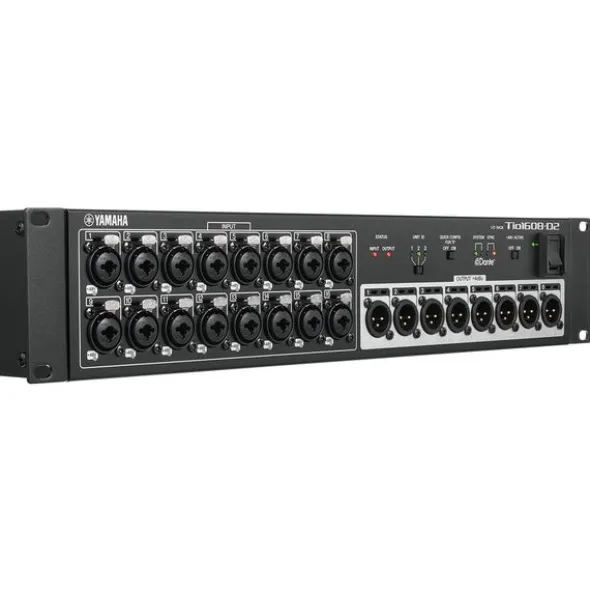

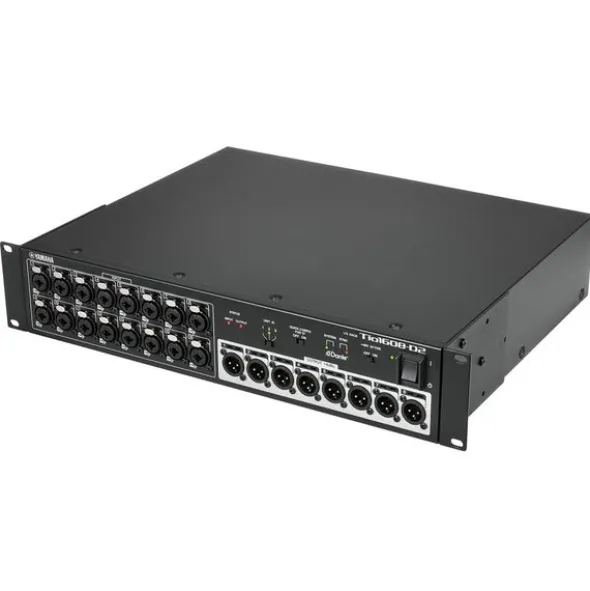

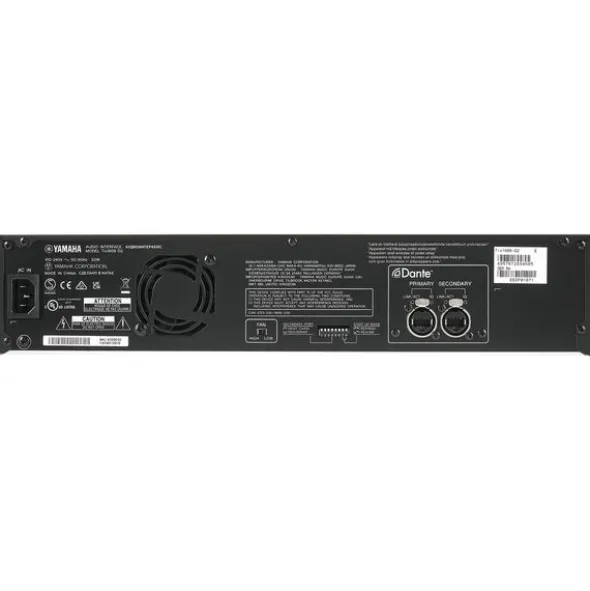

Yamaha Tio 1608-D2

Digital Stagebox

• Dante compatible
• 16 Microphone/Line inputs and 8 Line outputs
• External sampling frequency 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Frequency response +0.5 -1.5 dB, 20 – 20,000 Hz, referenced to nominal output level @1 kHz, input to output
• Dimensions (W x H x D): 480 x 88 x 364 mm
• Rack mount size: 19″ 2U
• Weight. 5.7 kg

Disponível desdeDezembro 2025

número de artigo632361

unidade de venda1peça(s)

Max.number of input channels32

Microphone Inputs32

Analog Line Inputs32

Analog Line Outputs16

Analog in/ out with plug-in card expandableNo

Digital in-/ outputs expandableNo

Word ClockNo

MotorfaderYes

Computer interfaceUSB

MIDI-interfaceNo

User InterfacePhysical/remote

Number of faders9

DSP Input channels32

DSP Output Channels16

Busses6

Number of Microphone Inputs32

Number of Mono Line Inputs32

Number of Stereo Line Inputs0

Physical outputs16

Digital stagebox connectionDante

EthernetYes

HotspotNo

Special FeaturesDANTE, 18×18 USB Audio Interface

Multitrack RecordYes

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDstereo

Recorder FormatWAV/MP3

RTANo

FX Processor2

31 Band EQ0

Delay InputYes

Delay OutputYes

Matrix2

DCA/VCA Groups0

MIDI InterfaceNo

Sample rate96 kHz

Separate Personal Monitor systemNo

Expansion Card slots0

Digital ADATNo

Digital SPDIFNo

Digital AES3/ASESEBNo

Digital MADINo

Digital DanteYes

CaseNo

19″ RackmountOptional

Height140 mm

Width320 mm

Depth455 mm

Weight6,5 kg
