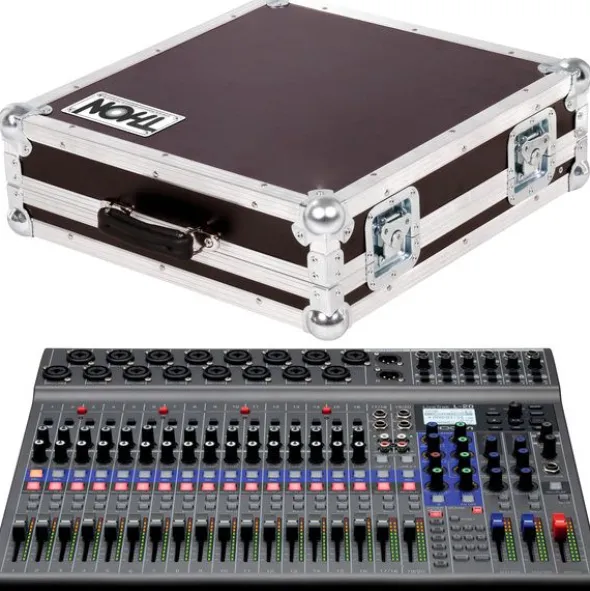

Zoom LiveTrak L-20 Mixercase Bundle

Bundle offer comprising

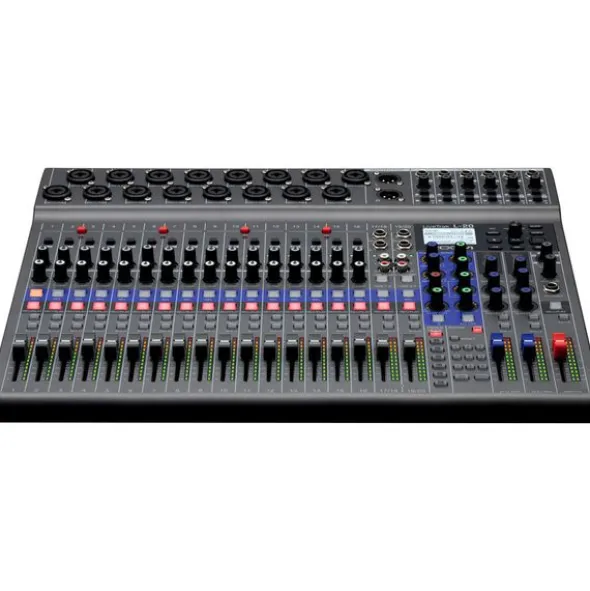

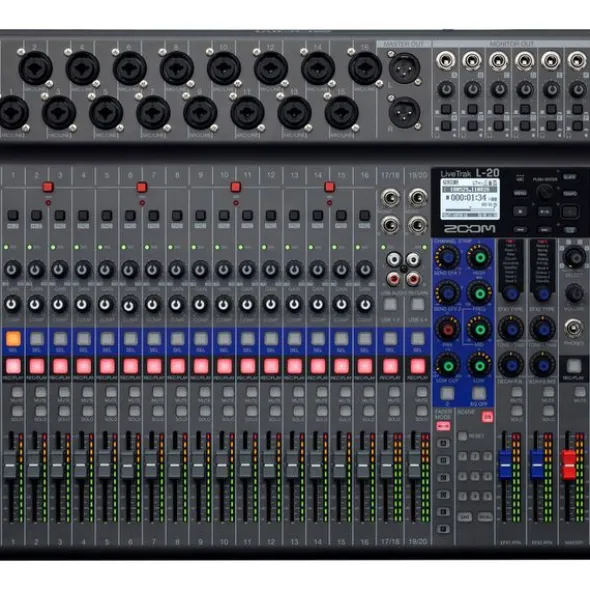

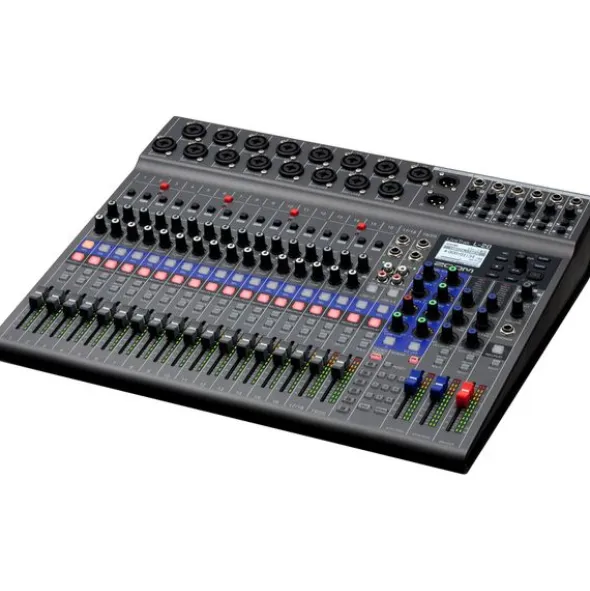

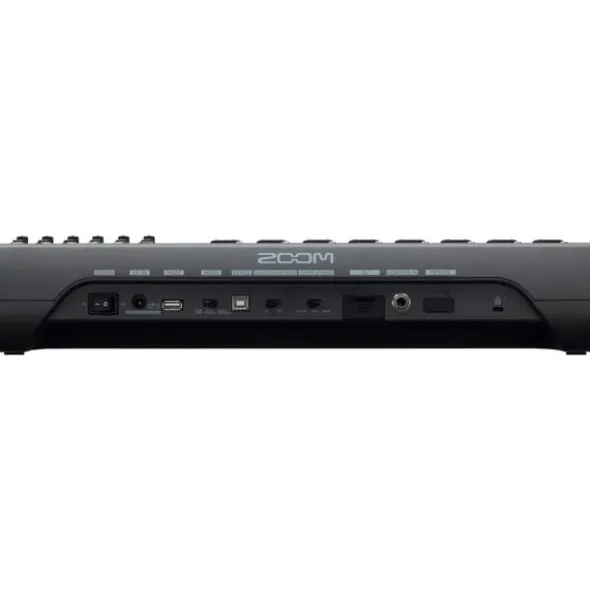

Zoom LiveTrak L-20

Combined Mixer, Audio Interface and Recorder

• 20 Discrete channels
• 16 Mono plus 2 stereo channels with XLR and 1/4″ phone jacks
• Simultaneous recording of 22 tracks
• Playback of 20 tracks
• USB audio interface with 22 inputs and 4 outputs
• Audio recording up to 24-bit / 96 kHz on SD storage media
• 48 V phantom power
• Hi-Z Connectors (channels 1-2)
• 26 dB Pad (channels 3 to 16)
• Compressor per channel with one knob (channels 1 to 16)
• Solo and mute buttons for each channel
• Low cut per channel between 40 – 600 Hz variably adjustable
• Sum outputs and six configurable monitor outputs
• Monitor outputs can be configured as headphone output or normal line-level output
• Additional separate headphone output
• Memory function for up to nine mixer scenes
• 20 Internal, editable chorus, delay and reverb effects
• Two effect buses
• Built-in talkback microphone
• Pre-record function
• Class-compliant operation (for iOS compatibility)
• Automatic start and stop recording possible
• Import and export of projects via the USB 2.0 interface
• Compatible functions for the ZOOM FS01 footswitch
• Dimensions (W x D x H): 445 x 388.4 x 82.6 mm
• Weight: 3.71 kg
• Includes power supply (AD-19), USB 2.0 cable and quick start guide
• Suitable protective cover: Article no. 514006 (not included)
• Optional case 514831 (not included)

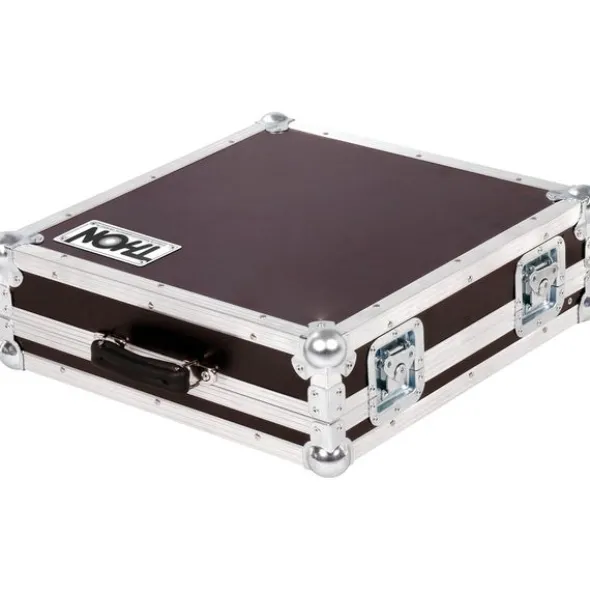

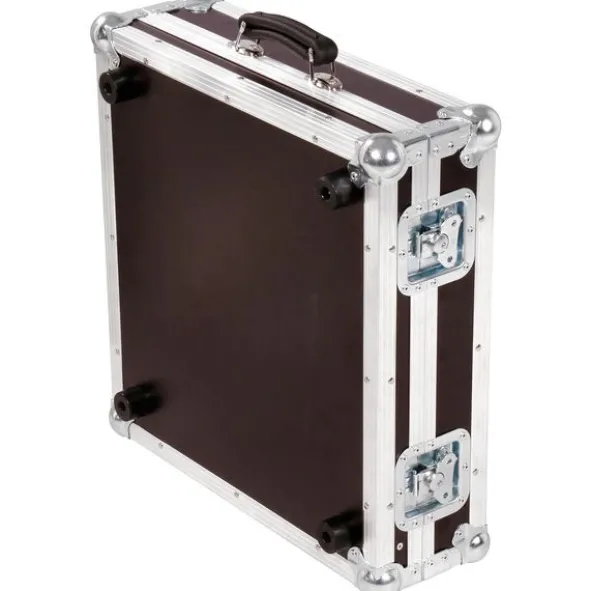

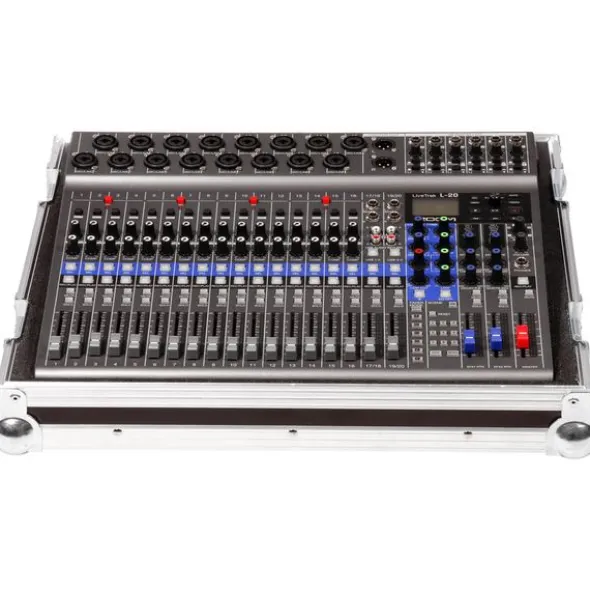

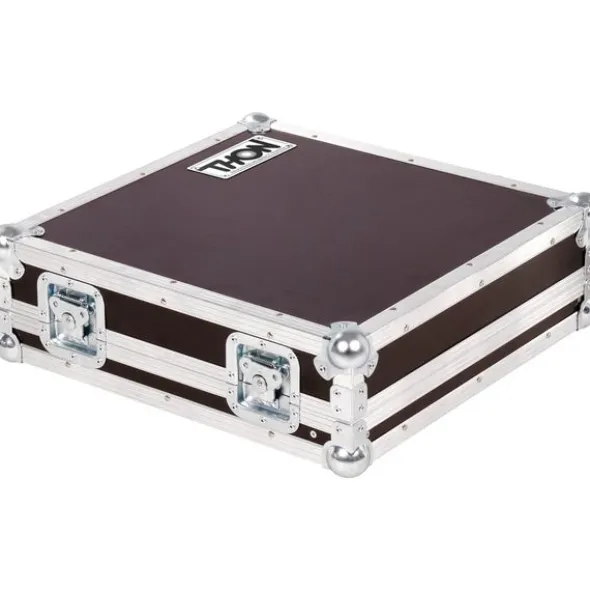

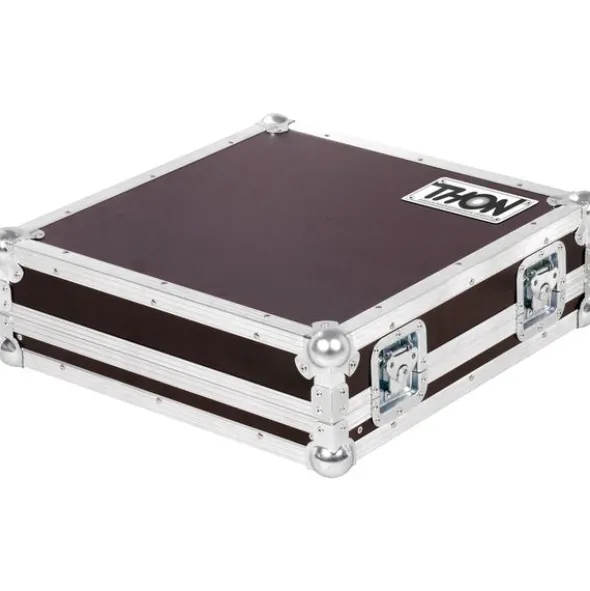

Thon Mixercase Zoom LiveTrak L-20

Mixer Case

• Suitable for Zoom LiveTrak L-20
• 7 mm Plywood phenolic resin coated
• 25 x 25 mm Aluminium edge
• 4 Medium butterfly latches

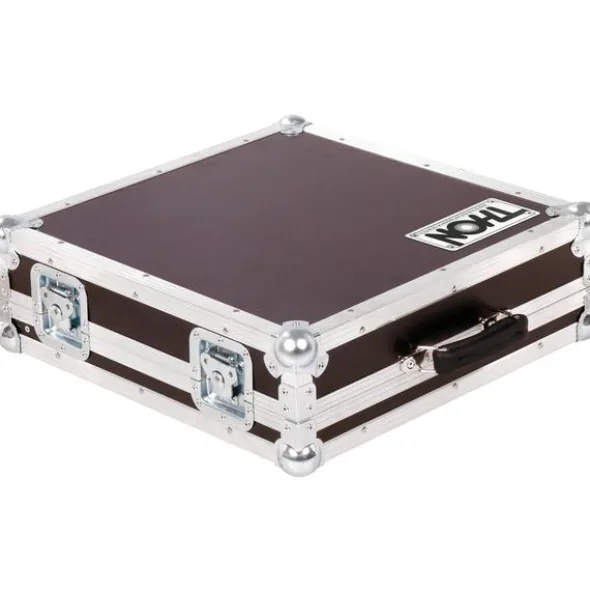

• 1 Leather handle
• 2 Locking hinges
• 4 Medium ball corners
• 4 Medium-sized L-ball corners
• 4 Rubber feet 38 x 25 mm

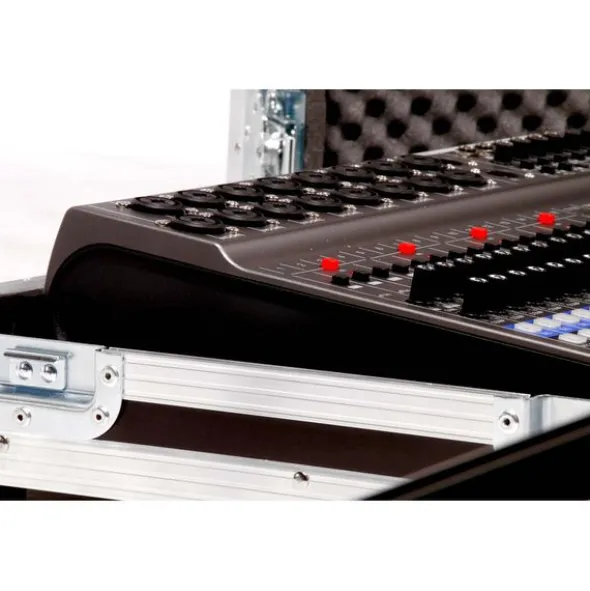

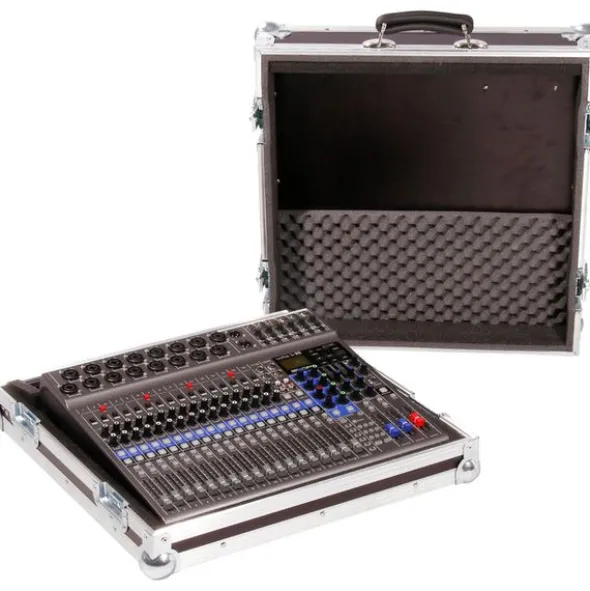

• Foam padding

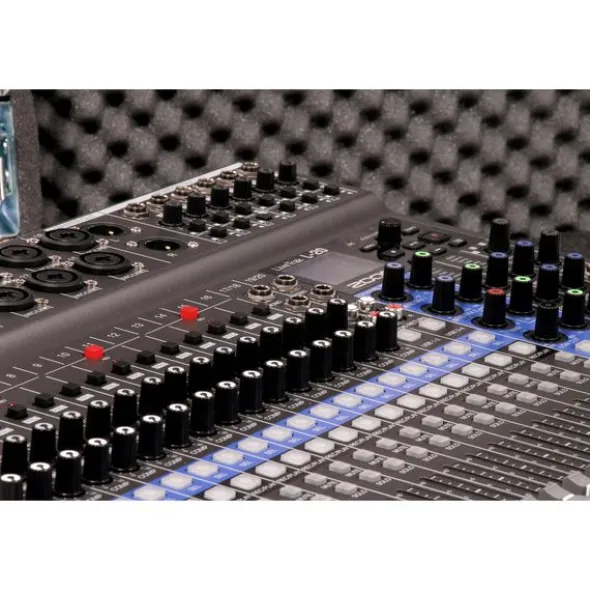

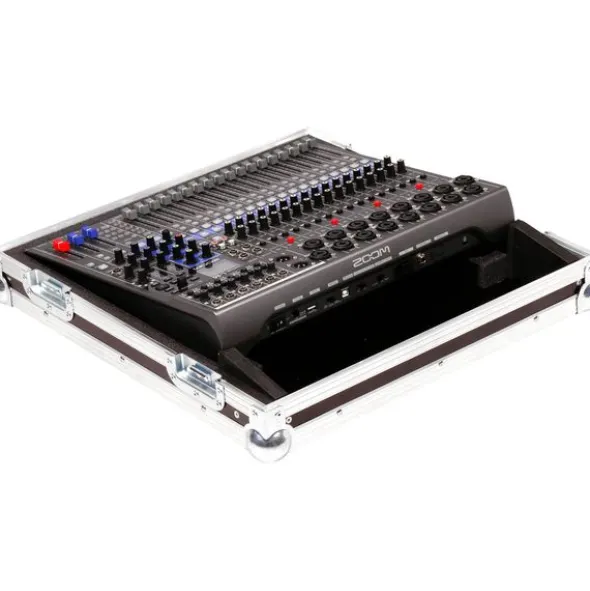

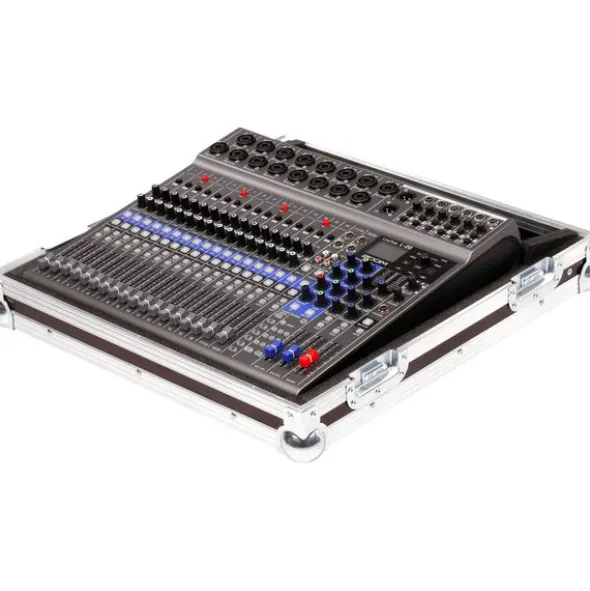

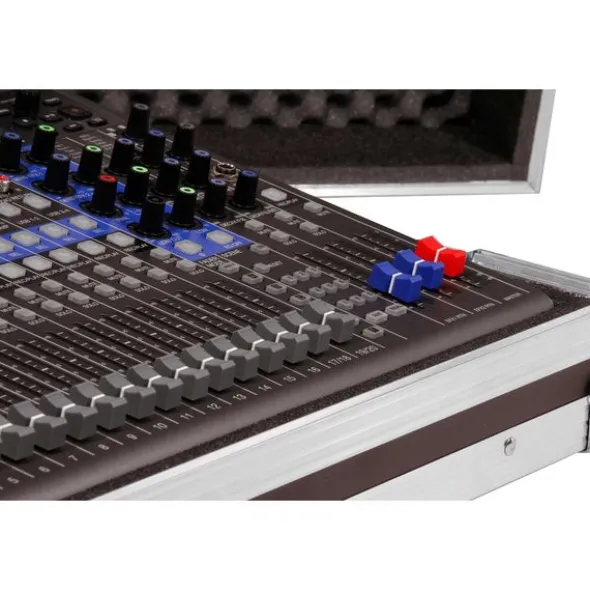

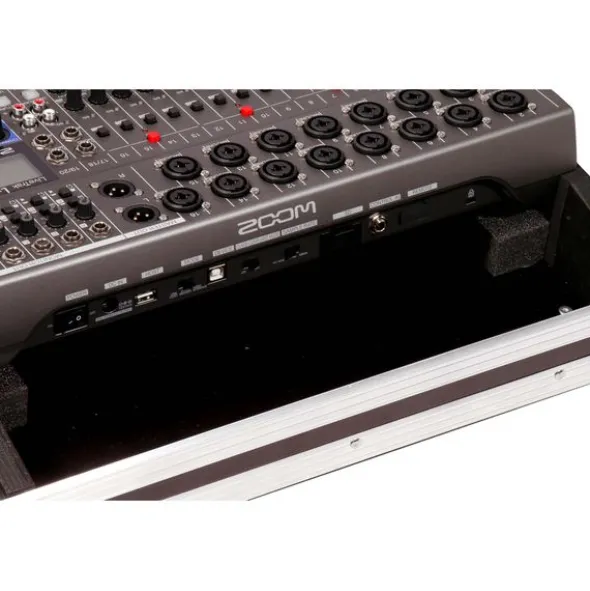

• Unit can be operated in the lower part
• External dimensions (W x D x H): 525 x 575 x 192 mm
• Weight: 7.1 kg
• Colour: Brown
• Made in Germany

Disponível desdeMarço 2026

número de artigo639634

unidade de venda1peça(s)

Recording / Playback Channels22×4

Number of Mic Inputs16

Number of Line Inputs16

Instrument Inputs2

Number of Line Outs8

Headphone Outs7

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceNo

Word ClockNo

Max. Sampling Rate in kHz96 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width445 mm

Depth388,4 mm

Height82,6 mm

Connection FormatUSB port Type B, Type A

User InterfacePhysical

Number Of Tracks20

Number of faders21

Simultaneous Recording: Amount Of Tracks22

DSP Input channels16

EffectsYes

DSP Output Channels8

Storage MediumSD, USB

Phantom powerYes

Busses8

XLR Connectors16

Number of Microphone Inputs16

Number of Mono Line Inputs16

Jack Connectors16

Number of Stereo Line Inputs2

RCA ConnectorsYes

MIDI InterfaceNone

Physical outputs8

Digital stagebox connectionNo

USB connectionYes

Digital ConnectionsNone

HotspotNo

Miscellaneous ConnectorsControl In

Multitrack RecordYes

Headphone connectionYes

OptionsAudiointerface, Compressor

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDMultitrack

Recorder FormatWAV

RTANo

FX Processor2

31 Band EQ0

Matrix0

DCA/VCA Groups0

Sample rate44,1/48/96 kHz

Separate Personal Monitor systemNo

Expansion Card slots0

Digital ADATNo

Digital SPDIFNo

Included in deliveryPower Supply (AD-19), USB 2.0 Cable, Manual

Digital AES3/ASESEBNo

Digital MADINo

Zero latency monitoringYes

Digital DanteNo

110V capableYes

CaseOptional

19″ RackmountOptional

Weight3,71 kg
