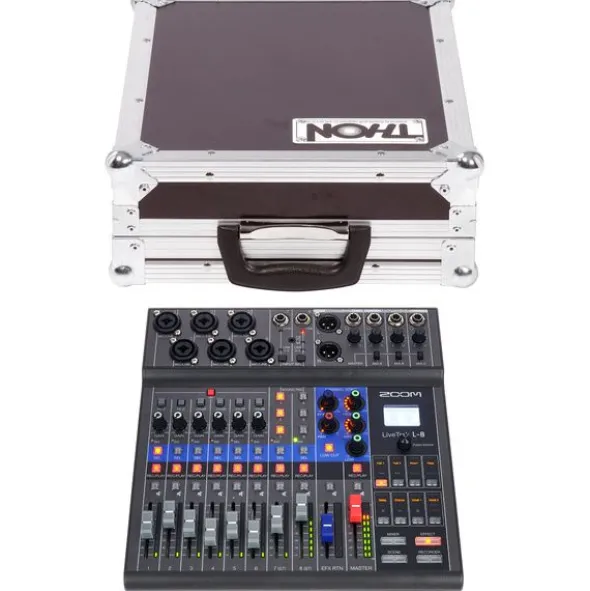

Zoom LiveTrak L-8 Case Bundle

Bundle offer comprising

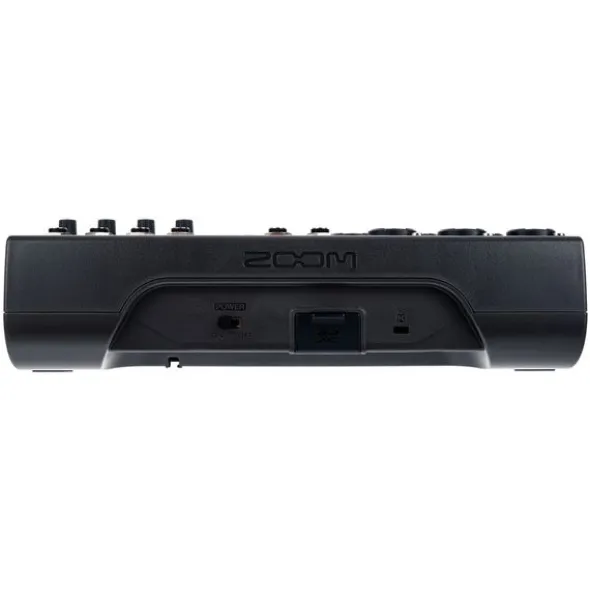

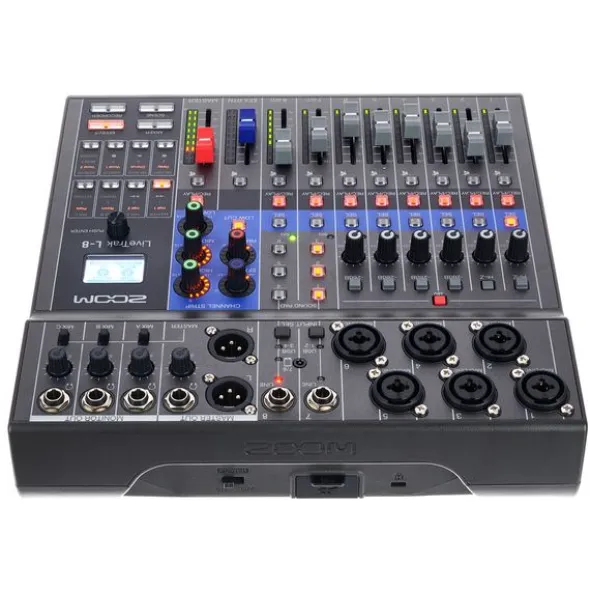

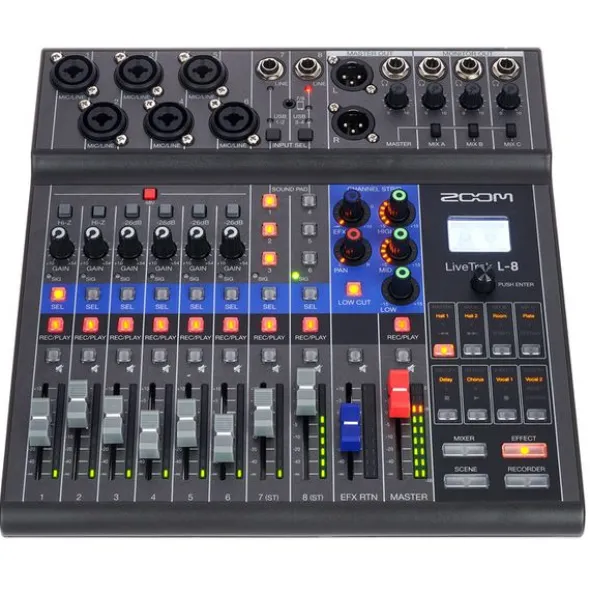

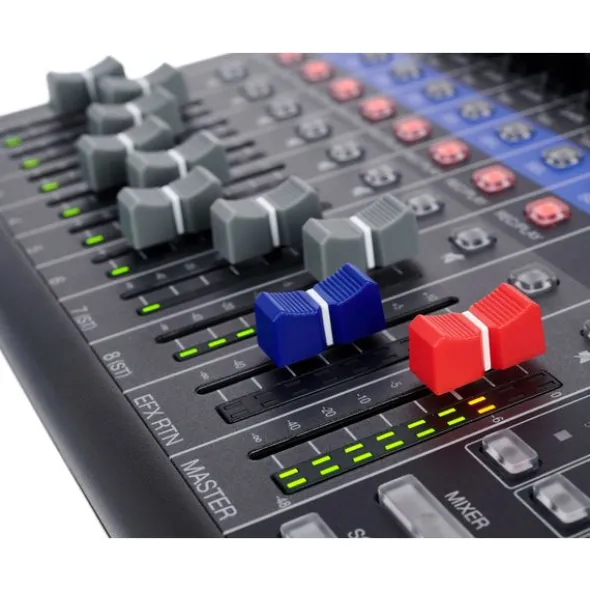

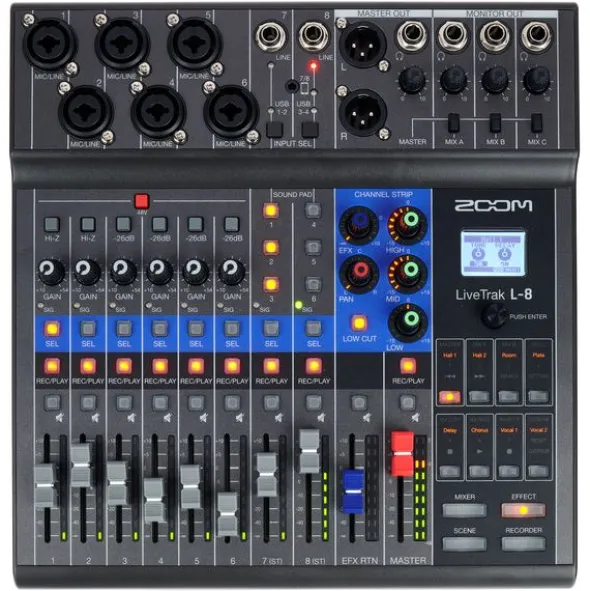

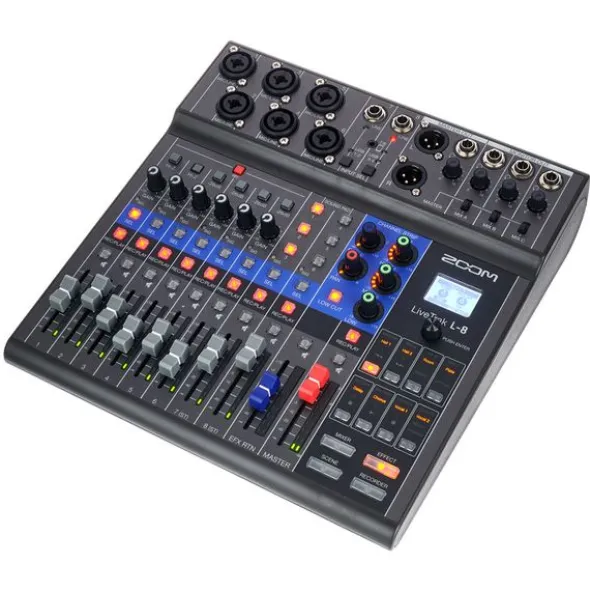

Zoom LiveTrak L-8

Compact Podcast Mixer, Audio Interface and Recorder

• 8-Channel mixer

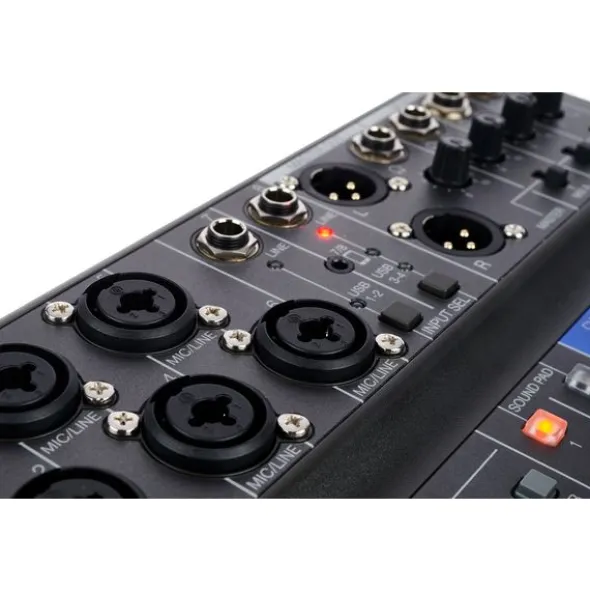

• Channels 1-2 for microphone, line and instrument signals – XLR / TRS combo socket
• Channels 3-6 for microphone and line signals – XLR / TRS combo socket
• Channels 7-8 for line signals – 6.3 mm jack
• USB stereo playback and telephone playback – 3.5 mm TRRS
• Mix-minus function for preventing audio feedback from dial-in guests

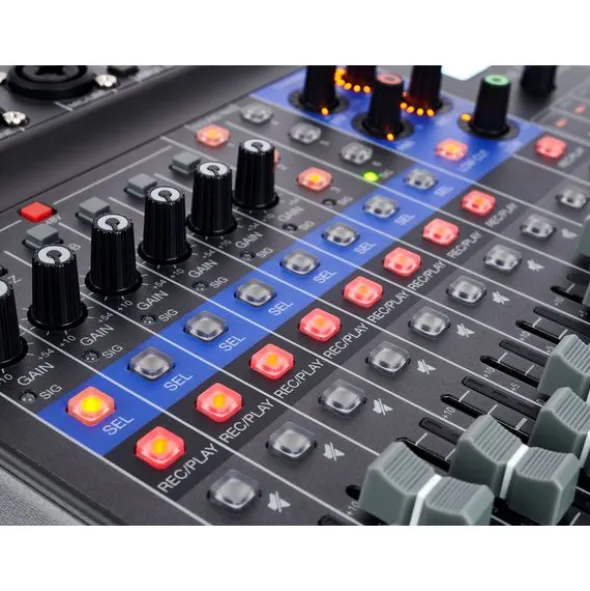

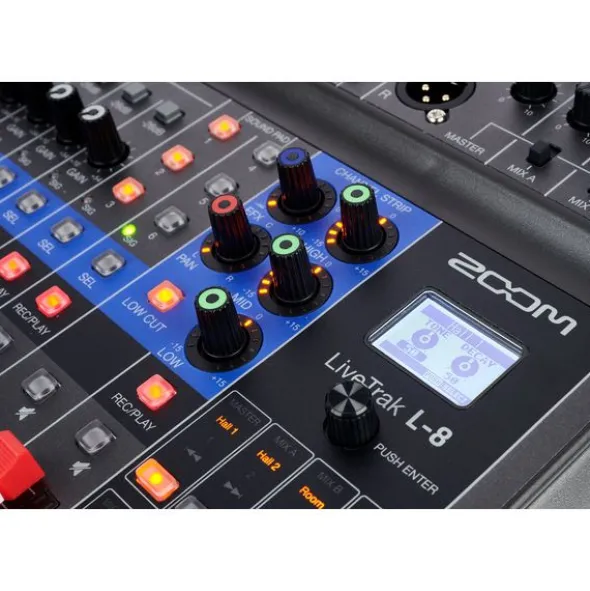

• Per channel: 3-Band EQ, low-cut filter, panorama control, effects loop
• 48 V Phantom power switchable
• Effects section with 8 different programs
• 6 Assignable sound pads for jingles, intros, outros and sound effects
• 4 Headphone outputs (6.3 mm TRS) for main mix and 3 monitor mixes
• Balanced stereo output (XLR)
• 7 Scene memory slots for mixes
• Battery operation possible (4x AA Mignon, not included in the delivery)

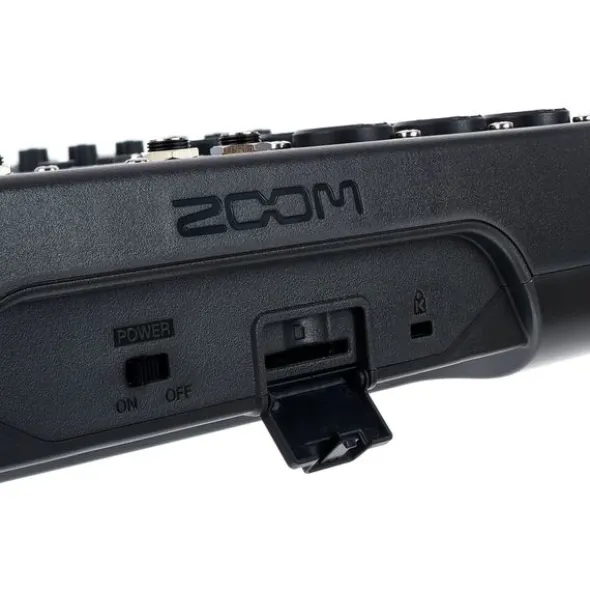

• Record up to 12 tracks on SD card or computer (USB) with a maximum of 24-bit / 96 kHz
• Simultaneously recording on SD card and computer is possible with a maximum of 24-bit / 48 kHz
• Integrated USB audio interface with 12 inputs and 4 outputs
• USB 2.0
• System requirements: Windows 7 or later, macOS 10.12 or later
• Dimensions (W x D x H): 282 x 268 x 74 mm
• Weight: 1.56 kg

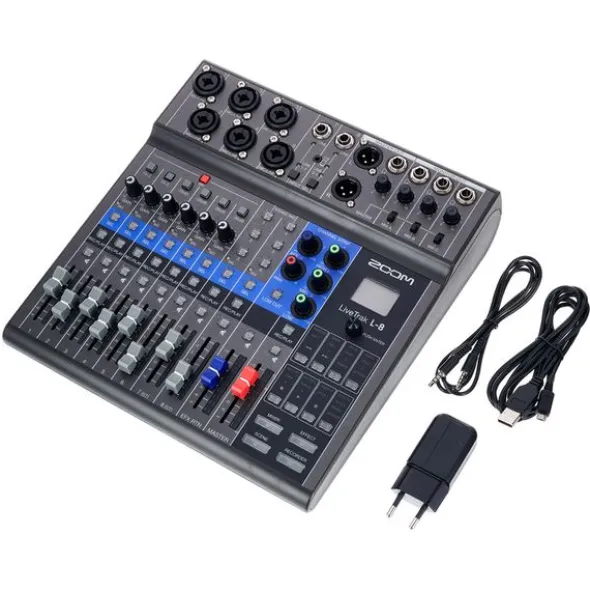

• Includes 3.5 mm TRRS cable, USB cable and AD-17 power adapter
• Suitable case: Art.502745 (not included in the delivery)
• Suitable case: Art.498148 (not included in the delivery)

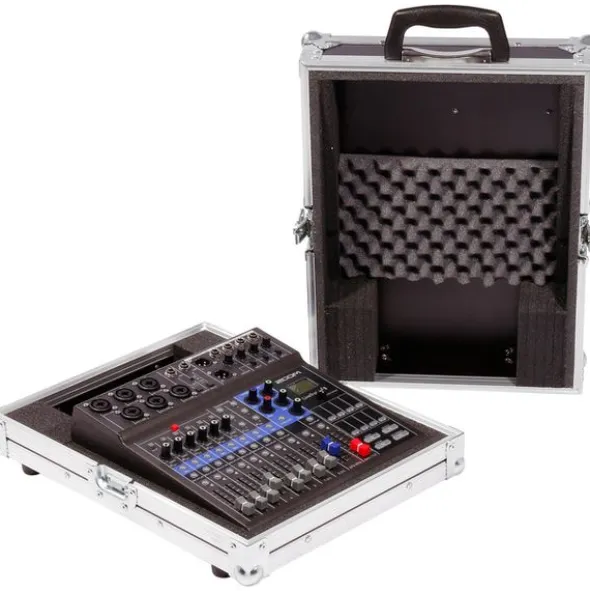

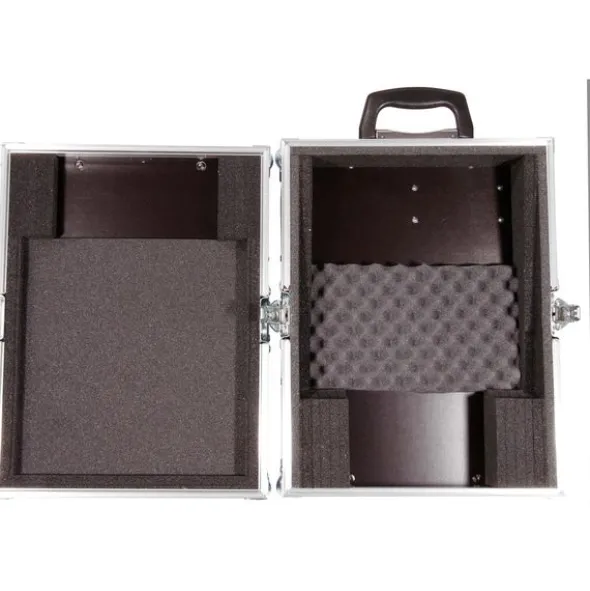

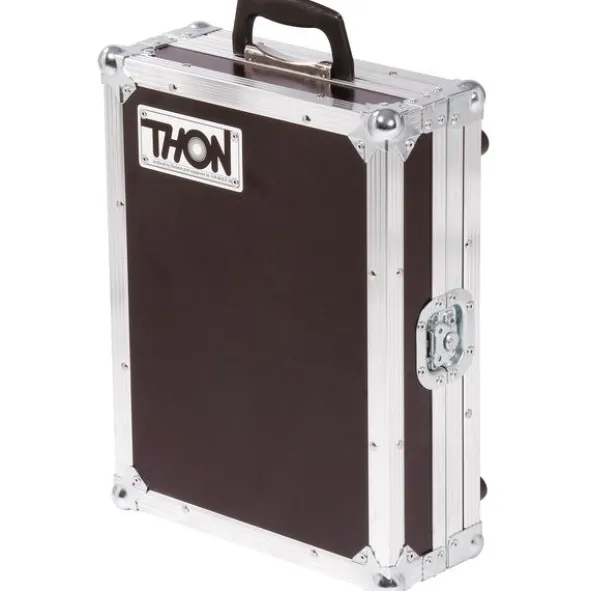

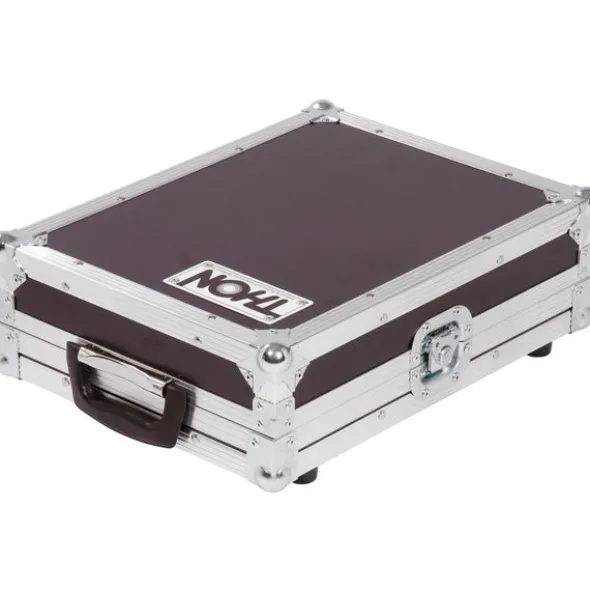

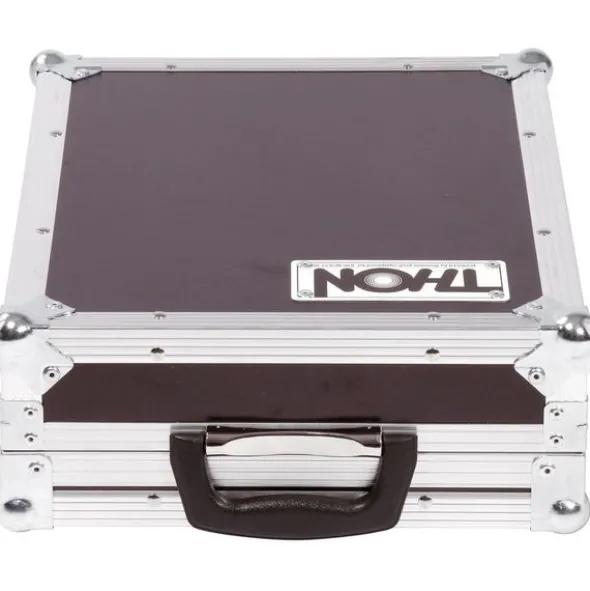

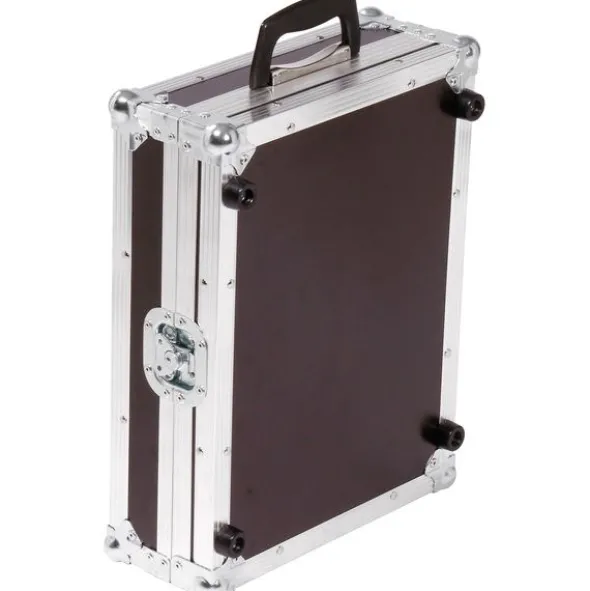

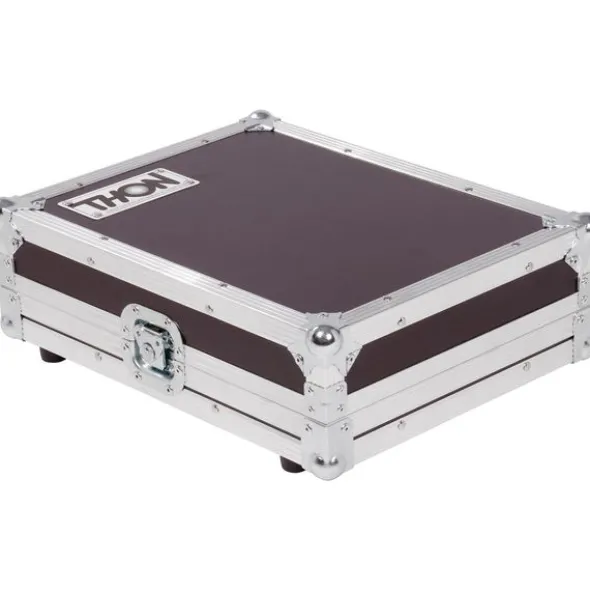

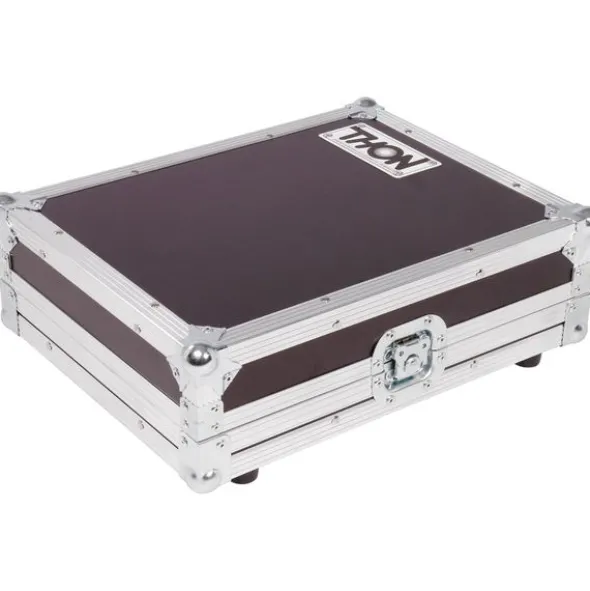

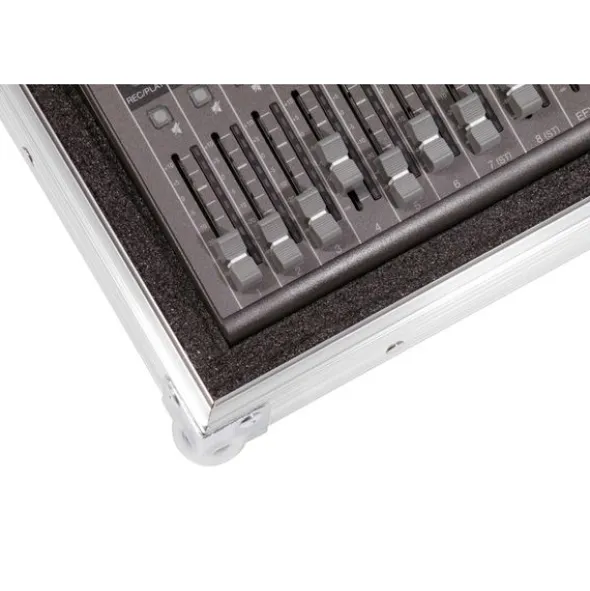

Thon Case Zoom LiveTrak L-8

Flight Case

• Suitable for the Zoom LiveTrak L-8
• Material: 6.8 mm Plywood, coated with phenolic resin
• 22 x 22 mm Aluminium edges
• 2 Small butterfly latches
• 1 Suitcase handle with lid
• 8 Small rounded ball corners
• 4 Rubber feet, 25 x 15 mm

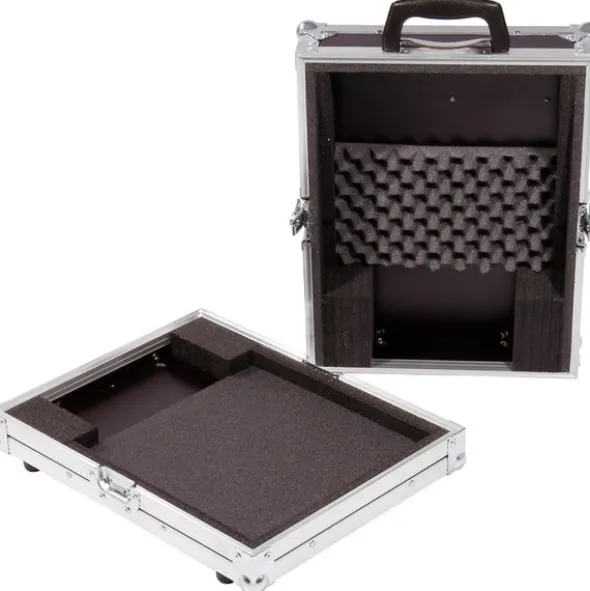

• Foam padding

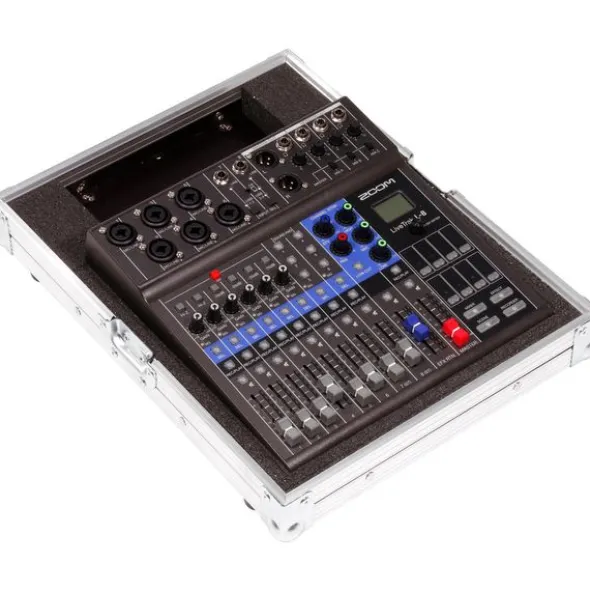

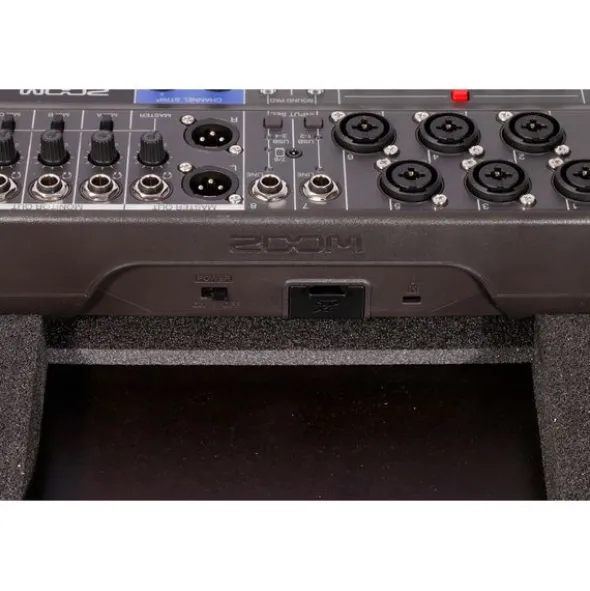

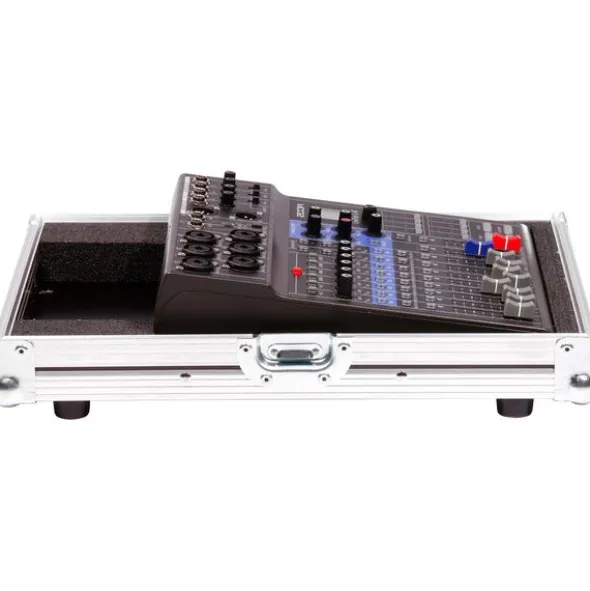

• Unit can be operated in the bottom section

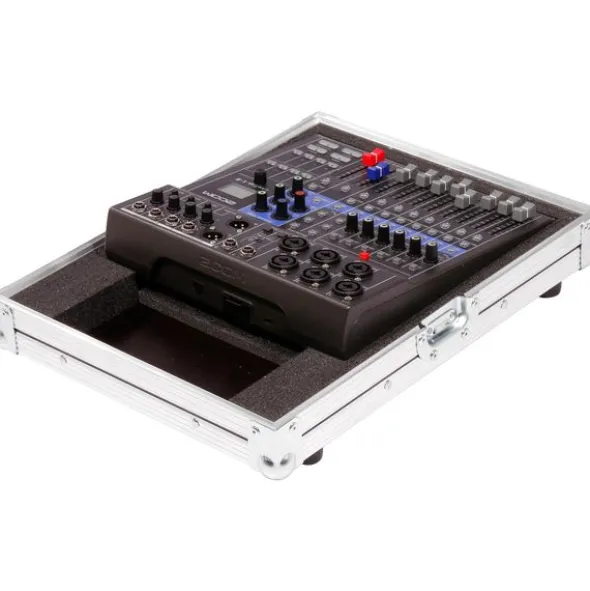

• Place for cables in the rear
• Outer dimensions (W x D x H): Approx. 332 x 432 x 140 mm
• Weight: Approx. 3 kg (with unit, approx. 4.6 kg)
• Colour: Brown
• Made in Germany

Disponível desdeMarço 2026

número de artigo639632

unidade de venda1peça(s)

Recording / Playback Channels12×4

Number of Mic Inputs6

Number of Line Inputs8

Instrument Inputs2

Number of Line Outs2

Headphone Outs4

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceNo

Word ClockNo

Max. Sampling Rate in kHz96 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredYes

Incl. power supplyYes

USB Version2.0

Width282 mm

Depth268 mm

Height74 mm

Connection FormatUSB port Micro B

User InterfacePhysical

Number Of Tracks12

Number of faders10

Simultaneous Recording: Amount Of Tracks12

DSP Input channels8

EffectsYes

Storage MediumSD, USB

DSP Output Channels4

Phantom powerYes

Busses4

Number of Microphone Inputs6

XLR Connectors6

Jack Connectors8

Number of Mono Line Inputs6

Number of Stereo Line Inputs2

Physical outputs6

MIDI InterfaceNone

USB connectionYes

Digital stagebox connectionNo

Digital ConnectionsNone

HotspotNo

Miscellaneous ConnectorsLineout

Headphone connectionYes

Multitrack RecordYes

Soundcard interfaceMicro Usb Type B

Options6 Sound Pads

integratated Player/Rec via USB/SDMultitrack

Recorder FormatWAV

RTANo

FX Processor1

31 Band EQ0

Matrix0

DCA/VCA Groups0

Sample rate48 kHz

Separate Personal Monitor systemNo

Expansion Card slots0

Digital ADATNo

Included in delivery3.5mm TRRS cable, USB cable, AD-17 Power Supply, Quick Start Manual

Digital SPDIFNo

Digital AES3/ASESEBNo

Zero latency monitoringYes

Digital MADINo

Digital DanteNo

110V capableYes

CaseNo

19″ RackmountNo

Weight1,5 kg
