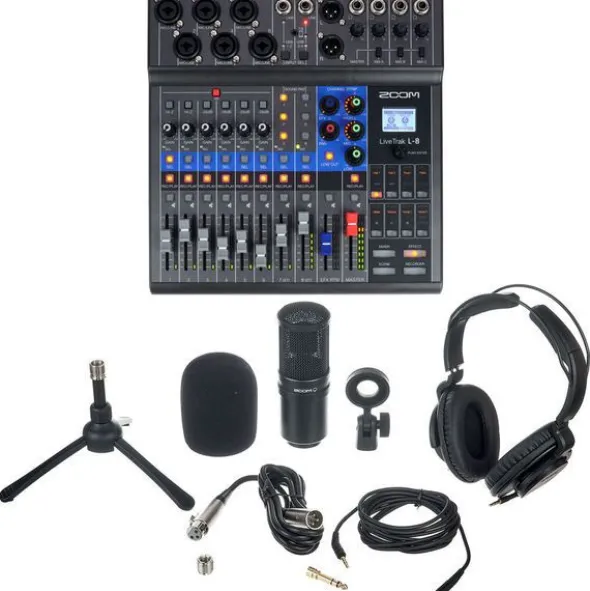

Zoom LiveTrak L-8 Mic Set

Bundle offer comprising

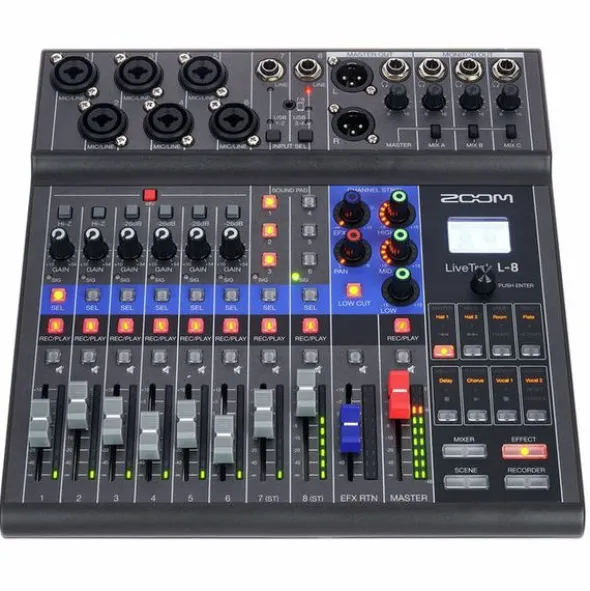

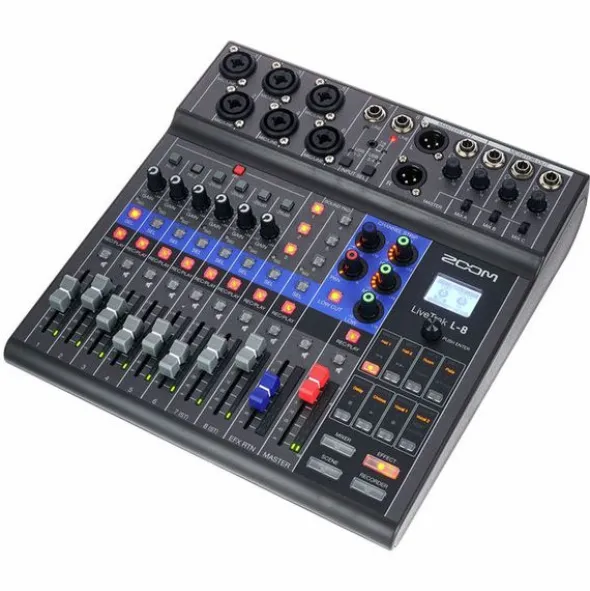

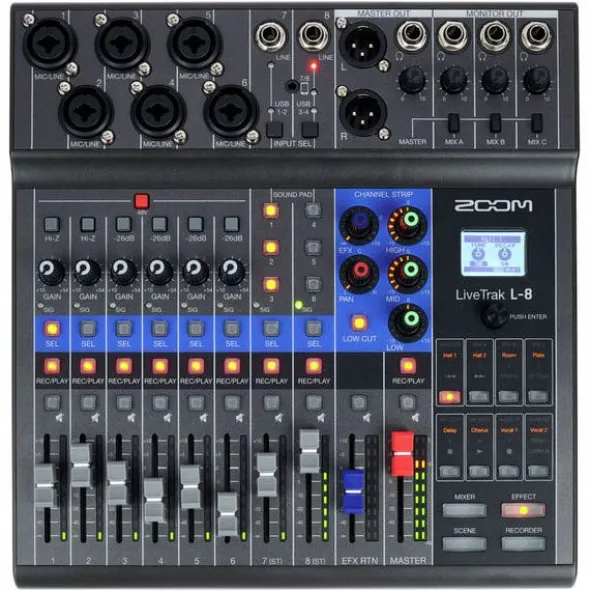

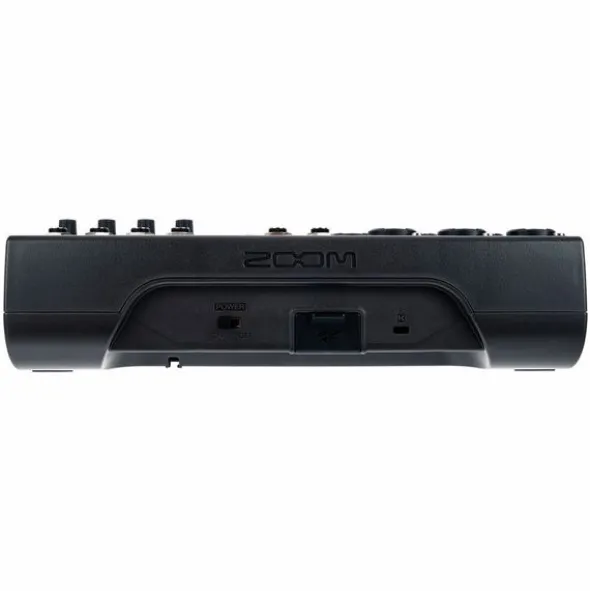

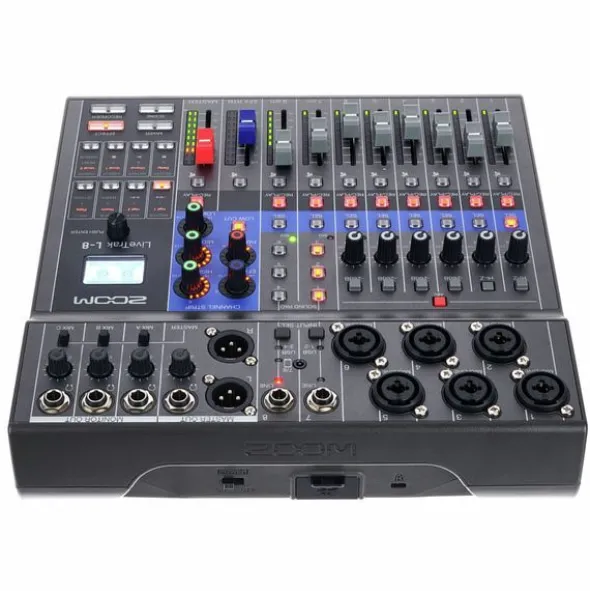

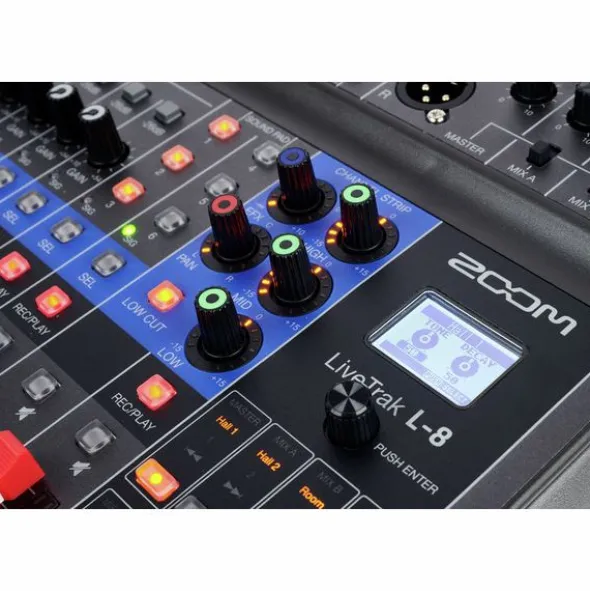

Zoom LiveTrak L-8

Compact Podcast Mixer, Audio Interface and Recorder

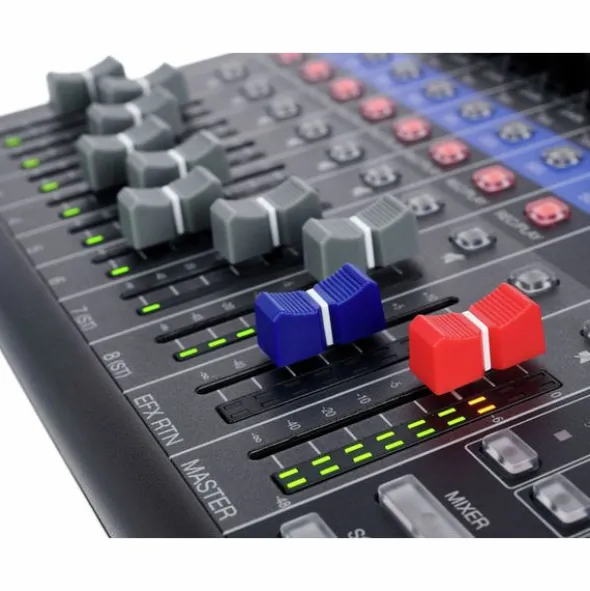

• 8-Channel mixer
• Channels 1-2 for microphone, line and instrument signals – XLR / TRS combo socket
• Channels 3-6 for microphone and line signals – XLR / TRS combo socket
• Channels 7-8 for line signals – 6.3 mm jack
• USB stereo playback and telephone playback – 3.5 mm TRRS
• Mix-minus function for preventing audio feedback from dial-in guests

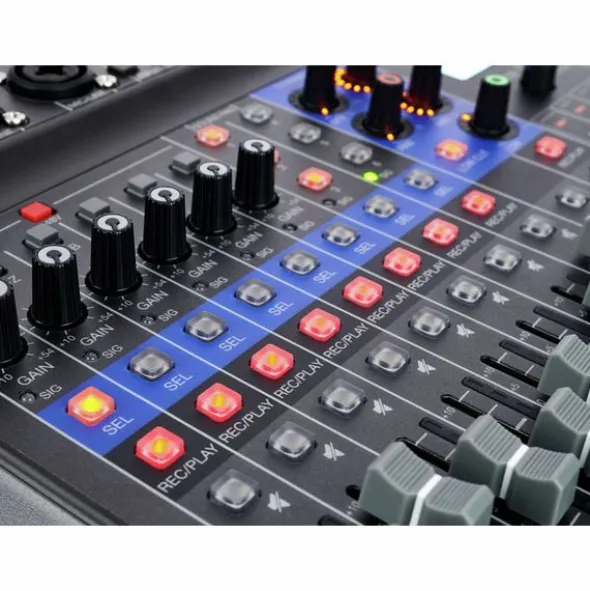

• Per channel: 3-Band EQ, low-cut filter, panorama control, effects loop
• 48 V Phantom power switchable
• Effects section with 8 different programs
• 6 Assignable sound pads for jingles, intros, outros and sound effects
• 4 Headphone outputs (6.3 mm TRS) for main mix and 3 monitor mixes
• Balanced stereo output (XLR)
• 7 Scene memory slots for mixes
• Battery operation possible (4x AA Mignon, not included in the delivery)
• Record up to 12 tracks on SD card or computer (USB) with a maximum of 24-bit / 96 kHz
• Simultaneously recording on SD card and computer is possible with a maximum of 24-bit / 48 kHz
• Integrated USB audio interface with 12 inputs and 4 outputs
• USB 2.0
• System requirements: Windows 7 or later, macOS 10.12 or later
• Dimensions (W x D x H): 282 x 268 x 74 mm
• Weight: 1.56 kg

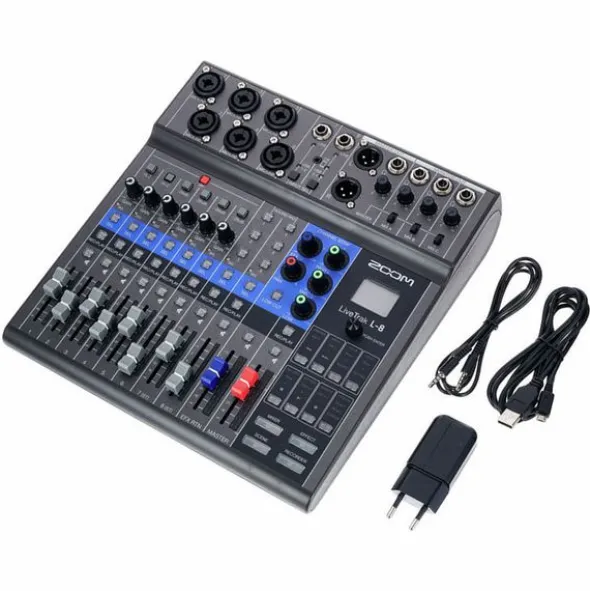

• Includes 3.5 mm TRRS cable, USB cable and AD-17 power adapter
• Suitable case: Art.502745 (not included in the delivery)
• Suitable case: Art.498148 (not included in the delivery)

Zoom ZDM-1 Podcast Mic Pack

Podcast Recording Pack

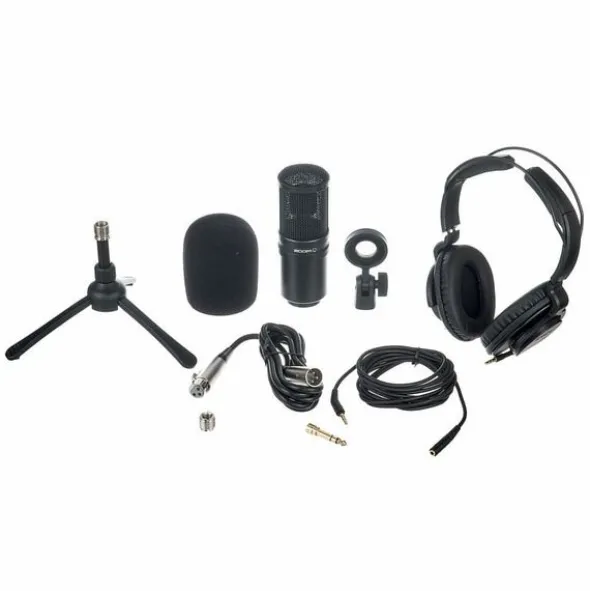

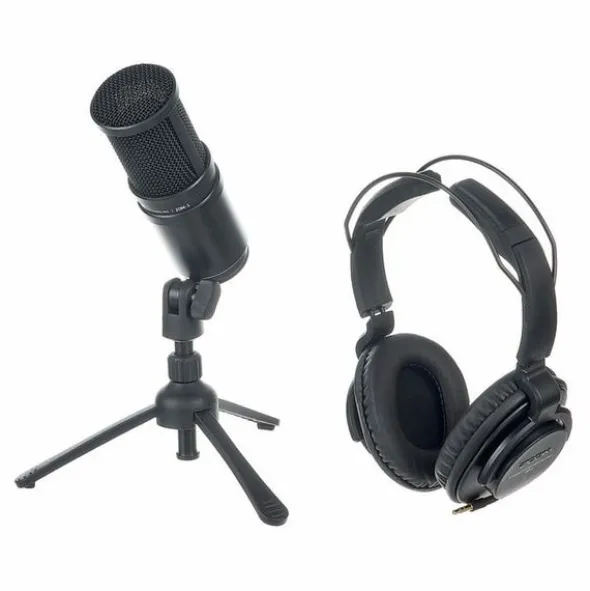

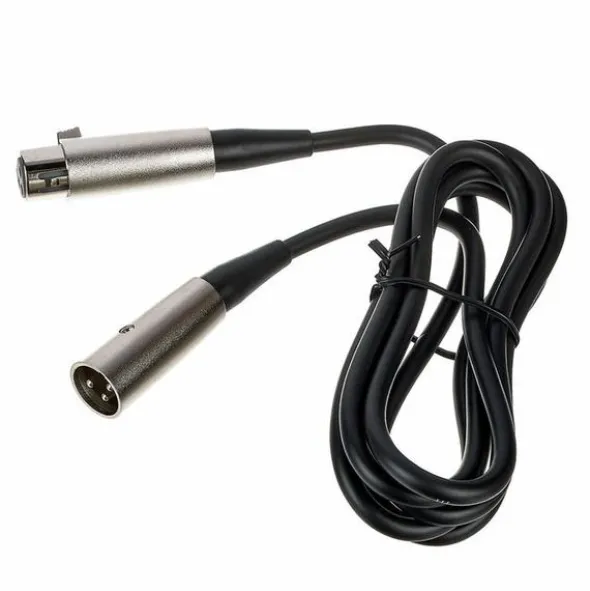

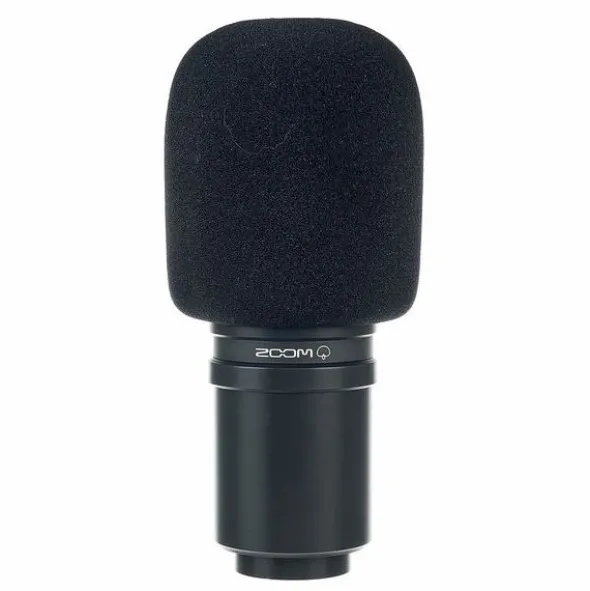

• Set consists of ZDM-1 dynamic large-diaphragm microphone, ZHP-1 headphones, ZTPS-4 table stand, windshield for ZDM-1 and XLR microphone cable (2m)

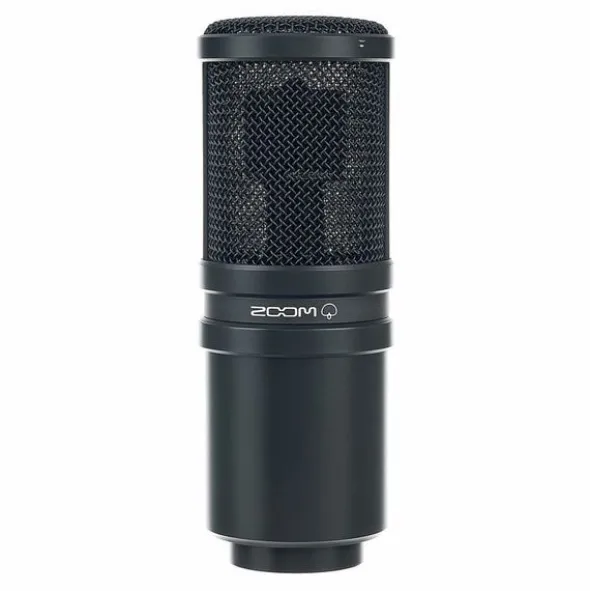

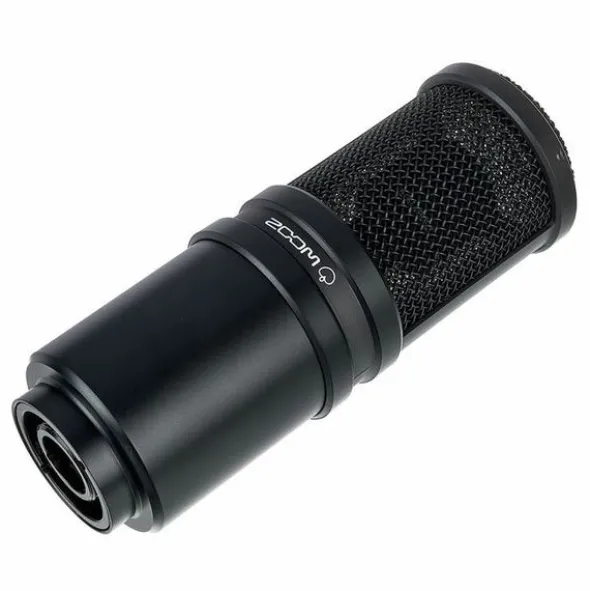

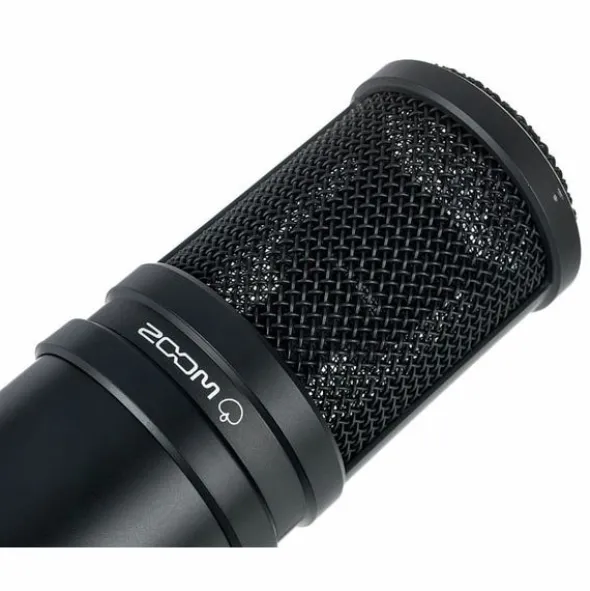

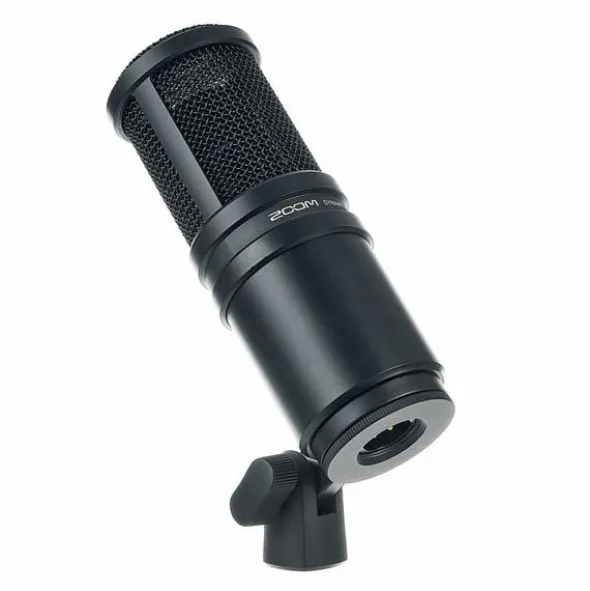

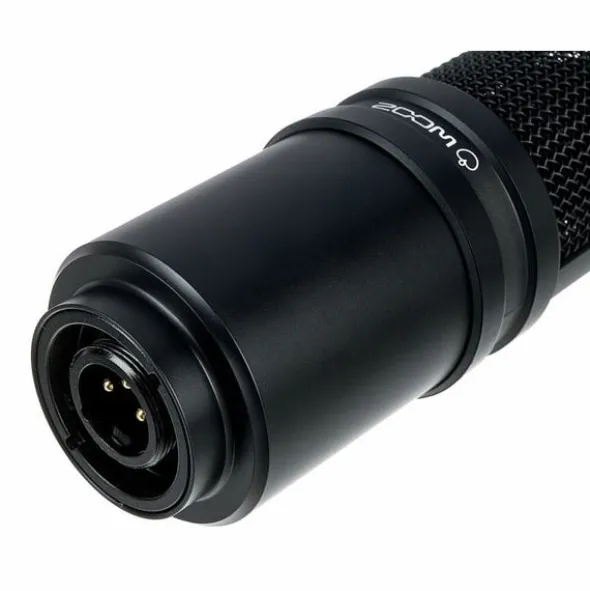

Features of the ZDM-1 dynamic large-diaphragm microphone:

• Directivity: Supercardioid
• Frequency range: 50 – 18.000 Hz
• Sensitivity: -54 dBV / Pa (2.0 mV)
• Max. Sound pressure level: 135 dB
• Dimensions (L x D): 150 x 54 mm
• Weight: 1.36 kg

Features of ZHP-1 closed headphones:

• Dynamic
• 40 mm neodymium converter
• Frequency range: 10 – 20000 Hz
• Sensitivity: 102 dB SPL (1 mW) at 1 kHz
• Impedance: 68 ohms
• Synthetic leather ear pads
• Weight: 190 g
• One-sided cable (2m) with 3.5 mm jack plug
