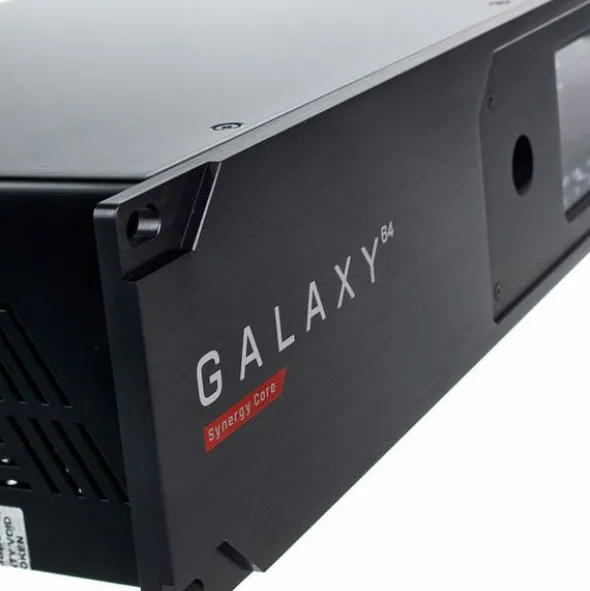

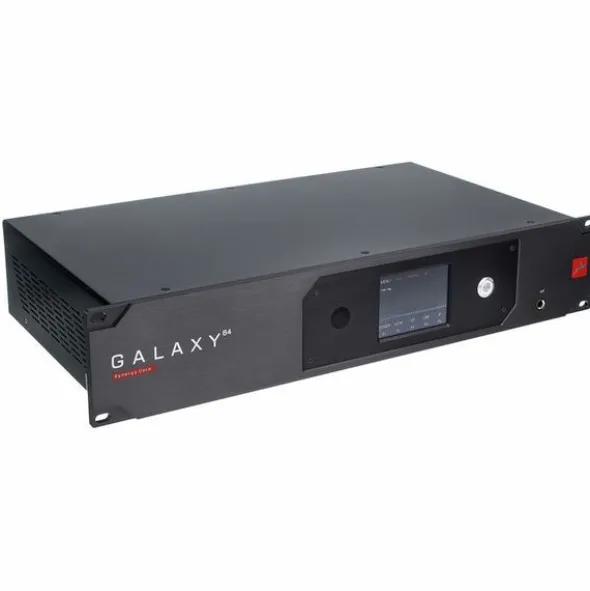

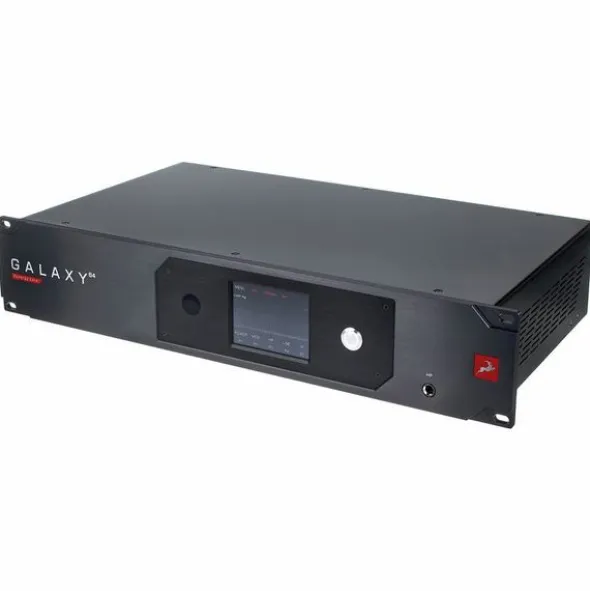

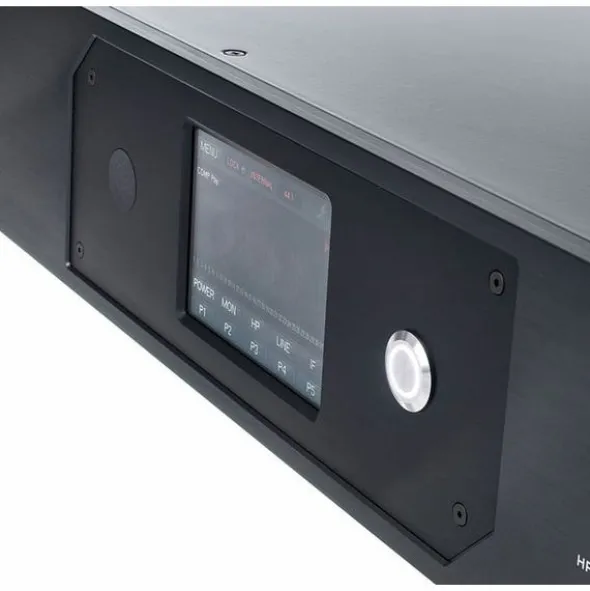

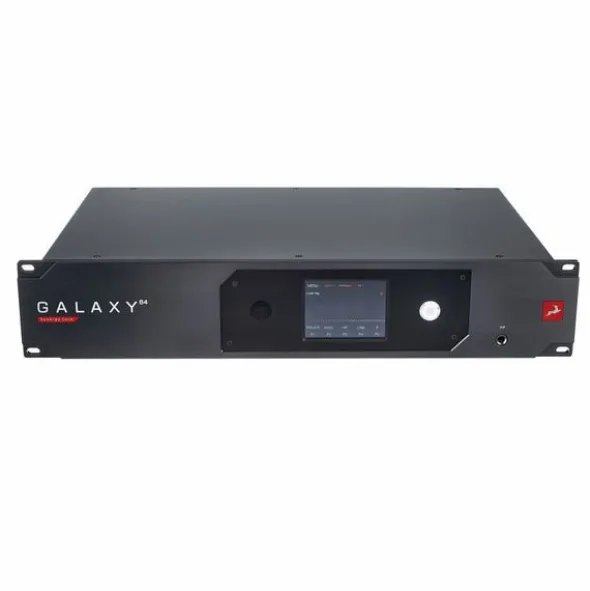

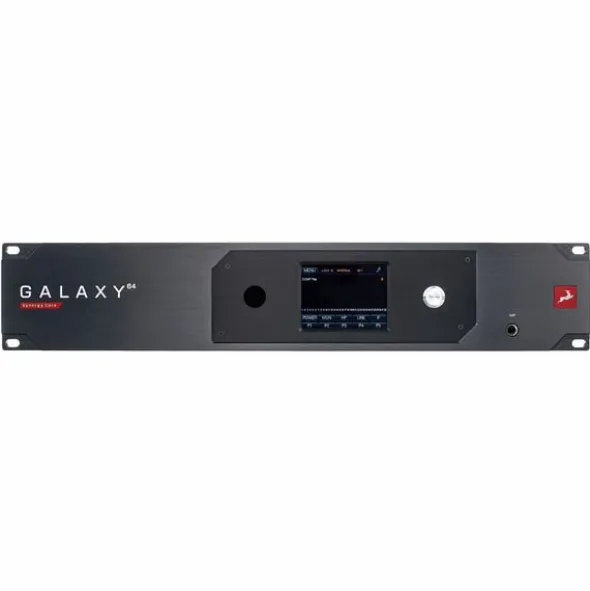

Antelope Galaxy 64 Synergy Core

64-Channel AD/DA / DANTE / HDX / Thunderbolt 3 Audio Interface

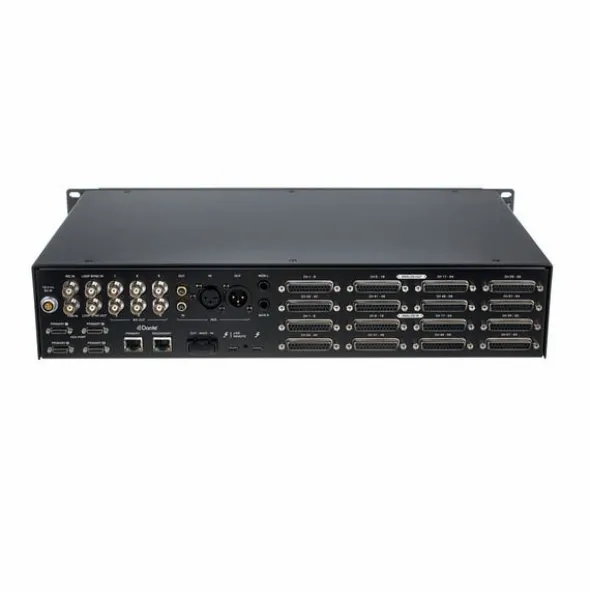

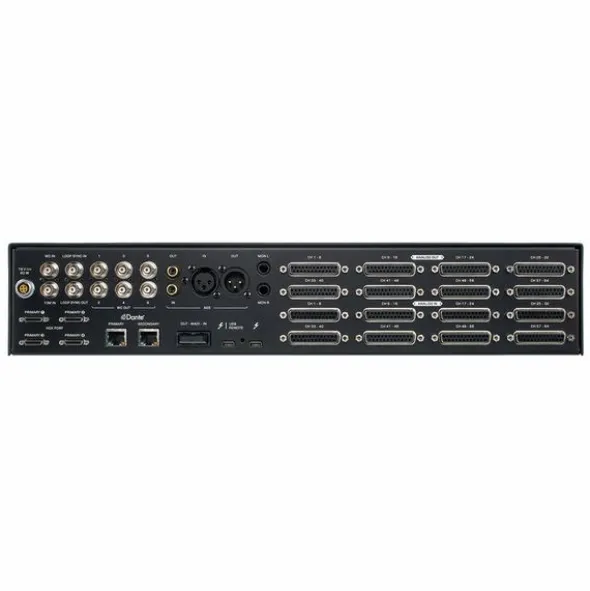

• 64 Analogue input channels over 8 D-Sub 25 connectors (TASCAM standard)
• 64 Analogue output channels over 8 DC coupled D-Sub 25 connectors (TASCAM standard)
• Dante connector with primary/secondary port
• 4 HDX ports: Up to 128 channels I/O for Pro Tools HD / HDX at 192 kHz sampling rate
• 2 Thunderbolt 3 ports
• 64 Channels MADI (optical)
• AES/EBU and S/PDIF
• AD converter: 124 dB headroom
• DA converter: 128 dB headroom
• Processing of real-time effects

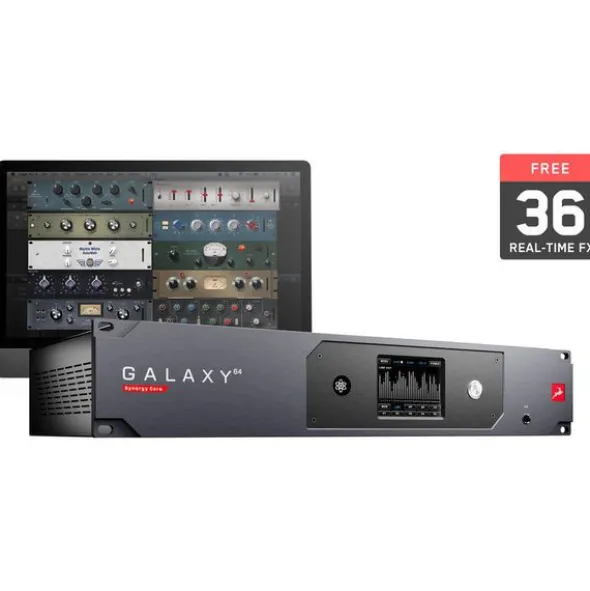

• 36 Analogue modelling effects including: EQs, compressors, preamps, and channel strips
• Up to 256 effect instances can be used simultaneously
• Antelope 4th generation 64 bit clocking technology
• Can be controlled by multiple computers via Antelope Networking Control software
• 1x Wordclock input: BNC, 75 Ohm
• 1x 10M input for Antelope atomic clock: BNC
• 6x Wordclock outputs: BNC, 75 Ohm
• System requirements: Windows 10 / macOS 10.12 (Sierra) or higher
• Dimensions: 483 x 88 x 270 mm
• Format: 19″ / 2U
• Weight: 6.4 kg

Disponível desdeDezembro 2020

número de artigo504422

unidade de venda1peça(s)

Recording / Playback Channels64×64

Number of Mic Inputs0

Number of Line Inputs64

Number of Instrument Inputs0

Number of Line Outputs64

Headphone Outs1

Phantom PowerNo

Number of S/PDIF Connectors1

Number of ADAT Connectors0

AES/EBU Connectors1

Number of MADI Connectors1

Ethernet2

Other ConnectorsHDX Port x4

MIDI ConnectorsNo

Word Clock2x In, 6x Out

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

Bus-PoweredNo

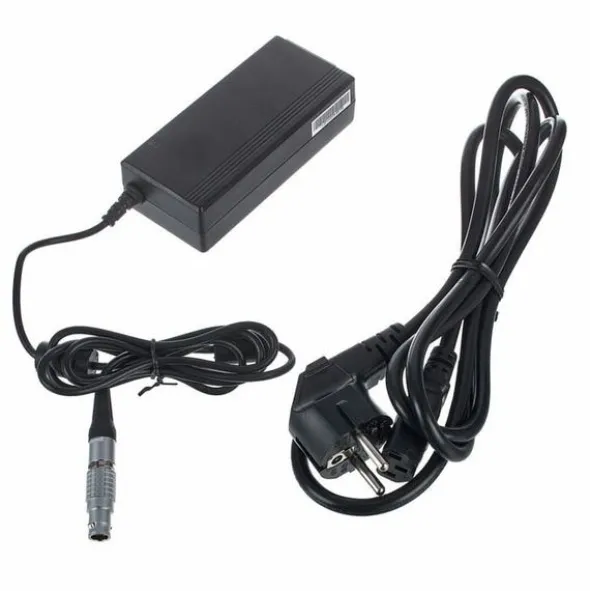

Incl. Power SupplyYes

Windows Thunderbolt driverYes

Thunderbolt Version3

Width in mm483 mm

Depth in mm270 mm

Height in mm88 mm
