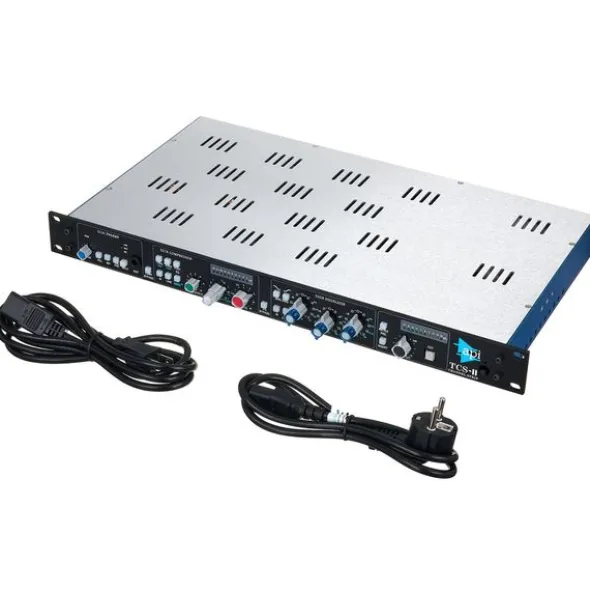

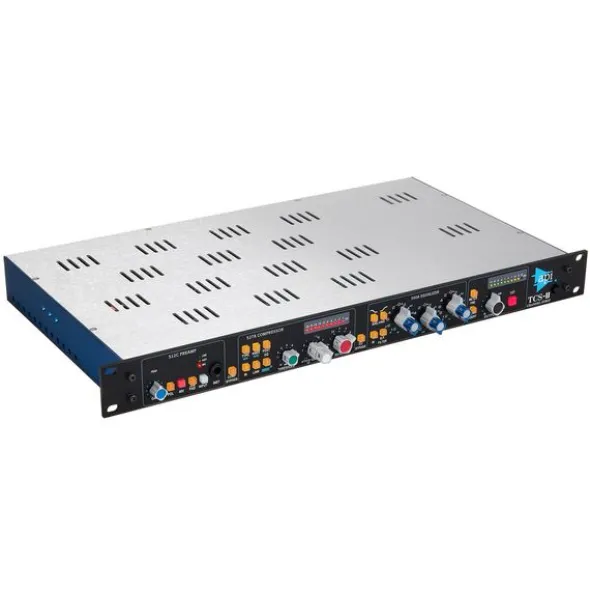

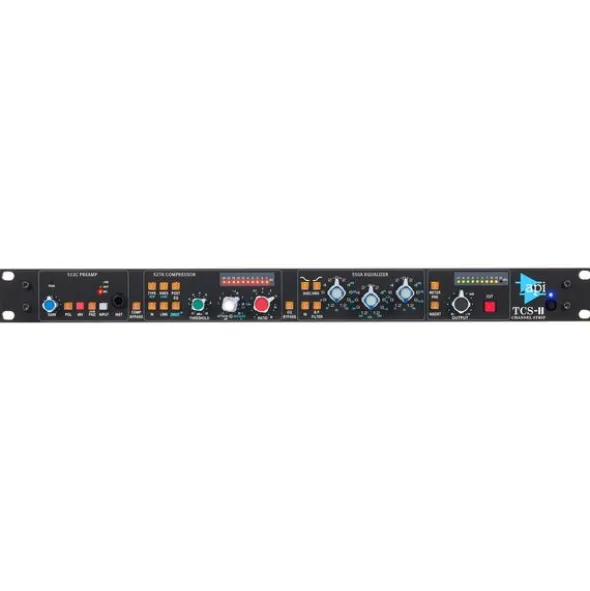

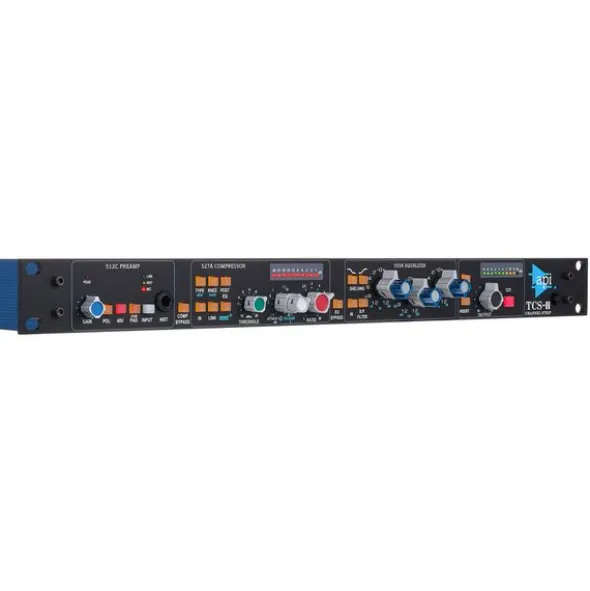

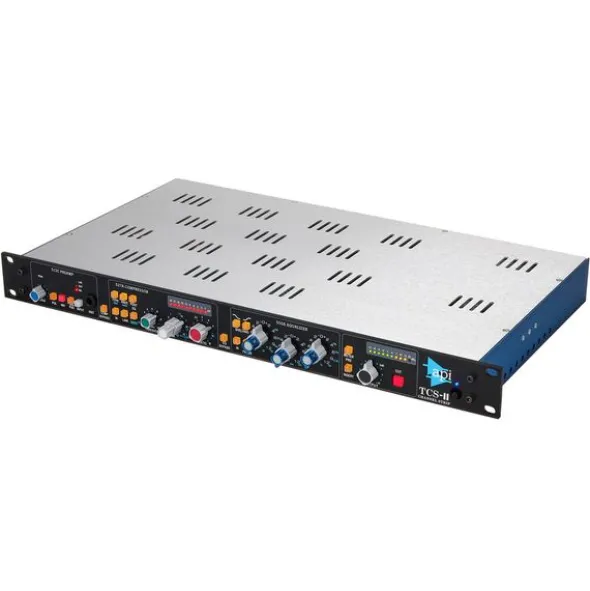

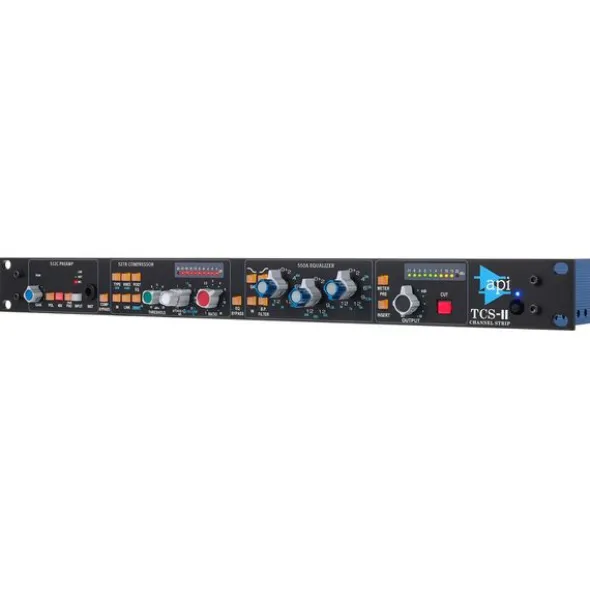

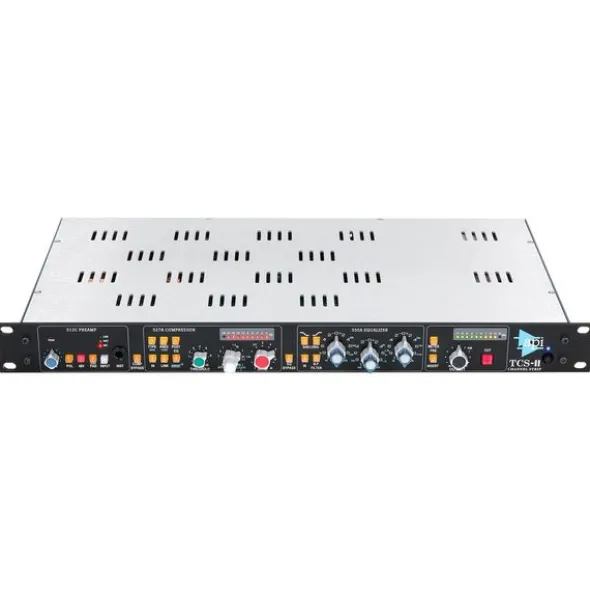

API Audio TCS II Channel Strip

1-Channel Channel Strip

• Consists of: API 512 microphone preamplifier, API 527A compressor, API 550A equaliser and API 325 line amplifier
• Format: 19″ / 1 U
• Dimensions: approx. 48.3 x 29.2 x 4.4 cm (W x D x H)
• Weight: approx. 6.35 kg

Microphone preamplifier:

• Microphone gain range: min. 14 dB, max. 68 dB
• Instrument gain range: min. 14 dB, max. 50 dB
• +48V phantom power
• Pad
• Priority

Compressor:

• Controls for Threshold (+10 dBu to -20 dBu), Attack (1 ms to 25 ms), Release (0.1 to 3 sec) and Ratio (1:1 to infinity)
• Type selector switch, Knee Hard, Post EQ, LED meter

Equaliser:

• 2 bands (Low and High) can be switched individually to shelving EQ
• Switchable band-pass filter: 50 to 15,000 Hz

Line driver:

• Buttons for Meter Pre, Insert and Cut
• Output controller with LED meter

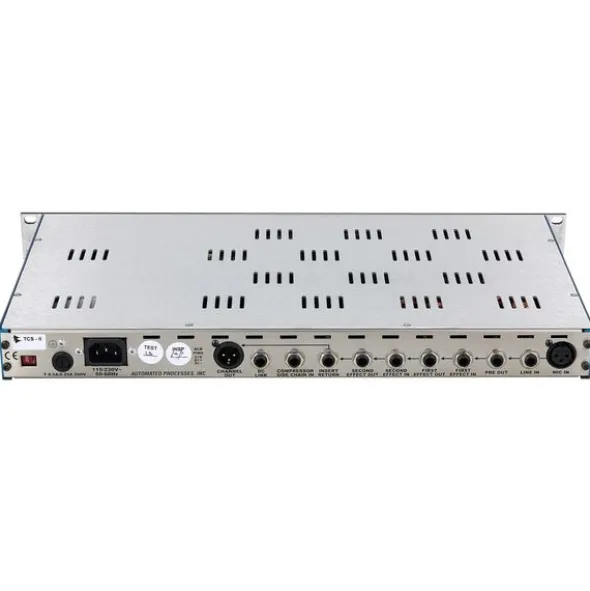

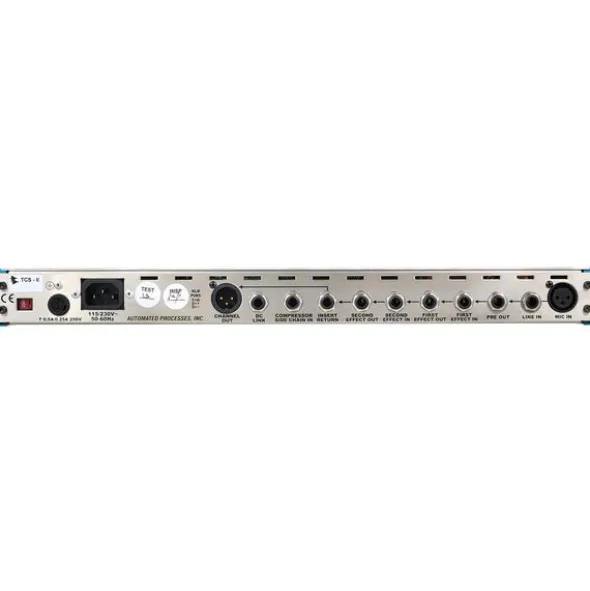

Connections:

• Microphone input: XLR
• Instrument input: 6.3 mm jack
• Line input: 6.3 mm jack
• Pre output: 6.3 mm jack
• Effect input and outputs: 2 x 6.3 mm jack
• Insert return: 6.3 mm jack
• Side chain input: 6.3 mm jack
• DC Link connection: 6.3 mm jack
• Line output: XLR

Disponível desdeJunho 2026

número de artigo647297

unidade de venda1peça(s)

Channels1

Number of microphone inputs1

Instrument inputYes

TubesNo

Compressor/LimiterYes

EqualizerYes

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsYes

Analogue OutputsXLR

Digitale OutputsNone

Headphone connectionNo

Level MeterYes

Design19″ / 1U
