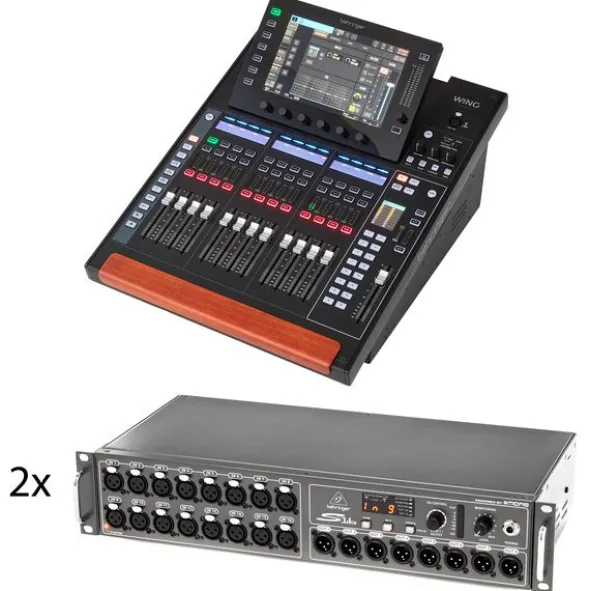

Behringer WING Compact 2xStagebox Bundle

Bundle offer comprising

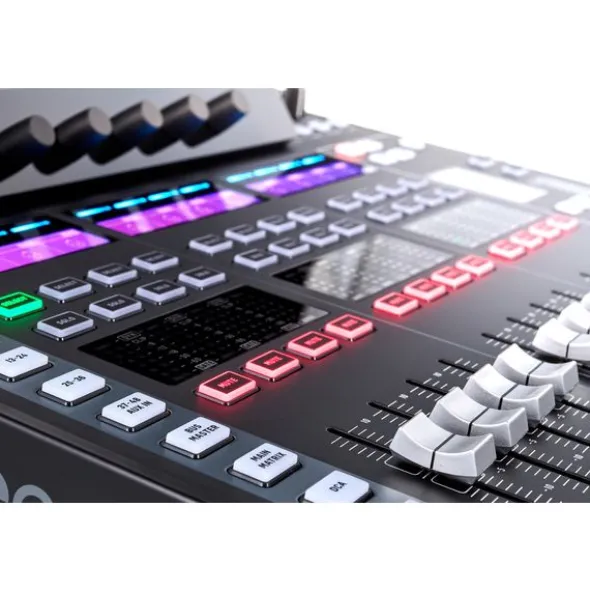

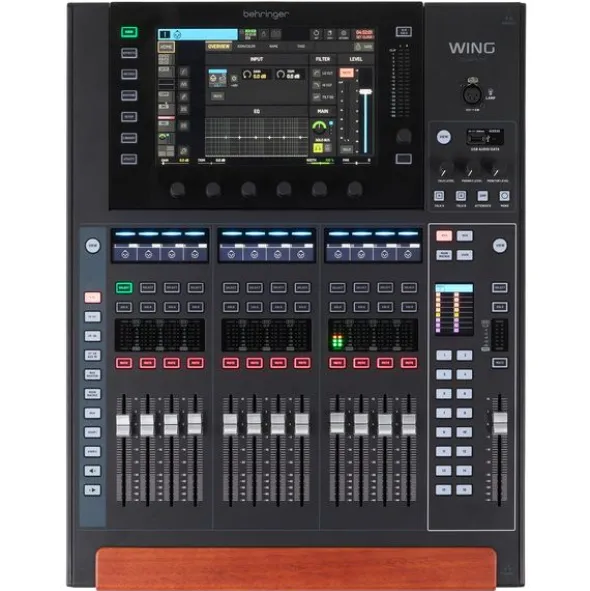

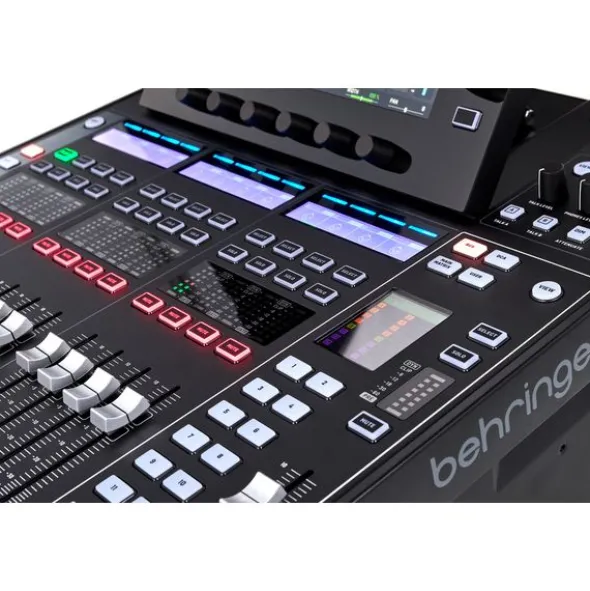

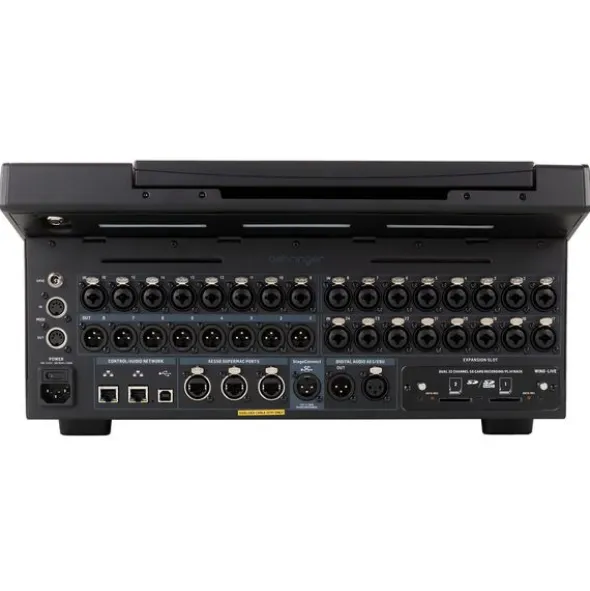

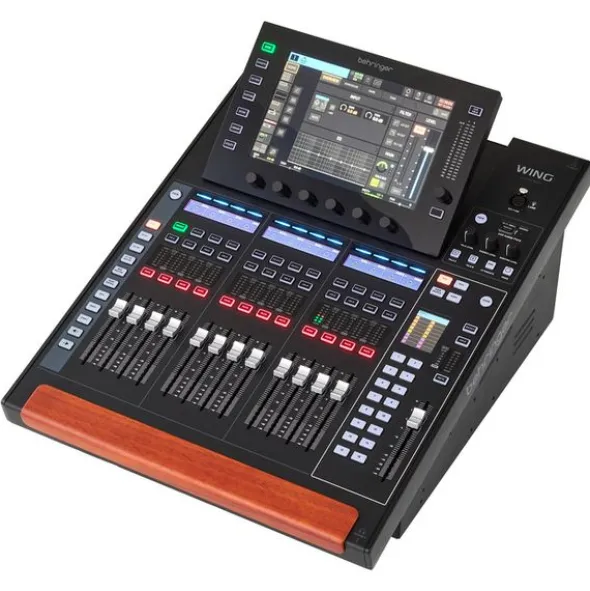

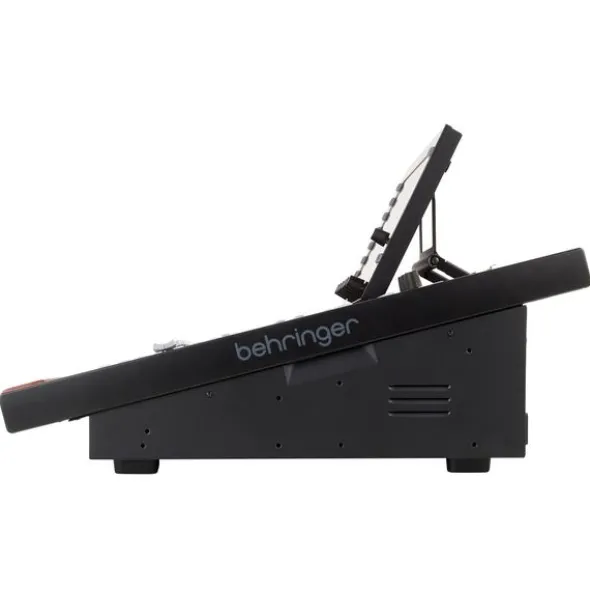

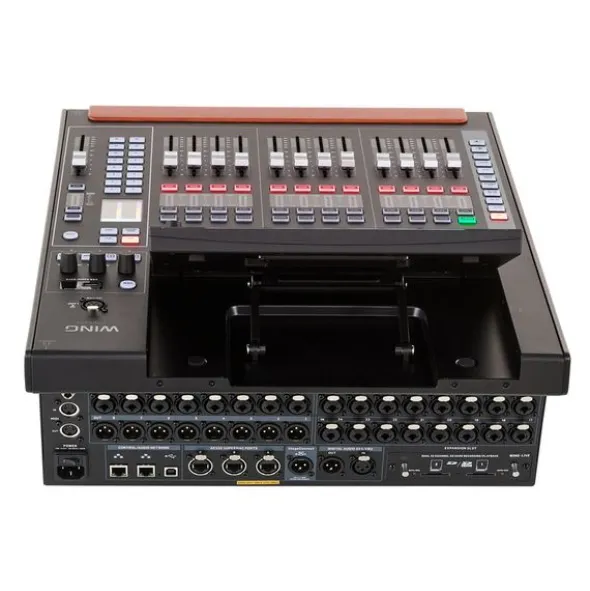

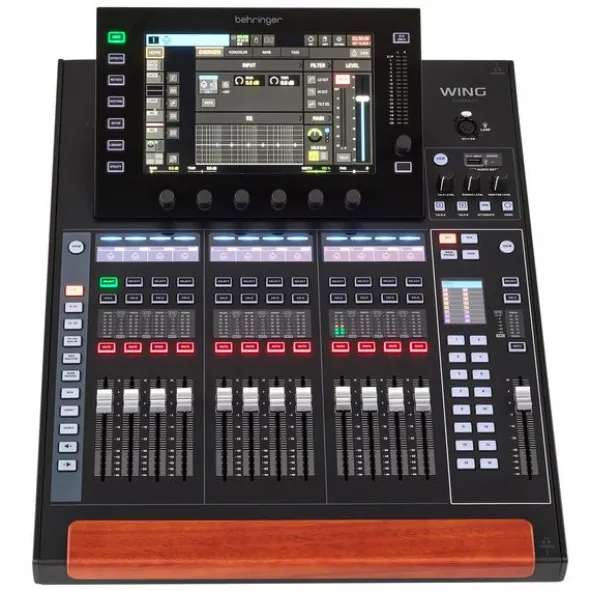

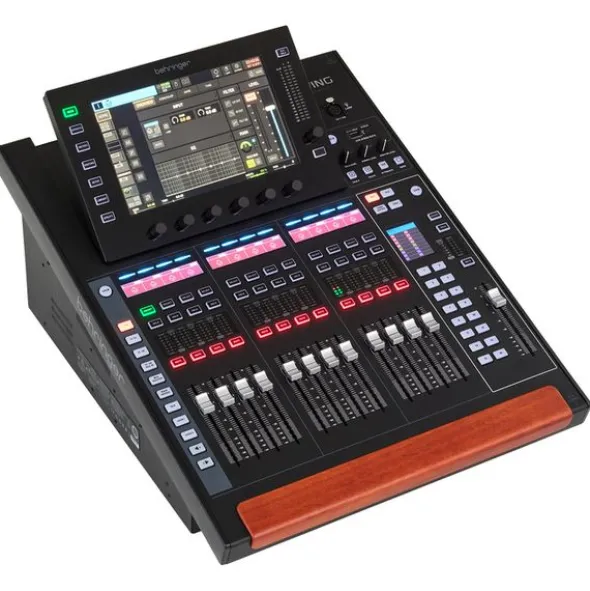

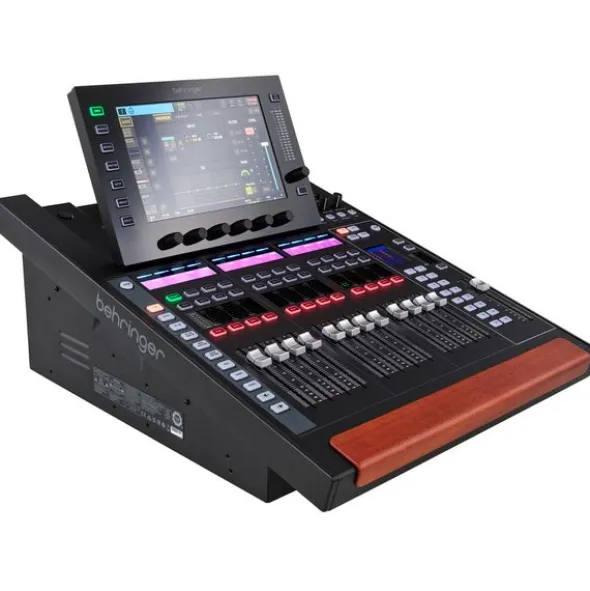

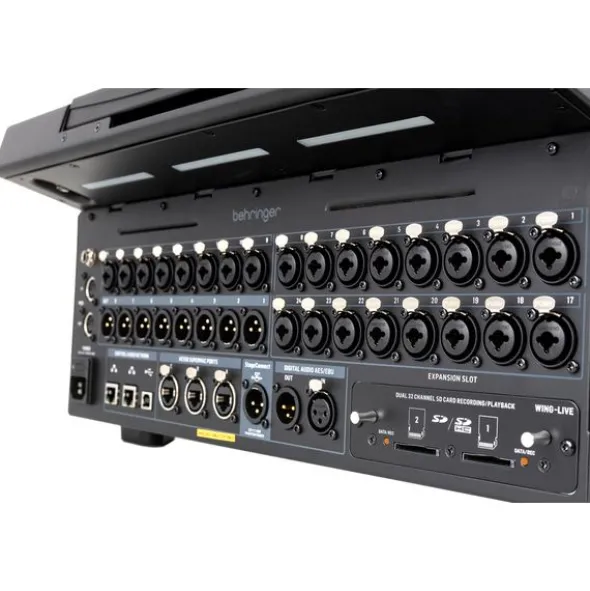

Behringer WING Compact

48-Channel Full Stereo Digital Mixer

• Fully compatible with Behringer X32/Midas M32 consoles and stageboxes
• 28 busses: 16 stereo auxes, 8 stereo matrixes, 4 stereo mains
• 13 motor faders 100 mm

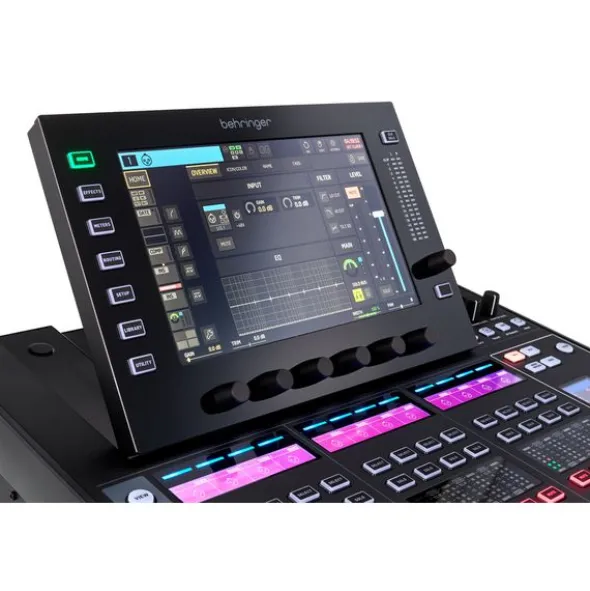

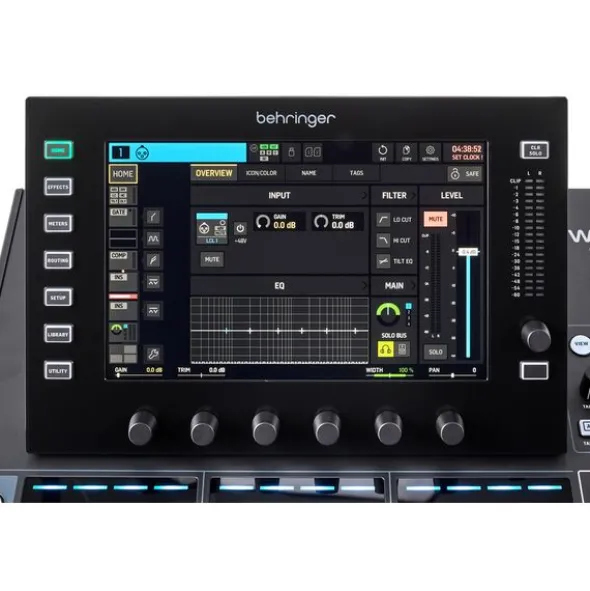

• 10.1″ Multi-touch display with adjustable angle
• 24 Midas PRO microphone preamplifiers
• Three AES50 ports: 144 inputs and outputs
• Sends on Fader Workflow with colour TFT display and hot keys for 44 masters, buses, mains, matrices, DCAs
• Built-in USB audio/MIDI interface for 48 audio channels
• Dual SD card live recorder/player with up to 64 tracks
• Internal AoIP module can expand Ethernet ports with optional 64-channel inputs and outputs to Dante and Waves SoundGrid networks
• 16 true stereo effects processors
• Three plug-in slots for gate, dynamics and EQ per channel
• 40 stereo input channels with five variable plug-in slots each
• Stereo aux input channels with one FX insert slot and 4-band parametric EQ
• Eight mute groups and eight DCAs
• Two ethernet ports with built-in switch for networked remote control and optional AoIP via Waves SoundGrid and Dante
• Rear expansion slot for optional 64-channel audio interface and network expansion cards
• StageConnect host interface for sharing up to 32 channels in both directions
• Two programmable GPIOs
• 5-Pin MIDI In and Out
• Two headphone outputs
• DAW remote control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
• Offline editing and remote control via WING-CoPilot
• WING-Q and WING-Edit software for desktop and mobile

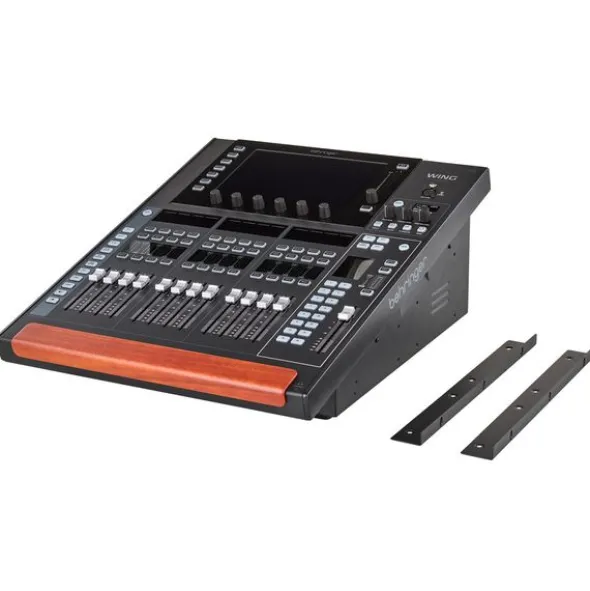

• 19″ rack installation possible in three positions
• Dimensions (W x H x D): 453 x 225 x 574 mm
• Weight: 15.9 kg

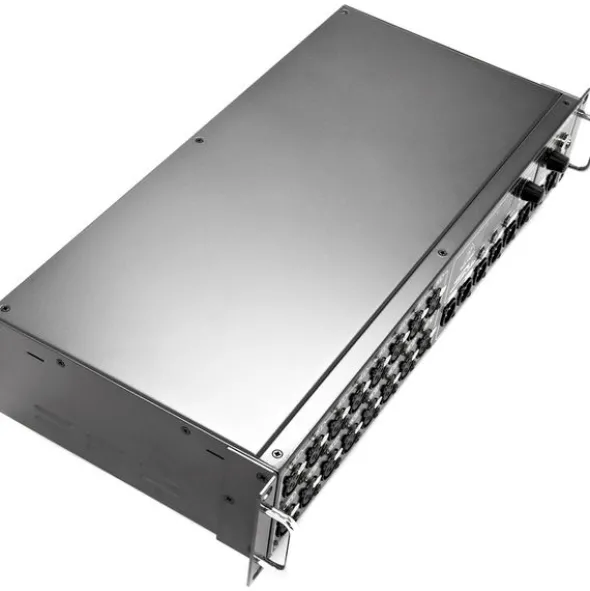

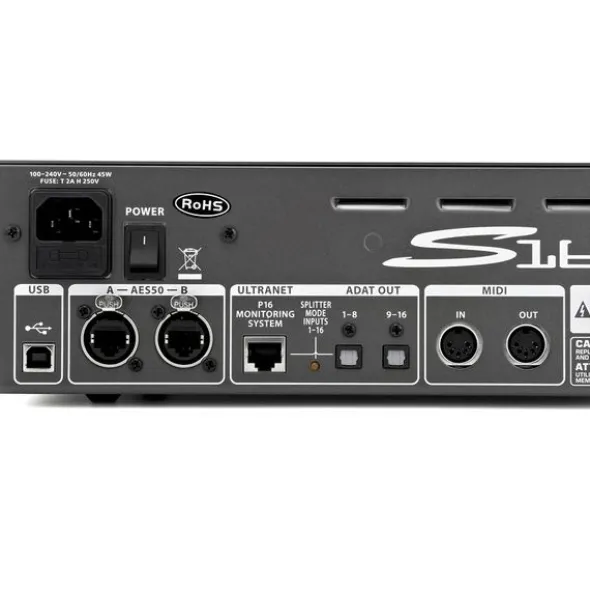

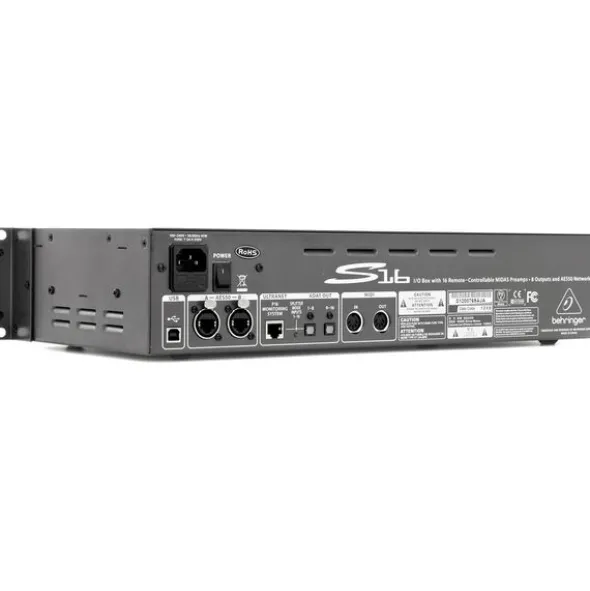

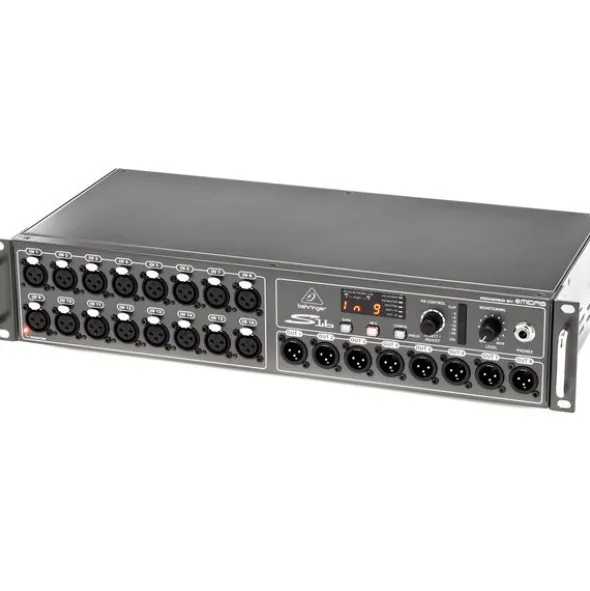

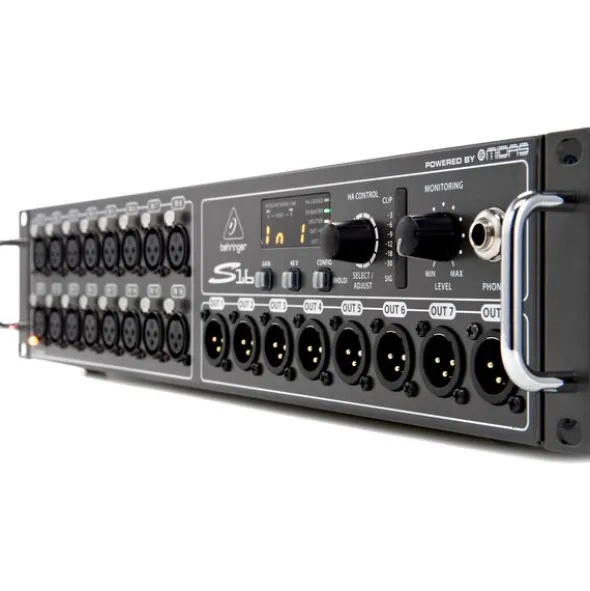

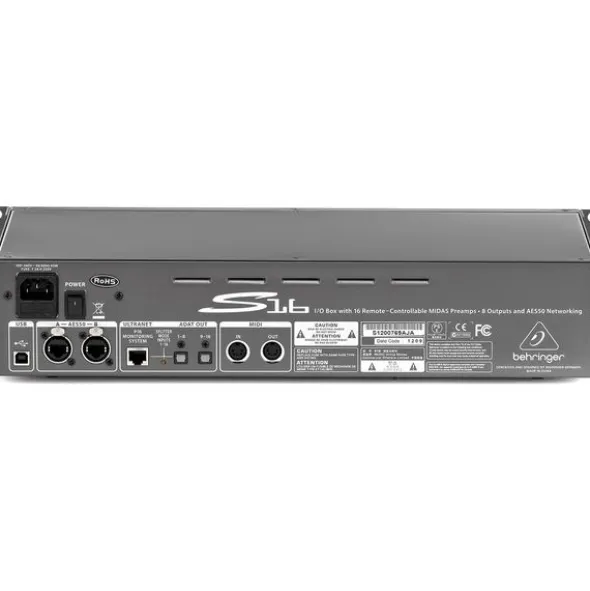

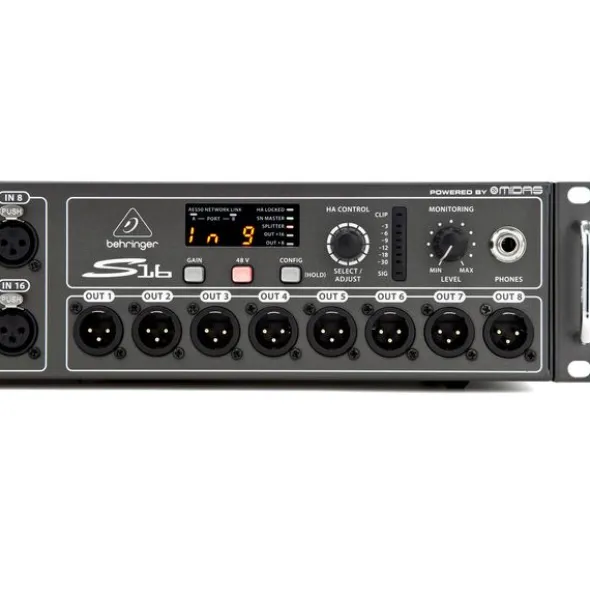

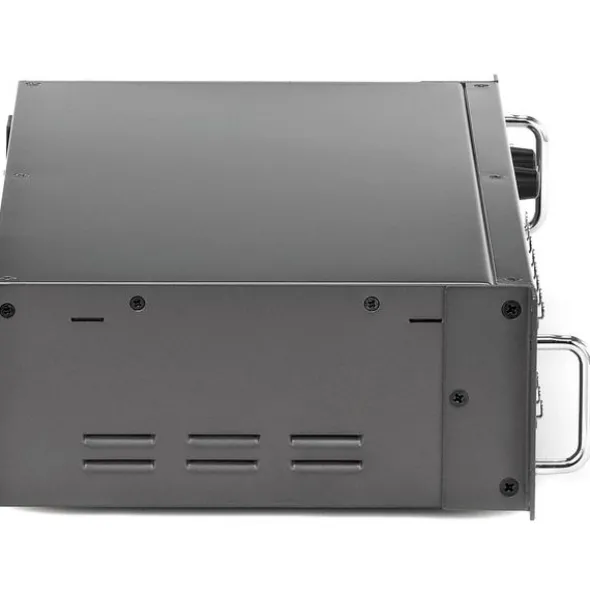

2x Behringer S16

Digital Stagebox

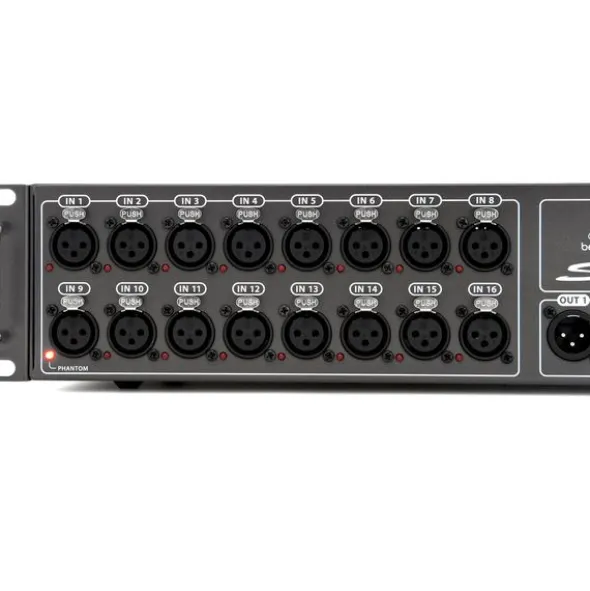

• With 16 Inputs and 8 Outputs
• AES50 network (Klark Teknik)
• Up to 100m of networking capability via CAT-5e cable (not included in delivery)
• 7-segment LED displays
• Direct P-16 Monitor port
• Dual ADAT outputs
• MIDI In/Output
• USB connector for system updates via PC
• Format: 19″ / 2HE
• Mounting depth: 21 cm
• Distance of the metal handles to the front: 2,2 cm

Disponível desdeFevereiro 2026

número de artigo637745

unidade de venda1peça(s)

Max.number of input channels48

Microphone Inputs24

Analog Line Inputs0

Analog Line Outputs8

Analog in/ out with plug-in card expandableNo

Digital in-/ outputs expandableYes

Word ClockNo

MotorfaderYes

Computer interfaceUSB

MIDI-interfaceYes

User InterfacePhysical/remote

Number of faders13

DSP Input channels48

DSP Output Channels16

Busses28

Number of Microphone Inputs24

Number of Mono Line Inputs8

Number of Stereo Line Inputs0

Physical outputs8

Digital stagebox connectionAES50

EthernetEthernet

HotspotNo

Special FeaturesNone

Multitrack RecordYes

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDstereo

Recorder FormatWAV

Scribble StripsYes

RTAYes

FX Processor16

31 Band EQ16

Delay InputYes

Delay OutputYes

Matrix8

DCA/VCA Groups8

MIDI InterfaceMidi-Din

Sample rate48 kHz

Monitor AppsYes

Separate Personal Monitor systemOptional

Expansion Card slots1

Digital ADATNo

Digital SPDIFNo

Digital AES3/ASESEBYes

Digital MADINo

Digital DanteOptional

110V capableYes

CaseOptional

19″ RackmountYes

Height225 mm

Width453 mm

Depth574 mm

Weight15,9 kg
