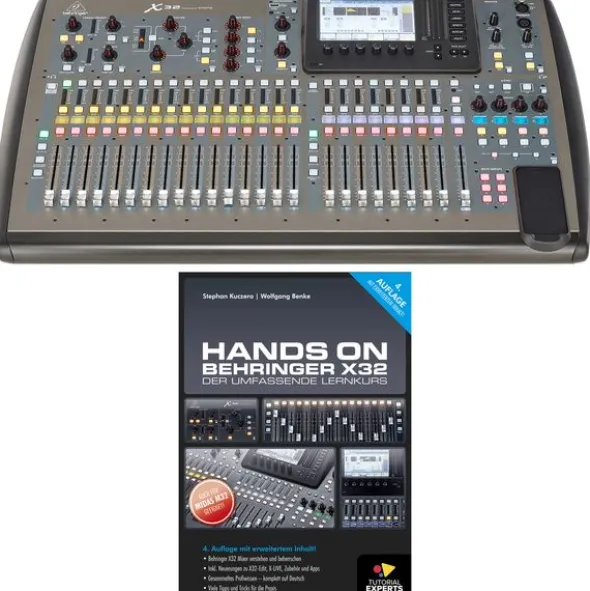

Behringer X32 Hands On Bundle

Bundle offer comprising

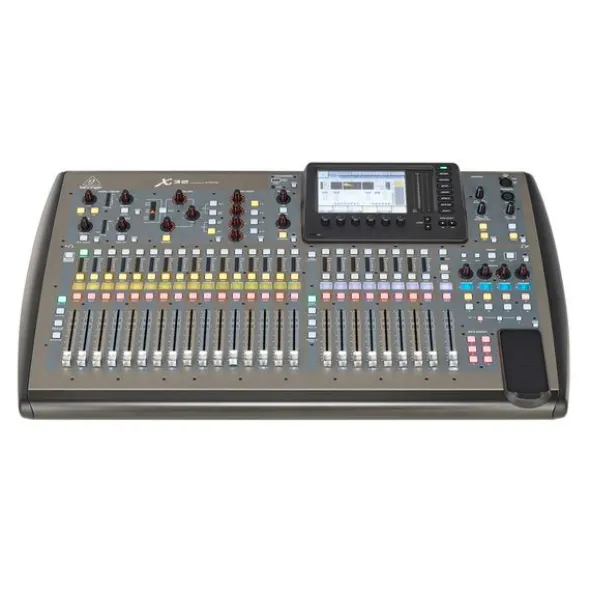

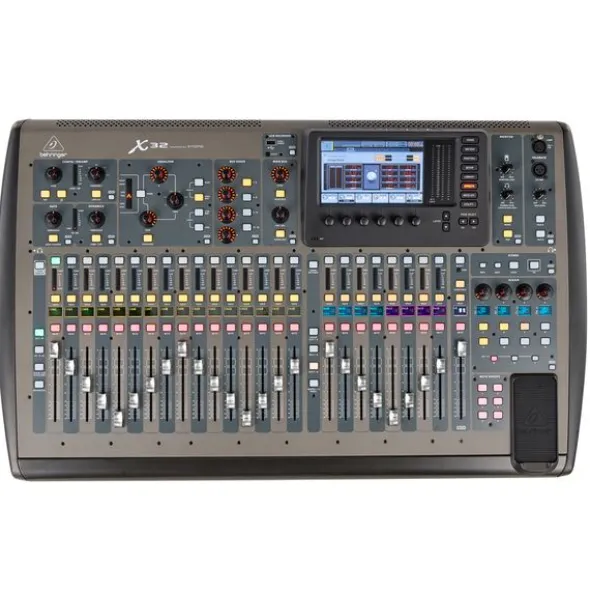

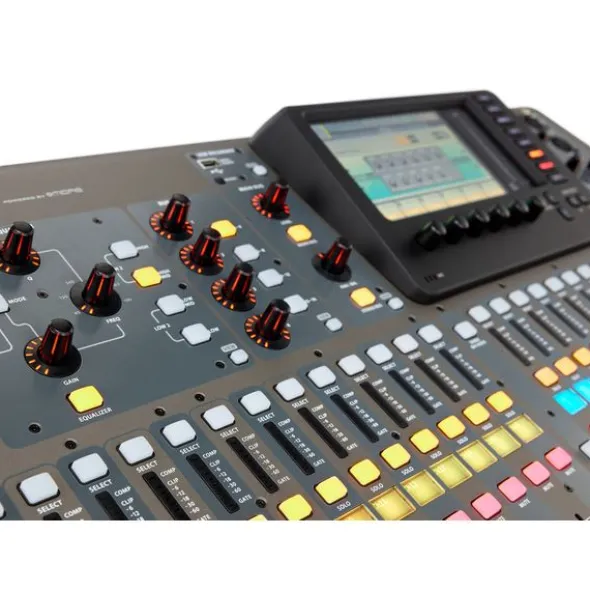

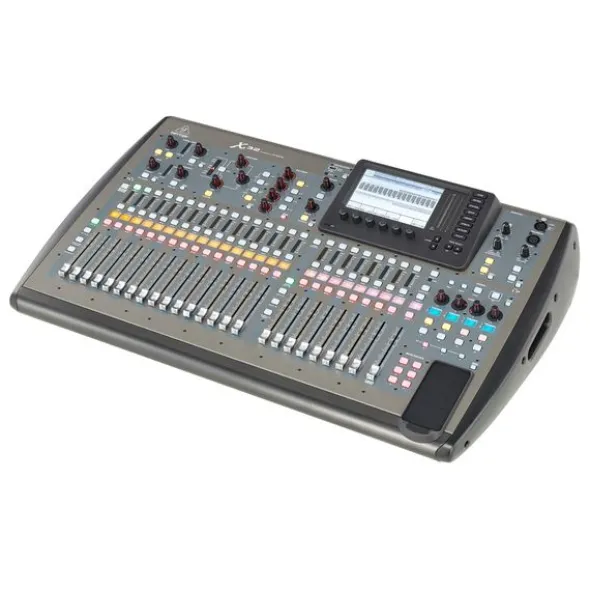

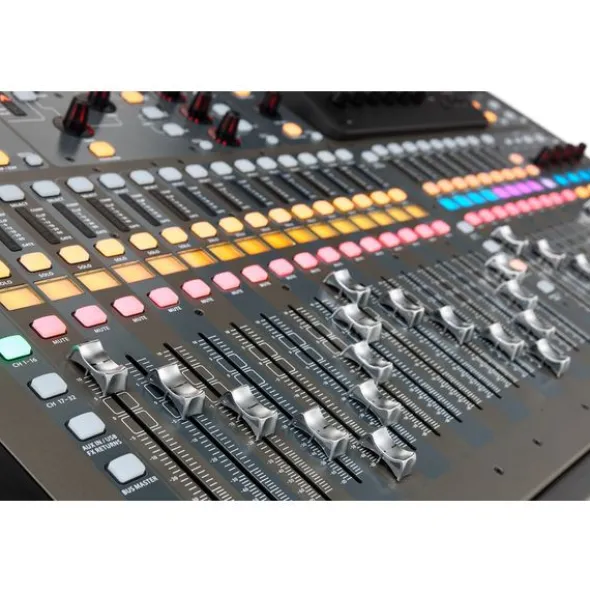

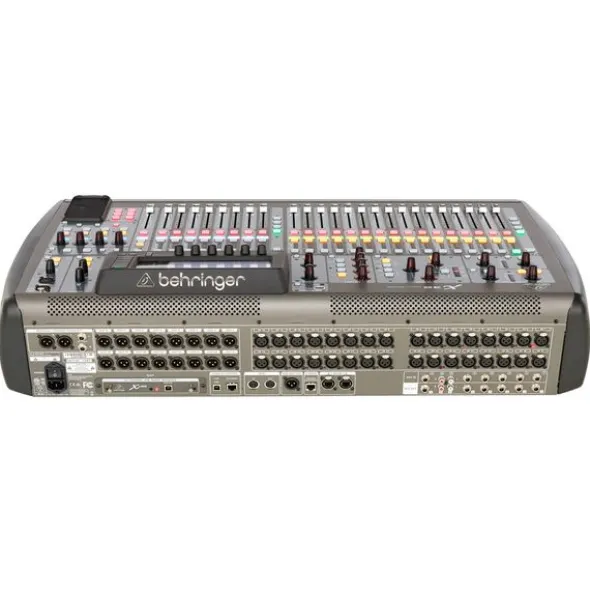

Behringer X32

32-Channel, 16-Bus Digital Mixer

• 32 XLR Mic/Line inputs
• Eight stereo FX returns
• 16 mix busses
• Six matrix buses with insert
• Six mute groups
• Eight DCA groups

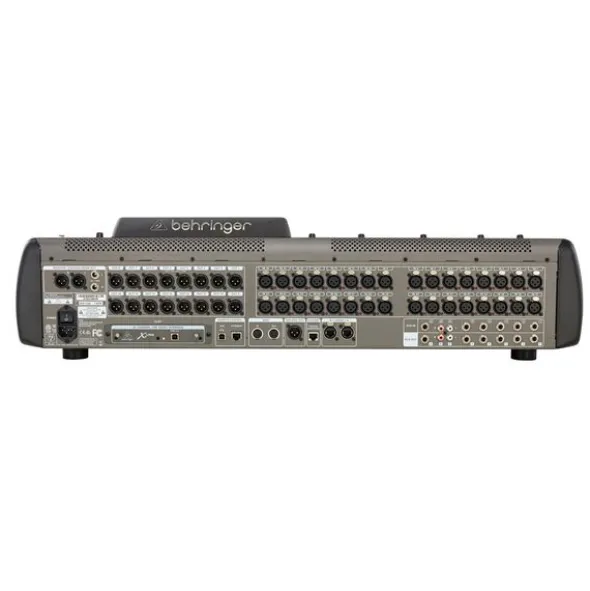

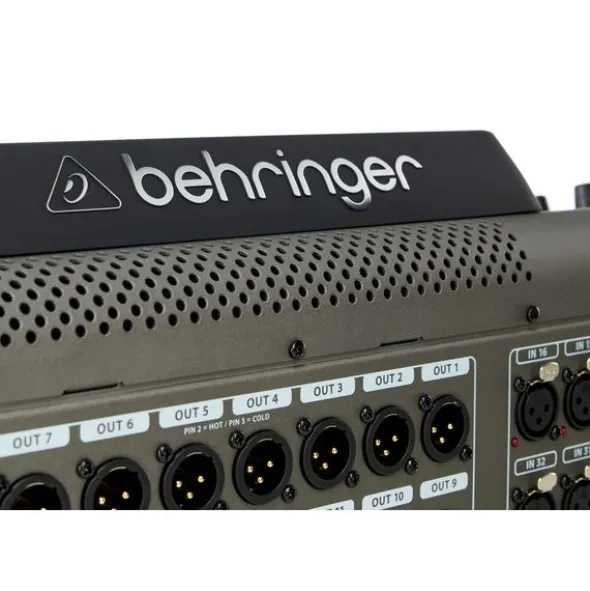

• 16 XLR outputs
• Six Aux in via 6.3 mm jack (optionally two via RCA)
• Six Aux out via 6.3 mm jack (optionally two via RCA)
• AES/EBU stereo digital output
• Two headphone outputs via 6.3 mm jack
• Stereo monitor/control room output with dimming and mono function
• 32-in/32-out USB audio interface
• 100 mm motorised fader

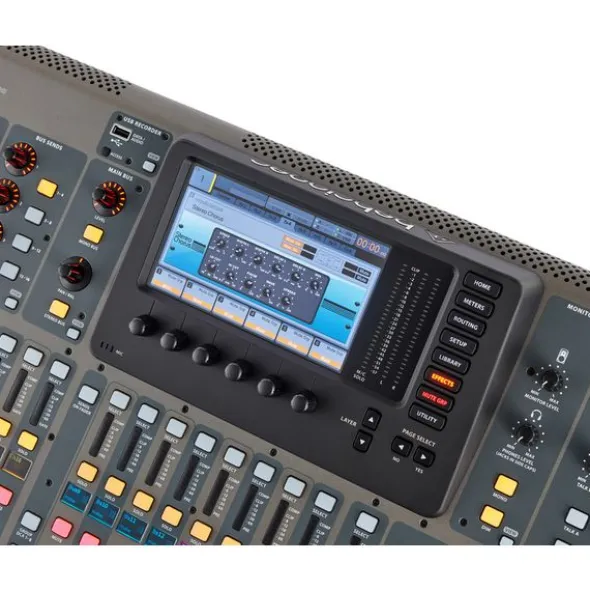

• 7″ TFT colour display
• LCD display per channel
• 4-band fully parametric EQ per channel
• Adjustable delays in all channels
• Virtual effects rack with eight FX slots
• Built-in stereo USB recorder
• Remote-controlled via USB or Ethernet
• Compatible with Behringer P-16 Personal Monitoring System
• Full MIDI implementation
• Dimensions (W x D x H): 900 x 550 x 230 mm
• Weight: 20.0 kg
• Including Behringer dust cover
• Suitable expansion card: SD Record Item No. 448412 (not included)
• Suitable case: Art. 281791 (not included)
• Suitable cover: Art. 487523 (not included)

Tutorial Experts Hands On Behringer X32

Video Tutorial (Download)

• German-language, interactive video learning course for PC, Mac and tablet
• Detailed training for Behringer X32 and Midas M32
• 12 Hours of total playtime
• System requirements: Win7 or later / Mac OSX 10.6 or later, 1.6 GHz CPU, 0.5 GB RAM, 1920 x 1080 monitor, sound card

Contents:

• Introduction and overview
• All functions explained step by step
• Using the X32 Edit software
• The channel strips in detail
• Use of bus sends
• Create monitor mixes
• Insert and send effects
• Use and create effect presets
• Integrate external effects
• Summarizing channels
• Scribble strip configuration
• Use of scenes
• Snippets and cue lists
• Introduction of hardware extensions
• Routing between X32 and computer
• Practical examples for different fields of application
• Combination with Waves-Multirack
• Practical examples such as virtual soundcheck
• Theatre use, and more
• Combination with DP48 and P16-M monitoring systems
• Notes on the newest firmware and additions
• DAW remote control including individual customisation
• Control via tablets and use of alternative apps

Disponível desdeNovembro 2021

número de artigo531595

unidade de venda1peça(s)

Max.number of input channels32

Microphone Inputs32

Analog Line Inputs32

Analog Line Outputs16

Analog in/ out with plug-in card expandableYes

Digital InputsNone

Digital OutputsAES

Digital in-/ outputs expandableYes

Word ClockNo

MotorfaderYes

Computer interfaceUSB, Ethernet

MIDI-interfaceYes

User InterfacePhysical/remote

Number of faders25

DSP Input channels32

DSP Output Channels24

Busses16

Number of Microphone Inputs32

Number of Mono Line Inputs6

Number of Stereo Line Inputs0

Physical outputs22

Digital stagebox connectionAES50

EthernetEthernet

HotspotNo

Multitrack RecordYes

Special FeaturesCompatible with BEHRINGER P-16 Personal Monitoring System, 32 in / 32 out FW Interface

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDstereo

Recorder FormatWAV

Scribble StripsYes

RTAYes

FX Processor8

31 Band EQ8

Delay InputYes

Delay OutputYes

Matrix6

DCA/VCA Groups8

MIDI InterfaceMidi-Din

Sample rate48 kHz

Monitor AppsYes

Separate Personal Monitor systemOptional

Expansion Card slots1

Digital ADATOptional

Digital SPDIFNo

Digital AES3/ASESEBYes

Digital MADIOptional

Digital DanteOptional

110V capableYes

CaseIncluded

19″ RackmountNo

Height200 mm

Width900 mm

Depth528 mm

Weight20,6 kg
