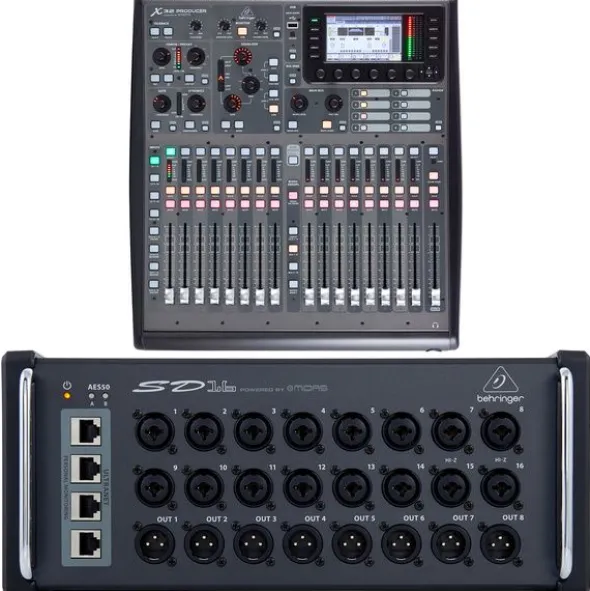

Behringer X32 Producer SD 16 Bundle

Bundle offer comprising

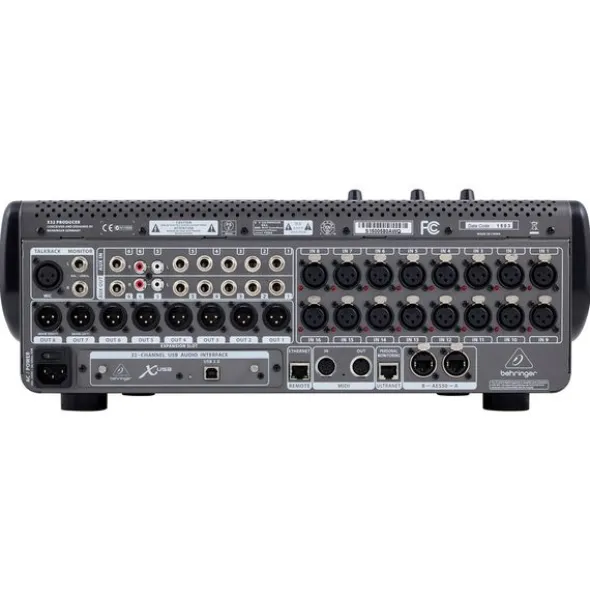

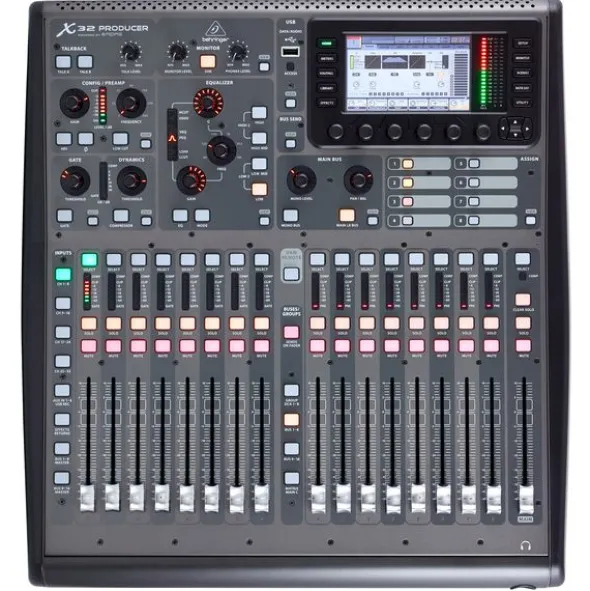

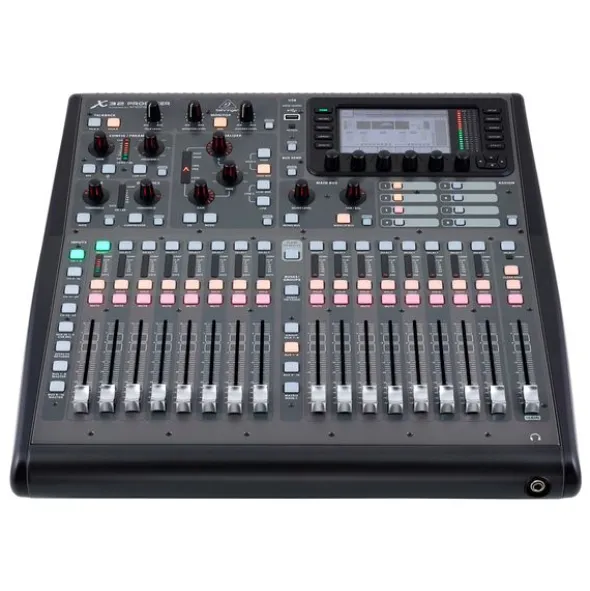

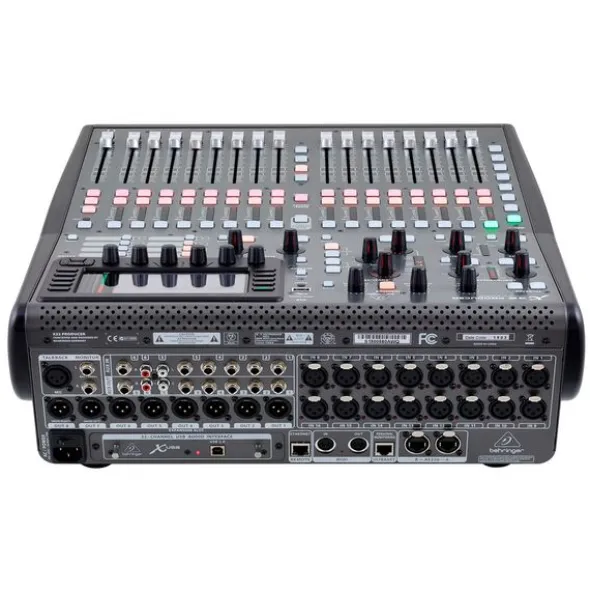

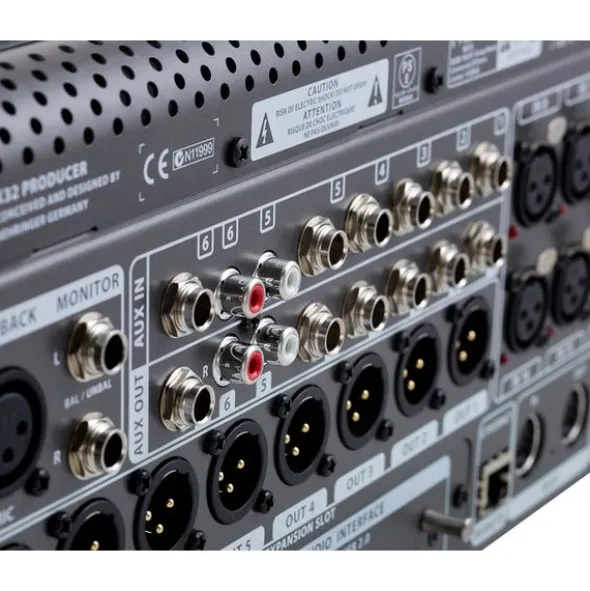

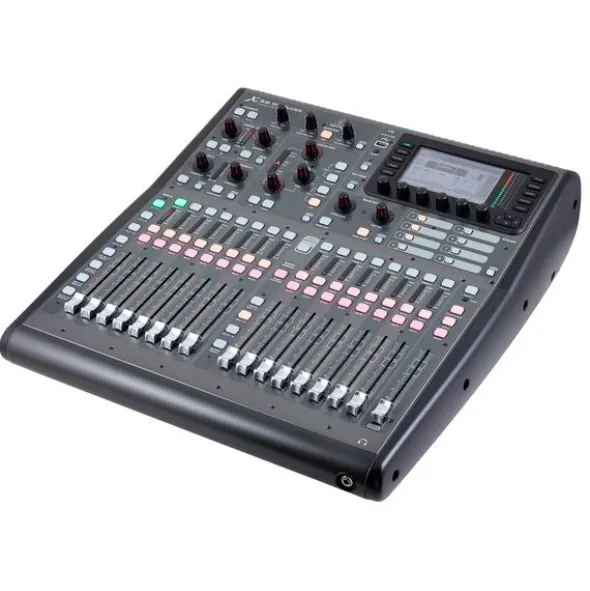

Behringer X32 Producer

Digital Mixer

• 16 XLR Mic/Line inputs
• 8 Stereo FX Returns
• 16 Mix busses
• 6 Matrix buses with insert
• 6 Mute groups
• 8 DCA groups
• 8 XLR outputs
• 6 Aux In via 6.3 mm jack (optionally 2 via RCA)
• 6 Aux Out via 6.3 mm jack (optionally 2 via RCA)
• Adjustable headphone connection
• 32-in/32-out USB Audio Interface
• Talkback microphone input (XLR)

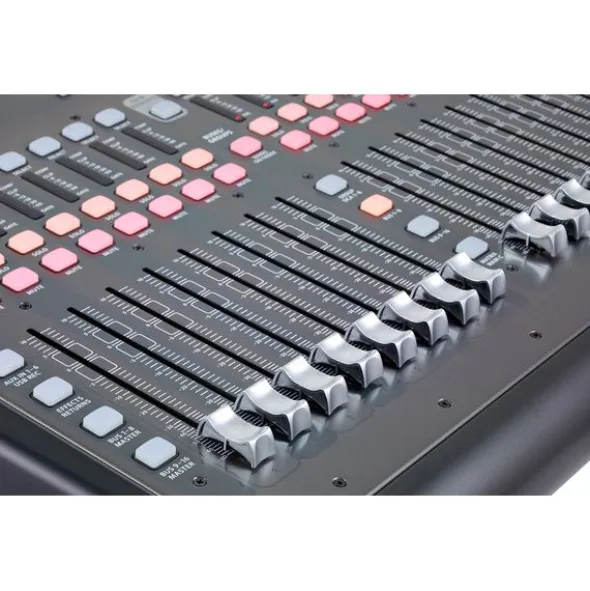

• 100 mm motor fader

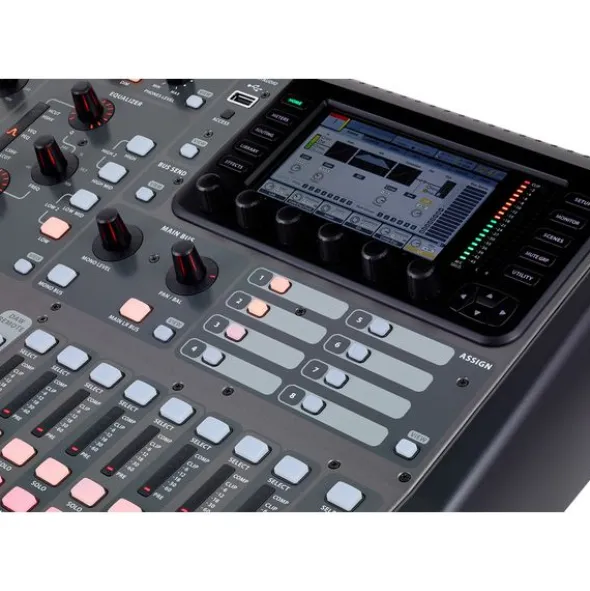

• 5″ TFT colour display
• 4-Band fully parametric EQ per channel
• Adjustable delays in all channels
• Virtual effects rack with 8 FX slots
• Built-in stereo USB recorder
• Remote control via Ethernet
• Compatible with Behringer P-16 Personal Monitoring System
• Full MIDI implementation
• Dimensions (W x D x H): 490 x 506 x 163 mm
• Weight: 11.4 kg
• Includes 19″ rackmount
• Suitable case: Art. 326942 (not included)
• Suitable expansion cards: Dante: Art.334096, Madi: Art.337831 (all not included in the scope of delivery)

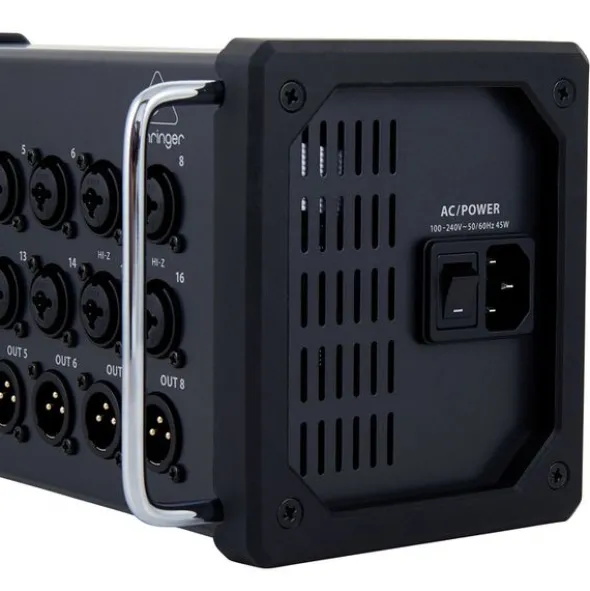

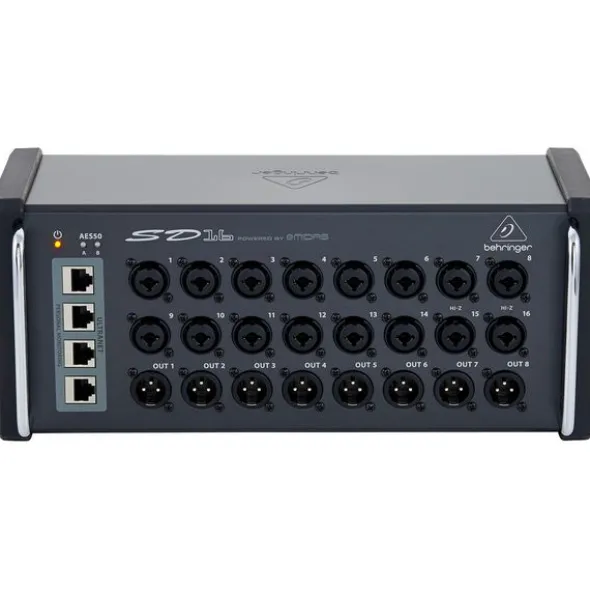

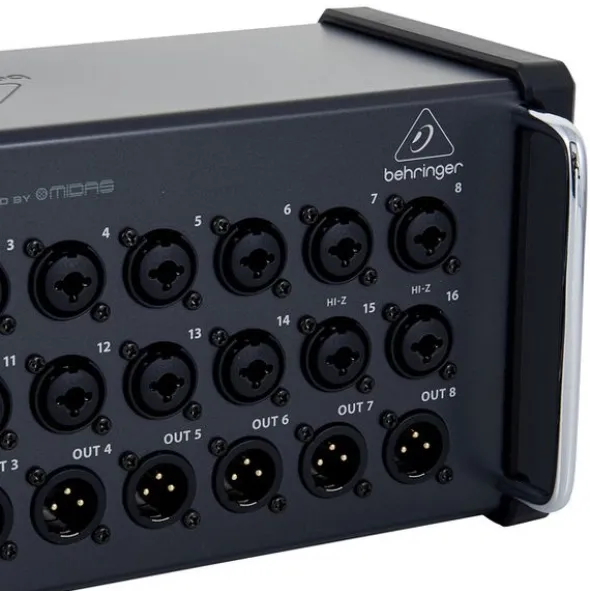

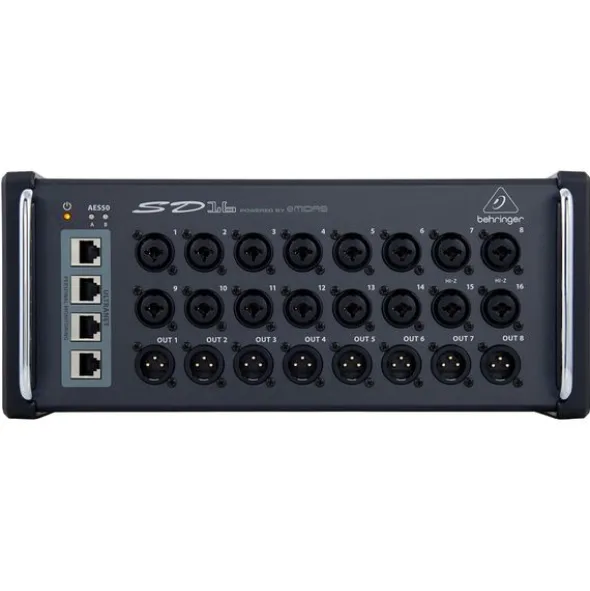

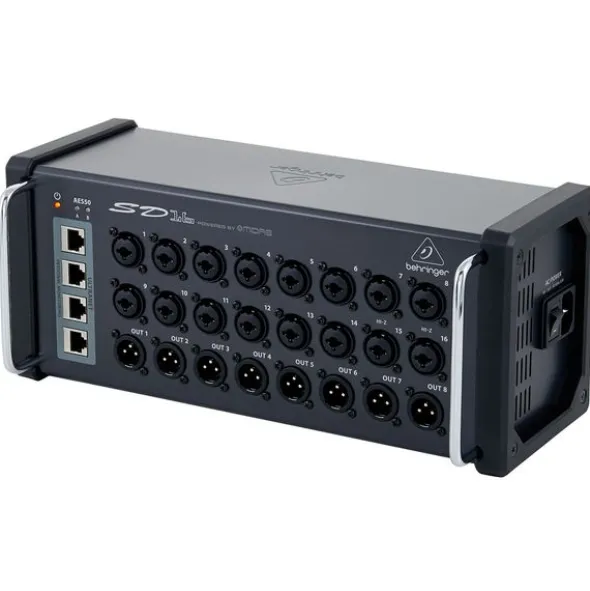

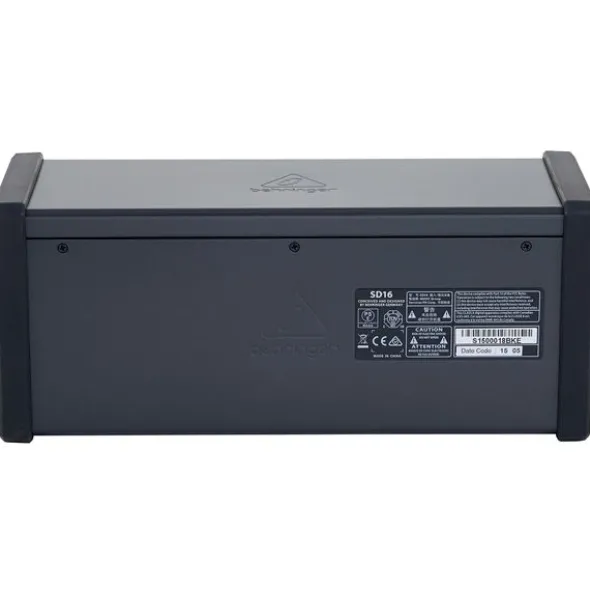

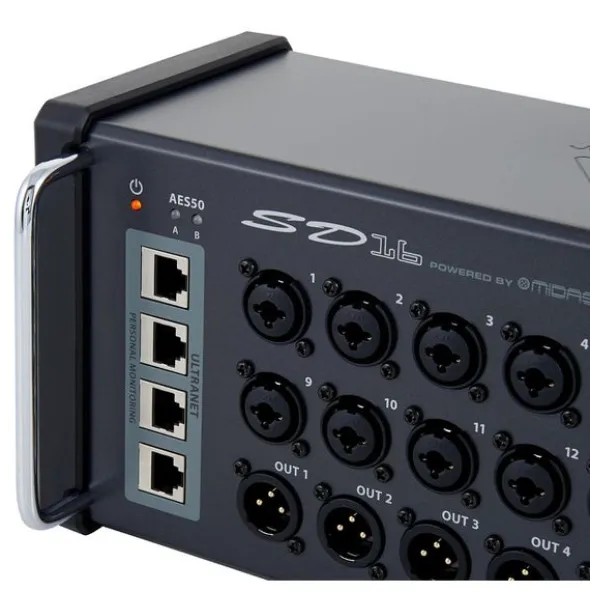

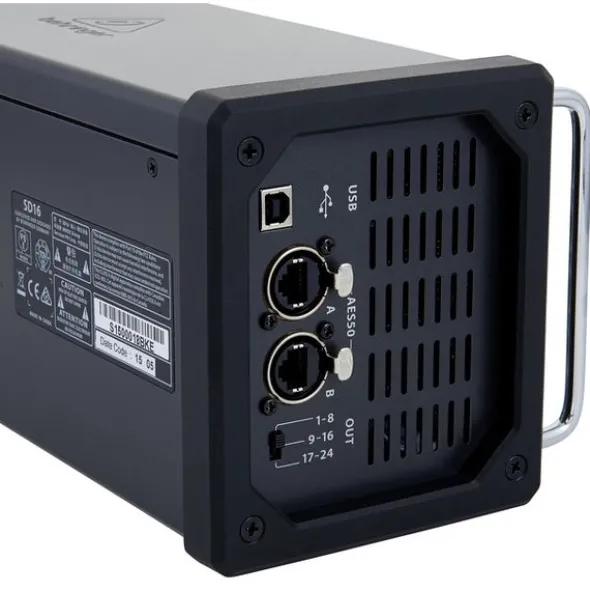

Behringer SD16

Digital Stage Box

• With 16 inputs and 8 outputs
• AES50 network (Klark Teknik)
• Up to 100 m CAT-5e cables possible
• 4-Port connection for P-16 monitor connection
• USB connection for system updates via PC
• Overall height: 3 U
• Suitable bags: Article number 379654 and number 466438 (both not included)

Disponível desdeNovembro 2024

número de artigo604386

unidade de venda1peça(s)

Max.number of input channels32

Microphone Inputs16

Analog Line Inputs16

Analog Line Outputs8

Analog in/ out with plug-in card expandableYes

Digital InputsNone

Digital OutputsAES

Digital in-/ outputs expandableYes

Word ClockNo

MotorfaderYes

Computer interfaceUSB, Ethernet

MIDI-interfaceYes

User InterfacePhysical/remote

Number of faders17

DSP Input channels32

DSP Output Channels24

Busses16

Number of Microphone Inputs32

Number of Mono Line Inputs6

Number of Stereo Line Inputs0

Physical outputs22

Digital stagebox connectionAES50

EthernetEthernet

HotspotNo

Multitrack RecordYes

Special FeaturesCompatible with BEHRINGER P-16 Personal Monitoring System, 32 in / 32 out FW Interface

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDstereo

Recorder FormatWAV

RTAYes

FX Processor8

31 Band EQ8

Delay InputYes

Delay OutputYes

Matrix6

DCA/VCA Groups8

MIDI InterfaceMidi-Din

Sample rate48 kHz

Monitor AppsYes

Separate Personal Monitor systemOptional

Expansion Card slots1

Digital ADATOptional

Digital SPDIFNo

Digital AES3/ASESEBNo

Digital MADIOptional

Digital DanteOptional

110V capableYes

CaseIncluded

19″ RackmountYes

Height163 mm

Width490 mm

Depth506 mm

Weight11,4 kg
