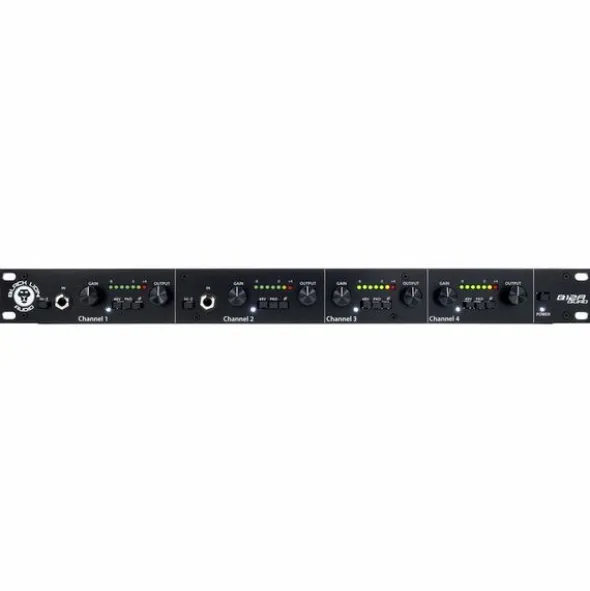

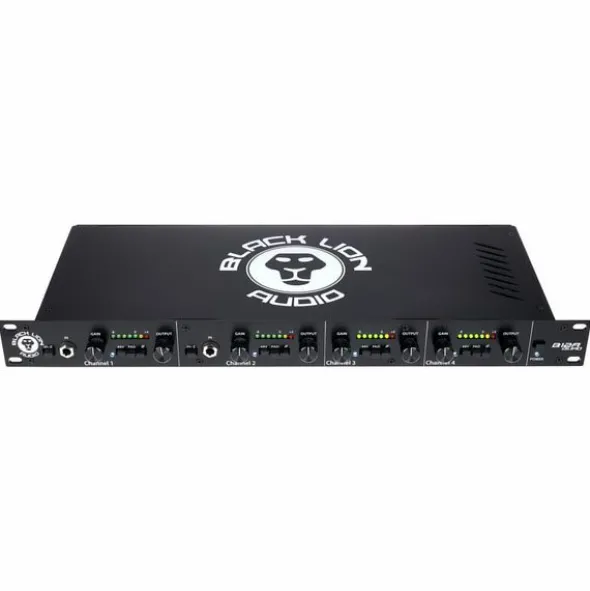

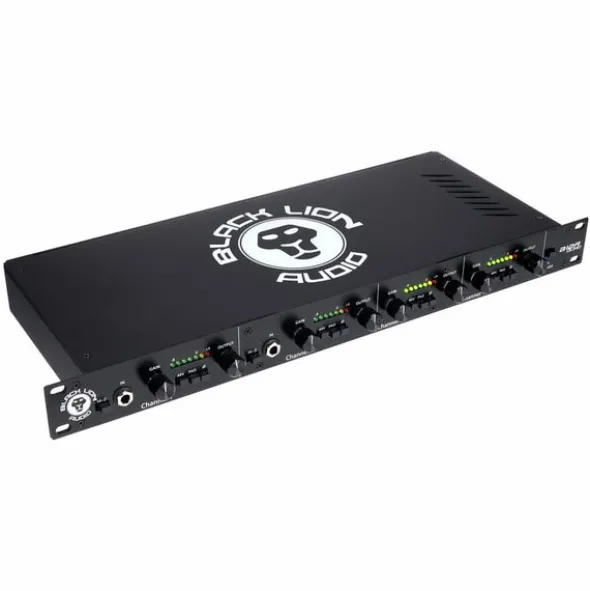

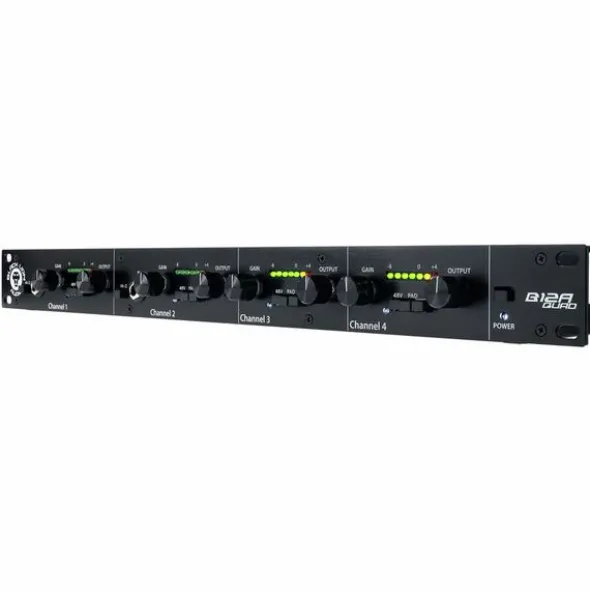

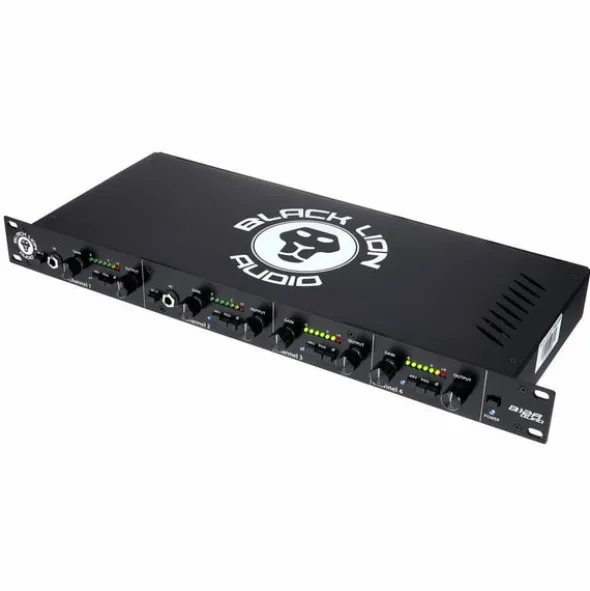

Black Lion Audio B12A Quad

4-Channel Preamplifier

• Classic 312A preamp design with 70 dB gain
• All-rounder for detailed recordings, e.g. Vocals, drums, guitar etc.
• Very low-noise signal path
• Cinemag transformers in the inputs and outputs
• Channels 1 and 2 with additional DI input

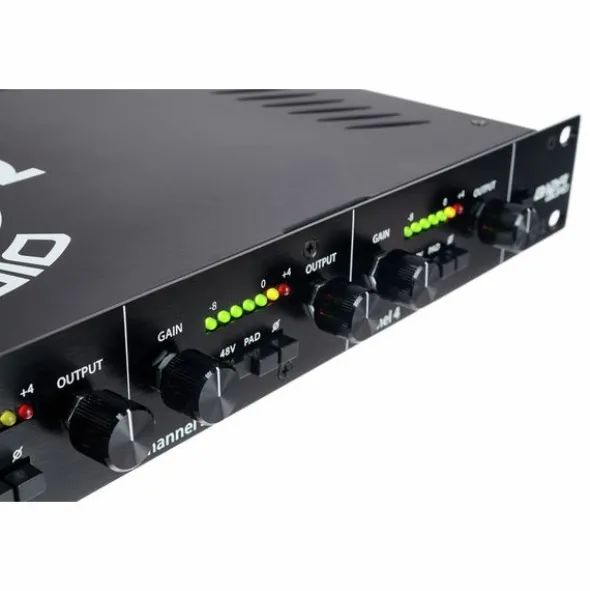

• Switchable 48 V phantom power, phase reversal and 18 dB pad (mic-in) per channel
• Max. Input level Mic In: +1 dBu / DI In: +18 dBu
• Frequency range: 10 Hz – 30000 Hz
• Gain Mic In: 26 to 70 dB / DI In: +10 to 53 dB
• THD + N Mic In: 0.01% / DI In: 0.115% (+36 dB gain, +4 dBu output)
• Equivalent input noise Mic In: -120 dBu / DI In: -94 dBu
• Input impedance Mic In: 200 Ohm / DI In: 1.1 MOhm (unbalanced)
• Max. Output level: +26 dBu
• Output impedance: 600 ohms

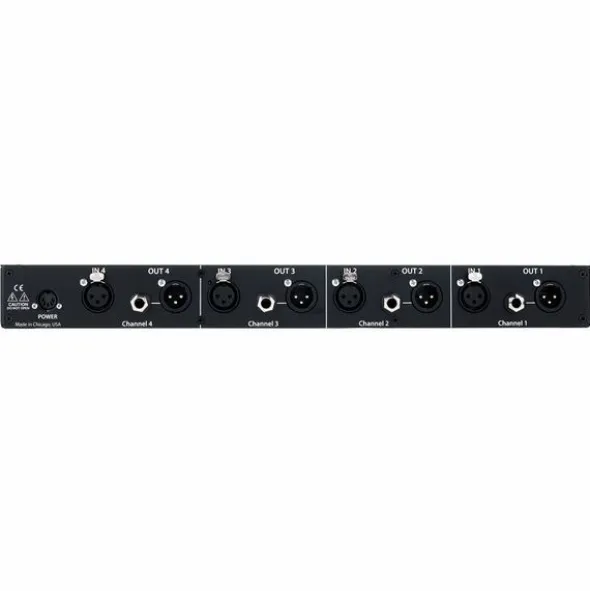

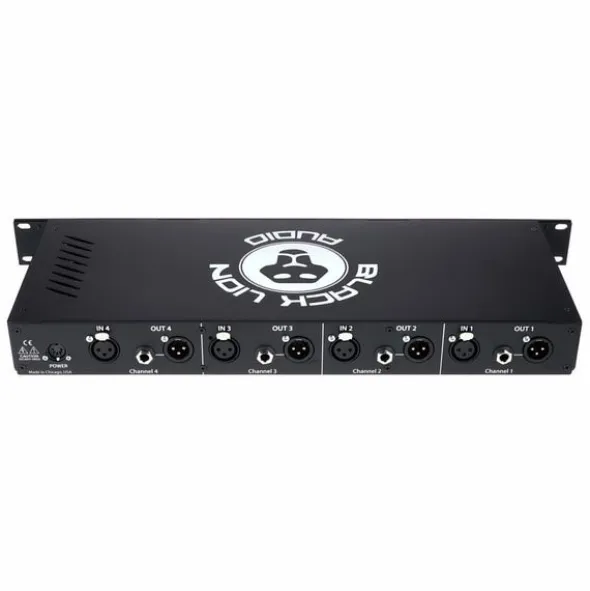

• 4 Inputs: XLR (balanced)
• 2 Inputs: jack (unbalanced)
• 4 Inputs: XLR and jack (balanced)

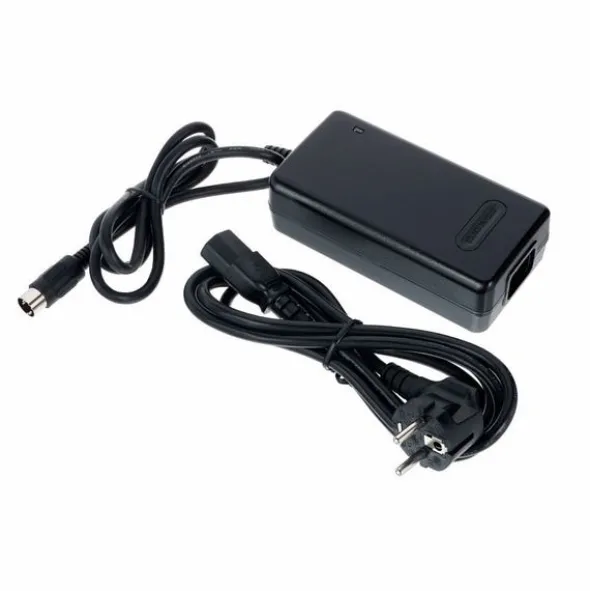

• External power supply
• Height: 1 U
• Width: 19″
• Depth: 178 mm
• Weight: 4.5 kg

Disponível desdeMaio 2020

número de artigo493935

unidade de venda1peça(s)

Channels4

Number of microphone inputs4

Instrument inputYes

TubesNo

Compressor/LimiterNo

EqualizerNo

De-EsserNo

Phantom powerYes

Phase ReverseYes

External effect loopsNo

Analogue OutputsXLR,jack

Digitale Outputs–

Headphone connectionNo

Level MeterYes

Design19″ / 1U
