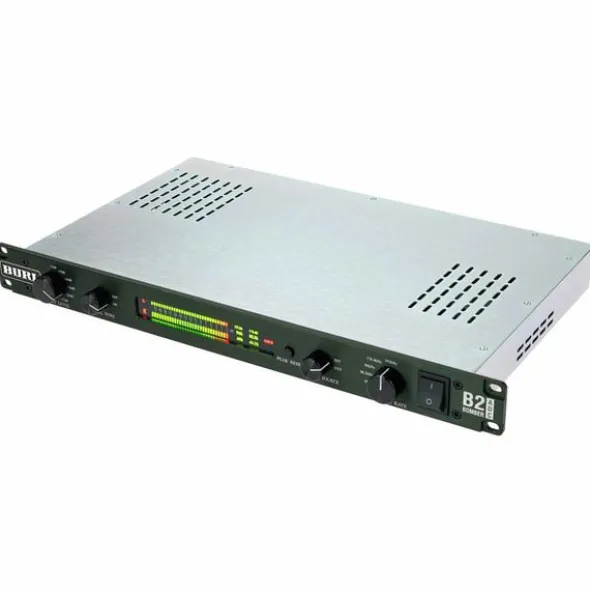

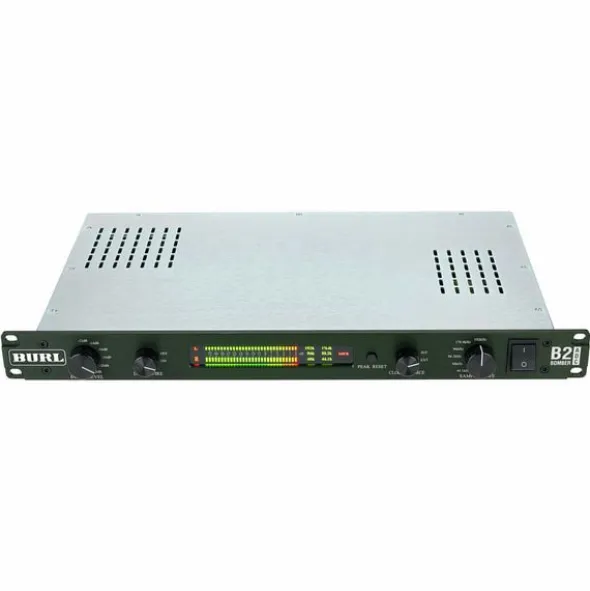

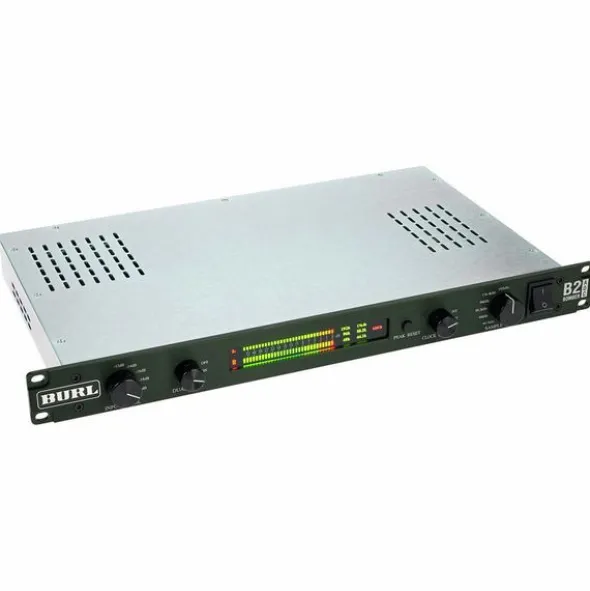

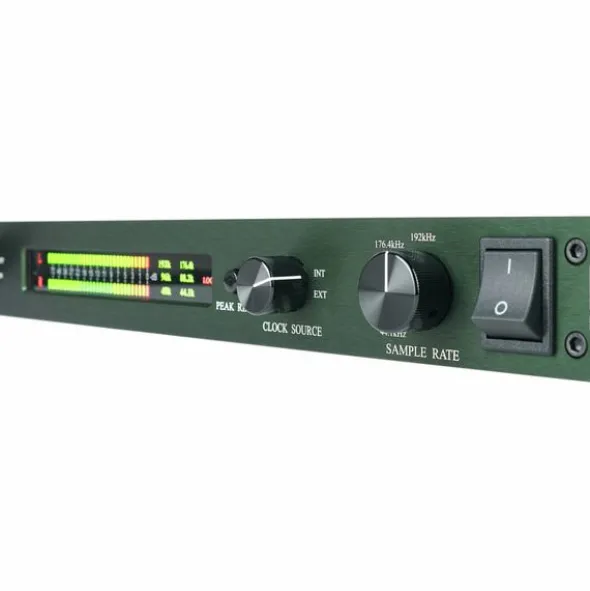

Burl Audio B2 Bomber ADC

2-channel AD converter

• 44.1 kHz – 192 kHz
• 24-bit
• 2 channel ADC
• Unique Burl BX1 Transformer input stage
• Discrete Class-A signal path

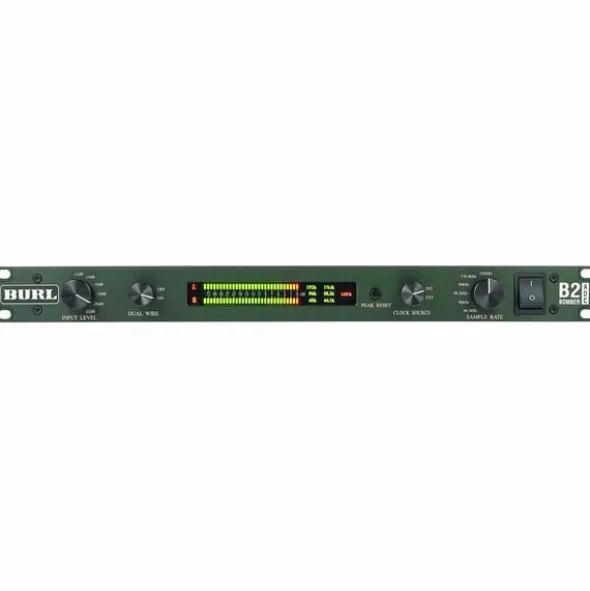

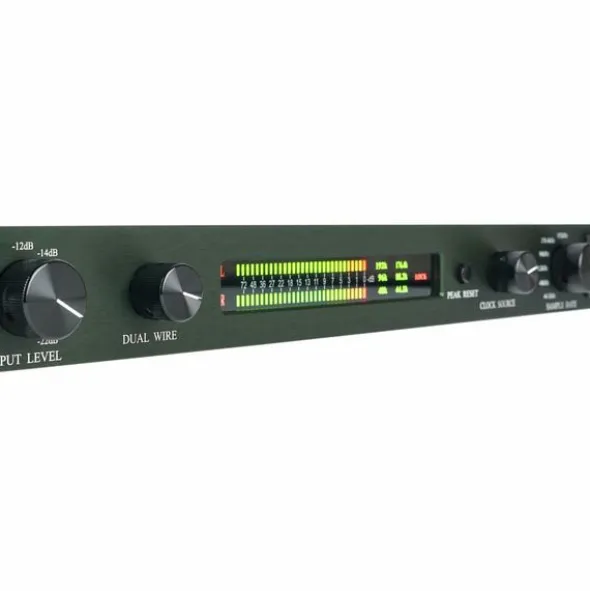

• High-resolution meter with peak and RMS representation

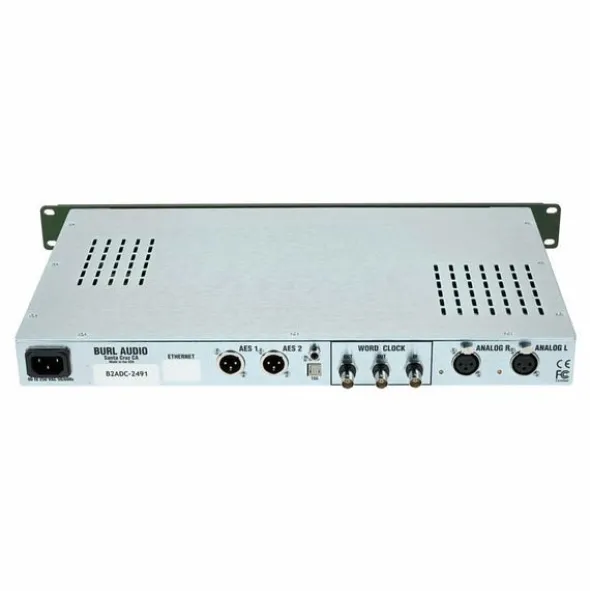

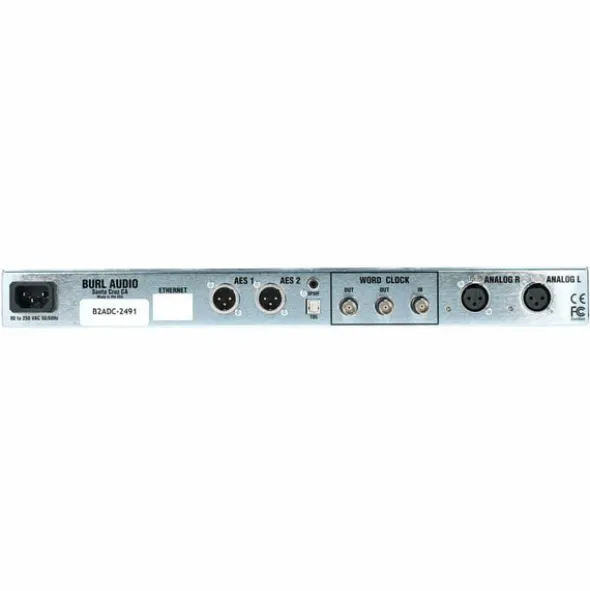

• XLR inputs
• 1 SPDIF and 2 AES / EBU outputs
• 1 BNC input
• 2 Outputs with jitter suppression
• Frequency response at 48 kHz sample rate: 12 Hz – 22 kHz, +/- 0.1 dB
• Frequency response at 96 kHz sample rate: 15 Hz – 46kHz, +/- 0.1 dB
• Frequency response at 192 kHz sample rate: 18 Hz – 94kHz, +/- 0.1 dB
• 120 dB dynamic range (A-weighted)
• 117 dB (unweighted)
• -100 dB THD + N (+4 dBU = -15dBFs)
• -94dB THD + N (+ 18dBU = -1dBFs)
• Dimensions: 19″ / 1 HE

Disponível desdeAbril 2011

número de artigo262320

unidade de venda1peça(s)

Amount Of Channels2

AD ConversionYes

DA ConversionNo

Max. Resolution Rate in Bits24 bit

Max. Sampling Rate in kHz192 kHz

S/PDIF ConnecorYes

AES/EBU ConnectorYes

ADATNo

Word clockYes

Number of analog inputs2

Number of Analog Outputs0

Headphone connectionNo

Special FeaturesBX1 Transformer
