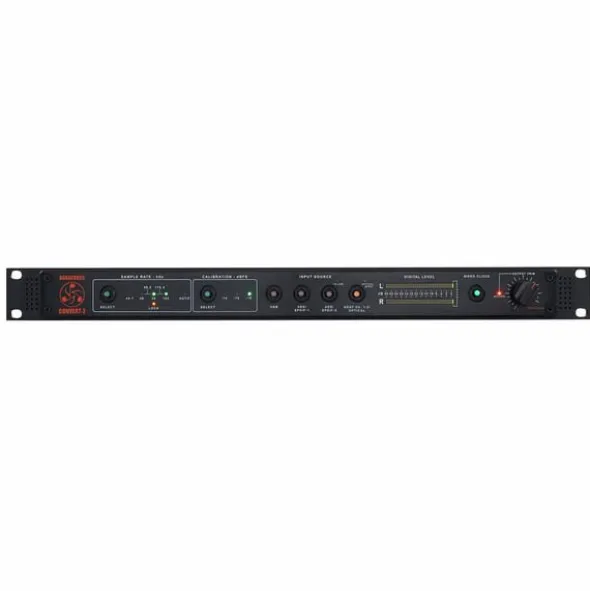

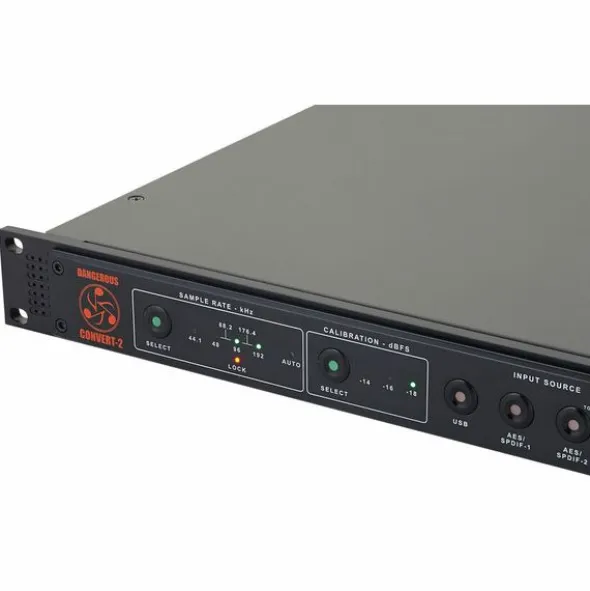

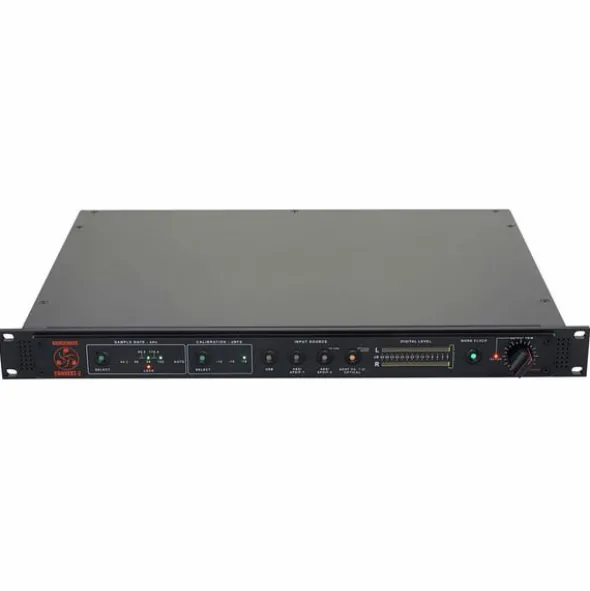

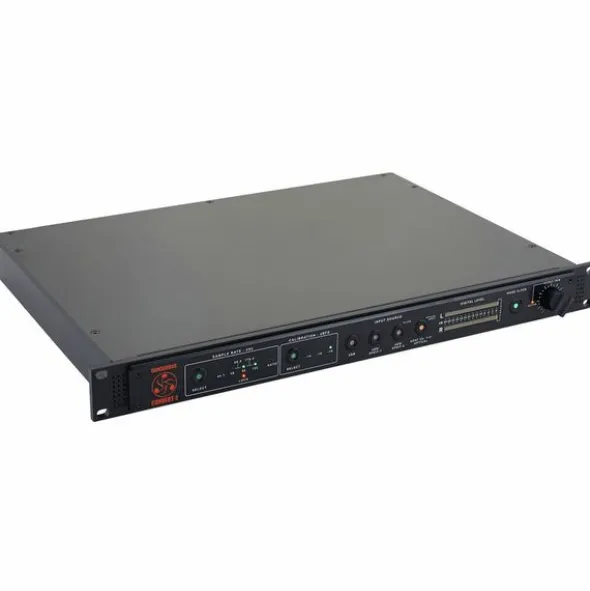

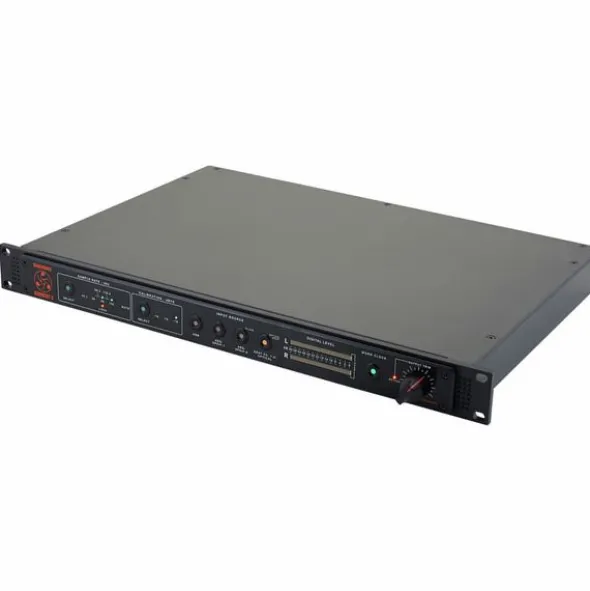

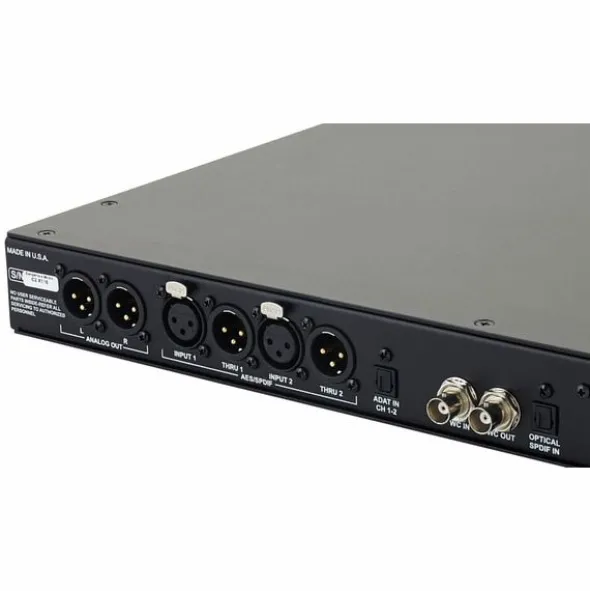

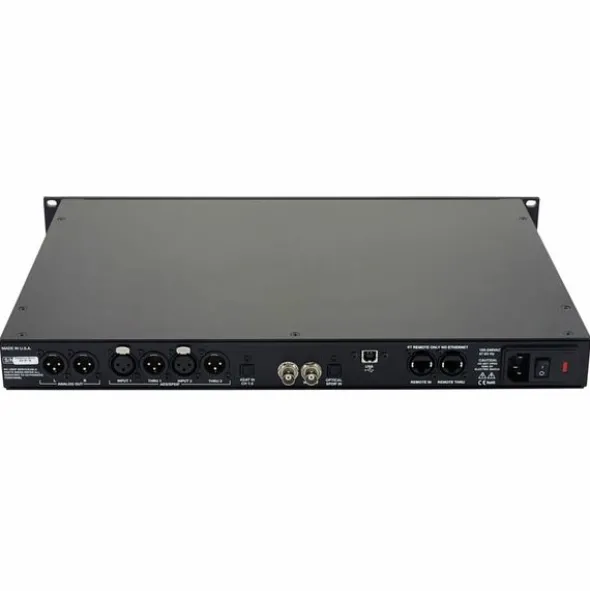

Dangerous Music Convert-2

DA Converter

• Audiophile conversion

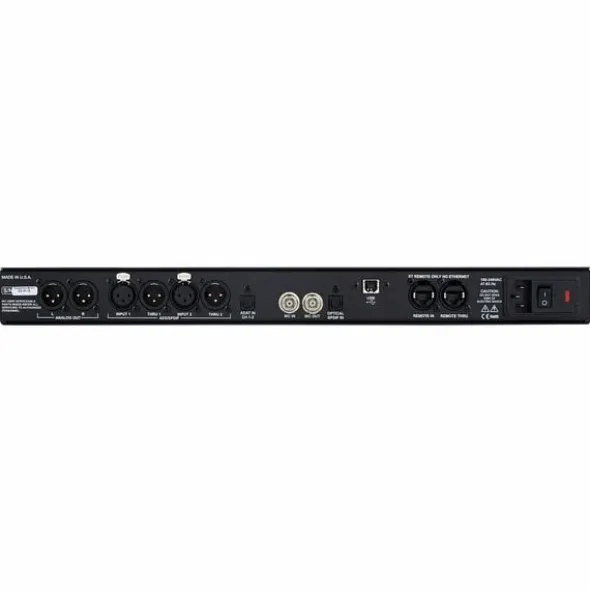

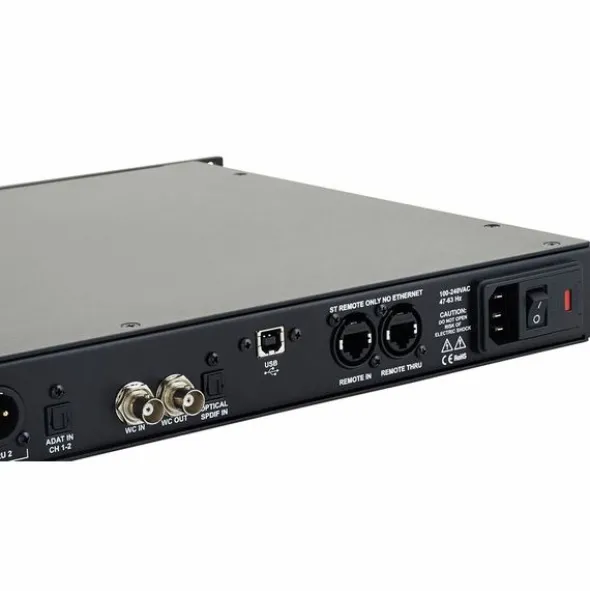

• Five digital input formats: USB, AES, SPDIF, ADAT, Optical SPDIF (Toslink)
• Sampling frequencies from 44.1 to 192 kHz with automatic detection
• High Definition Stereo Reference Monitoring
• Extremely low jitter clock
• USB input for direct DAW connection
• USB digital pass through: When switched to USB, the otherwise unused USB input is fed from the AES-2 input
• Compatible with ST/SR monitor for remote switching

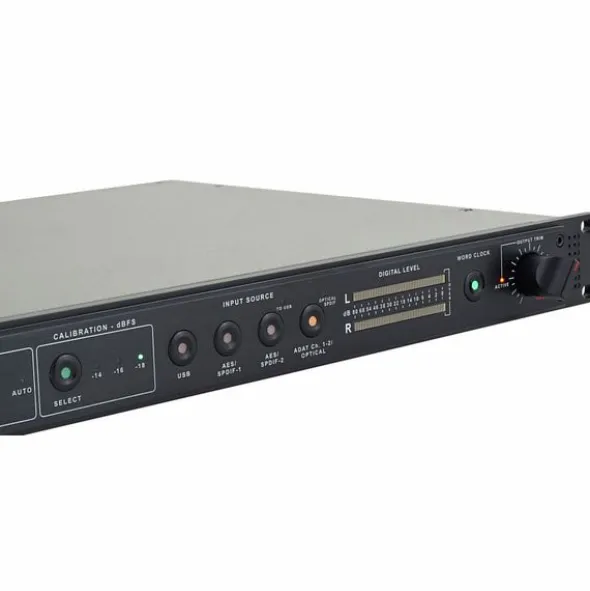

• Precise level display (peak meter), as also used in the Dangerous Master
• Loop through the digital input for external level display

Specifications:

• A-weighted signal-to-noise ratio (20 – 20k Hz): < 114 dB
• Unweighted signal-to-noise ratio (20 – 20k Hz): < 113 dB
• Dynamic range A-weighted (20 – 20k Hz): < 114 dB
• Dynamic range, unweighted (20 – 20k Hz): < 113 dB
• Total harmonic distortion (1 kHz unweighted, 20 – 20k Hz, +4 dBu out): < 94.5 dB (0.00188%)
• Total harmonic distortion (1 kHz unweighted, 20 – 20k Hz, +22 dBu out): < 106.5 dB (0.00048%)
• Frequency response (96 kHz sample rate): DC to 20 kHz: +0 / -0.25 dB, DC to 30 kHz: +0 / -0.5 dB, DC to 40 kHz: +0 / -1.0 dB
• Jitter: 16ps (100 Hz to 40 kHz), 18ps (100 Hz to 1 MHz)
• Crosstalk attenuation (at 1 kHz): > 114 dBu
• Format: 19″ / 1 U

Disponível desdeJulho 2015

número de artigo368417

unidade de venda1peça(s)

Number Of Monitoring Outputs (Stereo)2

Headphone connection0

Talkback FunctionNo

Built-in AD / DA converterYes

Incl. Remote controlNo

Level MeterYes

Number of 2 track inputs0

Summing FunctionNo

Design19″ / 1U

Amount Of Channels2

DA ConversionYes

Max. Resolution Rate in Bits24 bit

Max. Sampling Rate in kHz192 kHz

S/PDIF ConnecorYes

AES/EBU ConnectorYes

ADATYes

Word clockYes

Number of analog inputs0

Number of Analog Outputs2

Special FeaturesDigital Input Pass Thru
