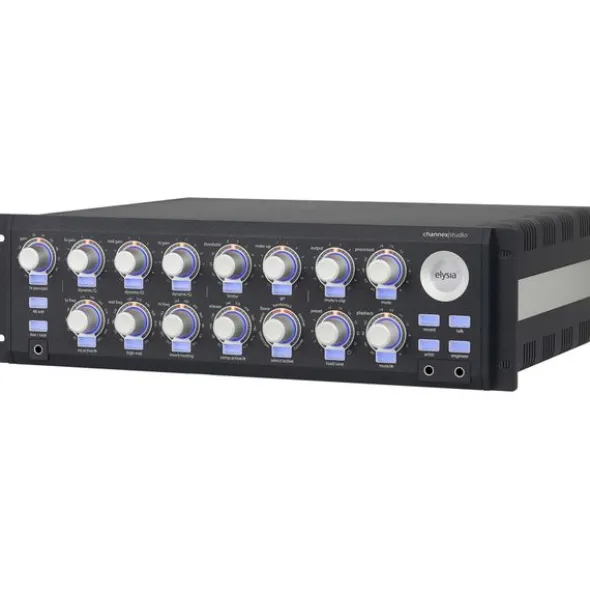

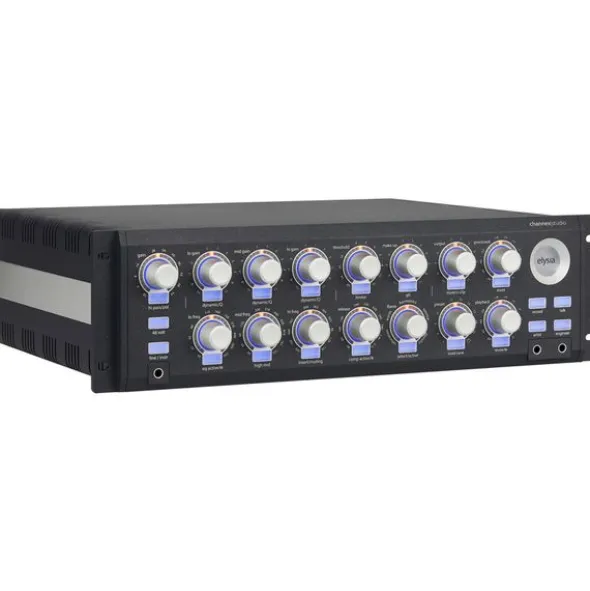

Elysia channex|studio

Analogue 1-Channel Class-A Channel Strip with Recall Function

• High-end preamp, dynamic EQ, compressor and limiter
• 64 dB gain (microphone/line/instrument)
• 4-band dynamic EQ with variable Q factors
• Two-stage compressor/limiter with adjustable attack and release times
• Gain reduction limiter and soft clipper for maximum control over signal dynamics, elysia Shell Metering for displaying level, gain reduction, Q factor and threshold
• Flavour section (5 different tones that can be mixed as desired)
• All parameters can be saved in full (up to 22 presets locally or via the channex
  studio plugin)
• Variable routing of all sections, including hardware insert
• Latency-free monitoring section with 3 independent mixes
• Talkback microphone input with separate preamp and +48V phantom power
• Two headphone amplifiers
• USB and ethernet connectivity
• Format: 19″ / 3 U
• Dimensions (W × H × D): 483 × 133 × 374 mm
• Weight: 6.8 kg

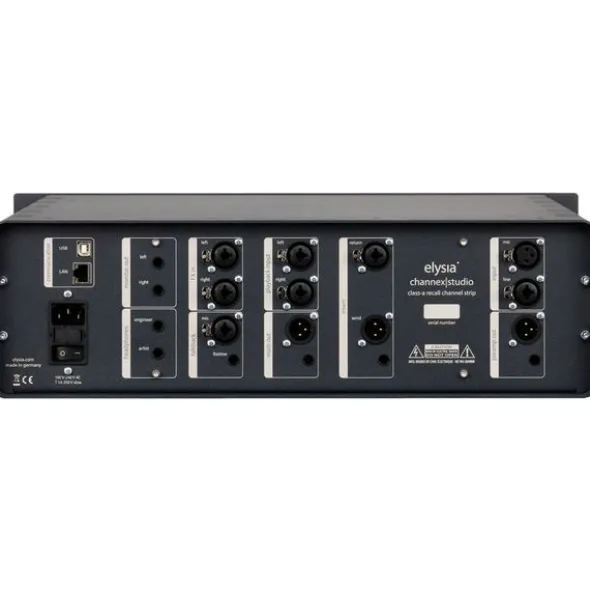

Connections:

• 1 microphone input: XLR
• 1 line/instrument combo input: XLR / 6.3 mm jack
• 1 preamp output: XLR and 6.3 mm jack
• Insert send: XLR and 6.3 mm jack
• Insert return: Combo XLR/6.3 mm jack
• 2 playback innput: Combo XLR / 6.3 mm jack
• 1 main output: XLR and 6.3 mm jack
• 2 FX inputs: Combo XLR / 6.3 mm jack
• 1 Talkback microphone input: Combo XLR / 6.3 mm jack
• Footswitch input: 6.3 mm jack
• 2 monitor outputs: 6.3 mm jack
• 4 stereo headphone outputs: 6.3 mm jack (2x front, 2x rear)
• USB
• RJ45 Ethernet LAN

Disponível desdeJulho 2026

número de artigo634850

unidade de venda1peça(s)

Channels1

Number of microphone inputs1

Instrument inputYes

TubesNo

Compressor/LimiterYes

EqualizerYes

De-EsserYes

Phantom powerYes

Phase ReverseYes

External effect loopsYes

Analogue OutputsXLR,jack

Digitale OutputsNone

Headphone connectionYes

Level MeterYes

Design19″ / 3U
