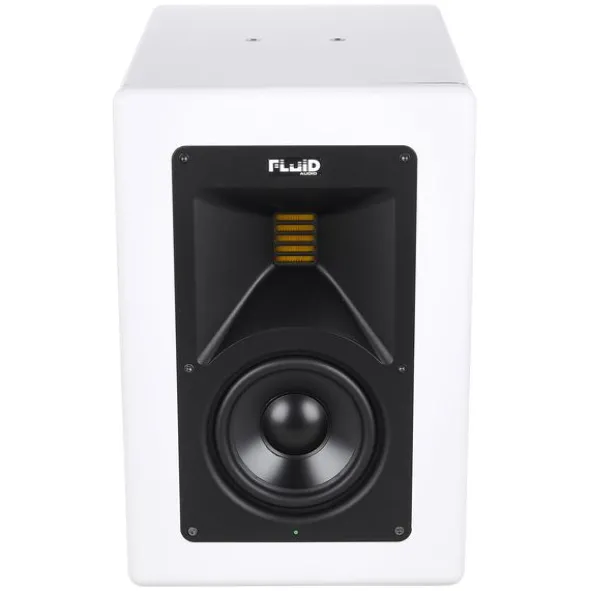

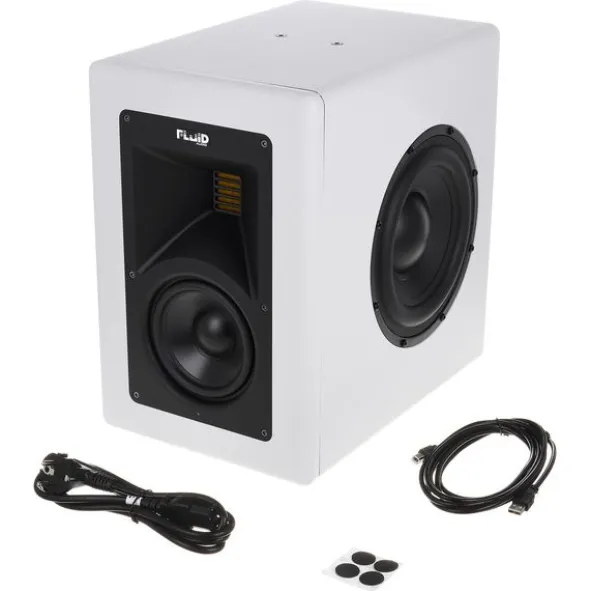

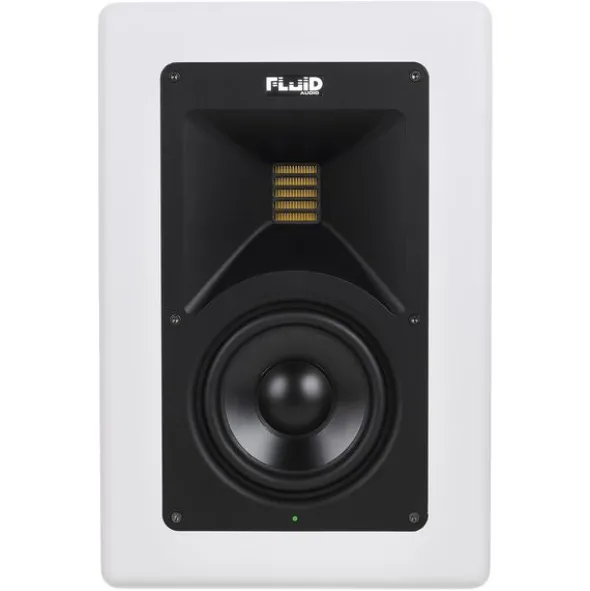

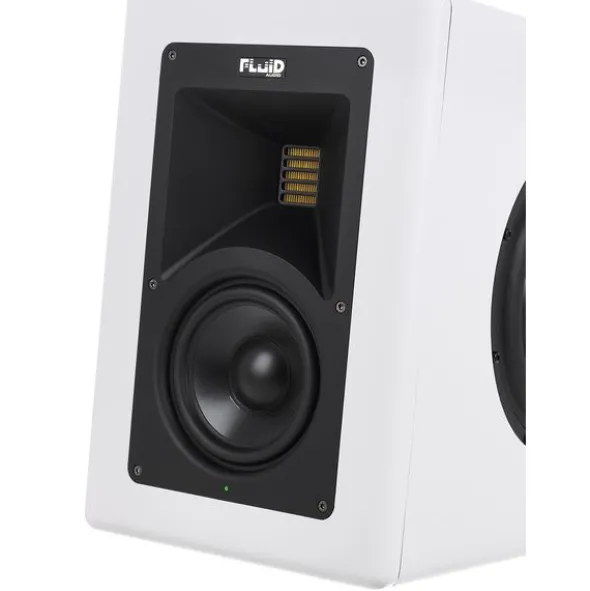

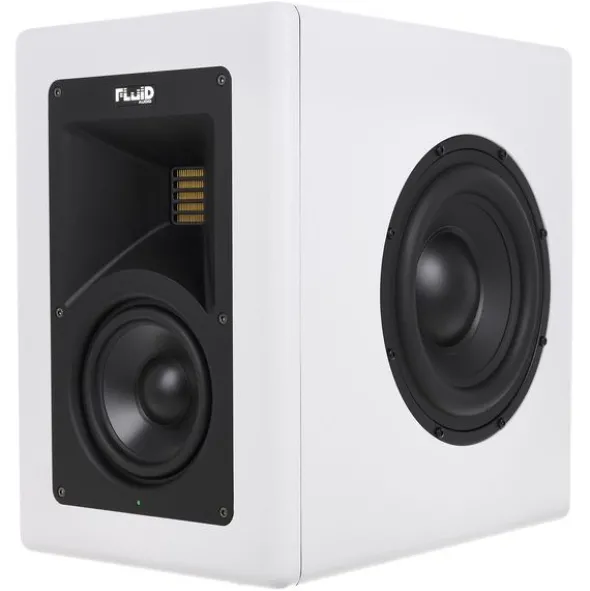

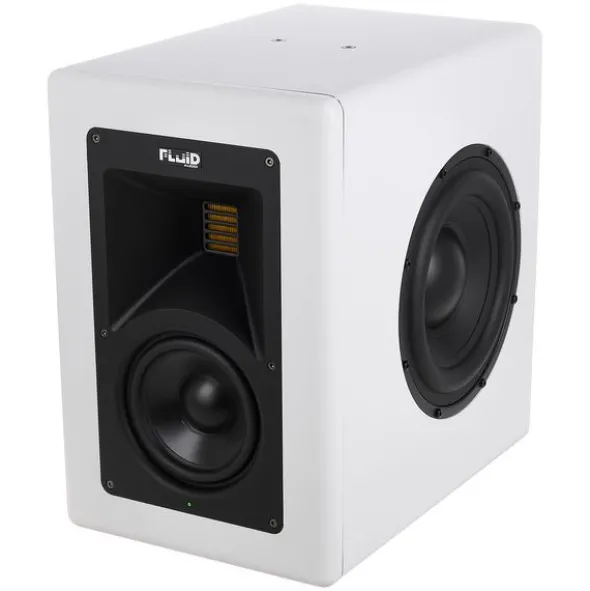

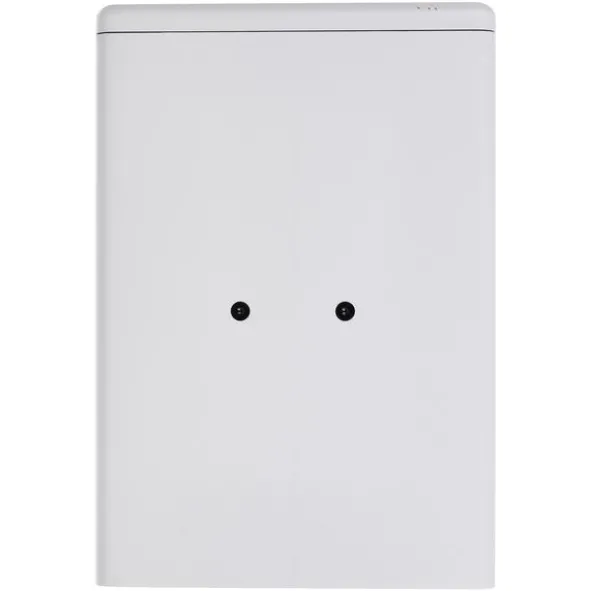

Fluid Audio Image 2 White

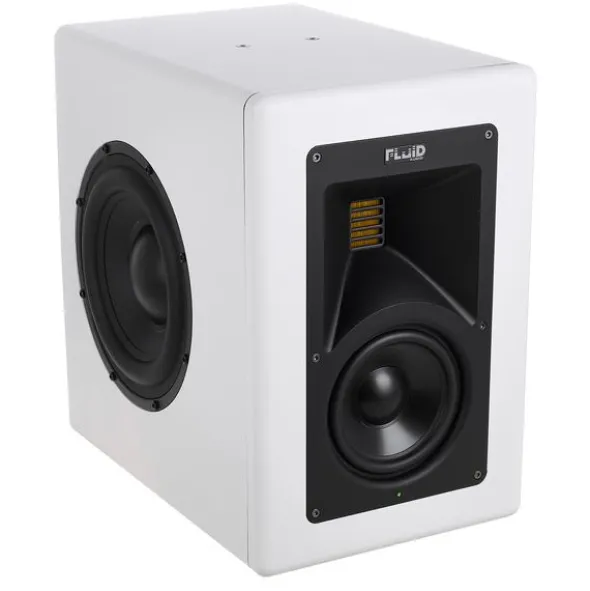

Active 3-Way Monitor

• Closed housing

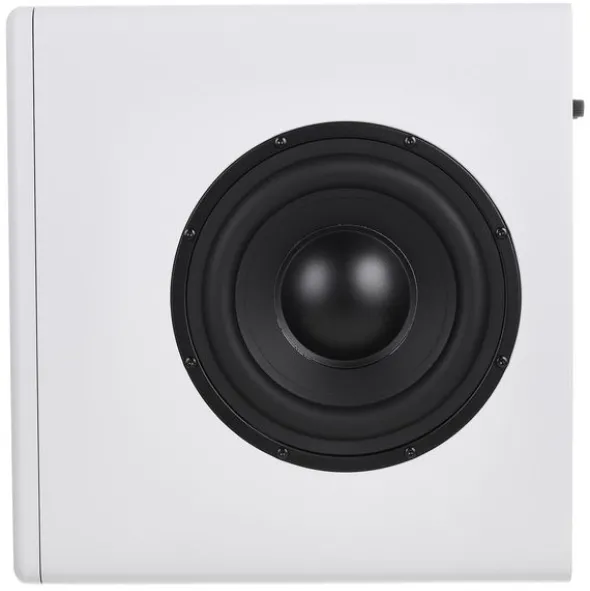

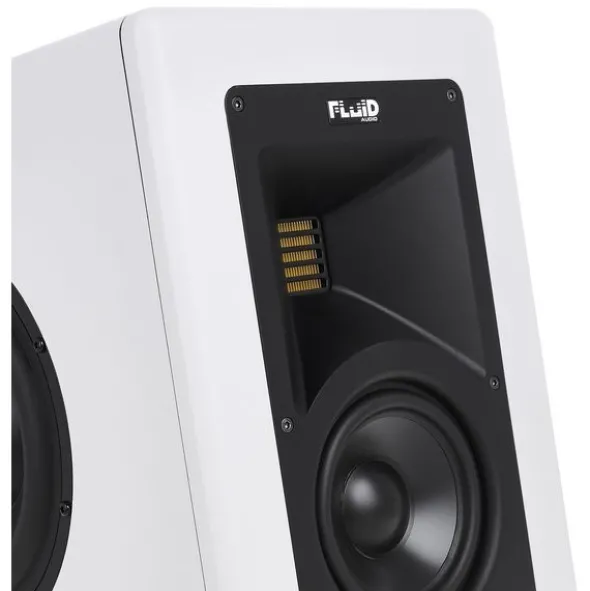

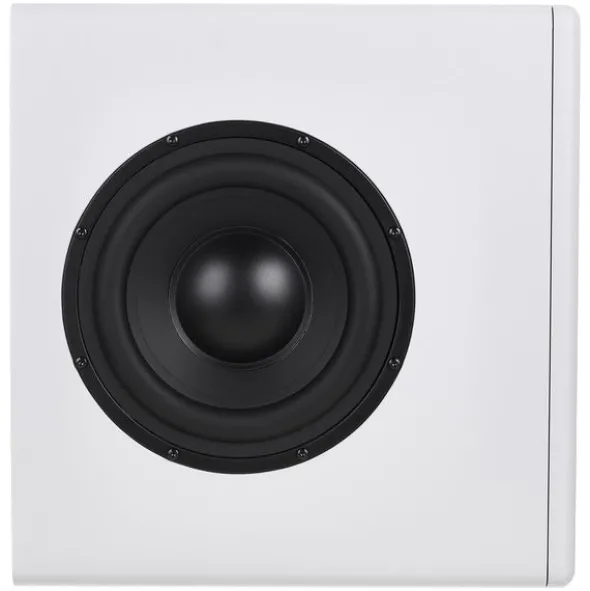

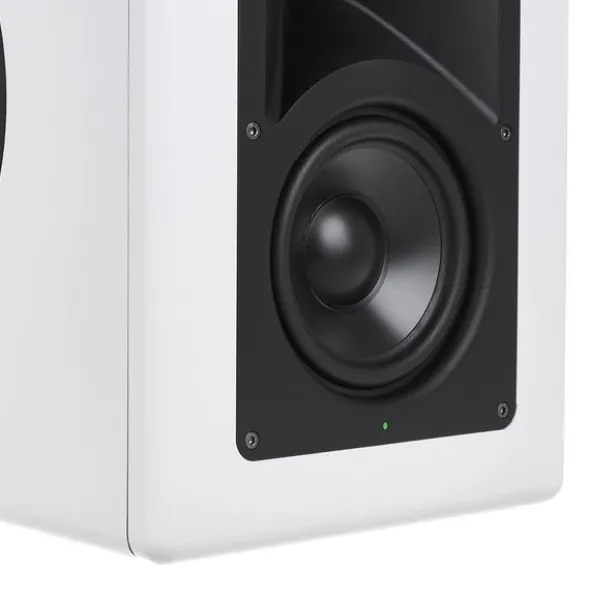

• Equipped with: 2x 8″ woofer, 1x 5″ midrange driver and 1x AMT tweeter (1.1″ x 1.7″)
• Amplifier power RMS: 2x 225 W (woofer – Class D) + 150 W (midrange – Class D) + 75 W (tweeter – Class D)
• Frequency range: 28 – 20,000 Hz (+/-4.6 dB), 80-20,000 Hz (+/-2.0 dB)
• Integrated AD converter with 24 bit / 192 kHz
• Crossover frequency at 115 Hz and 2800 Hz
• Cubemix mode can be activated via the supplied footswitch
• Rotatable baffle for midrange and tweeter (tweeter optionally at the top or bottom)
• Sonarworks integration – SoundID reference profiles can be saved and loaded directly onto the speaker’s DSP
• DCT (DSP Configuration Tool) software for managing room correction profiles
• Dimensions (D x W x H): 351 x 241 x 363 mm
• Weight: 12.6 kg

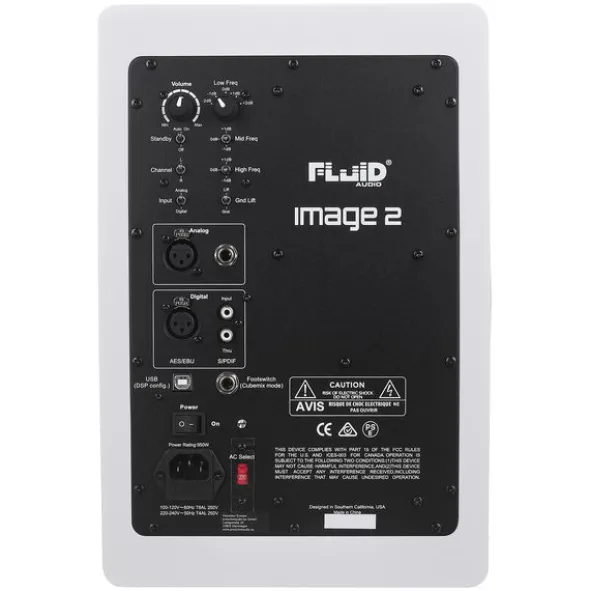

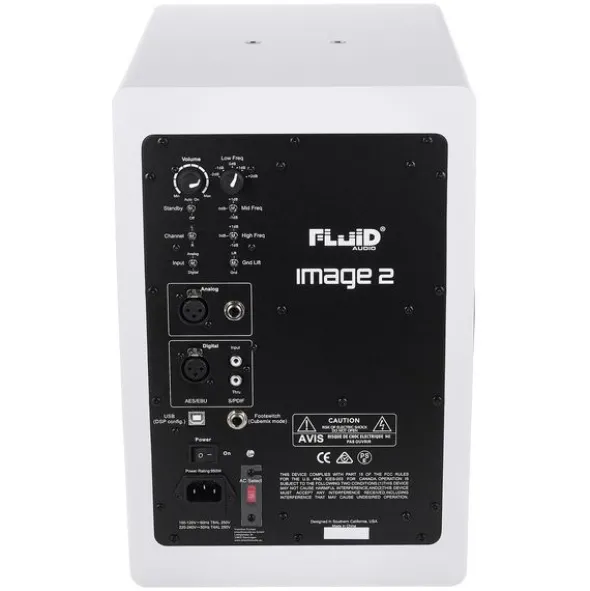

Connections:

• 1 x XLR audio input
• 1 x TRS jack input
• 1 x XLR AES/EBU input
• SPDIF input/output
• USB 2.0 type B (DSP settings)

Disponível desdeAgosto 2025

número de artigo622441

unidade de venda1peça(s)

Woofer Size Class8″

Number of Ways3

Speaker Housing – Woofer SystemClosed

Coaxial SystemNo

Power per Unit675 W

Frequency range28 Hz – 20000 Hz

Analogue XLR InputYes

Analogue Input(Jack)Yes

Analogue Input (Mini Jack)No

Analogue Input (RCA)No

Digital inputYes

Manual Sound AdjustmentYes

DSP Room Correctionoptional with Sonarworks SoundID

Construction Typ – Bass SystemClosed

Power per Piece675 W

Frequency Range from28 Hz

Frequency Range to20000 Hz

Weight12,6 kg

Analog XLR InputYes

Analog TRS InputYes

Digital InputYes

Manual EQYes

Woofer2x 8″

Mid-Range Driver5″

Midrange Speaker5″

TweeterAMT

Height351 mm

Width241 mm

Depth363 mm
