Fluid Audio Image 2

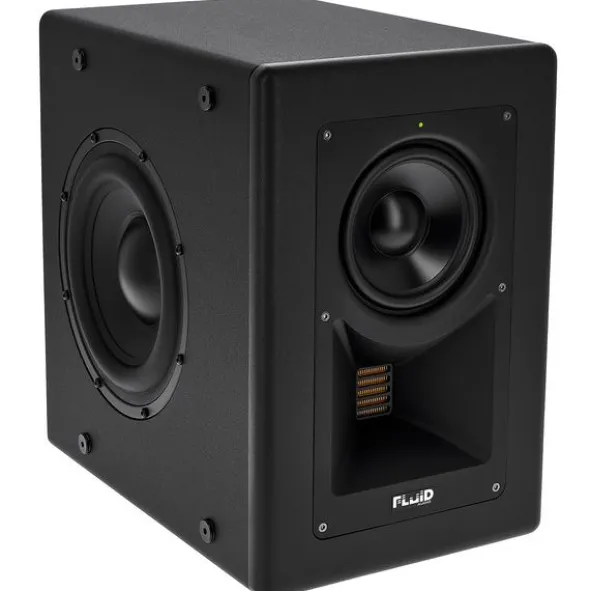

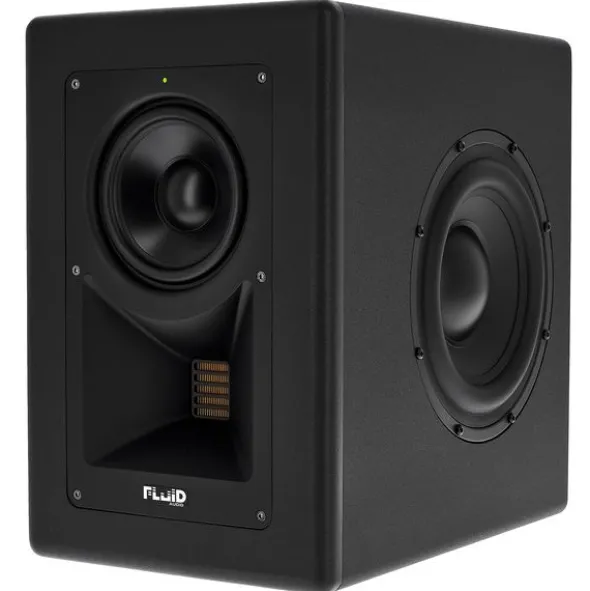

Active 3-Way Monitor

• Closed housing

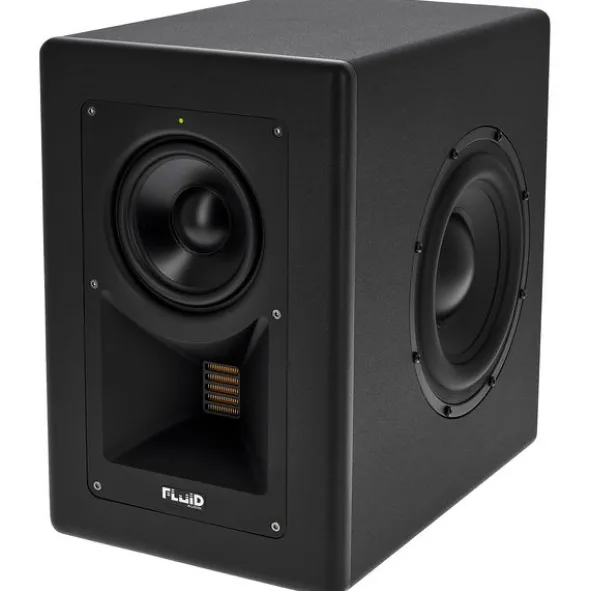

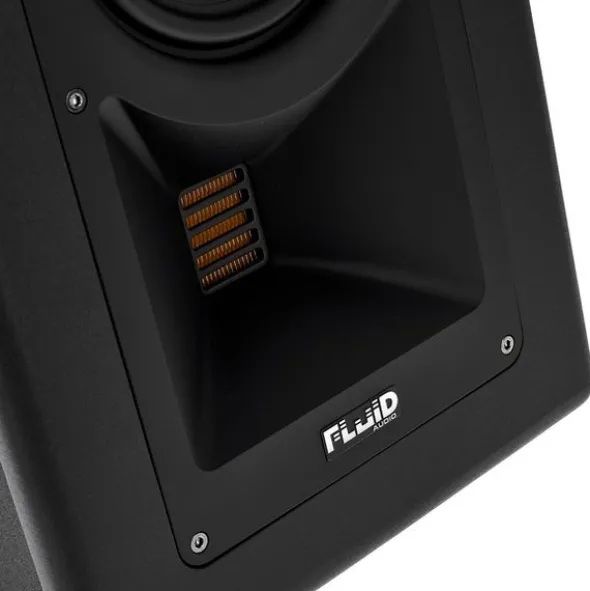

• Speakers: 2x 8″ woofer, 5″ midrange and 1x AMT tweeter (1.1″ x 1.7″)
• Amplifier power RMS: 2x 225W (woofer – Class D) + 150W (midrange – Class D) + 75W (tweeter- Class D)
• Frequency range: 28 – 20.000 Hz (+/-4.6db), 80 – 20.000 Hz (+/-2.0db)
• Built-in AD-converter with 24-bit / 192kHz
• Crossover frequency at 115 Hz and 2800 Hz
• Cubemix mode can be activated via supplied footswitch

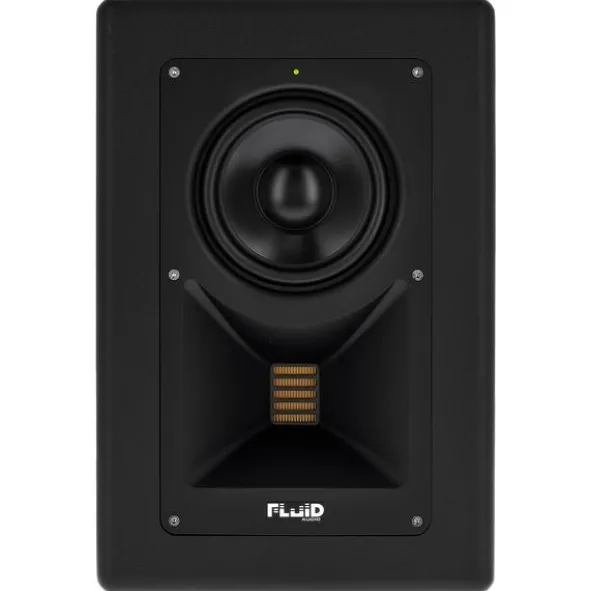

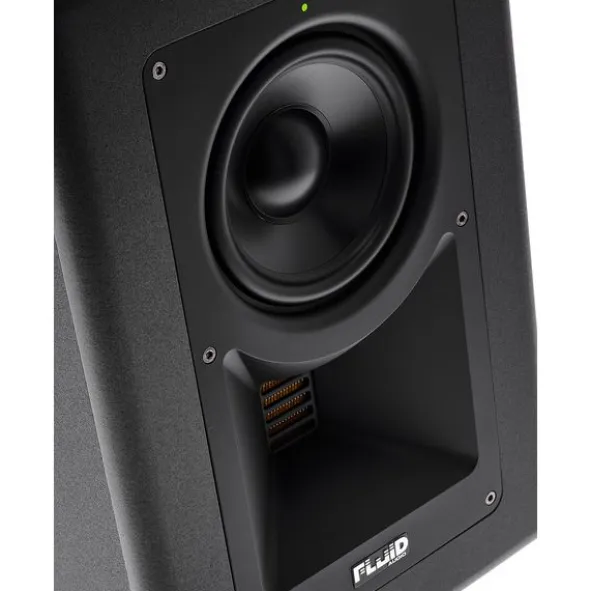

• Rotatable baffle for midrange and tweeter (tweeter optionally on top or bottom)
• Sonarworks integration – SoundID Reference Profiles can be saved and loaded directly on the speaker’s DSP
• DCT (DSP Configuration Tool) software for managing room correction profiles

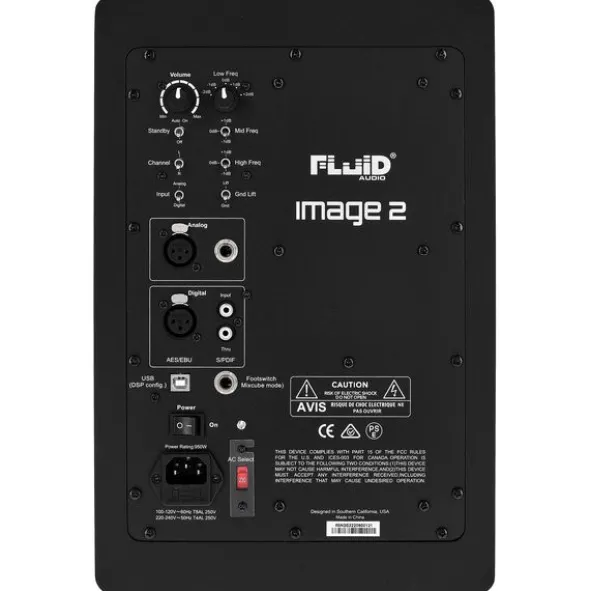

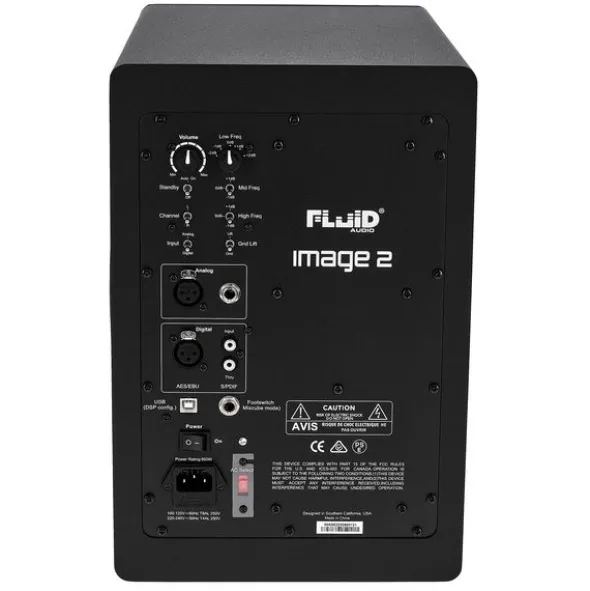

• 1 XLR analogue input
• 1 TRS jack input
• 1 XLR AES/EBU input
• SPDIF input/output
• USB 2.0 type B connector (DSP settings)
• Dimensions (H x W x D): 351 x 241 x 363 mm
• Weight: 12.6 kg

Disponível desdeFevereiro 2023

número de artigo560446

unidade de venda1peça(s)

Woofer Size Class8″

Number of Ways3

Speaker Housing – Woofer SystemClosed

Coaxial SystemNo

Power per Unit675 W

Frequency range28 Hz – 20000 Hz

Analogue XLR InputYes

Analogue Input(Jack)Yes

Analogue Input (Mini Jack)No

Analogue Input (RCA)No

Digital inputYes

Manual Sound AdjustmentYes

DSP Room Correctionoptional with Sonarworks SoundID

Construction Typ – Bass SystemClosed

Power per Piece675 W

Frequency Range from28 Hz

Frequency Range to20000 Hz

Weight12,6 kg

Analog XLR InputYes

Analog TRS InputYes

Digital InputYes

Manual EQYes

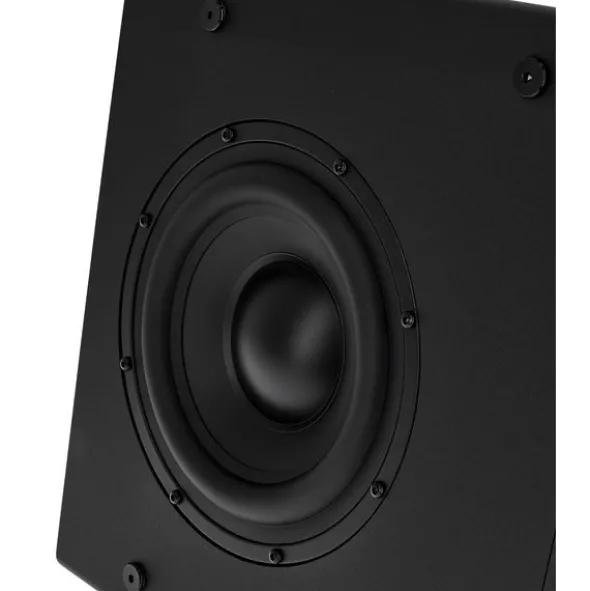

Woofer2x 8″

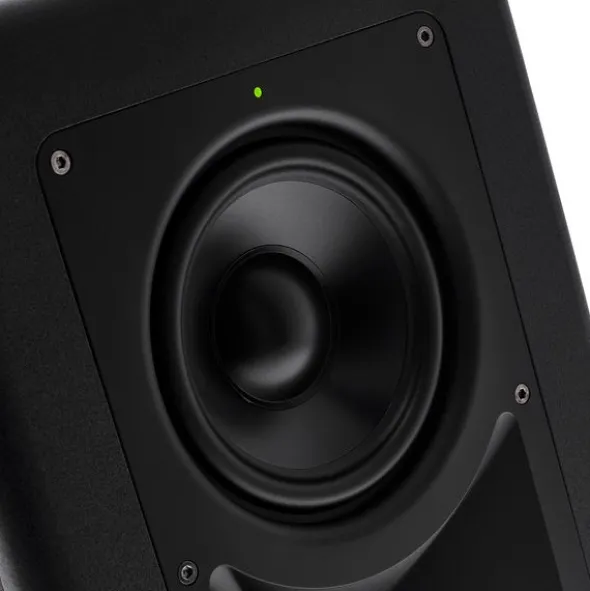

Mid-Range Driver5″

Midrange Speaker5″

TweeterAMT

Height351 mm

Width241 mm

Depth363 mm
