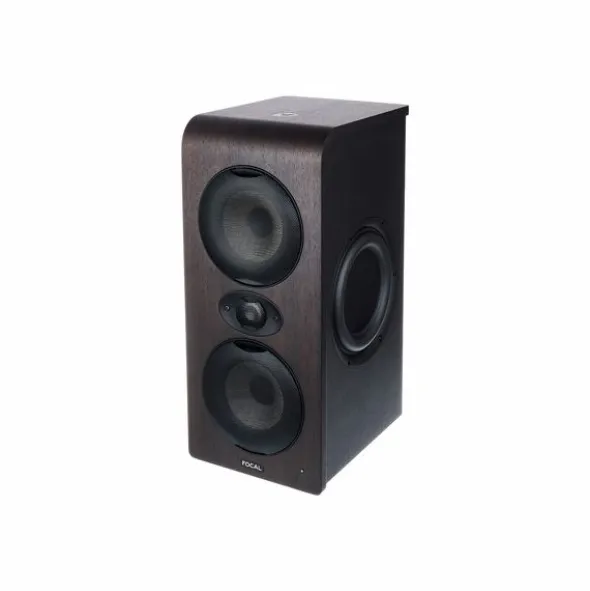

Focal Shape Twin B-Stock

Active Nearfield Monitor

• Tweeter with a low directivity for a flexible listening position
• Closed design with 2 passive diaphragms for easy positioning anywhere near a wall
• 2.5-Way design for optimal control of the basses and lower midrange
• Optimal integration via comprehensive settings
• Flax sandwich diaphragm for a controlled and defined bass reproduction and natural and detailed lower and upper mids

Technical specifications:

• Frequency response (+/- 3 dB): 40 Hz to 35 kHz
• Max. sound pressure level (music): 110.5 dB SPL (sound pressure level) (peak @ 1m)
• Electronics inputs/impedance type: XLR: balanced, 10 kOhm
• RCA connectors: unbalanced, 10 kOhm with compensation of the input sensitivity
• Power amp for the mid- and bass range: 2x 80W, Class AB
• Power amp for the treble range: 50 W, Class AB
• Automatic standby mode
• Shutdown after about 30 minutes without an input signal
• Exit standby mode: Via signal > 3 mV
• Power supply voltage: 220 to 240 V (fuse: T2AL/250 V) or 100 to 120 V (fuse: T3.15AL/250 V)
• Connections: IEC socket and separate power cable
• High-pass filter: Variable, range 45/60/90 Hz
• Bass level (0 – 250 Hz): Variable, +/- 6 dB
• Mid/Bass (160 Hz, Q = 1): Variable, +/- 3 dB
• Treble level (4.5 – 35 kHz): Variable, +/- 3 dB
• Power on/off: ON/OFF switch on the back
• Power consumption in standby mode: < 0.5 W
• LED for power on/off and standby
• Woofer: 2 x 5″ (13 cm) flax cone woofer
• Tweeter: 1″ (25 mm) aluminium/magnesium with M-profile
• Housing structure: 15 mm MDF
• Finish: Vinyl, walnut veneer, black lacquer
• Dimensions with 4 rubber feet (H x W x D): 478 x 211 x 279 mm
• Weight: 11 kg

Disponível desdeMarço 2018

número de artigo443155

unidade de venda1peça(s)

Woofer Size Class5″

Number of Ways3

Speaker Housing – Woofer SystemPassive Men

Coaxial SystemNo

Power per Unit210 W

Frequency range40 Hz – 35000 Hz

Analogue XLR InputYes

Analogue Input(Jack)No

Analogue Input (Mini Jack)No

Analogue Input (RCA)Yes

Digital inputNo

Manual Sound AdjustmentYes

DSP Room Correctionnone

Woofer2x 5″

Tweeter1″

Height478 mm

Width211 mm

Depth279 mm

Weight11 kg
