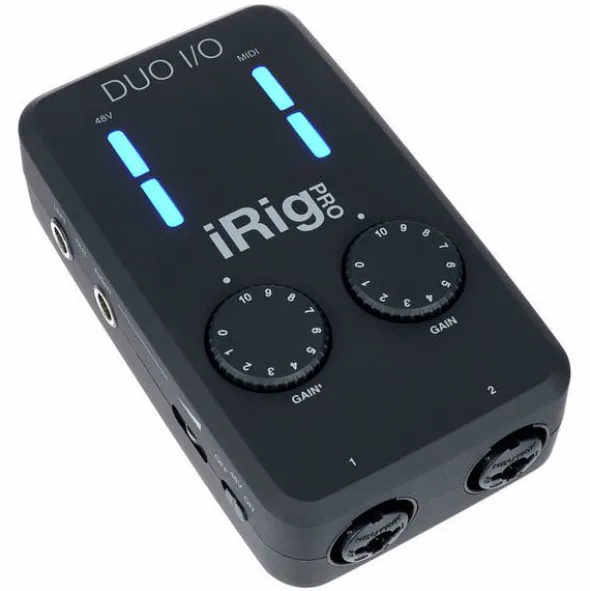

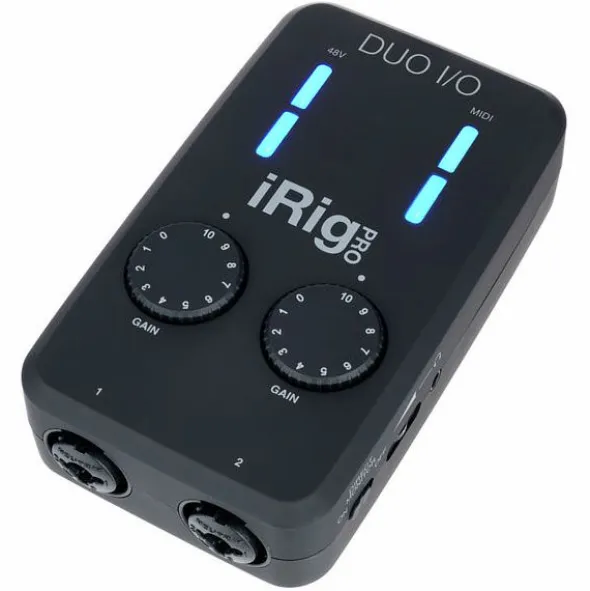

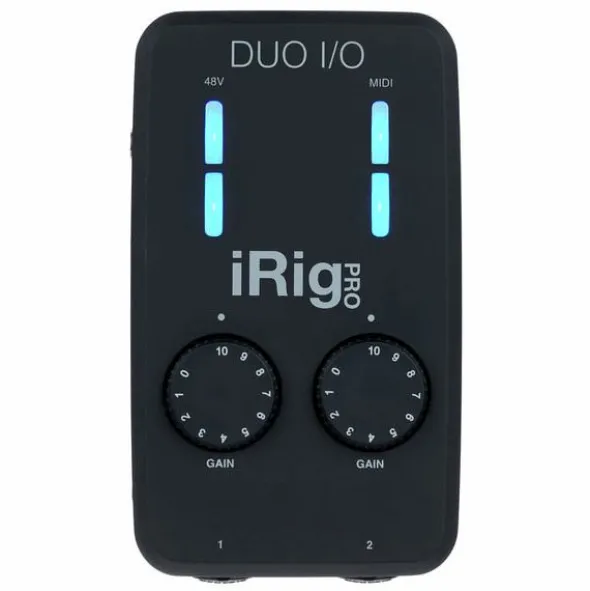

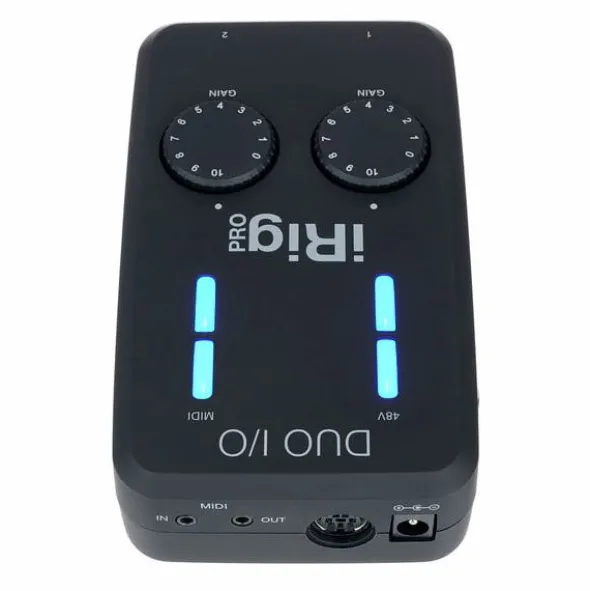

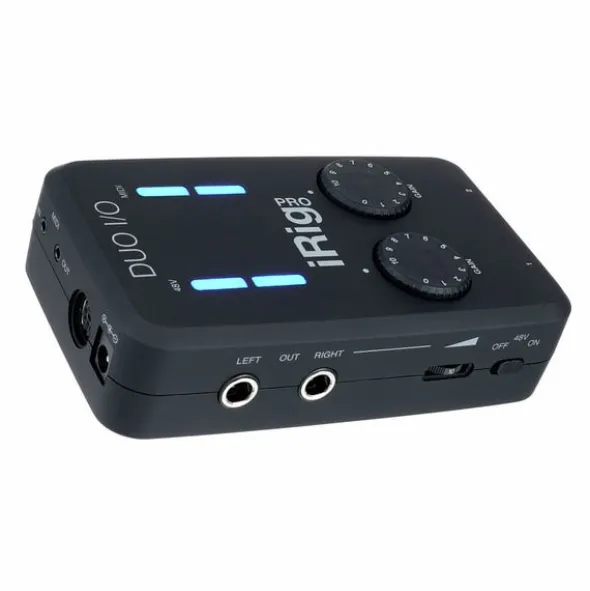

IK Multimedia iRig Pro Duo I/O

Audio Interface for iPhone, iPad, Android, Mac and PC

• Very compact design for portable use

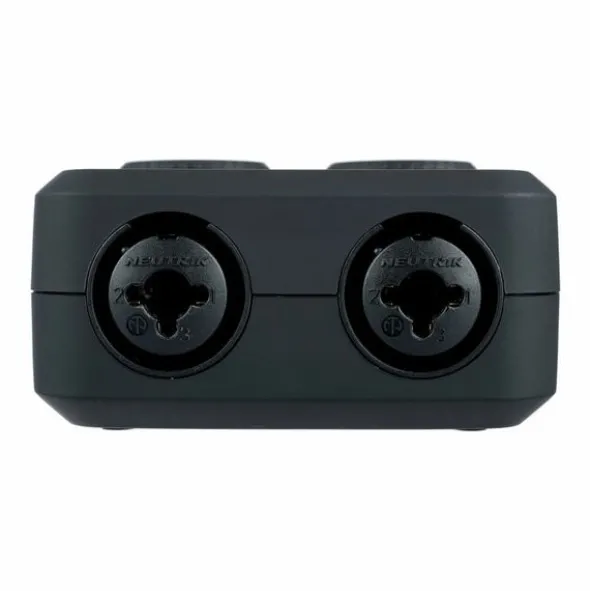

• 2 Combined mic / instrument inputs via combination jacks

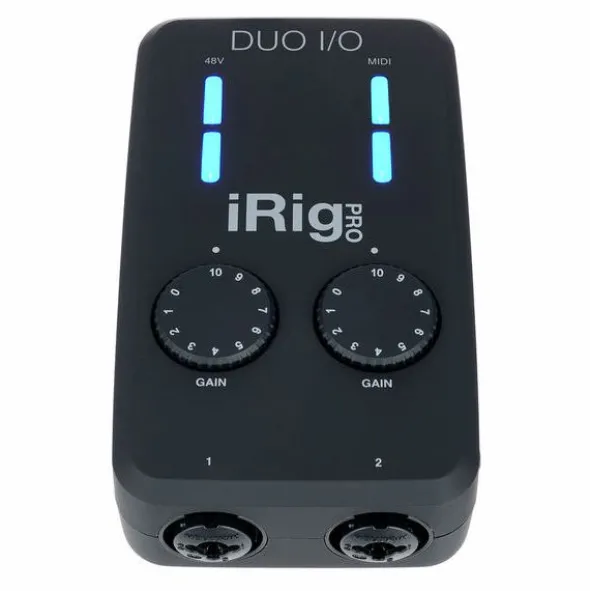

• 2 High-quality microphone preamplifiers with individually adjustable gain and phantom power

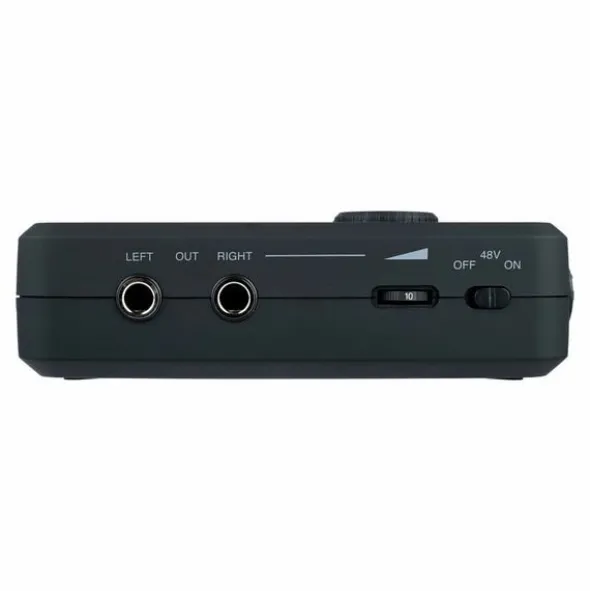

• 2 Balanced line outputs

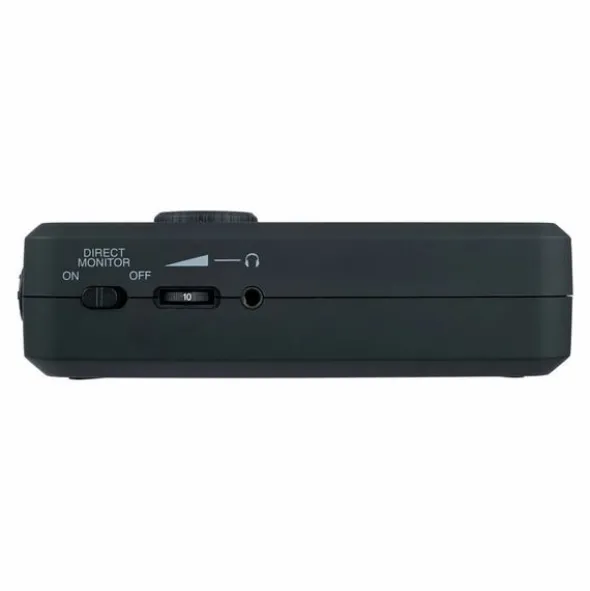

• Headphone output with volume control on 3.5 mm stereo mini jack
• Switchable direct monitoring
• AD/DA conversion: 24bit / 48kHz
• MIDI in/out
• Power supply via USB

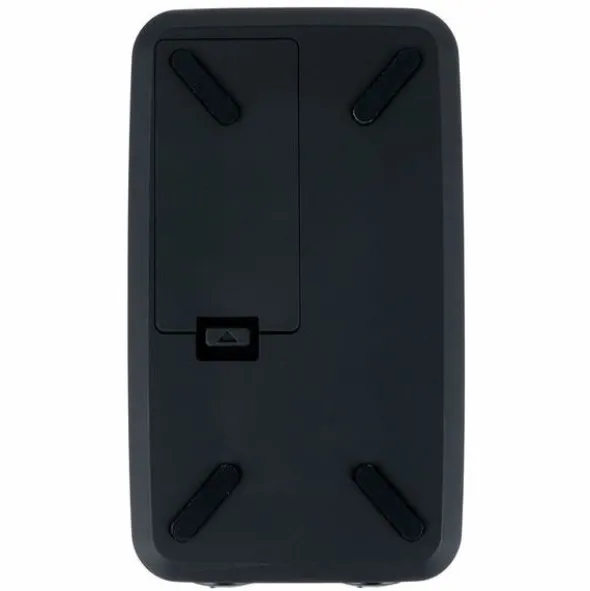

• 9 Volt power supply (not included) or batteries (2x AA)
• Microphone inputs: 2 x XLR balanced
• +48V +/-4V phantom power
• 50 dB gain
• Impedance: 3.2 ohms
• Frequency range: 20 – 20000 Hz
• Noise level -103 dB (A)
• Instrument inputs: 2x 6.3 mm jack unbalanced
• Gain: 27 dB
• Impdeance: 1 ohms
• Frequency range: 5 – 21000 Hz
• Noise level -104 dB (A)
• Line outputs: 2x 6.3 mm jack balanced, max. Output level: 16 dBu / 600 ohms
• Frequency range: 10 – 21000 Hz
• Dynamic range: 106 dB-A

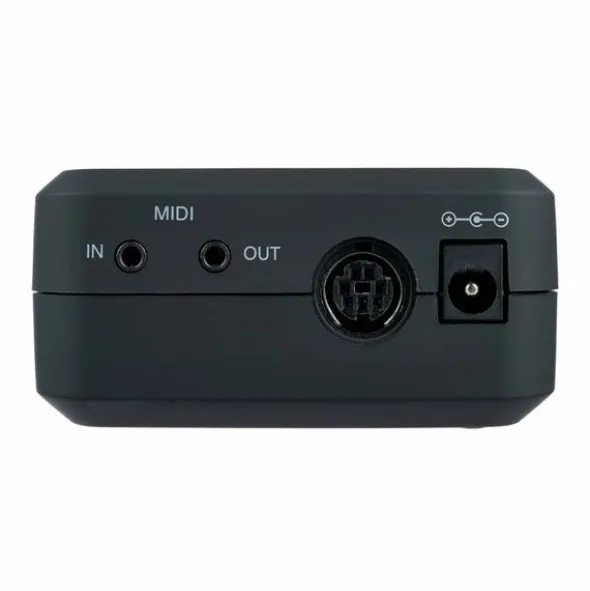

• MIDI input and output: 2 x 2.5 mm mono jack
• Power supply connection 9 V DC 500 mA
• Device connection mini-DIN
• Dimensions: 127 x 75 x 37 mm
• Weight: 197g (incl. batteries)
• System requirements: iOS 7.0, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPad Pro 10.5-inch, iPad Pro 12.9-inch (2nd generation), iPad Pro 9.7-inch, iPad Pro 12.9-inch (1st generation), iPad Air 2, iPad Air, iPad mini 4, iPad mini 3, iPad mini 2, iPad (6th generation), iPad (5th generation), iPod touch (6th generation), from Android 5 on devices with USB digital audio functions, from Win7, from Mac OS X 10.6

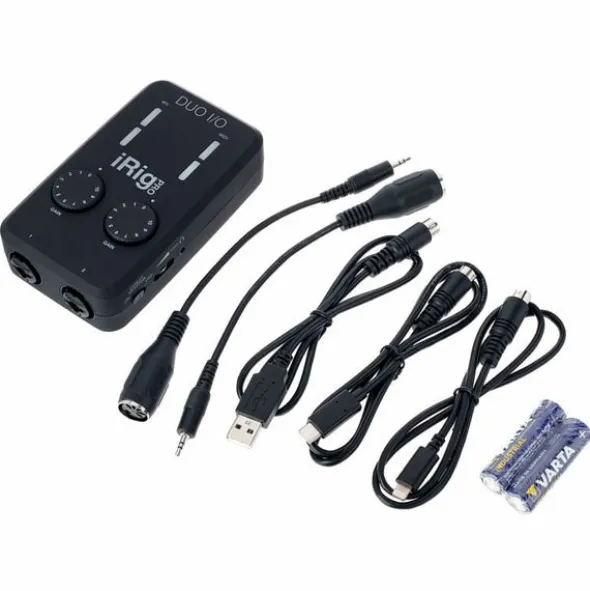

Delivery contents:

• iRig Pro Duo
• Lightning on mini DIN cable 0.6 m
• USB-C on mini-DIN cable 0.6 m
• USB to mini-DIN cable 0.6 m
• 2 x 2.5mm jack on MIDI cable 0.1 m
• 2 x 1.5 V AA batteries
• AmpliTube 4 and AmpliTube 5 SE

Disponível desdeFevereiro 2020

número de artigo484423

unidade de venda1peça(s)

Recording / Playback Channels2×2

Number of Mic Inputs2

Number of Line Inputs2

Instrument Inputs2

Number of Line Outs2

Headphone Outs1

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsLightning

MIDI interfaceYes

Word ClockNo

Max. Sampling Rate in kHz48 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredYes

Incl. power supplyNo

USB Version1.1

Width127 mm

Depth75 mm

Height37 mm

Connection FormatMini DIN-USB Type A, Mini DIN-USB Type C, Mini DIN-Lightning

TypeAudio Interface

Included in deliveryLightning to Mini-DIN Cable, USB-A to Mini-DIN Cable, USB-C to Mini-DIN Cable, 2x 2.5mm TRS MIDI-Adaptor, 2x 1,5V AA Batteries

Zero latency monitoringYes
