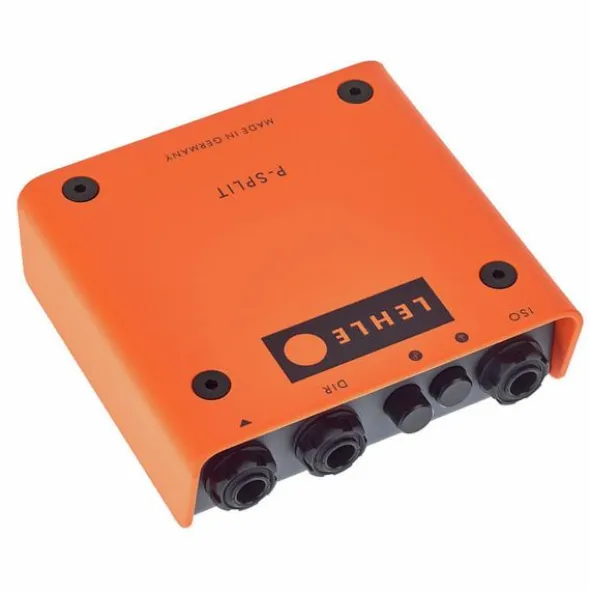

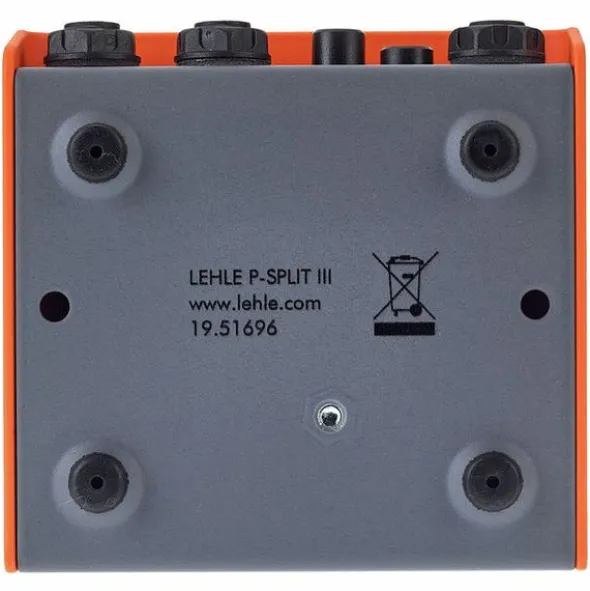

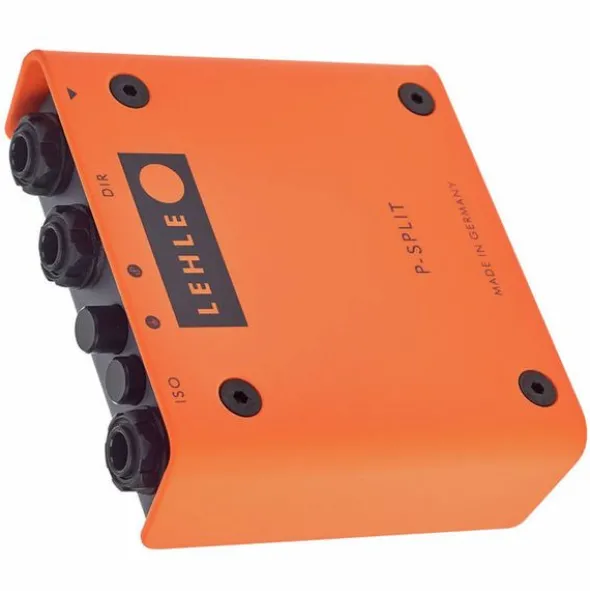

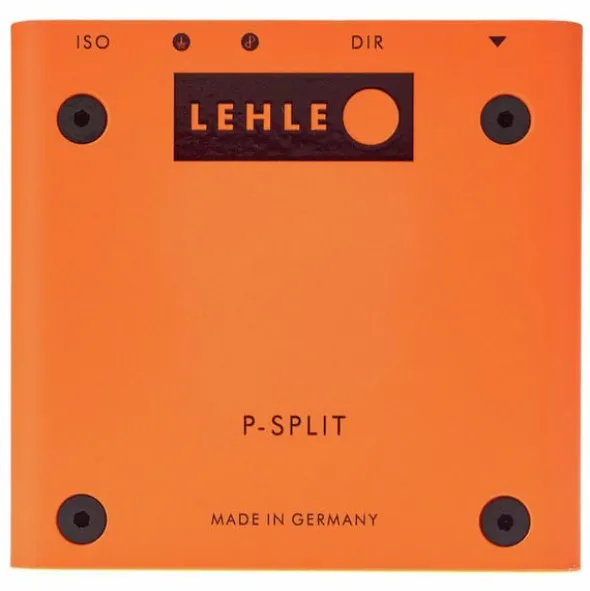

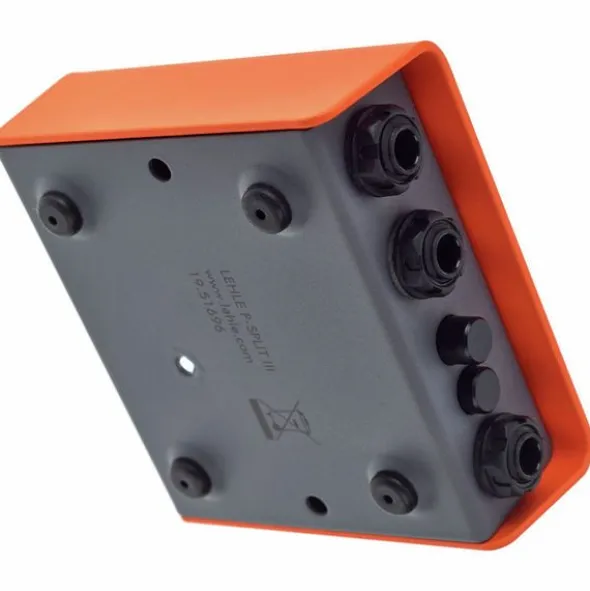

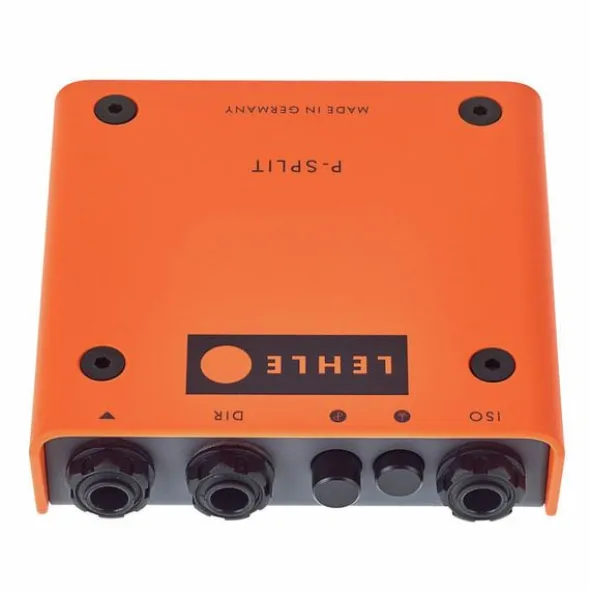

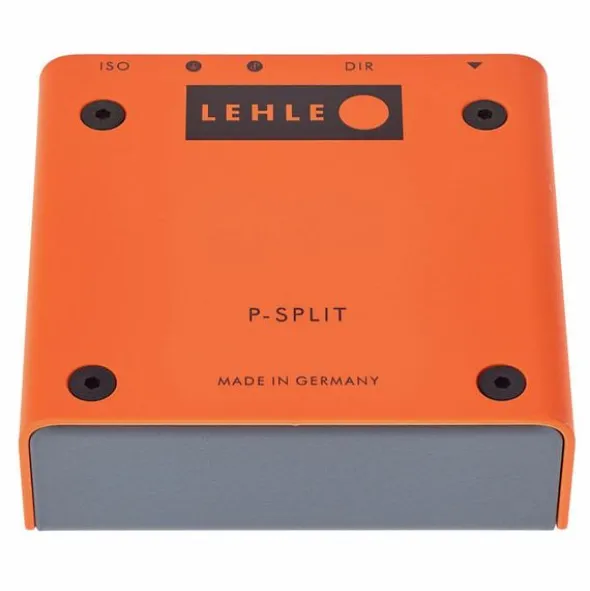

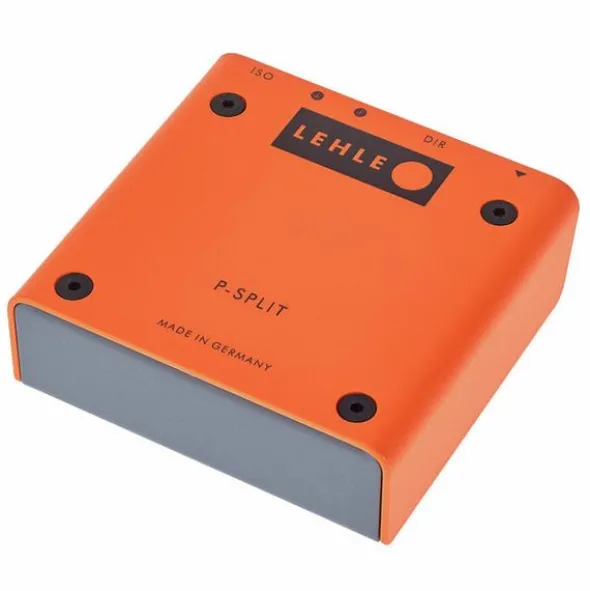

Lehle P-Split III

Splitter, DI box and problem solver

• High-impedance Lehle Transformer HZ with phase and ground switch
• Can be used unbalanced or balanced
• passive – does not require a power supply
• Applications: Split an input signal to the two outputs with galvanic isolation (no ground loop)
• Eliminates unwanted hum noises
• Passive Mono Summer for stereo signals

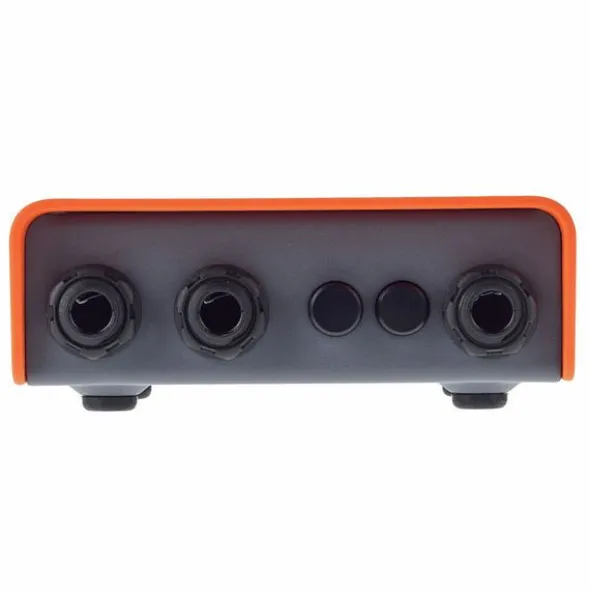

• Input: 6.3 mm stereo jack
• DIR output: 6.3 mm stereo jack
• ISO output: 6.3 mm stereo jack
• Dimensions (W x D x H): 92 x 90 x 37 mm
• Weight: 375 g
