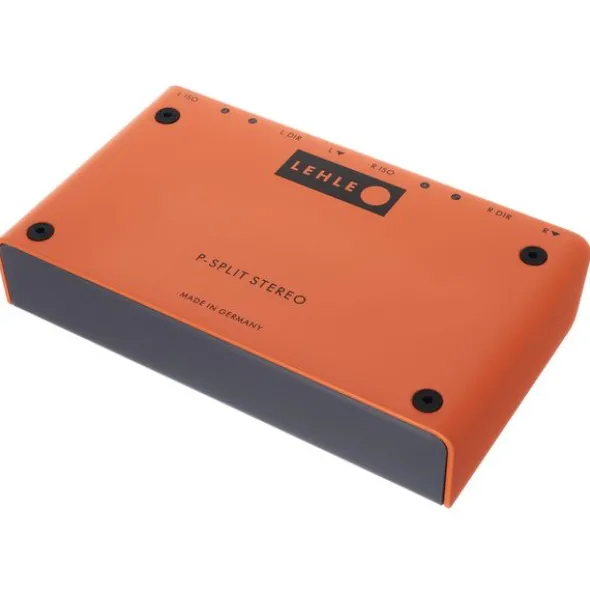

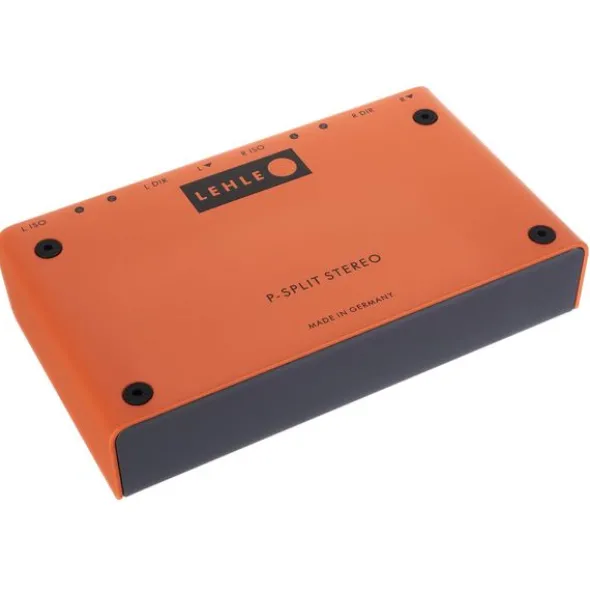

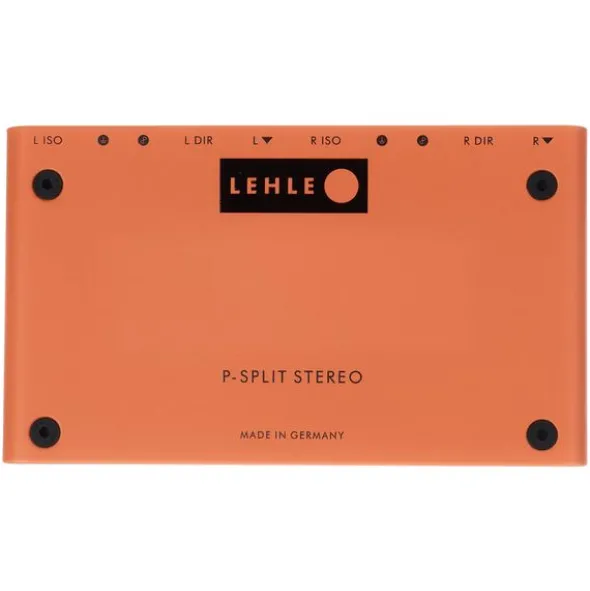

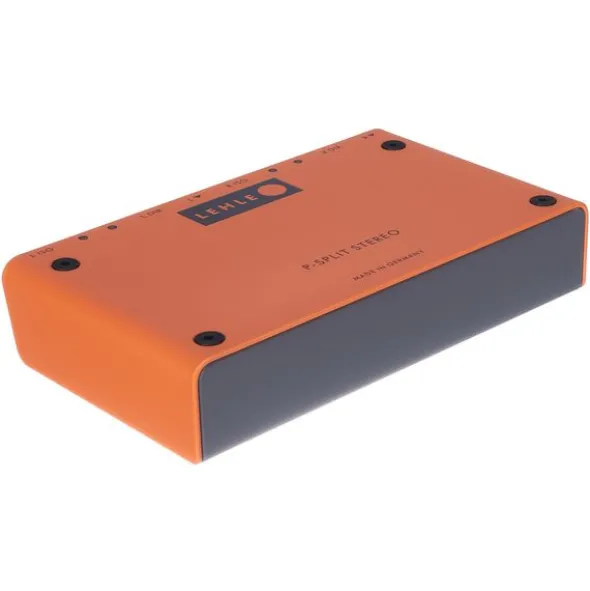

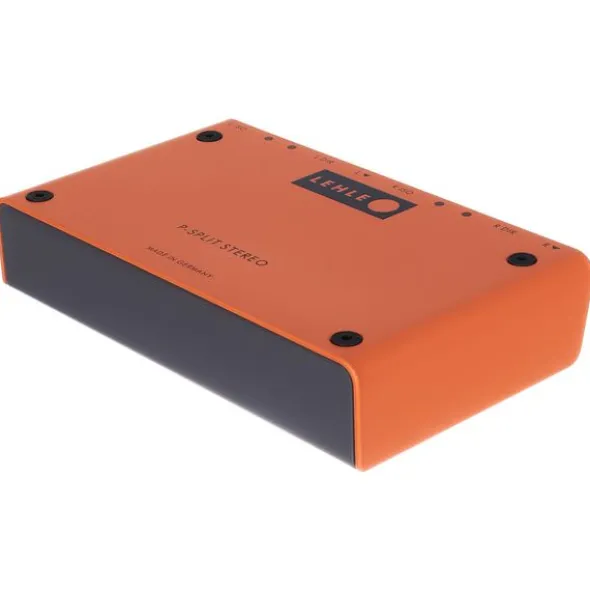

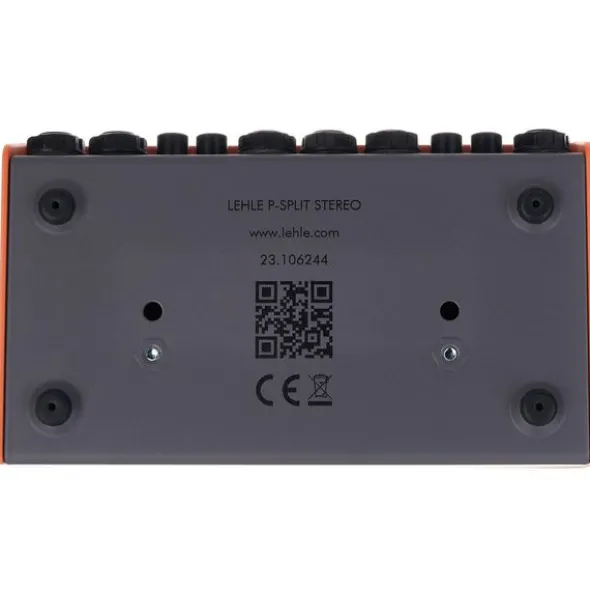

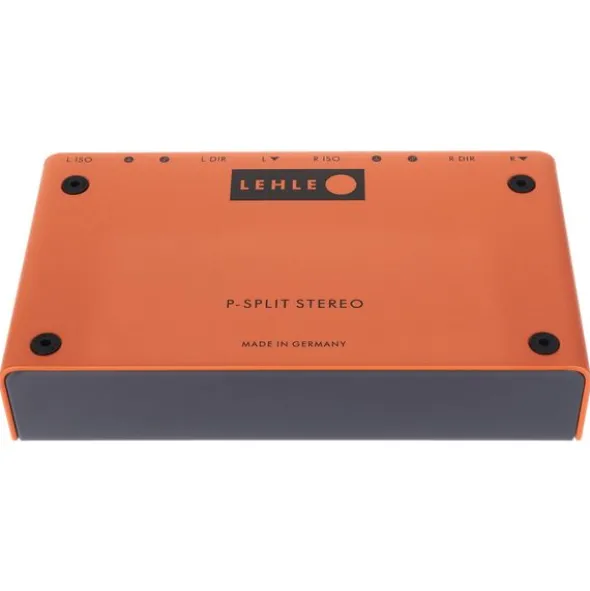

Lehle P-Split Stereo

Splitter, DI Box and Problem Solver

• Two high-impedance Lehle Transformer HZs, each with phase and ground switch
• Can be used as unbalanced or balanced
• Passive – requires no power supply
• Applications: Isolating a stereo signal (e.g. two amplifiers can be used in stereo and at the same time the stereo signal can be sent to a mixing console or audio interface of the DAW).
• Splitting a stereo input signal to the galvanically isolated outputs (without hum loop)
• Elimination of unwanted hum noises
• Dimensions (W x D): 204 x 152 mm
• Weight: 614 g

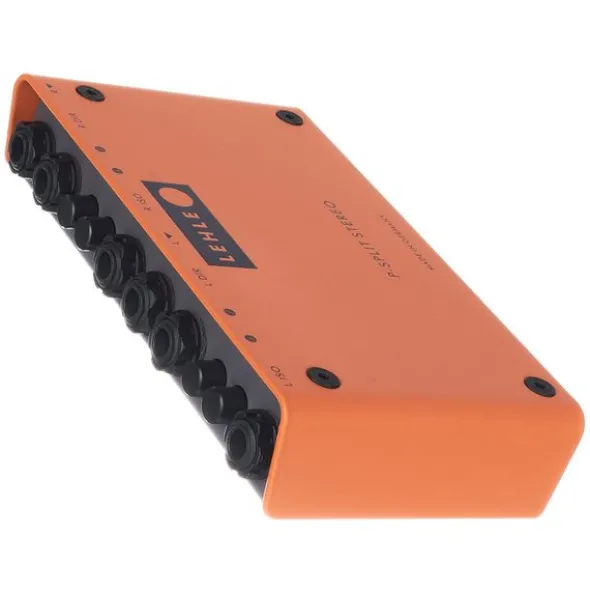

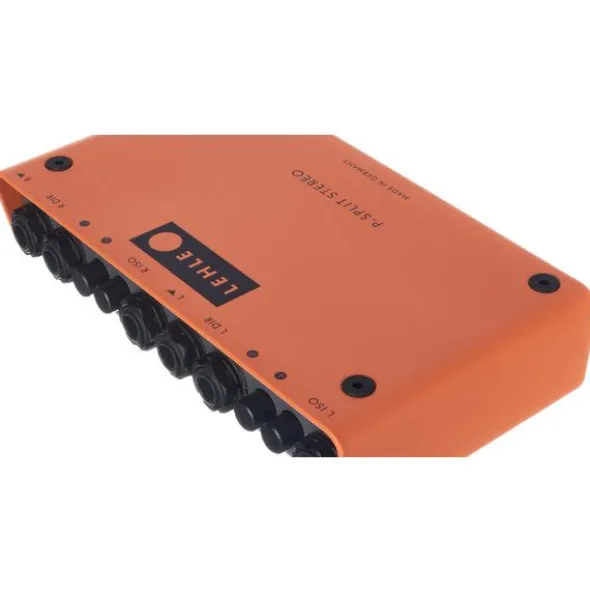

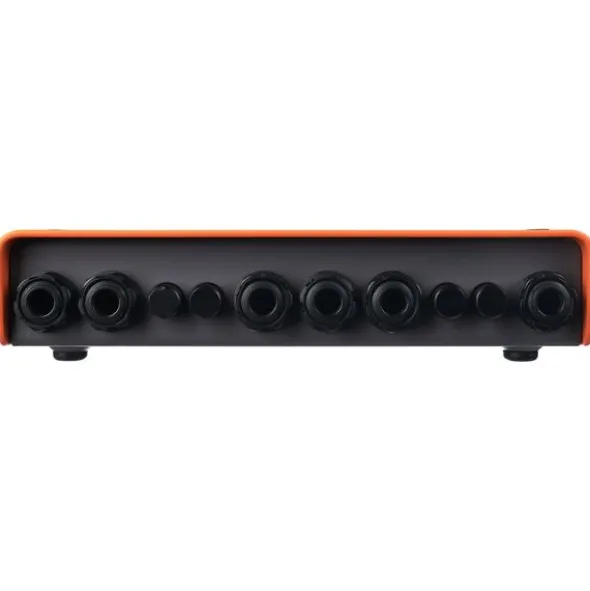

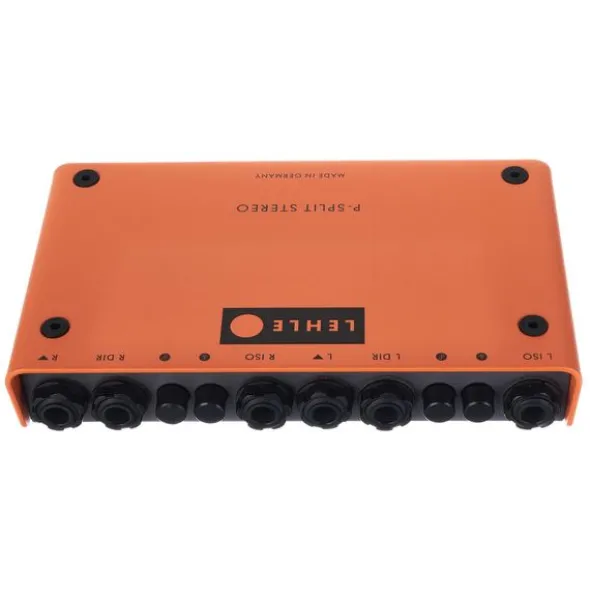

Connections:

• Input L (6.3 mm stereo jack)
• Input R (6.3 mm stereo jack)
• DIR Output L (6.3 mm stereo jack)
• ISO Output L (6.3 mm stereo jack)
• DIR Output R (6.3 mm stereo jack)
• ISO Output R (6.3 mm stereo jack)

Disponível desdeMarço 2023

número de artigo562275

unidade de venda1peça(s)

TypeSplitter

LED DisplayNo

PSU ConnectorNo

ShapeDesktop

MIDI InterfaceNo

Number Of Channels2

Inputs2

Outputs Per Channel2

DesignDesktop
