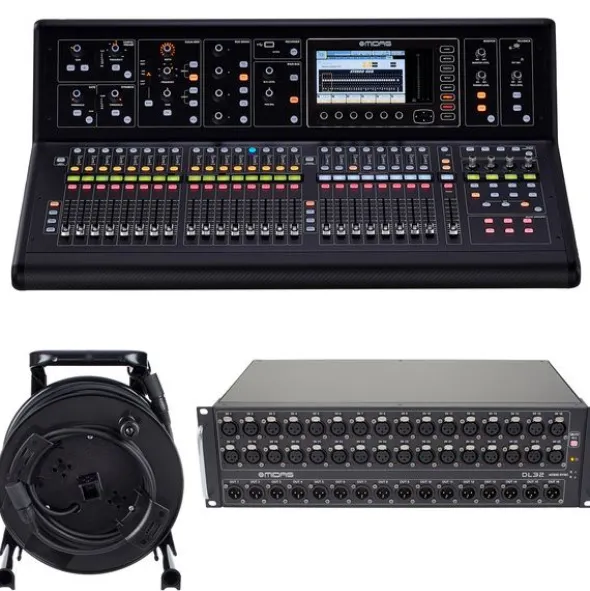

Midas M32 Live /DL32 Bundle

Bundle offer comprising

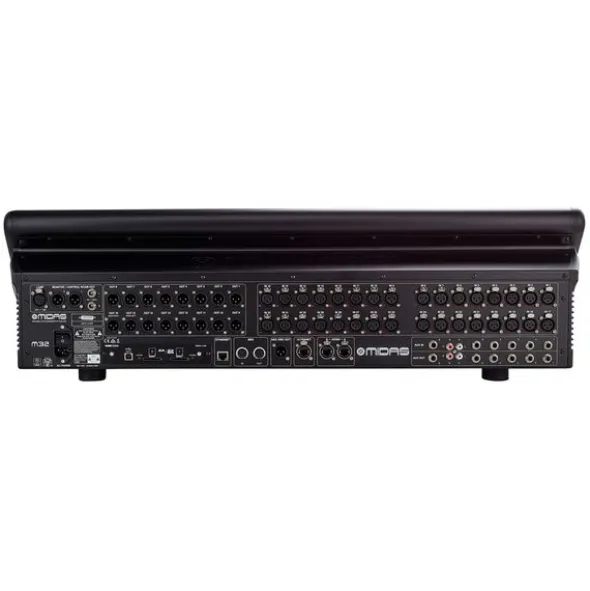

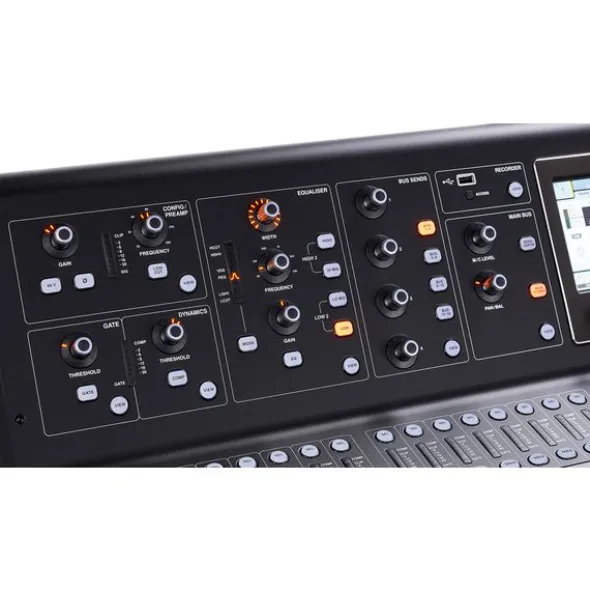

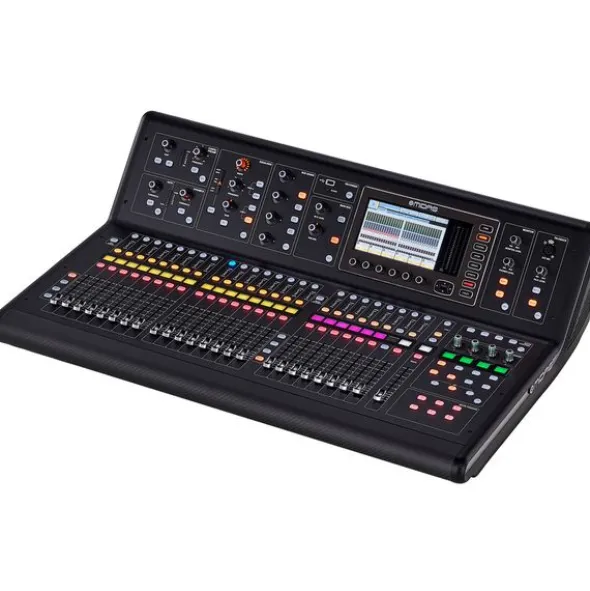

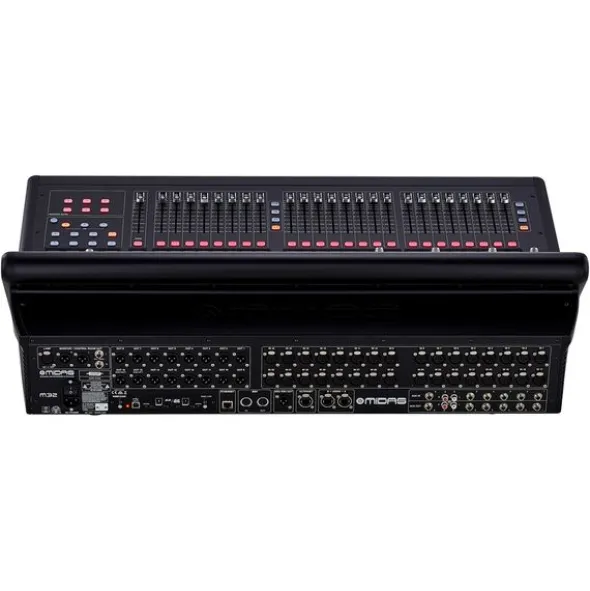

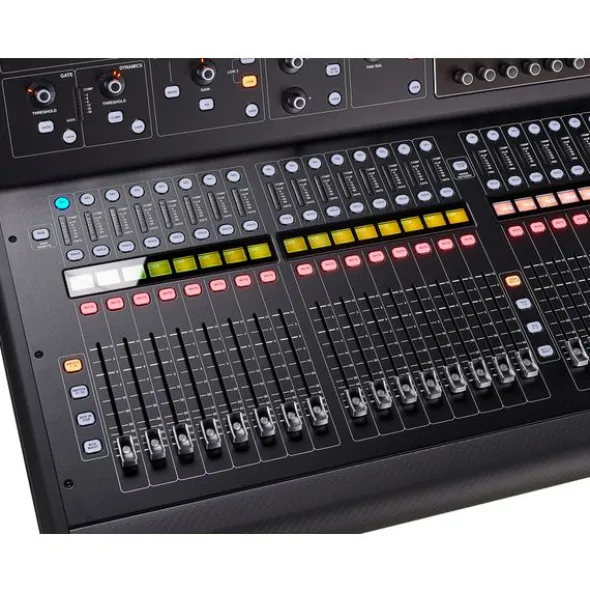

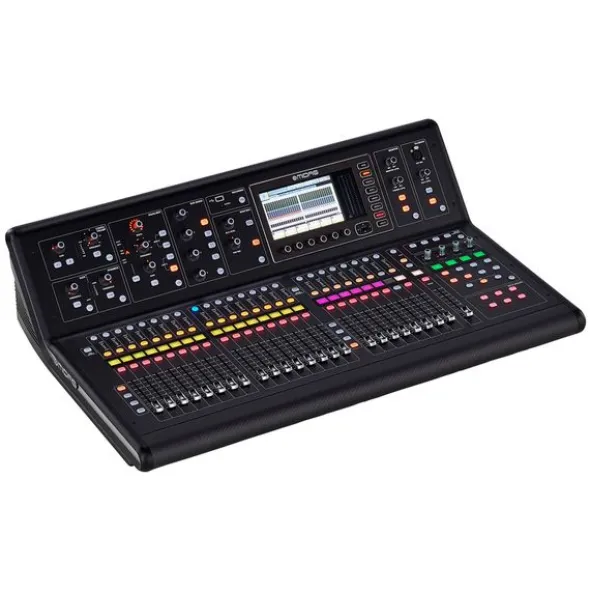

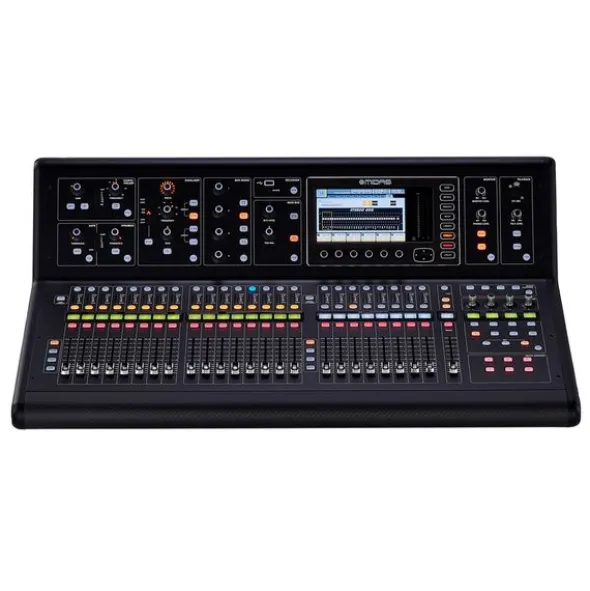

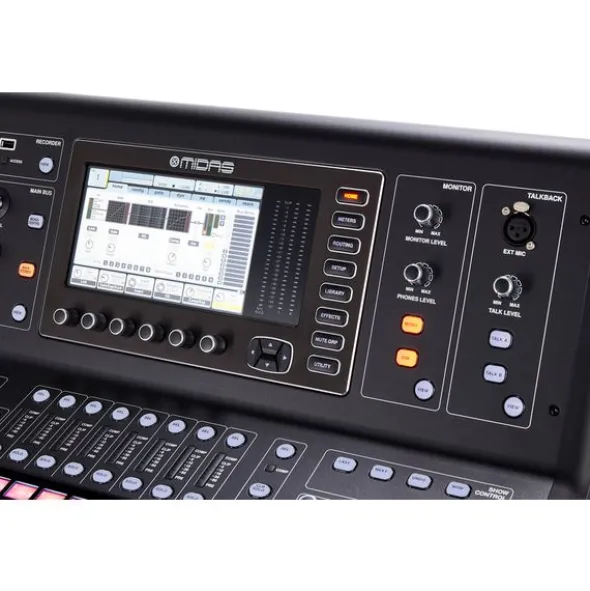

Midas M32 Live

Digital Mixing Console

• 32 XLR Inputs with Midas preamps
• 16 XLR outputs
• 25 Mix buses
• 8 DCA and 6 Mute groups
• 8 Stereo effects
• 40-Bit floating point DSP
• 25 x 100 mm Motor fader
• 7″ Colour display
• 32×32 USB Audio Interface
• DAW remote control
• Wireless Remote Control via IOS App
• Dimensions: 891 x 607 x 256 mm
• eight: 24.5 kg
• Includes DN32-Live Recording and Playback Card
• Suitable case: Article Nr. 454375 and Article Nr. 347869 (not included)

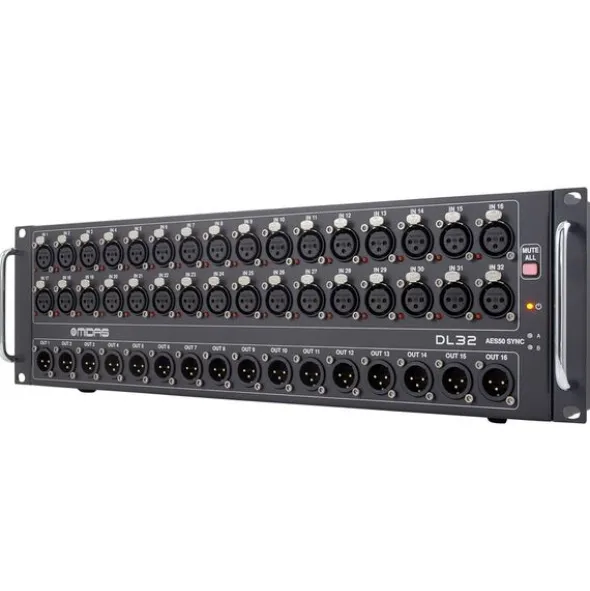

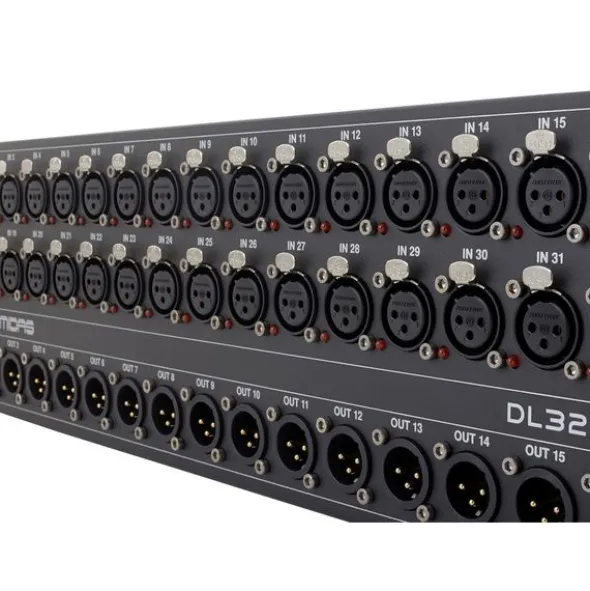

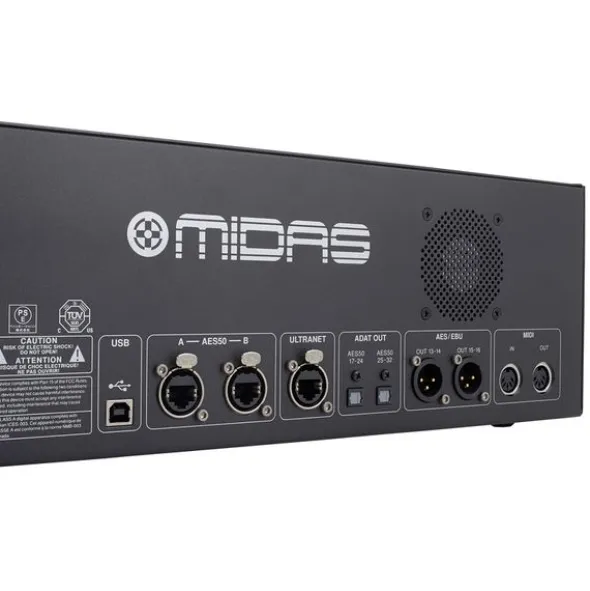

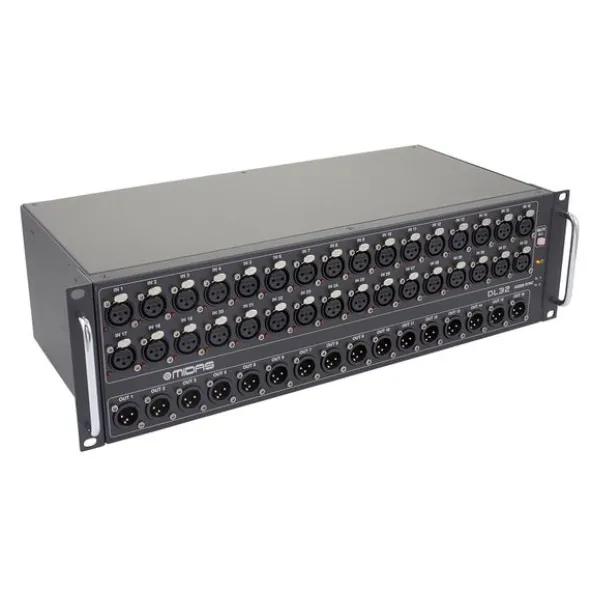

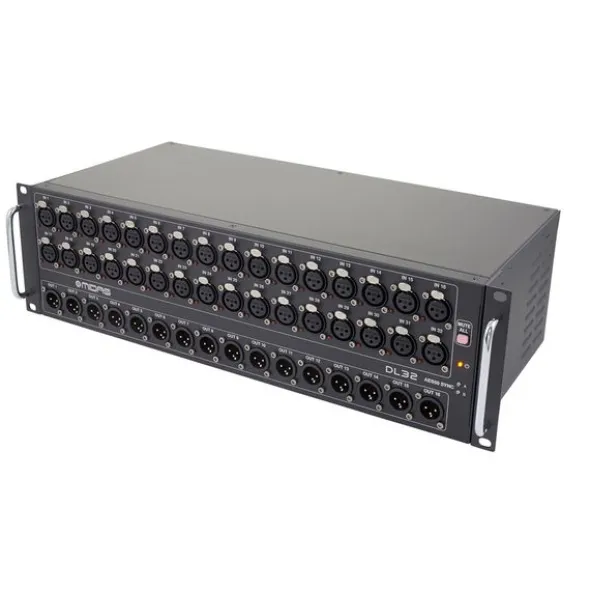

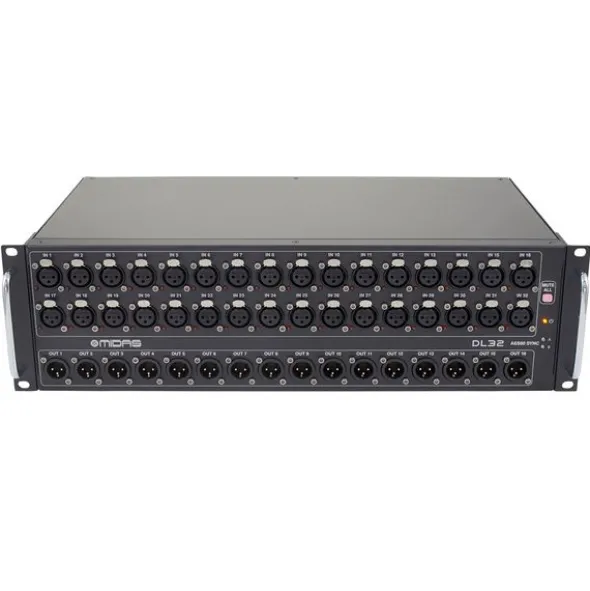

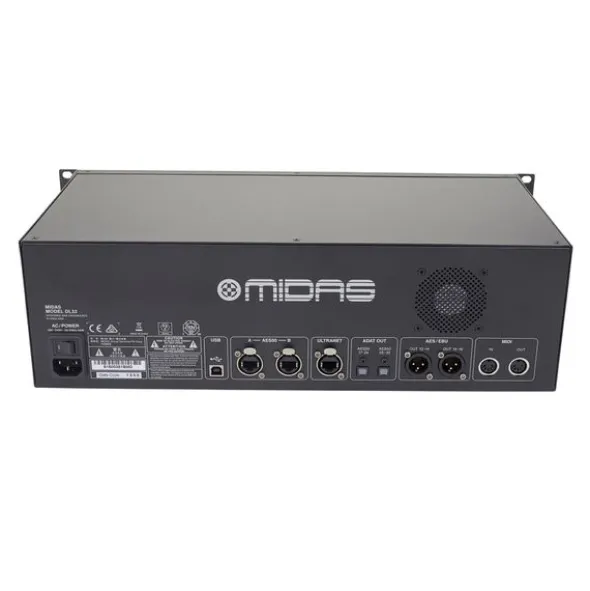

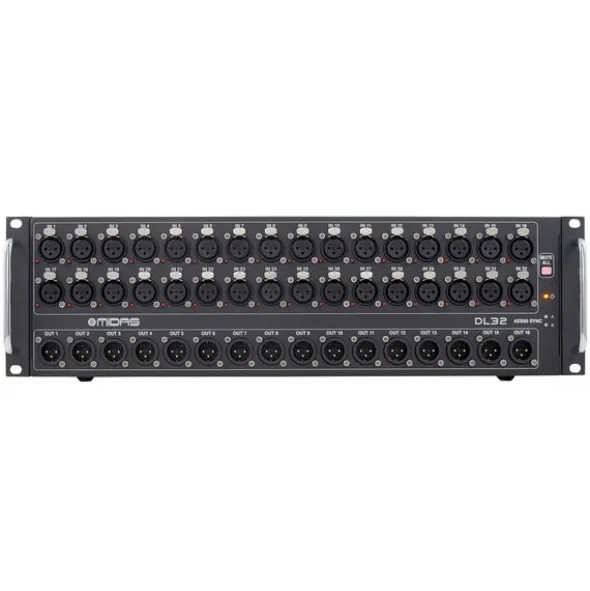

Midas DL32

Digital Stagebox

• 32 inputs
• 16 outputs
• AES50 network (Klark Teknik)
• Up to 100 m CAT-5e cable possible
• Dual ADAT output
• MIDI input and output
• USB port for firmware updates
• Depth of the metal brackets on the front: 2.2 cm
• Format: 19″/ 3U
• Installation depth: 21 cm

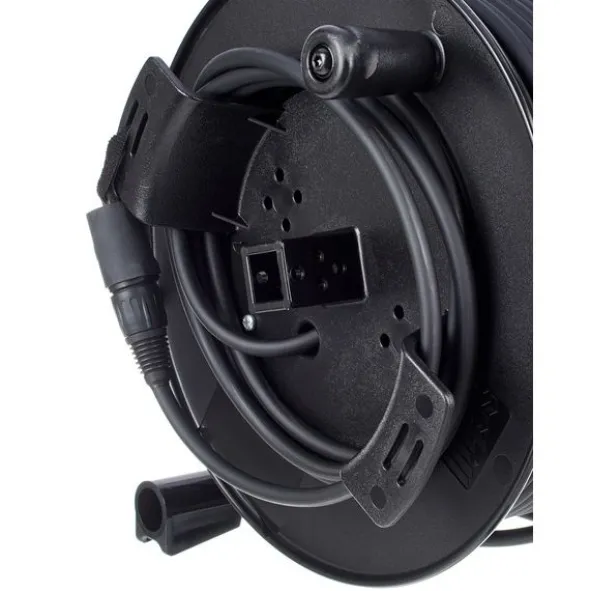

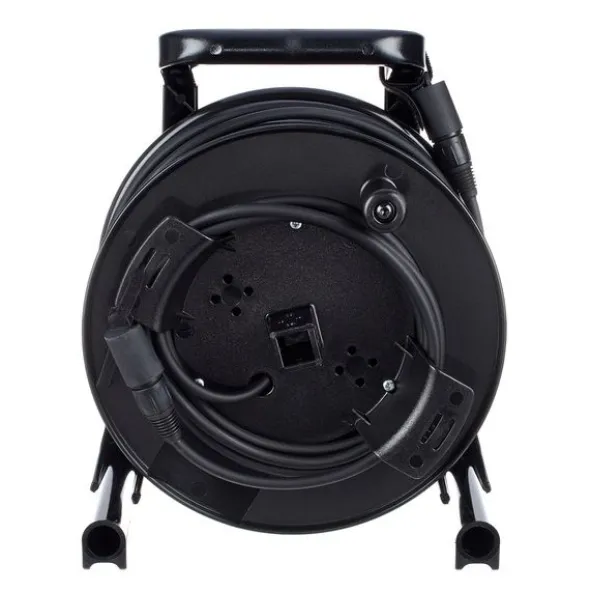

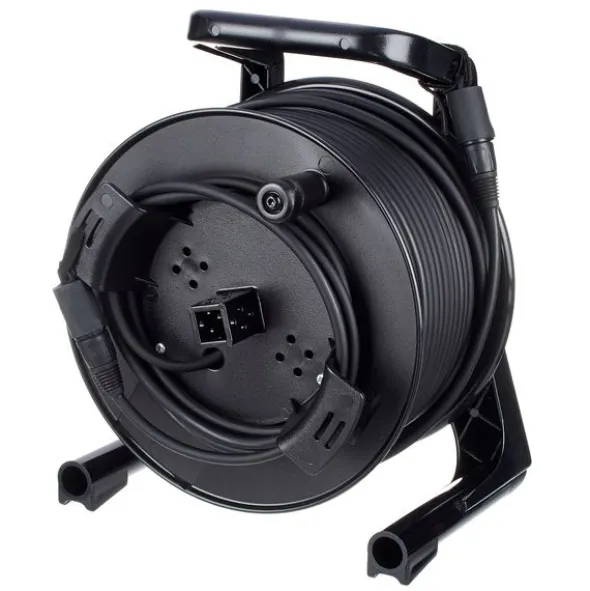

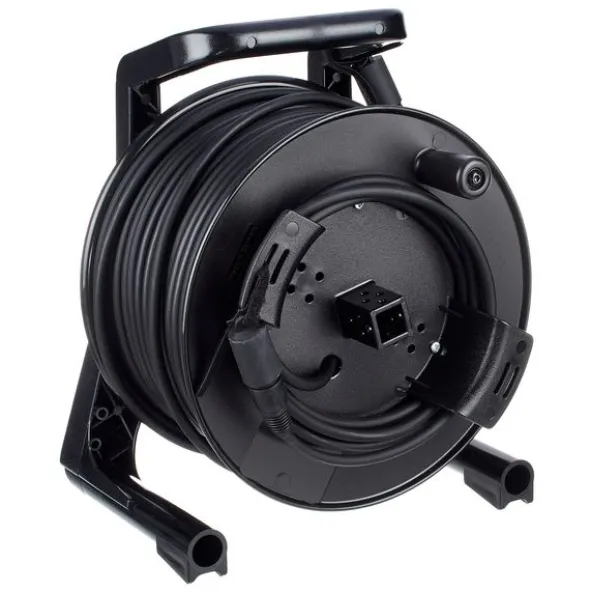

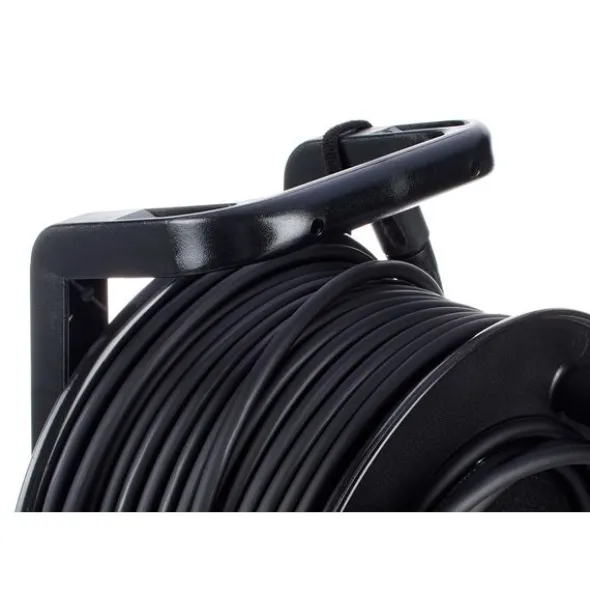

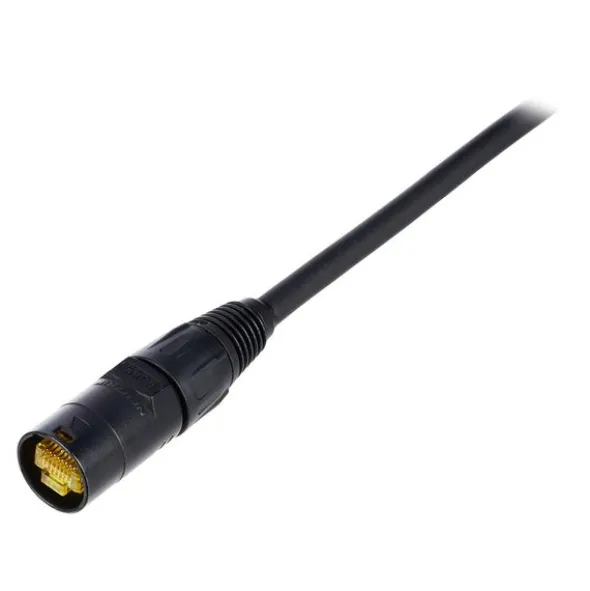

Klark Teknik NCAT5E-50m

Network Cable

• Suitable for touring
• Wear-resistant and shielded Cat5e network cable
• 50 Meter roll
• Robust and very flexible original Neutrik EtherFlex® Cat5e cable
• Dual shielding protects against EMI and ESD interference
• Tested for AES50 and EtherSound audio network

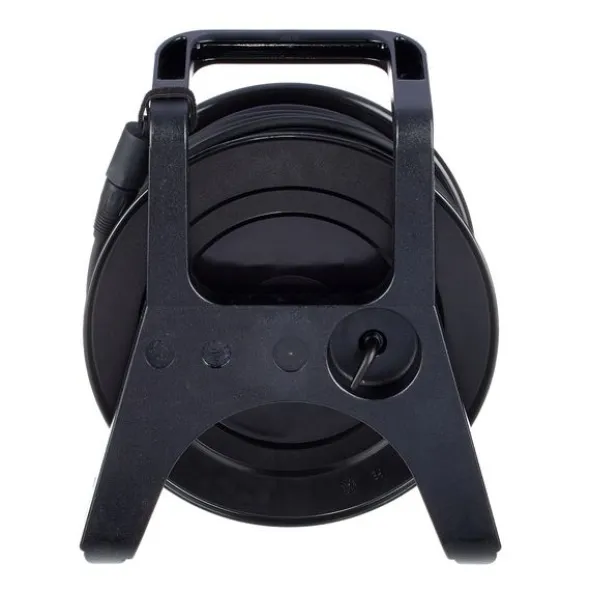

• Rugged, lightweight Schill cable drum with auxiliary winder and integrated brake
• Hirose RJ45 connections protected by Neutrik etherCON plug at both ends
• Rubber caps on etherCON connections for protection during transport

Disponível desdeJaneiro 2023

número de artigo559715

unidade de venda1peça(s)

Max.number of input channels32

Microphone Inputs65

Analog Line Inputs4

Analog Line Outputs16

Analog in/ out with plug-in card expandableYes

Digital in-/ outputs expandableYes

Word ClockNo

MotorfaderYes

Computer interfaceUSB

MIDI-interfaceNo

User InterfacePhysical/remote

Number of faders25

DSP Input channels40

DSP Output Channels24

Busses16

Number of Microphone Inputs32

Number of Mono Line Inputs70

Number of Stereo Line Inputs1

Physical outputs40

Digital stagebox connectionAES50

EthernetEthernet

HotspotNo

Multitrack RecordYes

Special FeaturesDN32-Live Recording and Playback Card

Soundcard interfaceUSB-B

integratated Player/Rec via USB/SDstereo

Recorder FormatWAV

Scribble StripsYes

RTANo

FX Processor8

31 Band EQ8

Delay InputYes

Delay OutputYes

Matrix6

DCA/VCA Groups8

MIDI InterfaceMidi-Din

Sample rate48 kHz

Monitor AppsYes

Separate Personal Monitor systemOptional

Expansion Card slots1

Digital ADATOptional

Digital SPDIFNo

Digital AES3/ASESEBYes

Digital MADIOptional

Digital DanteOptional

110V capableYes

CaseIncluded

19″ RackmountNo

Height256 mm

Width891 mm

Depth607 mm

Weight24,5 kg
