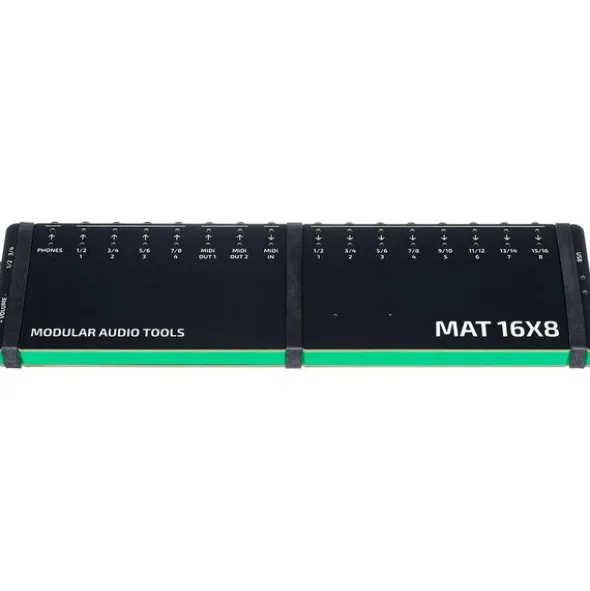

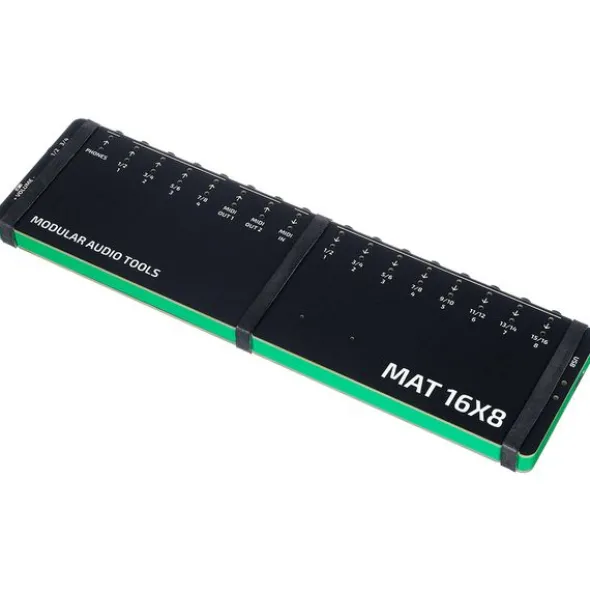

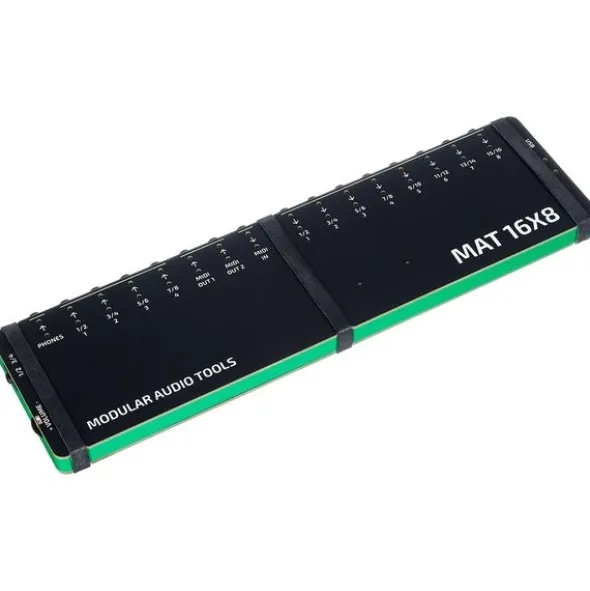

Modular Audio Tools MAT 16X8

USB Audio Interface for Mobile Applications

• Compact and lightweight
• 24 bit / 96 kHz AD/DA converter
• USB 2.0 class compliant
• Very low noise floor (110 dB SNR – Direct in, no preamps)

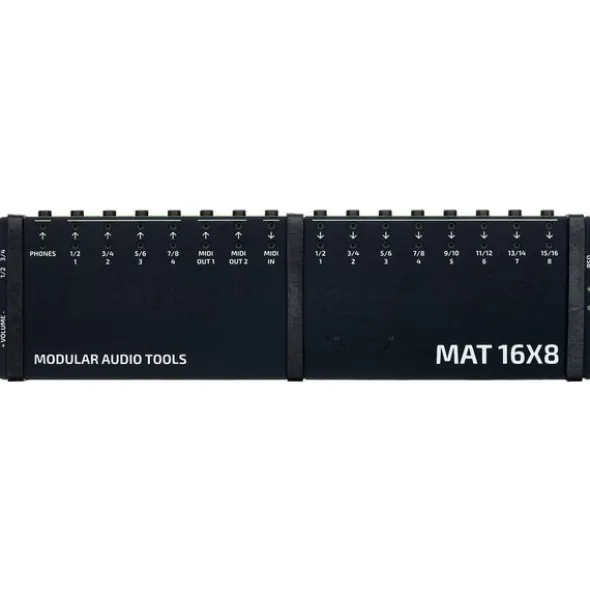

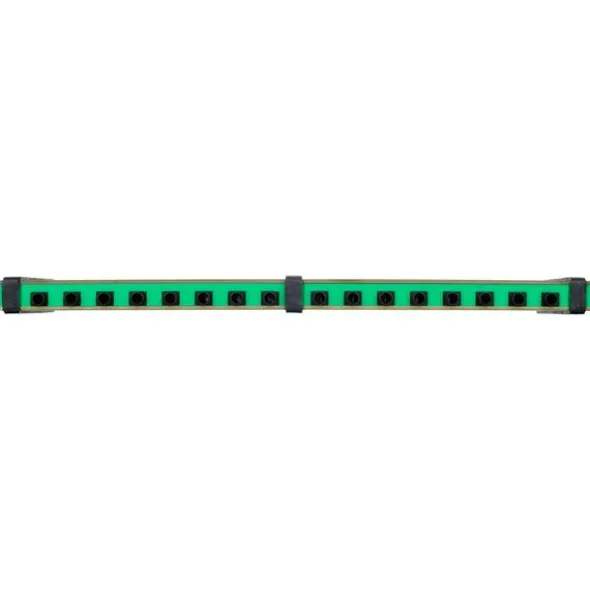

• 16 line inputs: 8 x 3.5 mm stereo mini-jack
• 8 line outputs: 4 x 3.5 mm stereo mini-jack

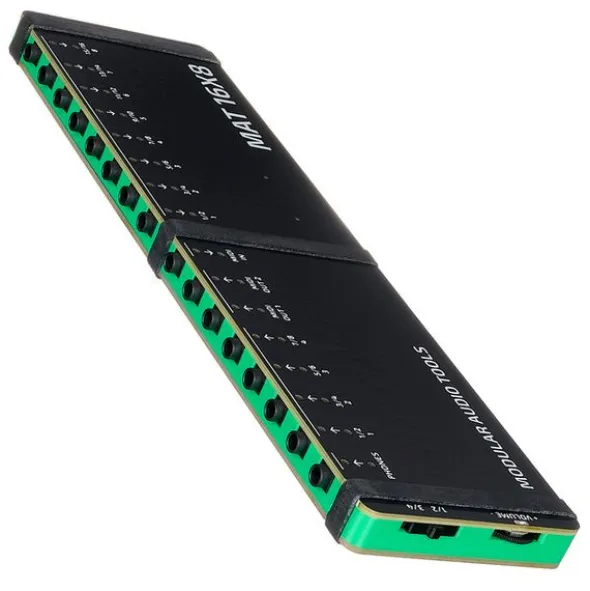

• Stereo headphone output: 3.5 mm mini jack, with volume control and pre-listening function for outputs 1/2 or 3/4
• 1 MIDI In: 3.5 mm mini jack, type A/B
• 2 MIDI out: 3.5 mm mini jack, type A
• Dimensions (W x D x H): 222 x 60 x 11 mm
• Weight: 135 g

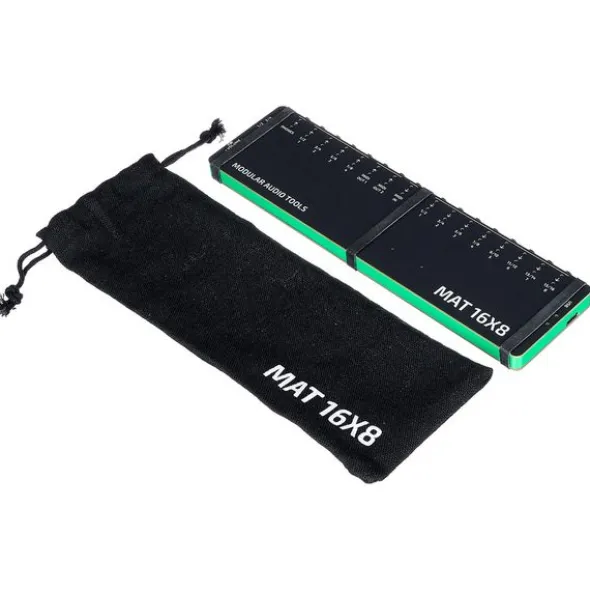

• Includes travel bag

Disponível desdeJulho 2026

número de artigo645315

unidade de venda1peça(s)

Recording / Playback Channels16×8

Number of Mic Inputs0

Number of Line Inputs16

Instrument Inputs0

Number of Line Outs8

Headphone Outs1

Phantom PowerNo

Number of S/PDIF Connectors0

Number of ADAT Connectors0

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceYes

Word ClockNo

Max. Sampling Rate in kHz96 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredYes

Incl. power supplyNo

USB Version2.0

Width222 mm

Depth60 mm

Height11 mm

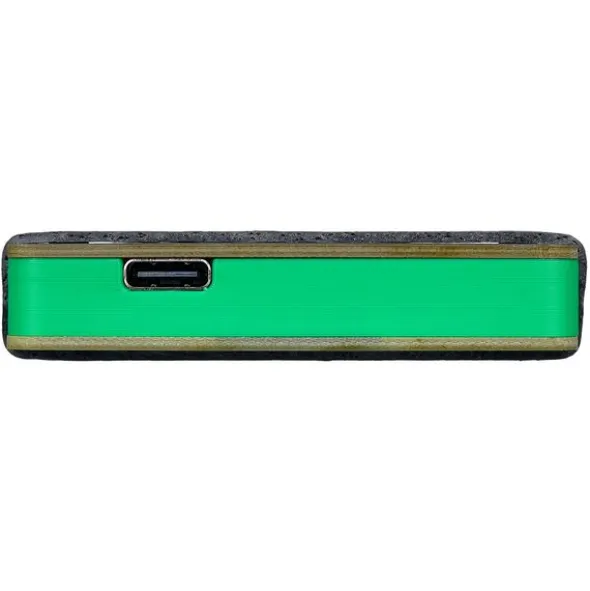

Connection FormatUSB port Type C

Included in deliveryCarrying Bag
