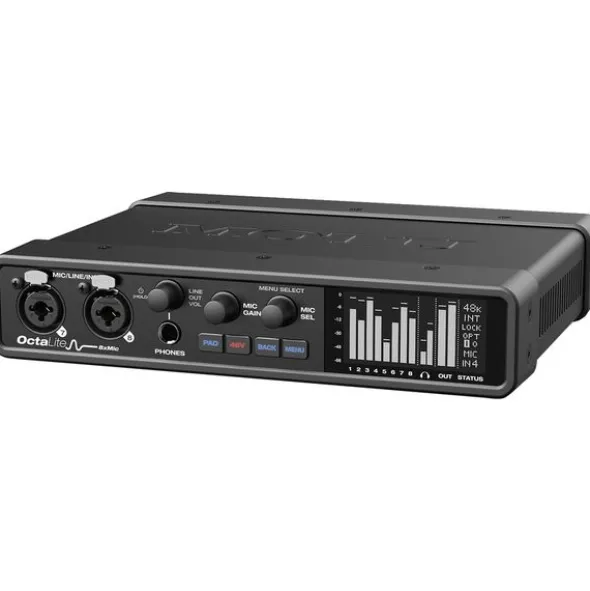

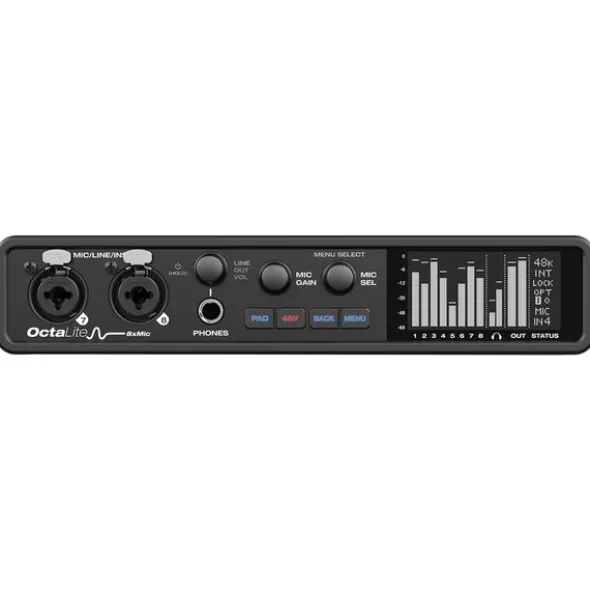

MOTU OctaLite

USB Audio Interface and Optical Expander

• 16 x 12 USB audio interface with DSP mixer and built-in effects processing
• Can be used as a USB audio interface, a standalone mixer or an optical expander
• ESS Sabre32 Ultra DAC-Technology
• 24 Bit / 44.1 – 192 kHz
• 8 microphone preamplifiers with Burr Brown operational amplifiers
• Up to 74 dB preamplification
• 48 V phantom power
• -129 dB input noise
• 125 dB dynamic range at the analogue outputs
• Ultra-low-latency operation for DAWs and monitoring (approx. 2 ms)
• Hardware-based direct monitoring without placing an additional load on the computer
• DSP mixer with independent mixes for monitor outputs and headphones
• 3 additional virtual mix buses for routing and mixing on the computer
• Integrated parametric 4-band EQ, compressor, gate and reverb
• Loopback function for streaming and podcasting
• Guitar re-amping with a virtually latency-free signal path
• DC-coupled outputs for CV control of modular synthesisers
• CueMix 5 app for remote control of the mixing desk and device settings
• Network management for multiple devices
• Robust steel housing
• Suitable for rack mounting (mounting kit available separately)
• High-resolution OLED display
• Compatible with macOS and Windows (driver required)
• Audio Class Compliant for macOS and iOS
• Dimensions (W x D x H): 220 x 175 x 45 mm
• Weight: 1.36 kg
• Includes MOTU Performer Lite DAW software

Connections:

• 8 x Combo-XLR/jack Mic/Line/Hi-Z
• 2 x balanced 6.3 mm jack outputs
• 1 x 6.3 mm jack headphone output
• 1 x optical TOSLink ADAT input
• 1 x optical TOSlink ADAT output
• 1 x additional optical SMUX output (for channels 5–8 at 88.2 or 96 kHz)
• USB-C 2.0 (Audio Class Compliant)

Disponível desdeOutubro 2026

número de artigo655980

unidade de venda1peça(s)

Recording / Playback Channels16×12

Number of Mic Inputs8

Number of Line Inputs8

Instrument Inputs8

Number of Line Outs2

Headphone Outs1

Phantom PowerYes

Number of S/PDIF Connectors0

Number of ADAT Connectors3

Numer of AES/EBU Connectors0

Number of MADI Connectors0

Ethernet0

Other ConnectorsNone

MIDI interfaceNo

Word Clock0

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredNo

Incl. power supplyYes

USB Version2.0

Width220 mm

Depth175 mm

Height45 mm

Connection FormatUSB port Type C

Zero latency monitoringYes
