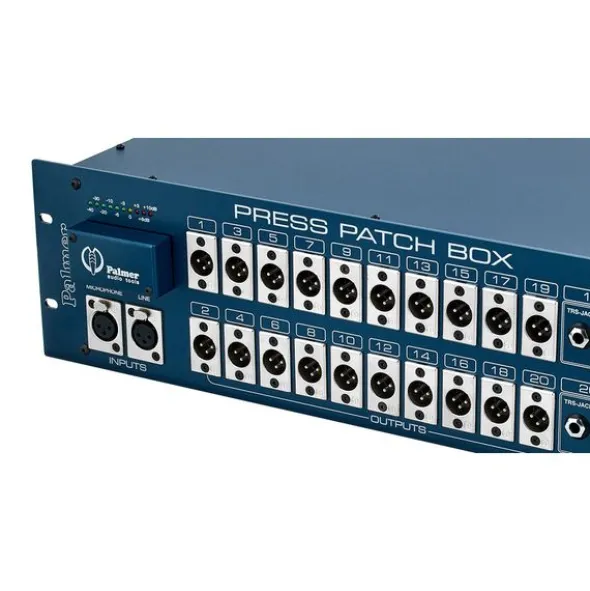

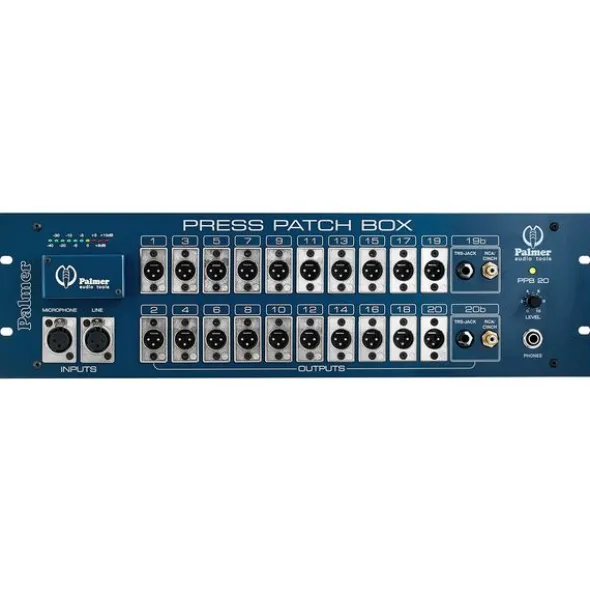

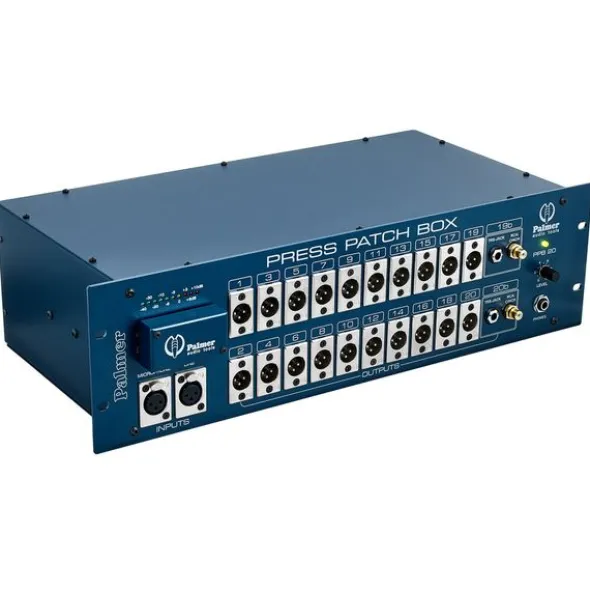

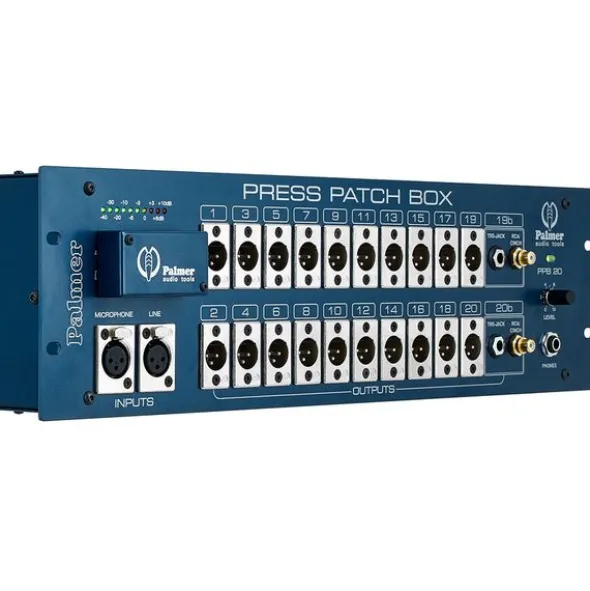

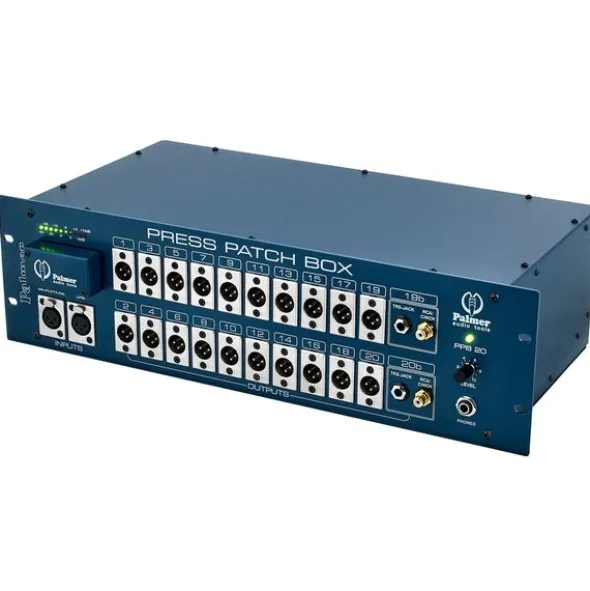

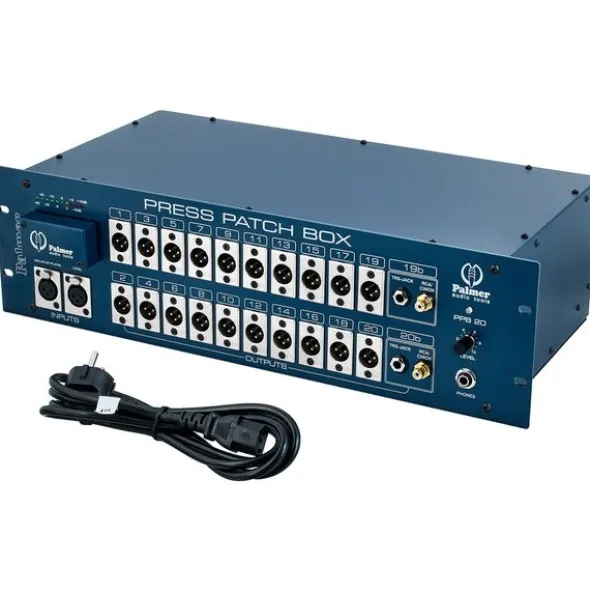

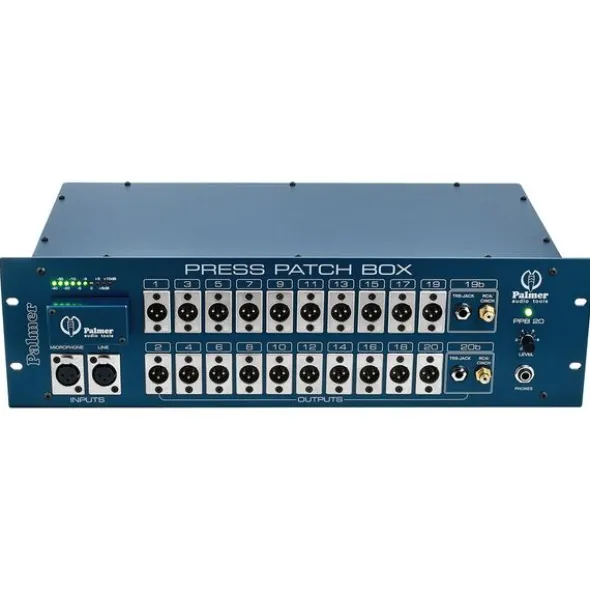

Palmer PPB 20 Press-Box

Press Box

• Audio distribution
• Is used for press conferences to distribute 1 red microphone to 20 send stations or recording devices galvanically separated

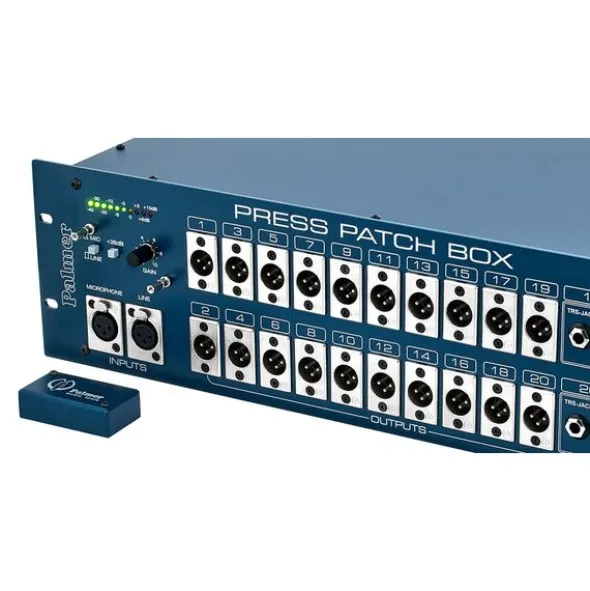

• 2 x Inputs: XLR / f (one balanced input for microphone and line level, optionally switchable)

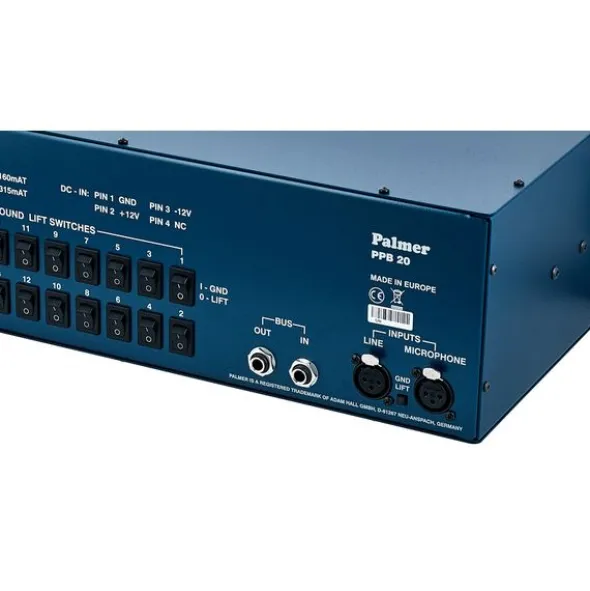

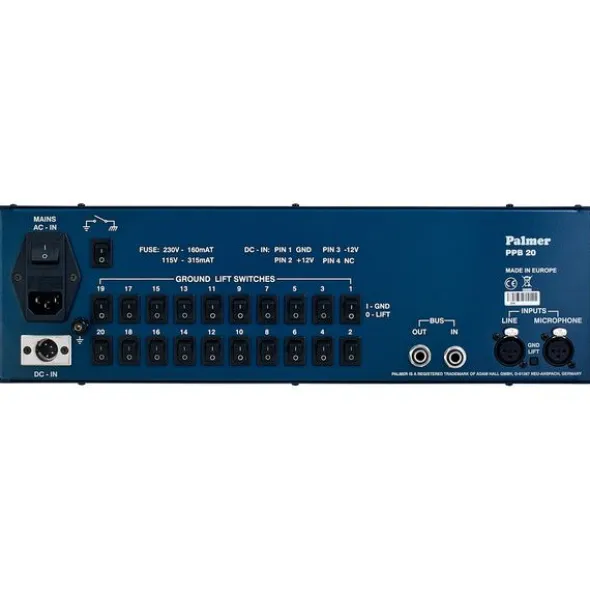

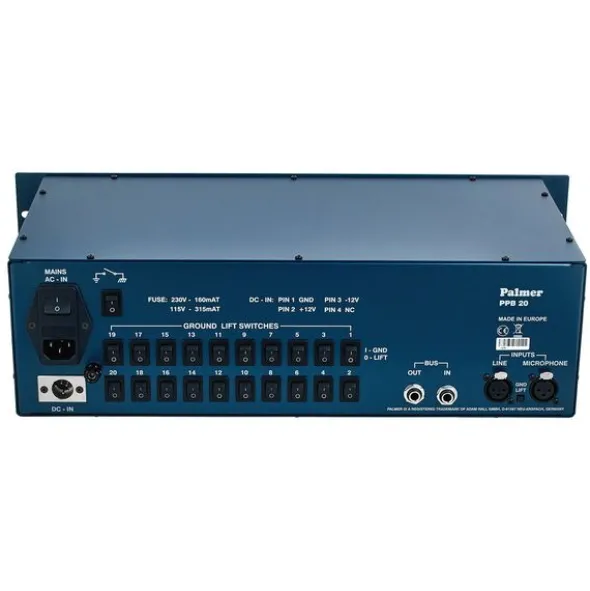

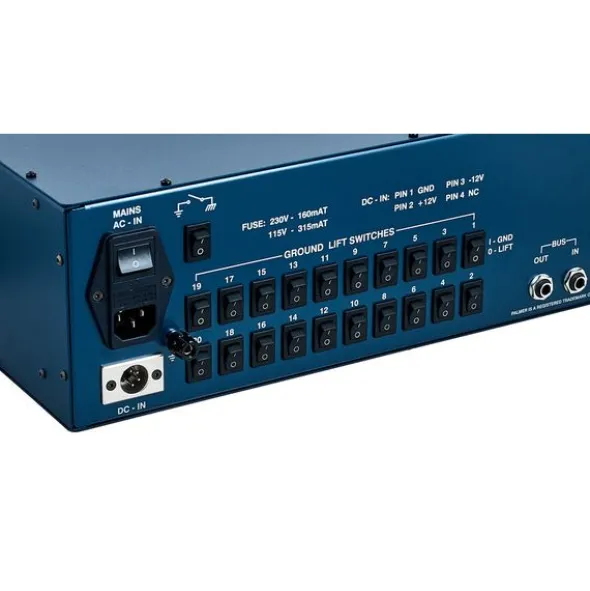

• GND lift switch

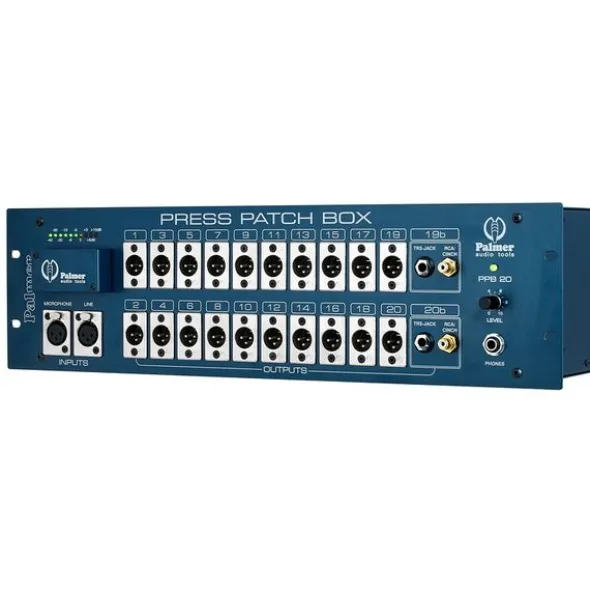

• Outputs: 20 XLR / m, transformer-balanced with GND-lift switch, Nominal output level: +4 dBu at 0 dB
• Display of the LED chain
• Maximum output level: +20 dBu
• Nominal output impedance: 300-ohm

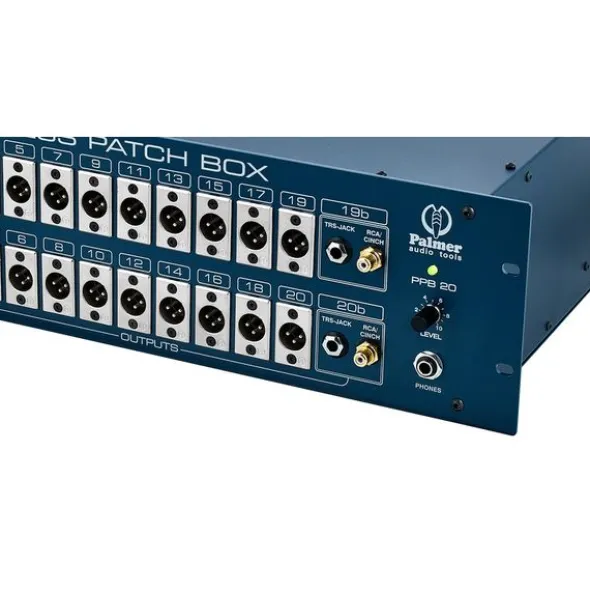

• 2 x Stereo connector balanced / unbalanced, nominal level -10dBu
• 2 x RCA jack unbalanced isolated / ungrounded, nominal level -10dBu
• Headphone output
• Power supply +/- 12VDC or 230VAC
• Size: 19″/ 3U
• 5 Years manufacturer’s guarantee
