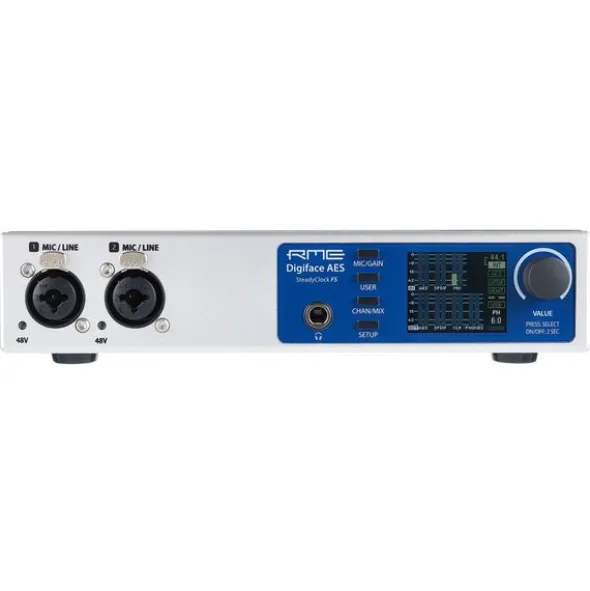

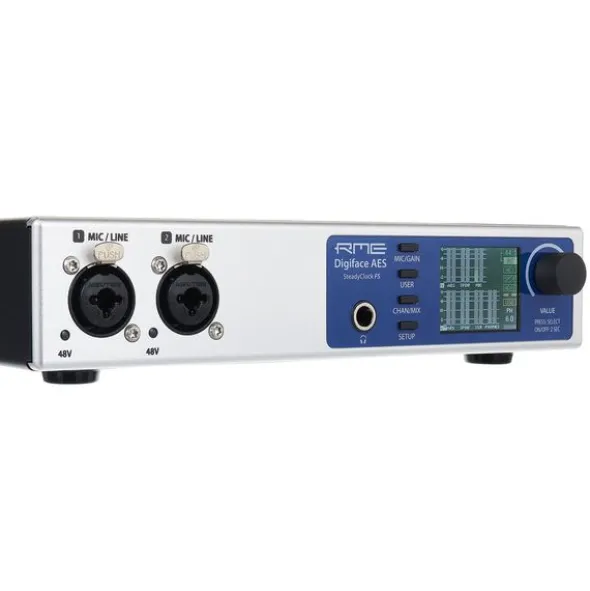

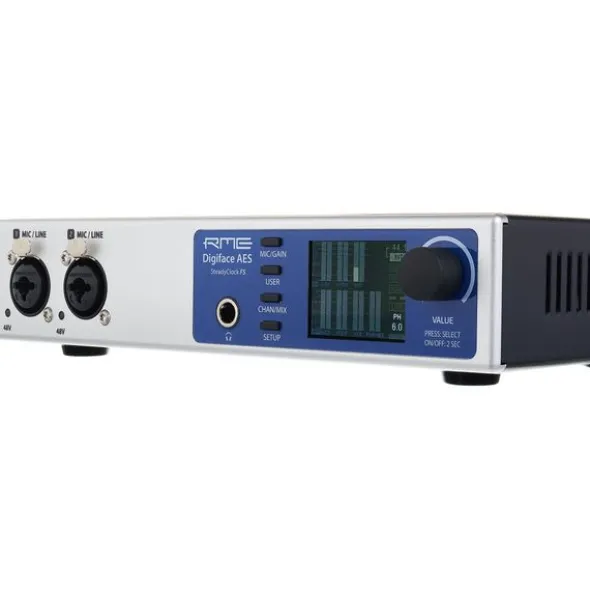

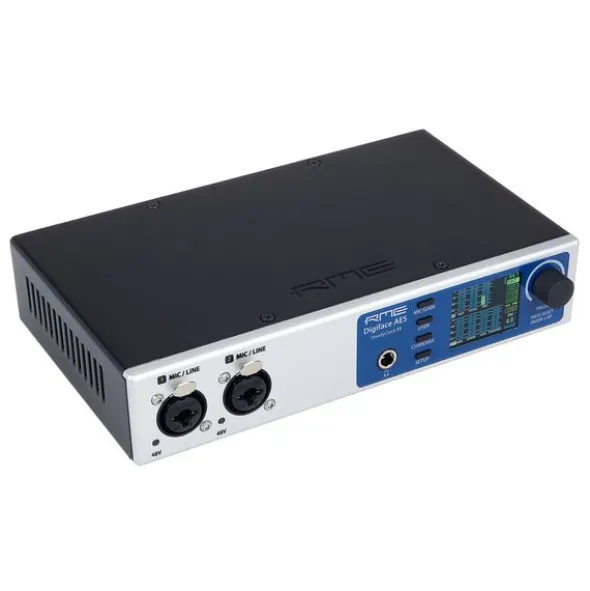

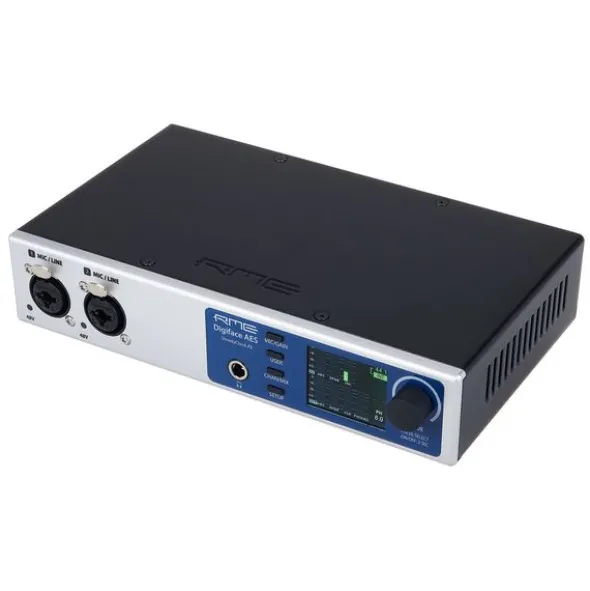

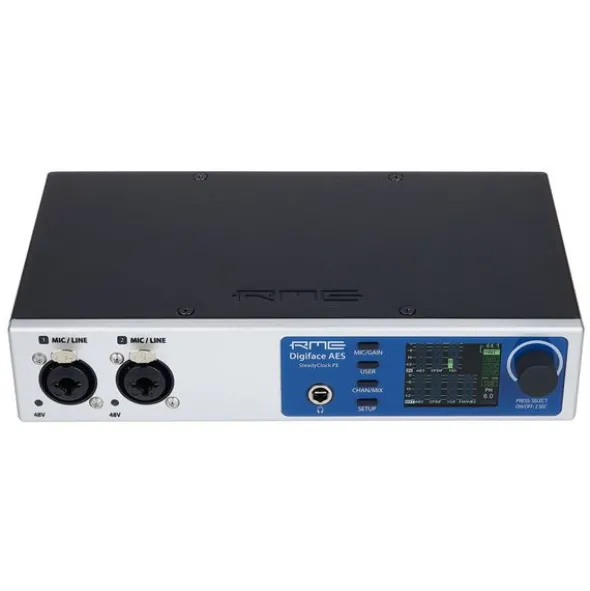

RME Digiface AES

USB 2.0 Audio Interface

• 192 kHz
• 14 Inputs and 16 outputs
• Built-in sample rate converter can be switched to one of the 3 inputs
• SteadyClock FS
• Stand-alone operation possible
• Up to 6 unit configurations can be saved
• Built-in parametric EQ
• Flexible playback/monitoring via TotalMix FX
• Colour display
• Bus-powered
• +48 V phantom power switchable
• Remote controllable via ARC USB (not included)

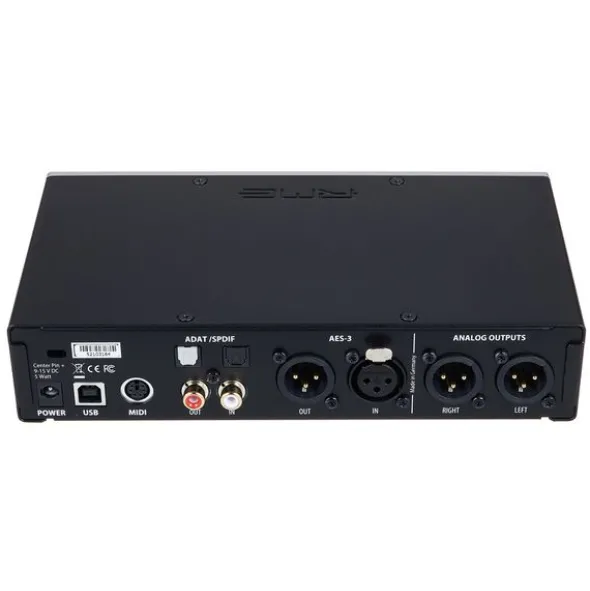

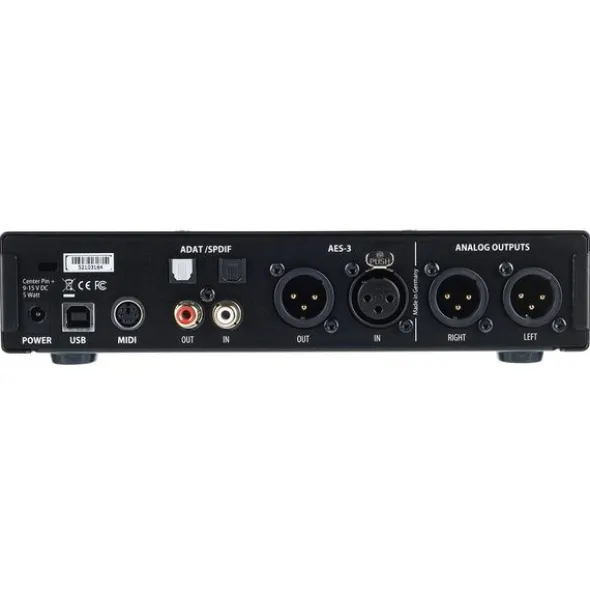

Connectors:

• 2 XLR / 6.3 mm jack combo mic/line inputs
• 2 XLR line outputs
• XLR AES input and output
• Coaxial SPDIF input and output
• Optical ADAT / SPDIF input and output
• MIDI input and output
• USB 2.0

Disponível desdeFevereiro 2023

número de artigo558957

unidade de venda1peça(s)

Recording / Playback Channels14×16

Number of Mic Inputs2

Number of Line Inputs2

Instrument Inputs0

Number of Line Outs2

Headphone Outs1

Phantom PowerYes

Number of S/PDIF Connectors2

Number of ADAT Connectors1

Numer of AES/EBU Connectors1

Number of MADI Connectors0

Ethernet0

Other ConnectorsUSB

MIDI interfaceYes

Word ClockNo

Max. Sampling Rate in kHz192 kHz

Max. Resolution Rate in Bits24 bit

USB Bus-PoweredYes

Incl. power supplyYes

USB Version2.0

Width215 mm

Depth44 mm

Height130 mm

Connection FormatUSB port Type B

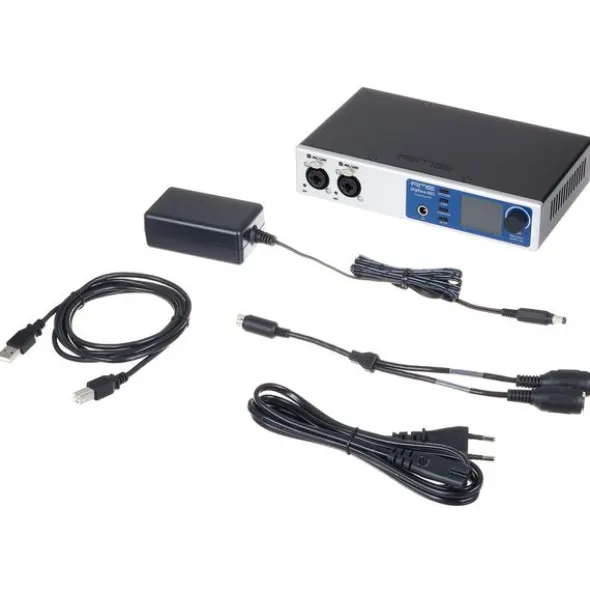

Included in deliveryPower Supply, Power Cable, USB-A to USB-B Cable, MIDI In/Out Adaptor Cable

Zero latency monitoringYes
