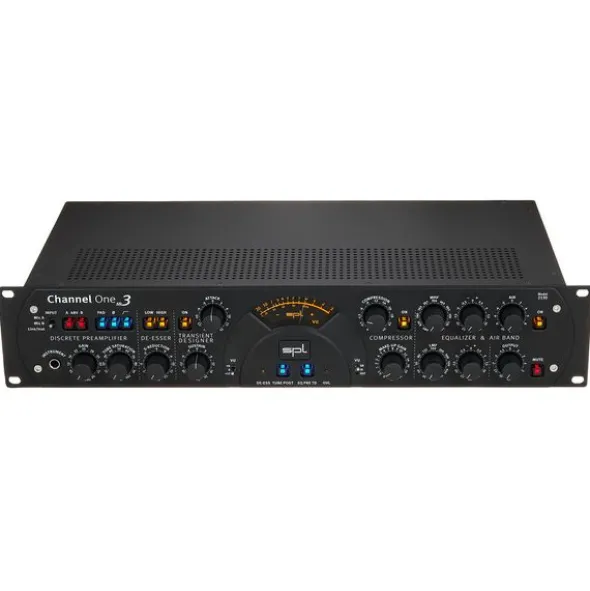

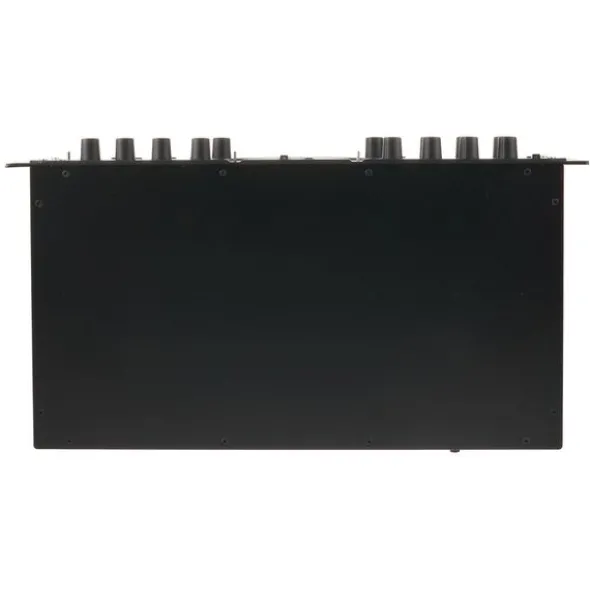

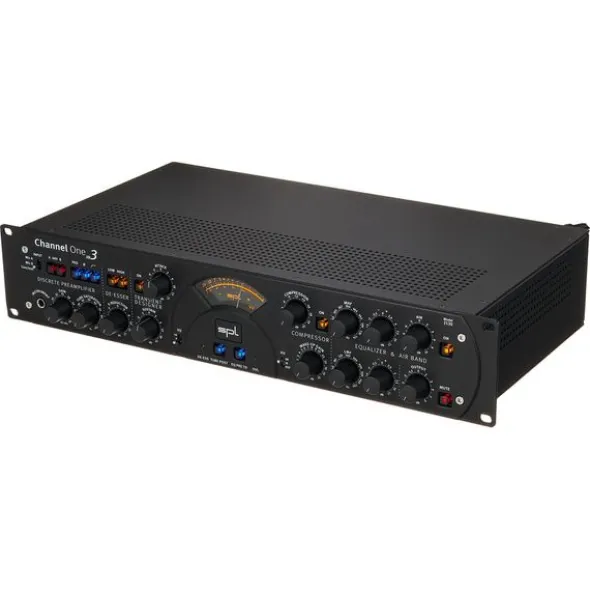

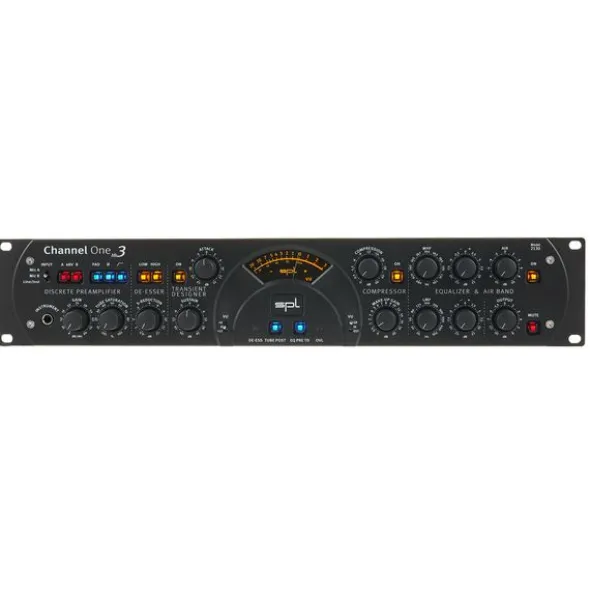

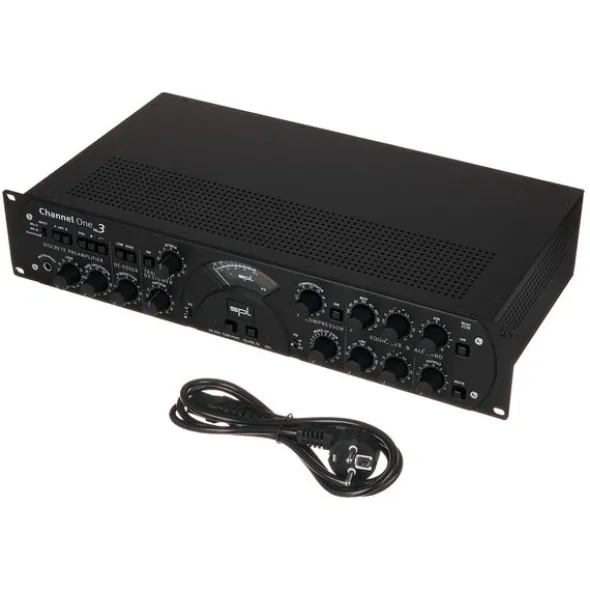

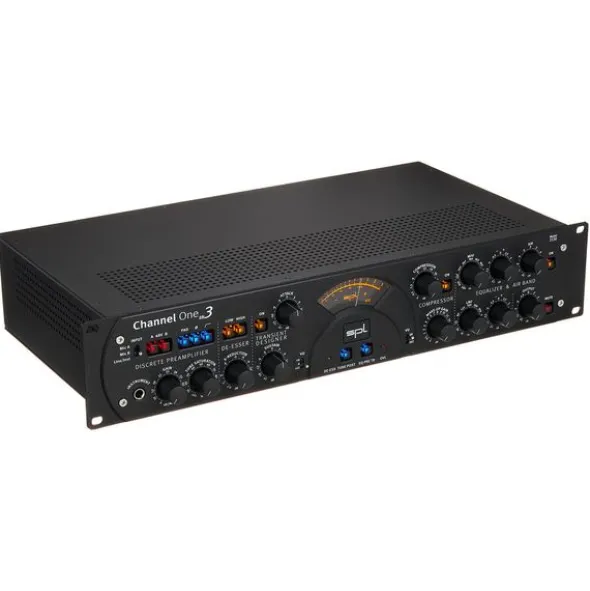

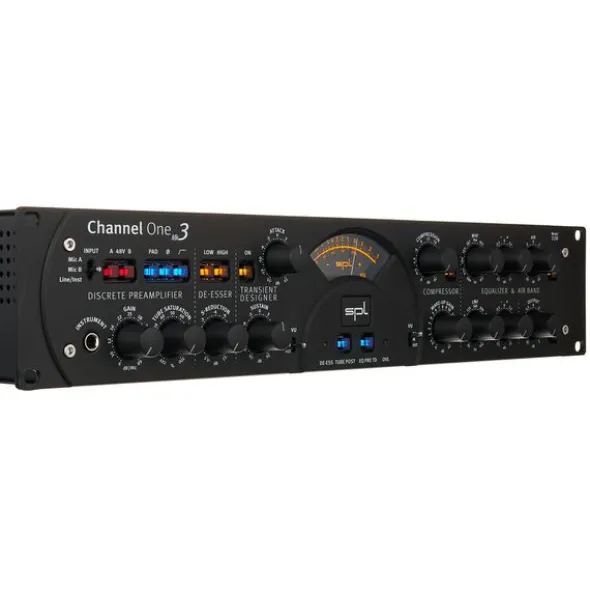

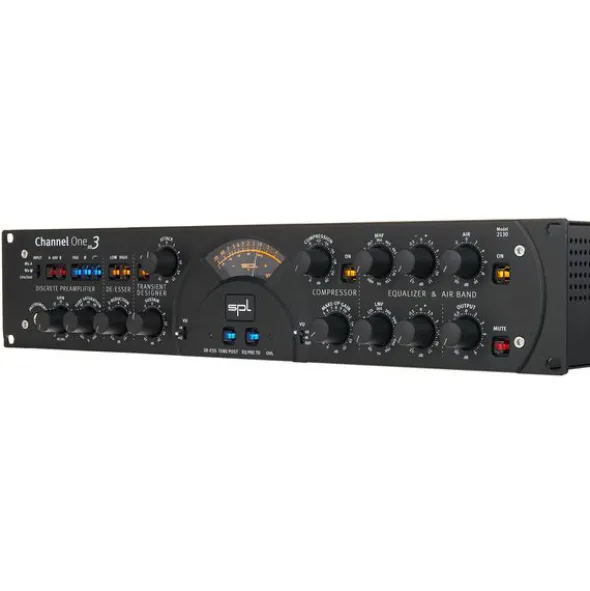

SPL Channel One Mk3 Premium

Channel Strip

• Microphone inputs and output Out 1 with Lundahl transformer
• 1-Channel tube preamp with tube saturation, de-esser, transient designer, compressor and EQ
• Discrete preamplifier with 68 dB gain
• Simultaneous connection of two microphones with separately switchable 48V phantom power supply for simple A/B comparisons without reconnection
• 20 dB Pad
• Phase inversion and high-pass filter switchable at 80 HZ
• 1x XLR line input with adjustable gain from -20 dB to +16 dB
• 1x 6.3 mm Jack instrument input adjustable from -6 dB to +30 dB
• Tube saturation determines the degree of tube saturation
• Tube Post option switches the Tube Saturatio after the EQ stage and before the output stage
• De-esser with adjustable S-reduction
• Transient Designer with attack and sustain controls for envelope editing
• Compressor with adjustable threshold via compression control and make-up gain
• Equaliser with semi-parametric low/mid and mid/high bands and Air Band with centre frequency at 19,000 kHz
• An illuminated VU meter visualises the input level, output level and gain reduction

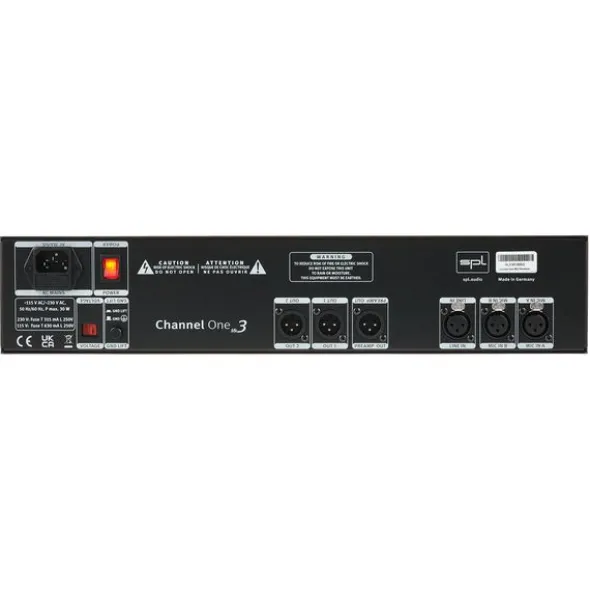

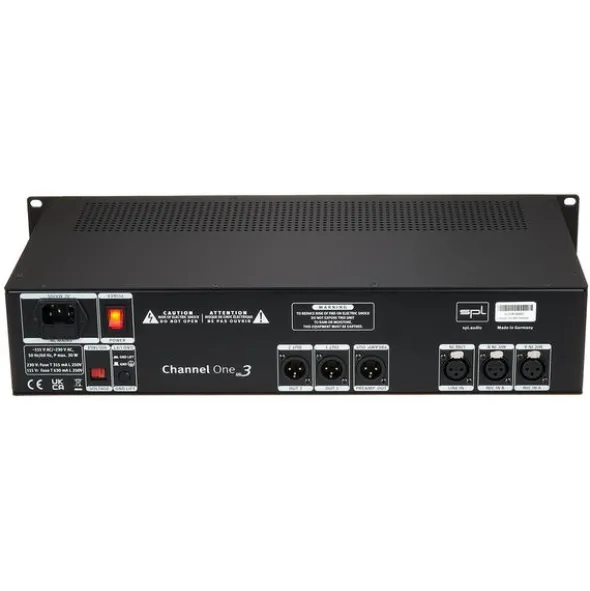

• Two XLR outputs connected in parallel for back-up or emergency systems
• 1x XLR Preamp Out picks up the signal directly after pre-amplification and can be used simultaneously with Out 1 and 2
• Dimensions: 482 x 88 x 210 mm
• Weight: 6 kg

Disponível desdeJaneiro 2024

número de artigo582789

unidade de venda1peça(s)

Channels1

Number of microphone inputs2

Instrument inputYes

TubesYes

Compressor/LimiterYes

EqualizerYes

De-EsserYes

Phantom powerYes

Phase ReverseYes

External effect loopsYes

Analogue OutputsXLR

Digitale OutputsNone

Headphone connectionYes

Level MeterNo

Design19″ / 2U
