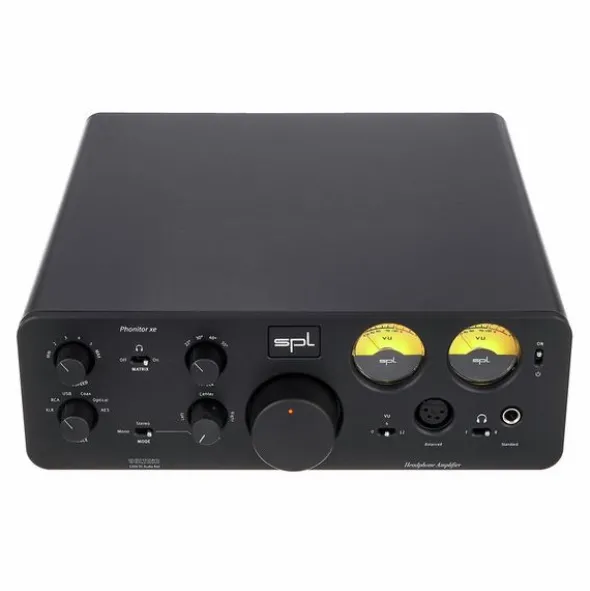

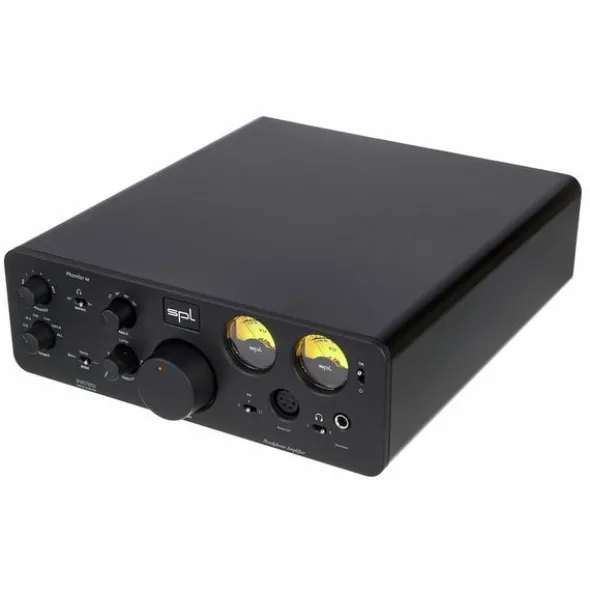

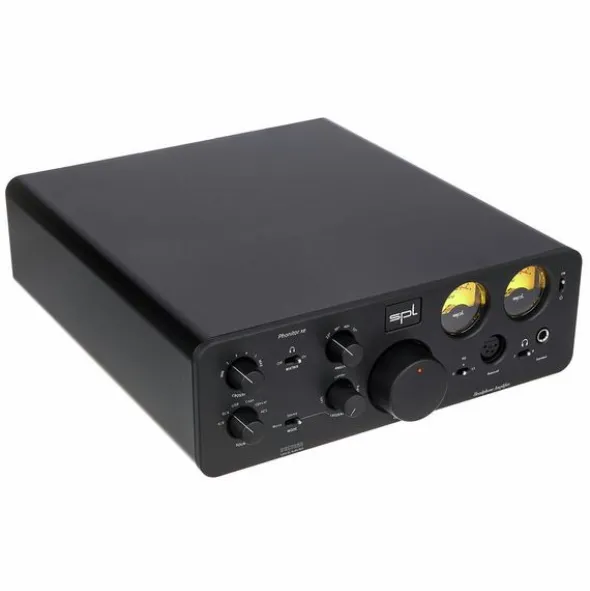

SPL Phonitor xe black

Headphone Amplifier

• Suitable for headphones with a jack plug and balanced headphones with a 4-pin XLR plug

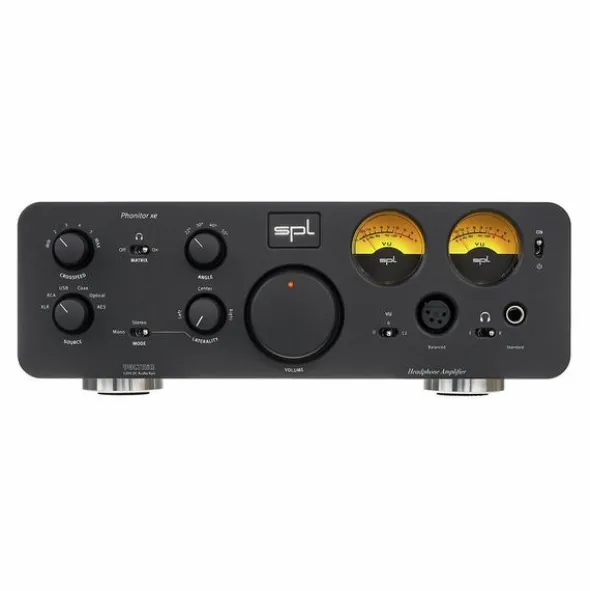

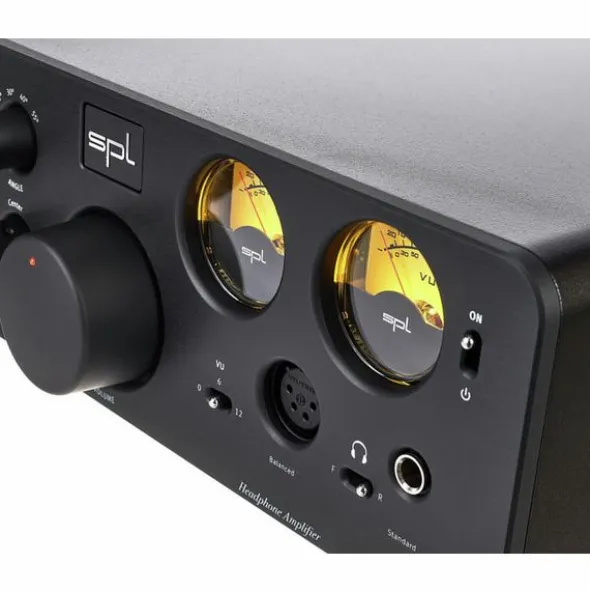

• 2 VU meters for left and right audio channels
• Laterality regulation for detailed balancing
• MODE switch for mono / stereo switching
• With Phonitor Matrix for fatigue-free listening

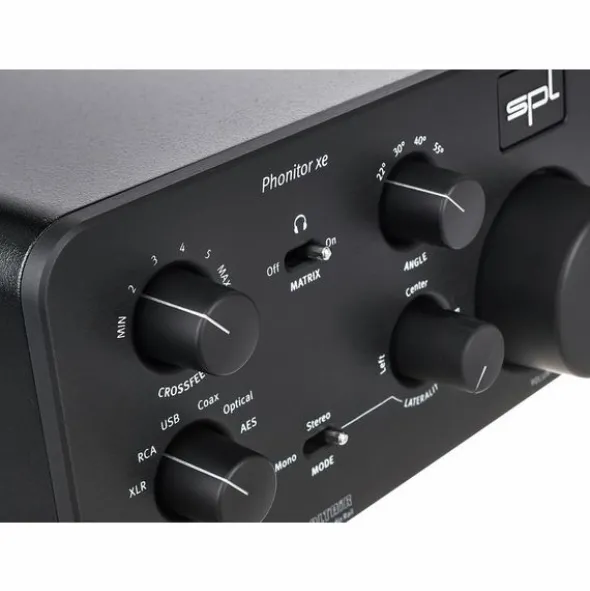

• Crossfeed control for level and frequency adjustment of the left and right audio channels
• Angle control for determining the interaural time difference

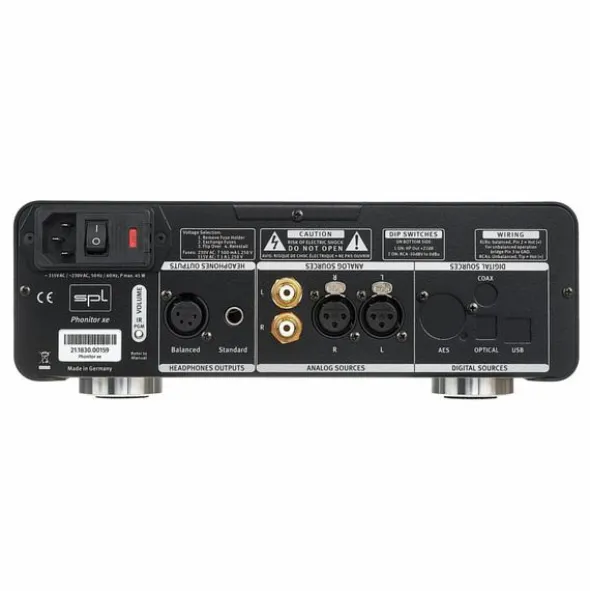

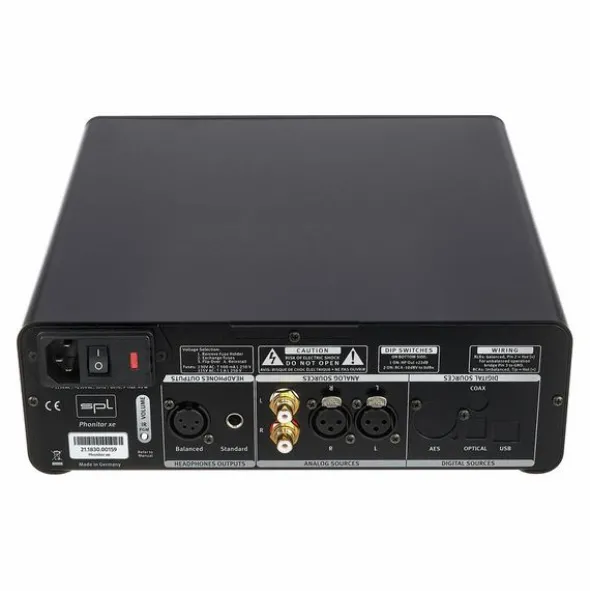

• Analog inputs: 2x XLR (female, balanced), 2x RCA (unbalanced)
• Headphone output: 1x TRS (6.3 mm jack), 1x XLR (4-pin RCA)
• Output power (TRS): 2x 5 W (at 250 Ohm)
• Dynamic range (TRS): 135.5 dB
• Output power (4-pin XLR): 2x 3.5 W (at 250 Ohm)
• Dynamic range (4-pin XLR): 130.5 dB
• Frequency range: 10Hz – 300kHz (-3dB)
• THD + N (10Hz – 22kHz, 0dBu): 0.00082%
• Linear power supply with toroidal transformer
• Power consumption: max. 40VA
• Stand-by power consumption: <0.3W
• Dimensions (W x H x D): 278 x 100 x 300 mm
• Weight: 4.9 kg
• Colour: Black
• Made in Germany
